Summary of Contents for Humandata USB-029H2-RP

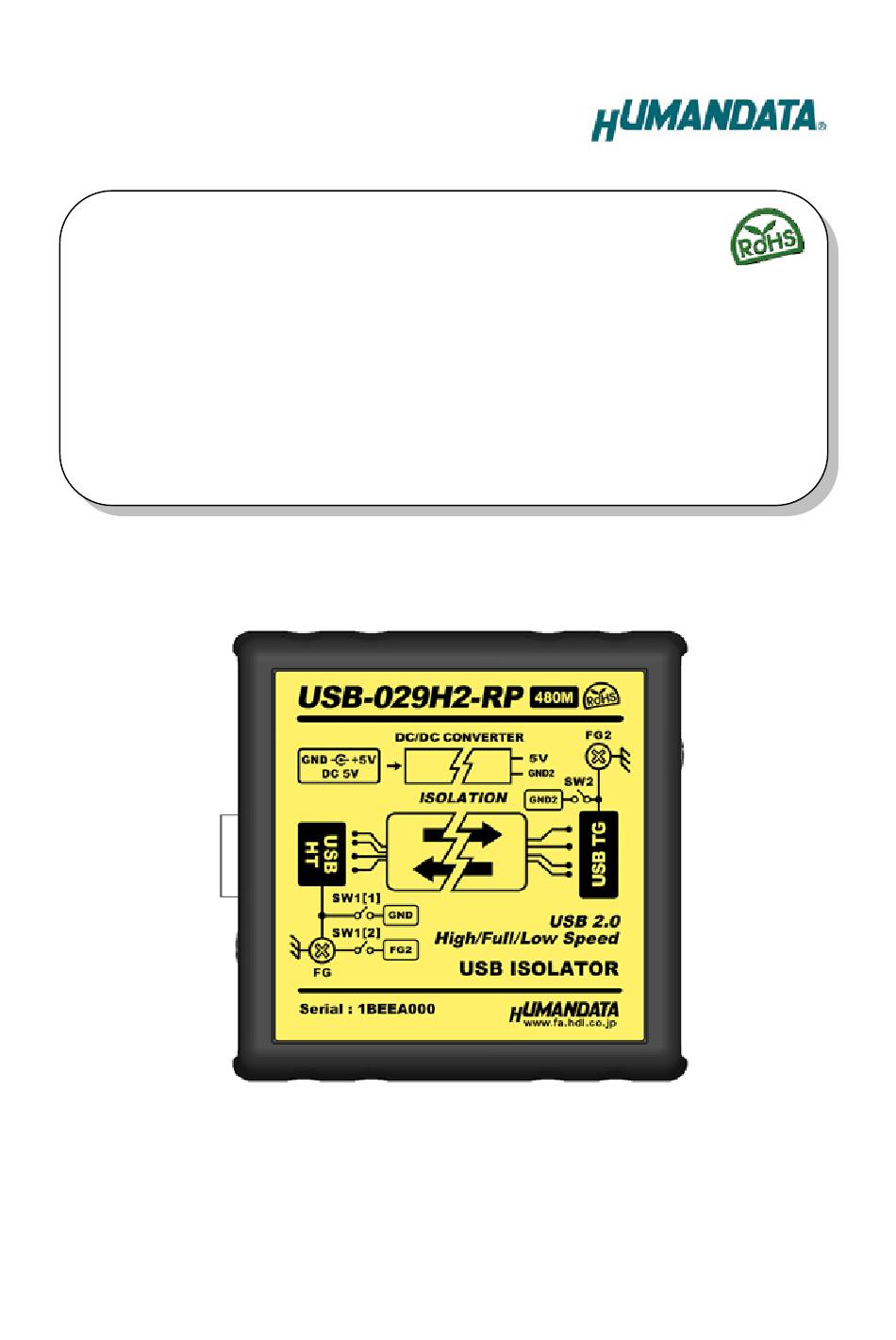

- Page 1 USB 2.0 Isolator with Repeater IC USB-029H2-RP User’s Manual Ver. 1.0 HuMANDATA LTD.
-
Page 3: Table Of Contents
6. FG, FG2 Terminal ....................6 7. Specifications ..................... 7 7.1. Product Specification ...................7 7.2. AC adapter (Japan's specifications) ..............8 7.3. Optional Accessories ....................8 8. Additional Documentation and User Support ............. 9 9. Attachment Documentations ................9 10. Warranty and Compensation ................9 USB-029H2-RP (Ver.1.0) -
Page 5: Precautions
Attention Item 7 notwithstanding, HuMANDATA cannot be held liable for the consequences arising from use of this product. HuMANDATA cannot be held liable for consequences arising from using this product in a way different from the uses described herein, or from uses not shown herein. -
Page 6: Revision History
Initial release Introduction Thank you very much for purchasing our product. USB-029H2-RP is a USB 2.0 High Speed (480Mbps), Full Speed (12Mbps) and Low Speed (1.5Mbps) compliant isolator that isolates between a USB host and a USB peripheral device. -
Page 7: Overview
1. Overview USB Host side Power Input USB Connector FG Terminal (Positive Tip) (Host) GND/FG Separation Switch Power LED FG/FG2 Separation Switch USB Target side Power LED FG2 Terminal (Target) GND2/FG2 Separation USB Connector Switch (Target) USB-029H2-RP (Ver.1.0) -
Page 8: Feature
TOP side (Block diagram) 2. Feature USB-029H2-RP is a USB 2.0 High Speed (480Mbps), Full Speed (12Mbps) and Low Speed (1.5Mbps) compliant isolator that between a USB host and a USB peripheral device are isolated. With USB-029H2-RP, it can be expected to eliminate ground loops that can cause measurement errors and equipment from surges, common-mode voltage, static discharge, magnetic fields, and radio frequency interference. -
Page 9: Connection
USB peripheral device to the target side connector. 4. Power Supply USB-029H2-RP is powered through a USB port (Bus-powered) or an AC adapter (Self-powered). An AC adapter has higher priority when both supplies are applied. 5. SG/FG Separation switch 5.1. -
Page 10: Fg, Fg2 Terminal
Noise tolerance may be improved by connecting terminals of FG and FG2 to the grounds. 1.25 mm or thicker wires are good to connect between the solderless FG terminal and housing of the host computer or power strips. Suitable solderless terminal: R1.25-3.5 (1.25-M3) USB-029H2-RP (Ver.1.0) -
Page 11: Specifications
Storage Ambient -20 to 60 [°C] (-4 to 140 [°F]) Temperature Storage Ambient 30 to 85%RH Humidity Weight Approx. 90 [g] Only main body 67 x 67 x 28 [mm] Dimensions Without projections (2.638" x 2.638" x 1.102") USB-029H2-RP (Ver.1.0) -
Page 12: Ac Adapter (Japan's Specifications)
* There may be cases that this part and specifications are changed. 7.3. Optional Accessories Model Image Description USB series Attachment with clamping screw PEN-003 JAN：4937920800709 USB series Attachment for 35mm DIN rail PEN-003-DIN JAN：4937920800716 USB series Attachment with neodymium magnet PEN-003-MG JAN：4937920801201 USB-029H2-RP (Ver.1.0) -
Page 13: Additional Documentation And User Support
The following documents and other supports are available at http://www.hdl.co.jp/en/faspc/USB/usb-029h2-rp User’s Manual … and more. 9. Attachment Documentations Outline drawing of the USB-029H2-RP Outline drawing of the AC Adapter 10. Warranty and Compensation Please refer to the following URL for the warranty. - Page 14 USB 2.0 Isolator with Repeater IC USB-029H2-RP User’s Manual Ver. 1.0 ..........Oct. 11, 2017 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-72-620-2002 (Japanese) Fax: 81-72-620-2003 (Japanese/English) URL: http://www.fa.hdl.co.jp (Japan) http://www.fa.hdl.co.jp/en (Global)
