KOTA Furnace PRO User Manual

Evo oven
Hide thumbs

Advertisement

Quick Links

Download this manual
USER ManUal
Furnace PrO

Advertisement

loading
Need help?

Need help?

Do you have a question about the Furnace PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for KOTA Furnace PRO

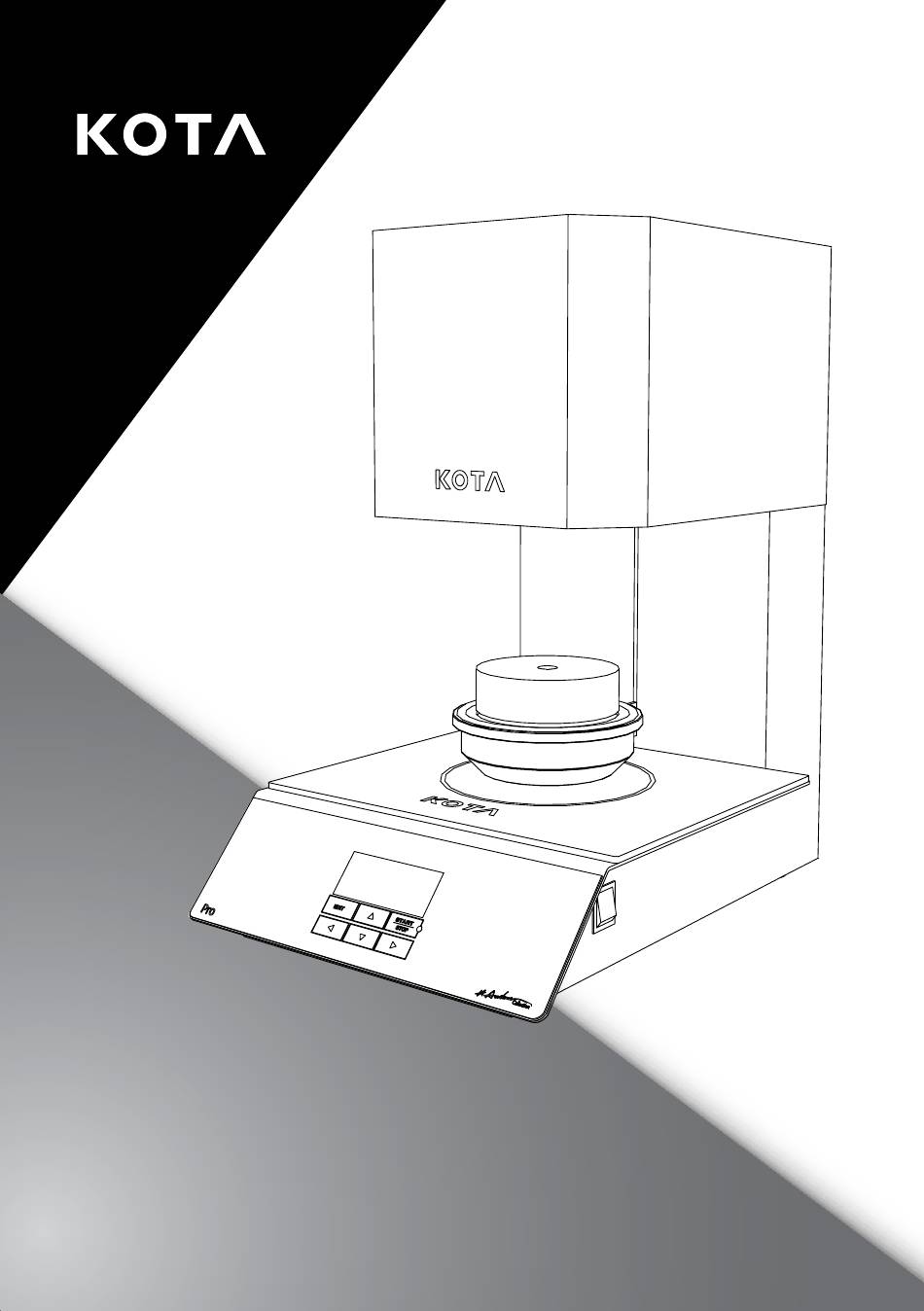

  • Page 1 USER ManUal Furnace PrO...
  • Page 2 Safety precautions • Use original KOTA products identified by the brand, which guarantee the best performance for your equipment. • Do not modify the equipment or request third parties to do so, except when specifically KOTA authorize it, as performance and / or security could be compromised. Any alteration of the product without previous authorization will imply the loss of the guarantee. • Do not use extensions or any type of connector between the power cord of the appliance and the socket. Procedures such as these could decrease the performance of your equipment and increase your energy consumption.

  • Page 3: Table Of Contents

    Index Features.................... 4 Technical data................... 4 Equipment overview................4 Initial set up..................... 5 Language selection................. 6 Selecting & editing firing programs............6 Warranty terms and scope...............15...

  • Page 4: Features

    Features • Multilanguage function • High temperature accuracy • Temperature sensor (Platen / Rhodium) • Muffle for burning with (Quartz clear) • 100 Firing programs • Linear heating speed from 20 ° to 120 ° C per minute Specifications 110 or 220V equipment power supply (Check Furnace voltage) Maximum consumption: 1300 Watts Fuse: 20A Maximum current of the vacuum pump intake: 10A Maximum operating temperature: 1150 ° C Height: 465mm Width: 298mm Depth: 420mm Net weight: 14,1kg Gross weight: 16.2kg Frequency: 50-60Hz Colour: black Equipment Overview Fuse 20A Electrical Connection for the Connection for Vacuum Pump Vacuum hose Main Switch ON/OFF Power Cable...

  • Page 5: Initial Set Up

    Initial set up • 1º: before turning ON check if the voltage is correct with the equipment voltage and then connect PRO to AC power socket. • 2º: place the refractory plate on the PRO aluminium tray. Refractory Plate Aluminium tray When Turn On the equipment, place the refractory base on the aluminium tray. If do not perform this procedure so the rubber seal ring could be damaged • 3º: connect the Vacuum Pump power cable to electrical connector located on the back of the unit as shown in the illustration on page 3.

  • Page 6: Language Selection

    Language selection Available in Portuguese, English and Spanish. To select the language, with the over switch off, press “EDiT” and turn on. Choose the correct option and press “EDiT” to save changes. ManuaL ELEvatOr MOvEMEnt The left directional key has the function of moving the elevator up, down and stop at the desired position.
  • Page 7 To edit a ceramic program, select a program number, and then press “EDiT” . When press the “EDiT” key screens will appear in the following order: InItIaL tEMPEraturE (tP1) The initial temperature is the initial temperature of the firing process. DryInG tIME (tSEC) The drying time is the waiting period for the start of the closing stage of the muffle.
  • Page 8 PrE-FIrInG tIME (tPrE) The PRE-FiRiNG time starts when the rise time reached 90% of the course. The elevator remains in the position by the programmed time and then the muffle will close. DOWnInG tIME (tDES) The downing time is activated after the last firing process be executed and can be adjusted for direct opening or for a determined time between 00:40 seconds and 30:00 minutes. To activate the direct opening, set the parameters to 00:00. baSE tEMPEraturE (tP2) it is the next temperature level after the initial temperature.
  • Page 9 HEatInG ratE (tr2) It is the heating rate between the initial temperature and the base temperature 2. The parameters can be adjusted from 20 ° to 120 ° C per minute. vaCuuM raMP 2 (vr2) Determines if there will be a vacuum between the initial temperature up to the base temperature 2. Use the ON or OFF function to configure the parameter. baSE tIME (tPat2) Determines the temperature dwell time programmed in base 2.
  • Page 10 vaCuuM tIME 2 (tvaC2) Determine the vacuum time within base time 2. if the vacuum ramp 2 is disabled, it will not be possible to set the vacuum time 2. The vacuum time must always be equal to or less than the base time. baSE tEMPEraturE 3 (tP3) Enables or disables the 3rd base. if this parameter is disabled, the next parameter to be executed is the downing time and then the program completion. tEMPEraturE baSE 3 (tP3) it is the next temperature level after the base temperature 2.
  • Page 11 HEatInG ratE (tr3) it is the heating rate between the base temperature 2 and the base temperature 3. vaCuuM raMP 3 (vr3) Determine if there will be a vacuum between the base temperature 2 to the base temperature 3. Use the “enable” or “disable” function to configure the parameter. baSE tIME 3 (tPat3) Determine the dwell time of the base temperature 3.
  • Page 12 vaCuuM tIME 3 (tvaC3) Determine the vacuum time within base time 3. if the Vacuum in ramp 3 is disabled it will not be possible to configure the vacuum time 3. The vacuum time must always be equal to or less than the base time. baSE tEMPEraturE 4 (tP4) Enable or disable the 4° base. if that parameter was disabled, the next parameter to be executed is the download time and then the program completion. baSE tEMPEraturE 4 (tP4) it is the next temperature level after the base temperature 3.
  • Page 13 HEatInG ratE (tr4) it is the determined time between the base temperature 3 and the base temperature 4. vaCuuM raMP 4 (vr4) Determine if there will be a vacuum between the base temperature 3 up to the base temperature 4. Use the ON function to enable or OFF to disable for configuration of the parameter. baSE tIME 4 (tPat4) Determine the dwell time of the base temperature 4.
  • Page 14 vaCuuM tIME 4 (tvaC4) Determine the vacuum time within base time 4. if Vacuum Regulator 4 is disabled, it will not be possible to set the empty time 4. The vacuum time must always be equal to or less than the base time. aLtEr naME OF tHE PrOGraM To alter the name of the program, press the “EDiT” key for 2 (two) seconds until the name of the program appears on the screen. The cursor will blink in the first field to be altered. To alter the name of the program, use the up and down arrows.

  • Page 15: Warranty Terms And Scope

    KOTA Equipamentos. • Products with the serial number removed or illegible. • Damages caused by spillage of aggressive substances on the product. • Electrical discharges or variations of electrical current that may damage the equipment. In case of be necessary to contact KOTA Equipamentos, have the purchase invoice of the equipment and the respective serial number.
  • Page 16 KOta Equipamentos kotaimp.com.br Rua Íris Memberg, 140 Vila Jovina - Cotia, SP i CEP 06705 150 i Brazil 55 11 4615 9200 tECHnICaL COnSuLtant consultoria.lab@kotaimp.com.br 55 11 4615 9200 | 55 11 9 9488 3529 sac@kotaimp.com.br 55 11 4615 9200 | 55 11 9 6196 2763...
