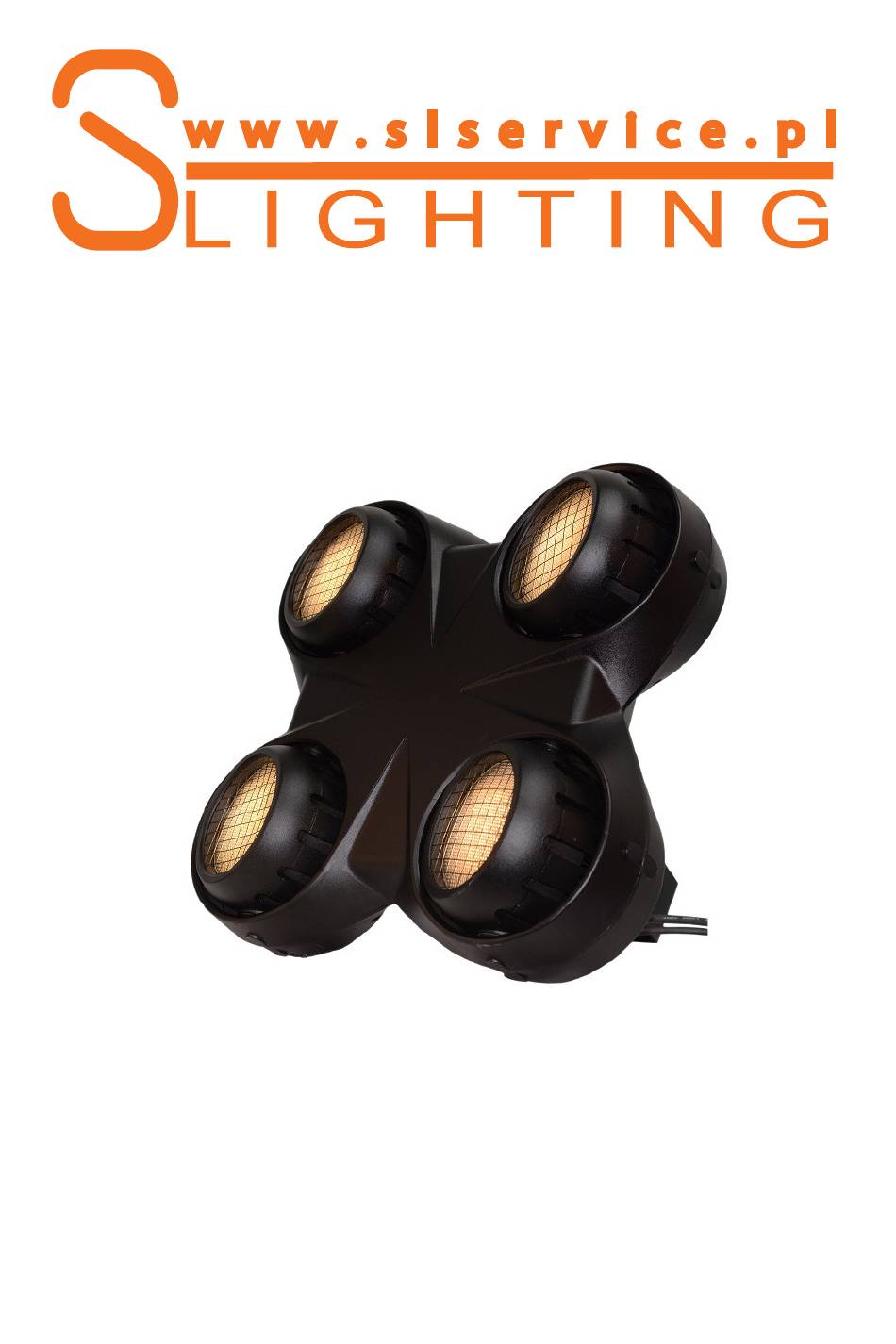

- Page 1 S-BLINDER USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ntroductIon afety InformatIon roduct InformatIon 3.1 S PecIfIcatIon 3.2 c leanIng and maIntenance 3.3 dMX-512 ISPlay menu functIonS and valueS... -
Page 3: Afety Information
- Do not use this device in high humidity conditions and at tempera- tures above 40°C. - Do not cover the ventilation slots when operating to avoid internal overheating. www.slservice.pl S-LIGHTING S-BLINDER... -
Page 4: Pecification
DMX channels: 1/3/4/9/10 AC IN: powerCON AC OUT: powerCON DMX IN: XLR - 3 pin DMX OUT: XLR - 3 pin IP Rating: IP65 Cooling: Passive Height [cm]: 37.3 Width [cm]: 37.3 Depth [cm]: 19.3 Weight [kg]: 9 S-LIGHTING S-BLINDER www.slservice.pl... -
Page 5: Leaning And Maintenance
If you have further questions, please contact your dealer. Before replacing a fuse, disconnect the power cord! Always replace with the same type and rating of fuse! www.slservice.pl S-LIGHTING S-BLINDER... - Page 6 If extending this lifespan is vital, lower the operating temperatu- re by improving the ventilation around the product and reducing the ambient temperature to an optimal operating range. In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan. S-LIGHTING S-BLINDER www.slservice.pl...
-
Page 7: Dmx-512
Grounding the common may cause a ground loop, and your device may perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other. www.slservice.pl S-LIGHTING S-BLINDER... - Page 8 (female) 3-pin connector to the input connector of the next device consisting of a (male) 3-pin connector. Then, proceed to connect from the output as stated above, to the input of the following device (and so on). S-LIGHTING S-BLINDER www.slservice.pl...
-
Page 9: Isplay Menu
ISPlay menu Address Set DMX Address Config DMX Mode Channel 1CH Channel 2CH Manual Mode Channel 4CH Channel 9CH Channel 10CH Fast Mode Able Disable Temp System Info Hour LED1 Color Menu LED2 LED3 LED4 www.slservice.pl S-LIGHTING S-BLINDER... - Page 10 Dimmer LED Head 4 0-035 No Function 9CH Mode 36-071 Round Up 72-107 Round Down 108-143 Round Up and Down 144-179 SIN Up 180-215 4-colors 216-255 Random Effect Dimmer Mode 0-063 Linear 64-127 Square 128-191 Invert Square 192-255 S-Curve S-LIGHTING S-BLINDER www.slservice.pl...
- Page 11 Round Down 108-143 Round Up and Down 144-179 SIN Up 180-215 4-colors 216-255 Random Effect Dimmer Mode 0-063 Linear 64-127 Square 128-191 Invert Square 192-255 S-Curve Dimmer Speed 0-254 No Tungsten Effect Tungsten Effect (fast <--> slow) www.slservice.pl S-LIGHTING S-BLINDER...
