Summary of Contents for Silicon Solar PathLight series

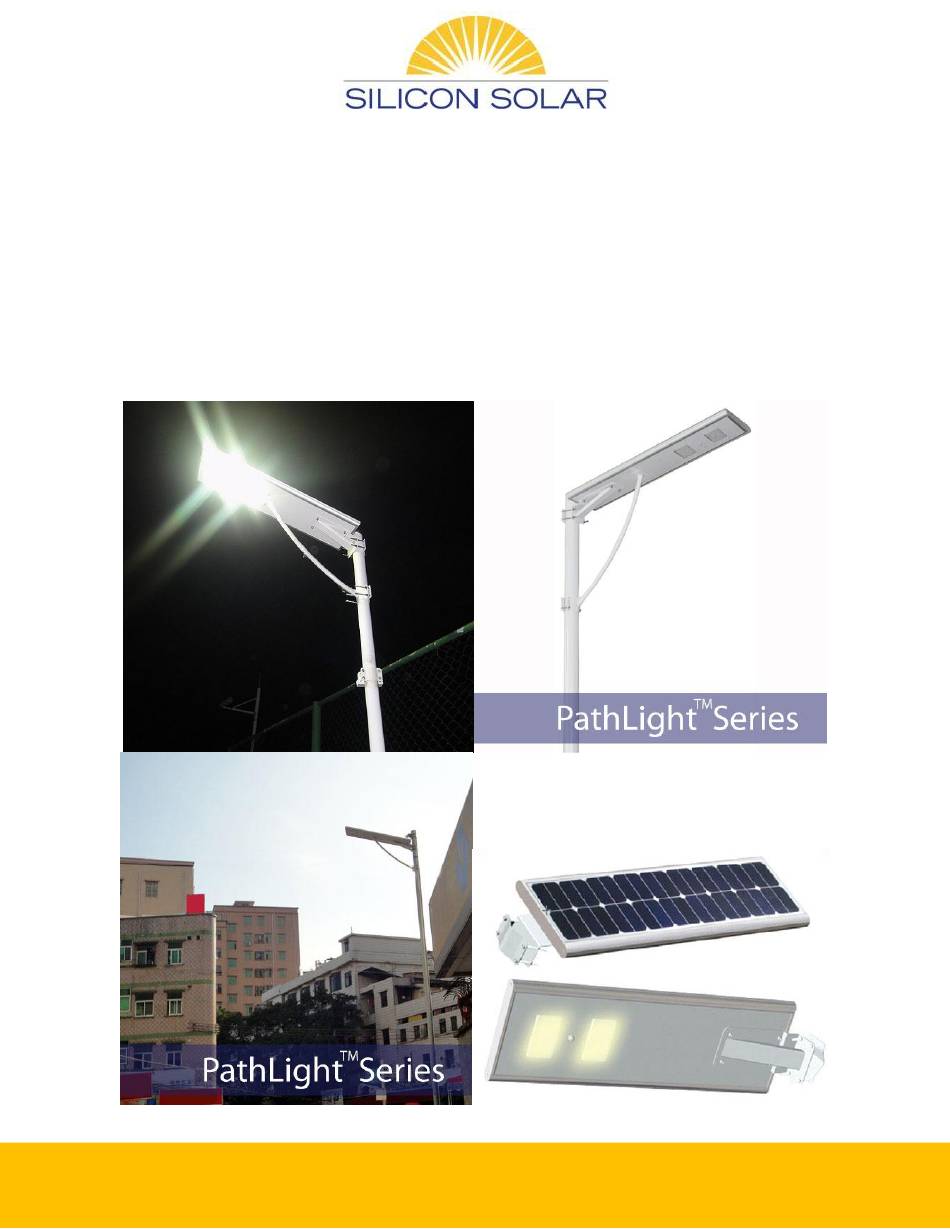

- Page 1 Instruction Manual PathLight Solar Street & Parking Lot Light (20W 25W 30W) Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com...
- Page 2 Overview: Our PathLight solar street light which integrates the efficient solar panel, LED light and the Li-Fe battery into a single product. It operates with human intelligence induction system to become the solution of low-energy, durable, high-luminance and free maintenance. Purpose: For garden, residential area, courtyard, streets, walkways, parking lots, docks &...
- Page 3 Data and Specification: PathLight-20W PathLight-25W PathLight-30W Model Specifications Light source 20W LED 25W LED 30W LED Solar panel 50W(Poly) 50W(Poly) 60W(Poly) Battery 12.8V 25AH 12.8V 30AH 12.8V 35AH Motion sensing Dimension 36.2" x 12.8" x 5.5" 36.2" x 12.8" x 5.5" 51.2"...
- Page 4 Assembling and Installation: Step 1: Open the box and prepare all the parts you need. Step 2: Unscrewing the screw of the light fixture/box for installing bracket. Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com...
- Page 5 Step 3: Screw and hold one end of the mounting support tube to the light fixture/box. Step 4: Connect the pole mount bracket with the support tube. Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com...
- Page 6 Step 5: Insert the fuse into the light fixture/box. Unfold the knob of fuse (see below) and take out the insulating film of the fuse socket. Make sure the fuse is working, then tighten. Step 6: Mount the light fixture/box on the pole. Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y.
- Page 7 Step 7: Turn on the switch. And this is how it looks when it is installed on a pole. Reminder: PathLight solar street light adopts the long life Lithium battery for storing energy, charging temperature at day time is between: 32°F～+140°F，when temperature goes lower than 32°F ，the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 32°F.
- Page 8 Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com...
