LITTLE MAX

MODEL 50G

50,000 BTU

PROPANE TORCH

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the LITTLE MAX 50G and is the answer not in the manual?

Questions and answers

Summary of Contents for Hot Max LITTLE MAX 50G

Page 1 LITTLE MAX ® MODEL 50G 50,000 BTU PROPANE TORCH INSTRUCTION MANUAL...
Page 2 MODEL 50G PROPANE TORCH ASSEMBLY, TESTING, AND OPERATING INSTRUCTIONS PLEASE READ AND RETAIN THIS INFORMATION FOR FUTURE REFERENCE DO NOT OPERATE this torch unless you have been properly trained or are under the supervi- sion of someone in its proper use. Read and understand all instructions before attempting to use! FOR YOUR SAFETY! ...

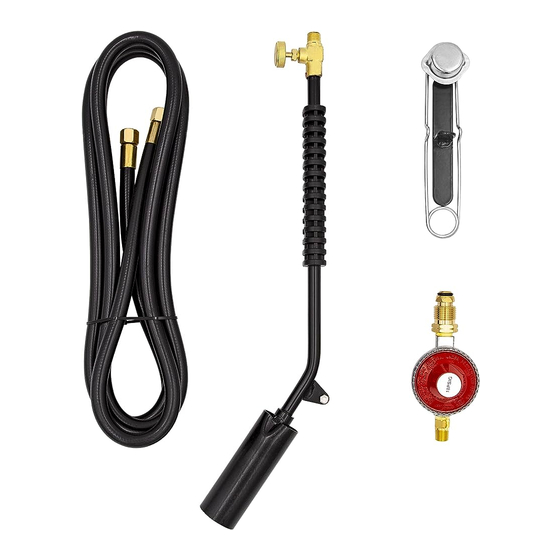

Page 3 PROPANE TORCH COMPONENTS Flame Adjusting Valve Single Flint Striker Safety Stand Trademarked Molded Handle for more Comfort and Control US Trademark 3,700,964 POL Safety Valve Propane Regulator, 18 PSI (Replacement regulator Model 24202) Barrel 10’ UL/CSA Listed Propane Hose, 350 PSI Rated...
Page 4 ASSEMBLY INSTRUCTIONS 1. Unpack and inspect for damage. DO NOT use torch if damaged. 2. Attach hose to flame adjusting valve on torch handle with two adjustable wrenches. DO NOT use the molded handle to tighten the hose. Flame Adjusting Valve 3.
Page 5 ASSEMBLY INSTRUCTIONS CONTINUED 6. Make sure the knob on the flame adjusting valve (also called a needle valve) is closed (all the way clockwise) and slowly open the LP gas cylinder valve. Check all LP gas connections for leaks using a leak detection fluid or soapy water.
Page 6 TORCH DISCONNECTION AND STORAGE 1. Be sure the LP gas cylinder valve is turned completely off (clockwise). 2. Disconnect the POL safety valve from the LP gas cylinder (again, these are left handed threads) with a wrench. 3. Replace the plastic cover on the LP gas cylinder valve outlet. 4.
Page 7 TROUBLE SHOOTING Problem #3 - The flame adjusting valve is not working. Possible Solutions: 1. If you can not get full flow out of the torch with the flame adjusting valve all the way open, then the POL safety valve has probably detected too much gas flow and restricted the gas flow.
Page 8 Thank you for your purchase! We hope you enjoy your torch! Need a longer hose for your torch? Looking for other great Hot Max accessories for your torch or our other products? Check out our website for our current product offering.
