Summary of Contents for Techlogix TL-DA12-HD

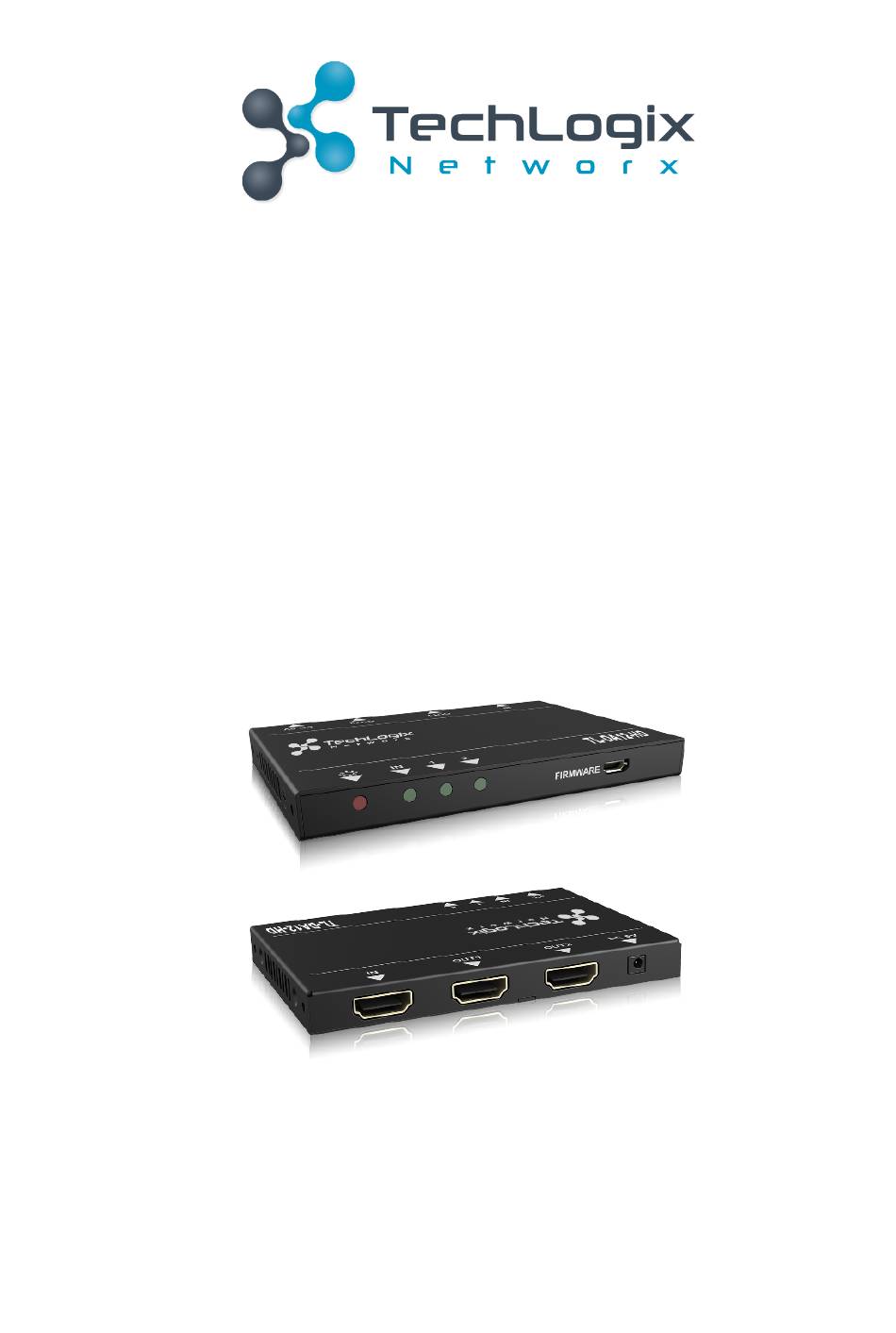

- Page 1 User Manual TL-DA12-HD 1x2 HDMI Splitter & Distribution Amplifier All Rights Reserved Version: TL-DA12-HD_160926...
- Page 2 TL-DA12-HD User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only; the actual product may vary. This manual is only for operation instruction only and not for any maintenance or repair.
- Page 3 TL-DA12-HD User Manual SAFETY PRECAUTIONS To insure proper operation, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
TL-DA12-HD User Manual Contents 1. Introduction ............................. 1 1.1 Introduction toTL-DA12-HD ..................... 1 1.2 Features ..........................1 1.3 Package List .......................... 1 2. Panel Description ........................... 2 2.1 Front Panel ..........................2 2.2 Rear Panel ..........................3 3. System Connection ........................4 3.1 Usage Precautions ....................... -
Page 5: Introduction
1. Introduction 1.1 Introduction to the Product The TL-DA12-HD is a 1x2 splitter featuring the capability to repeat HDMI or DVI source to two displays simultaneously. Compliant with HDMI 1.4 and HDCP 1.4, the TL-DA12-HD provides comprehensive resolution capacities up to 4K@30 and 1080p with 3D. -
Page 6: Panel Description
TL-DA12-HD User Manual 2. Panel Description 2.1 Front Panel FIRMWARE ④ ① ② ③ Name Description Power Illuminates red when properly powered on indicator Indicates the HDCP compliancy status of the input signal Input HDCP Ø Iluminates green when the input signal is HDCP compliant compliant Ø... -
Page 7: Rear Panel
TL-DA12-HD User Manual 2.2 Rear Panel ① ② ③ Name Description HDMI input port. Connects with an HDMI or DVI source device such as a DVD player or set top box. HDMI output ports. Connects to HDMI displays, automatically capturing the input resolution. -
Page 8: System Connection
Step2. Connect HDMI displays to the HDMI OUTPUT sockets of TL-DA12-HD with high-quality HDMI cables. Step3. Connect the DC 5V power adapter to the power port of TL-DA12-HD. Note: All the ports support hot-plug. Please note that hot plugging a display may result in screen splashing at the output ends. -
Page 9: Edid Management
TL-DA12-HD User Manual 3.4 EDID Management The TL-DA12-HD comprises of one HDMI input port and two HDMI output ports. EDID management helps distribute and route signals from the source at the resolution of the first detected display (detecting from output 1 or 2). -
Page 10: Specification
TL-DA12-HD User Manual 4. Specification I/O Connections HDMI Input One(1) HDMI type A receptacle HDMI Outputs Two (2) HDMI type A receptacle One (1) 2.35 mm outside diameter, 0.7 mm inside diameter DC 5V Power barrel (EIAJ-1) Firmware Update One (1) mini USB type B receptacle... -
Page 11: Supported Input Video Formats
TL-DA12-HD User Manual (Environment) Storage Humidity 10% ~ 90% Non-condensing (Environment) Power, ESD, Regulatory Maximum Power 2.5W Consumption Power Supply 5V at 1A ESD Protection 15KV Regulatory CE, FCC Other Standard Warranty 3 Year Indicators 1 Power, 1 Input status, 2 Output connection status Installation guide, Power adaptor, Mounting “L”... -
Page 12: Panel Drawing
TL-DA12-HD User Manual 5. Panel Drawing 102.4 mm FIRMWARE www.tlnetworx.com... -
Page 13: Troubleshooting & Maintenance
Static becomes stronger Check the grounding and when connecting the video Bad grounding make sure it is connected connectors well. If your problem persists after following the above troubleshooting steps, please contact your authorized reseller or TechLogix technical support. www.tlnetworx.com... -
Page 14: After-Sales Service
No certificate or invoice as the proof of warranty l Damage caused by force majeure l Non-authorized service 3) Technical Support: When contacting TechLogix support, please have the following information available: l Product part number l Installation and sale date l Detailed failure information www.tlnetworx.com...
