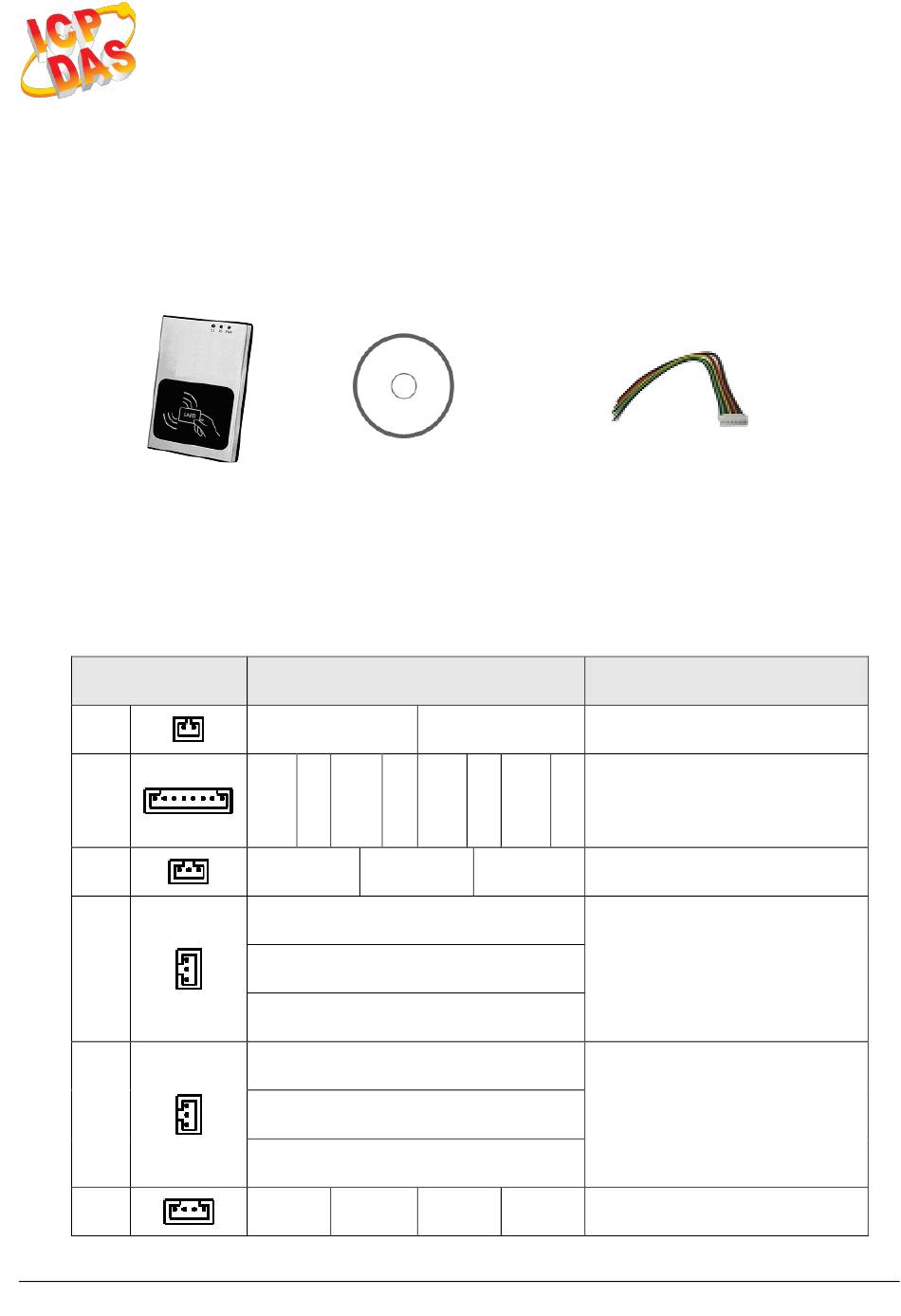

What's in the box?
In addition to this guide, the package includes the following items:
ACS-10V-MF
1
Pin assignments
Connector Type
CN1
CN2
CN3
CN4
CN5
CN6
Technical support：service@icpdas.com
ACS-10V-MF Quick Start
CD
Pin Assignment
GND
DI0 G DI1 G DI2 G DI3 G
COM
NO
NC
COM
NO
NC
COM
NO
CAN_L CAN_H
CA-010 x1、CA-011 x1、CA-012 x2、
CA-013 x1、CA-014 x1
Power (+10V~+30 VDC)
VDC
DI0(Door position detection)
DI1(Electric lock trigger)
DI2/3(n/a)
(Digital Input, Dry Contact)
Anti-sabotage detection
NC
(Relay Output)
Electronic lock control
(Relay Output)
Door abnormal alarm output
(Relay Output)
CAN/RS-485
D+
D-
(Communication Interface)
v1.0, November 2017
Cables
Description
P1
Advertisement
Summary of Contents for ICP DAS USA ACS-10V-MF
- Page 1 ACS-10V-MF Quick Start v1.0, November 2017 What’s in the box? In addition to this guide, the package includes the following items: Cables ACS-10V-MF CA-010 x1、CA-011 x1、CA-012 x2、 CA-013 x1、CA-014 x1 Pin assignments Connector Type Pin Assignment Description Power (+10V~+30 VDC)
-
Page 2: Hardware Installation
Hardware Installation Figure 1: Wiring diagram Figure 2: Wire connection Technical support：service@icpdas.com... -
Page 3: Software Installation
Software Installation Before use, associated software configuration, the steps described as follows： Connect to host PC, network and power supply Figure 3: Host PC, Network and Power supply 01. Make sure that the network settings on the PC are properly configured and functioning properly a. - Page 4 01. ACS Config Utility can be obtained either from the companion CD or from the ICP DAS FTP site at http://ftp.icpdas.com/pub/cd/ba-ha/acs/acs-10V-mf-tc/software/utility/ 02. Click the "Search" button to search for your module Figure 5: The main screen of the ACS Config Utility 03.
- Page 5 Add Mifare card number and Pass password Figure 8: Add card number and password setting screen A. Add Mifare card number 01. Select the voice number (0~39): 0 02. Floor control options: Check (enable) / Uncheck (disable) 03. Fill in the UID of card: 2632646384(4 Byte or 7 Byte UID) 04.
- Page 6 03. ACS-xxx-MF will open the electronic lock relay (CN4) and play the specified voice E. Read the pass records 01. Click the "Get Record" button to read a pass record 02. Display Card number [2632646384] / Pass password [1234]、 Status [Pass] and Time [Year/Month/day Hour:Minute:Second] Password Card Figure 9: Read screen of pass records...
- Page 7 B. Delete pass password 01. Fill in the pass password: 1234(4 digits number) 02. Click the "Del PWD" button 03. Display "Reply OK"; make sure to delete the pass password successfully C. Mifare card induction test 01. Place the Mifare card that has deleted the card number close to the ACS-xxx-MF 02.
-
Page 8: Troubleshooting
Troubleshooting Item Problem Description Solution Power Failure 1. Please return to the ICP DAS for inspection (PWR LED Off) and repair 1. Make sure cards support Mifare S50 Cards can not be used standard ( ISO 14443-A) 2. EM and HID cards are not supported 1.
