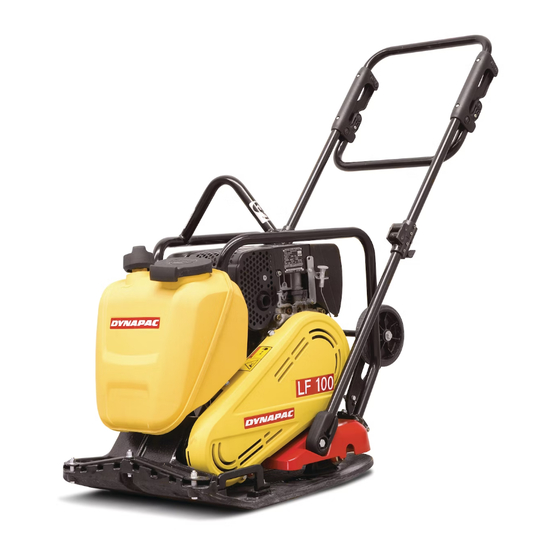

Summary of Contents for Atlas Copco LF 100
- Page 1 Safety and operating instructions Forward plate © 2015 Construction Tools EOOD | No. 9800 1125 01c | 2015-05-26 Original instructions...
-
Page 3: Table Of Contents
LF 100 Contents Contents Introduction............... . 5 About the Safety and operating instructions. - Page 4 Contents LF 100 Checking bolted joint............22 Checking the engine, Honda.
-
Page 5: Introduction
Safety and operating instructions Introduction Thank you for choosing a product from Atlas Copco. Since 1873, we have been committed to finding new and better ways of fulfilling our customers' needs. Through the years, we have developed innovative and ergonomic product designs that have helped customers improve and rationalize their daily work. -
Page 6: Safety Instructions
Safety and operating instructions LF 100 Appropriate work overall or similar clothing (not ● Safety instructions loose-fitting) that covers your arms and legs. To reduce the risk of serious injury or death to Drugs, alcohol or medication yourself or others, read and understand the Safety... - Page 7 LF 100 Safety and operating instructions Release the filler cap slowly to let pressure ► WARNING Dust and fume hazard escape. Dusts and/or fumes generated or dispersed when using the machine may cause serious and permanent ► Never overfill the fuel tank.
- Page 8 Safety and operating instructions LF 100 Avoid eating, drinking, and using tobacco products ► WARNING Slope hazards in areas where there is dust or fumes. During operation, secure the machine so it can not fall if it is placed on a sloping ground. A fall can lead ►...
- Page 9 LF 100 Safety and operating instructions WARNING Vibration hazards WARNING Trapping hazard Normal and proper use of the machine exposes the There is a risk of neck ware, hair, gloves, and clothes operator to vibration. Regular and frequent exposure getting dragged into or caught by rotating machine to vibration may cause, contribute to, or aggravate parts.
-
Page 10: Transport, Precautions
Safety and operating instructions LF 100 Transport, precautions WARNING Loading and unloading hazard When the machine is lifted by a crane and similar appliance, this can lead to injury. ► Use marked lifting points. Make sure that all lifting devices are dimensioned ►... -
Page 11: Overview
LF 100 Safety and operating instructions Protection frame Overview To reduce the risk of serious injury or death to yourself or others, read the Safety instructions section found on the previous pages of this manual before operating the machine. Design and function... -
Page 12: Labels
Safety and operating instructions LF 100 Recoil starter Hatz engine Silencer Drainage plugs Air filter Fuel tank Recoil starter Engine oil/dipstick Labels The machine is fitted with labels containing important information about personal safety and machine maintenance. The labels must be in such condition that they are easy to read. -
Page 13: Noise Level Label
LF 100 Safety and operating instructions The CE symbol means that the machine is Labels, Honda EC-approved. See the EC Declaration of Start label Conformity which is delivered with the machine for more information. Noise level label The label indicates the guaranteed noise level corresponding to EC-directive 2000/14/EC. -
Page 14: Safety Label
Safety and operating instructions LF 100 Safety label Safety label Rotating V-belts. Keep your hands at a safe distance from the danger zone. Use ear protectors label Fuel. Use ear protectors. Read the instruction manual. The operator must read the safety, operation and maintenance instructions before operating the machine. -
Page 15: Transport
LF 100 Safety and operating instructions Transport Lifting the machine WARNING Lifting hazard Transport wheels Never lift the machine without checking if it is intact. A damaged machine can fall apart, which can result 1. Unlock the hook (A). in serious injury. -
Page 16: Installation
Safety and operating instructions LF 100 Lifting with forklift truck Installation ♦ Both straps (D) must be used when lifting the machine with forklift truck (E). Fuel Filling WARNING Fuel hazard The fuel is extremely flammable and fuel fumes can explode when ignited, causing serious injury or death. -
Page 17: Operation
LF 100 Safety and operating instructions Operation Operating on slopes WARNING Engine running hazard WARNING Slope hazards Vibrations from the engine can cause material During operation, secure the machine so it can not changes, this can cause the machine to move and fall if it is placed on a sloping ground. -
Page 18: Start And Stop
Safety and operating instructions LF 100 The tilting angle is measured on a hard level Make sure that there is no oil leakage, and that ♦ ♦ surface with the machine stationary. Vibration all bolted joints are tightened. switched OFF and all tanks full. -
Page 19: Stopping The Engine, Honda
LF 100 Safety and operating instructions 4. Turn the start switch (D) to ON. Stopping the engine, Honda 1. Move the throttle control to idling position (A). Let the engine idle for a few minutes. 5. Grip the handle of the recoil starter (E) and pull 2. -
Page 20: Starting The Engine, Hatz
Safety and operating instructions LF 100 1. Check the engine oil level on the dipstick. Starting the engine, Hatz 1. Set the throttle control (A) to half throttle. 2. Fill the fuel tank with fuel. 2. Grip the recoil starter handle (B) with both hands and pull until it resists. -
Page 21: Operating
LF 100 Safety and operating instructions 1. Move the throttle control to the stop position. 1. Loosen the knobs (A) and lower the handle on top of the machine. 2. Slowly pull the starting cable out 5 times. 2. Tighten the knobs. -
Page 22: When Taking A Break
Safety and operating instructions LF 100 Check that the controls are not damaged and do ♦ When taking a break not jam. ♦ Stop the machine during breaks. Checking bolted joint ♦ During all breaks, put the machine away so that there is no risk for unintentional start. -
Page 23: Checking The Engine, Hatz
LF 100 Safety and operating instructions Clean and replace the air filter (B) if necessary. 4. Clean and refit the air filter (B) if needed. ♦ After the first 20 hours of operation Maintenance routines Applies to all: Checking the engine, Hatz ♦... -
Page 24: Changing The Engine Oil, Hatz
Safety and operating instructions LF 100 6. Fill with oil (C). CAUTION Cover the V-belt Running a machine without the protective cover over 7. Refit the dipstick (D). the V-belt may cause trapping or machine damage, which can cause injury. -
Page 25: Checking The Shock Absorbers
LF 100 Safety and operating instructions 1. Remove the protective cover (A). Checking the shock absorbers 1. Check all the shock absorbers (A) for cracks or if they are exhausted. There are two shock absorbers (A) on each side of the machine. -
Page 26: Every 500 Hours Of Operation (Yearly)
Safety and operating instructions LF 100 Applies to Honda engines: Cleaning the fuel tank ♦ Clean fuel tank and fuel filter. See engine manual ♦ Inspect and clean the fuel tank (A). for more information. Applies to Hatz engines: ♦... -
Page 27: Storage
LF 100 Safety and operating instructions Storage Empty the tank before storing the machine. ♦ Clean the machine. ♦ ♦ Clean the air filter. ♦ Carefully pull the start handle until a slight resistance appears. ♦ Wipe off any oil and dust that has accumulated on the rubber parts. -
Page 28: Technical Data
Safety and operating instructions LF 100 Technical data Machine data LF 100 Honda Hatz Engine Manufacture/Model Honda GX 160, 4-stroke Hatz 1B20, 4-stroke Power, kW (hp) 4.1 (5.6) 2.5 (3.4) Rated speed, r.p.m. 3,600 3,100 Idling, r.p.m. 1,400 1,200 Compaction data Vibration frequency, Hz (r.p.m.) -
Page 29: Noise And Vibration Declaration Statement
Standard vibration Type dB(A) rel 1pW handle handle handle handle LF 100 Honda LF 100 Hatz Permitted working hours per day are calculated on action value of 2.5 m/s as per 2002/44/EC. Uncertainties, sound value Uncertainties, sound value dB(A) dB(A) -
Page 30: Dimensions
Safety and operating instructions LF 100 Dimensions mm (in.) *Contact area, m (sq feet). **Hatz, safety frame lifting point. © 2015 Construction Tools EOOD | No. 9800 1125 01c | 2015-05-26 Original instructions... -
Page 31: Ec Declaration Of Conformity
Directive 2006/42/EC (Machinery Directive) and 2000/14/EC (Noise Directive), and the harmonised standards mentioned below. Forward moving vibration Guaranteed sound power level plate [dB(A)] Measured sound power level [dB(A)] LF 100 Honda LF 100 Hatz Following harmonised standards were applied: ♦ EN500-1+A1 ♦ EN500-4 Following other standards were applied: ♦... - Page 36 Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers, and drawings. www.atlascopco.com...
