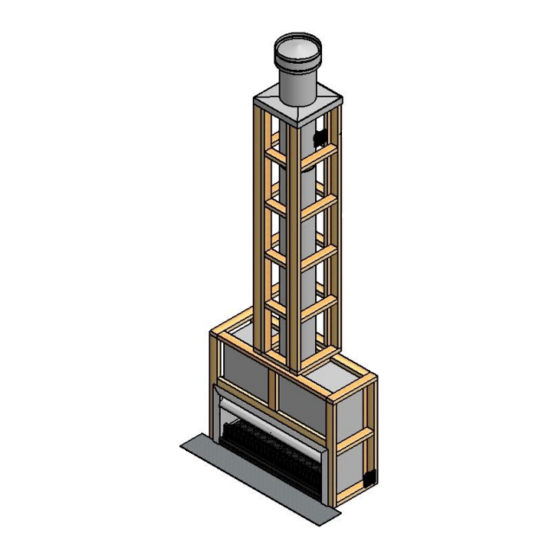

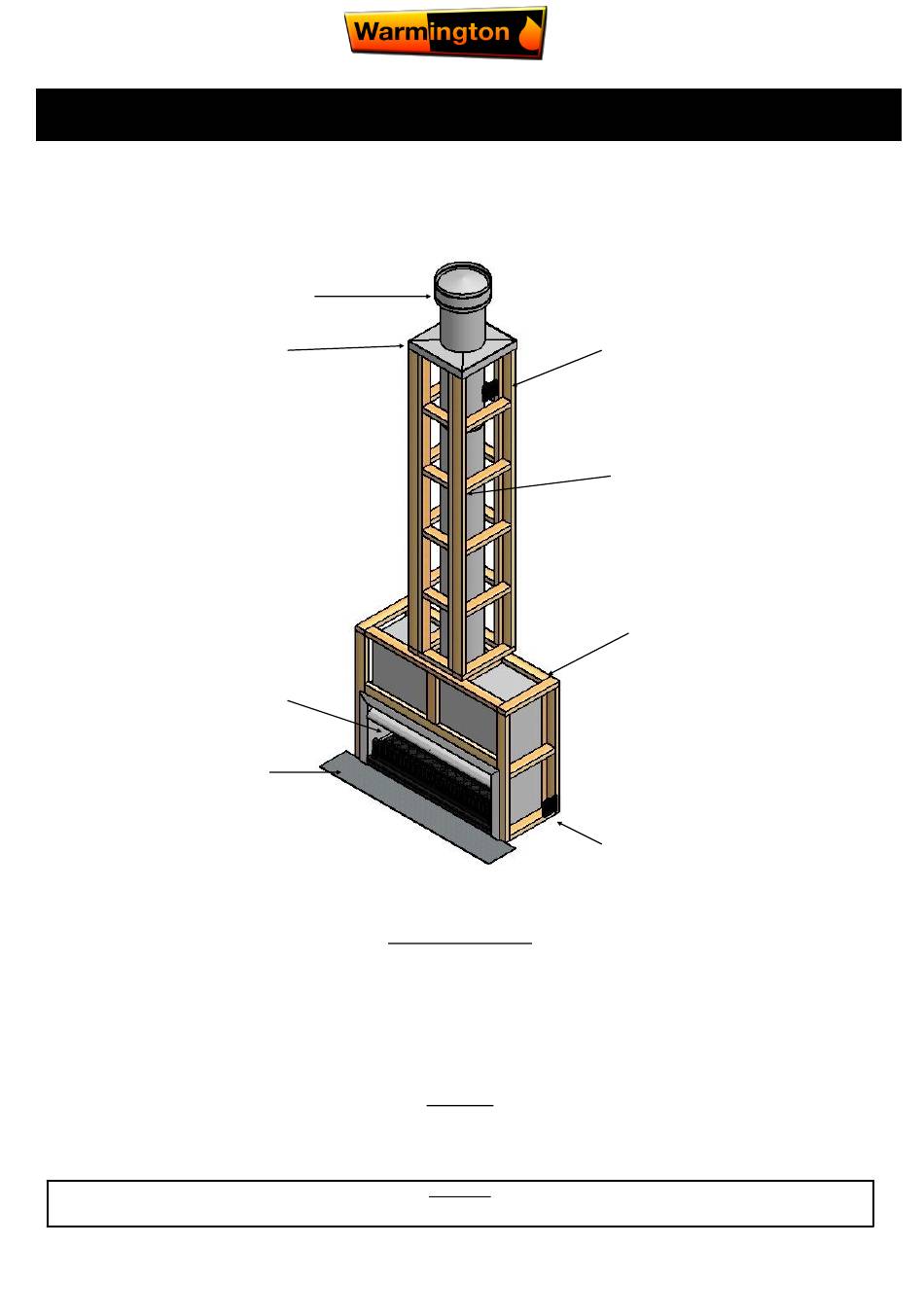

GAS OPEN FIRE for outdoor covered areas
Installation Instructions into wood or block alcoves
Warmington Gas Cowl
S/S Flashing
( Top Venting can also be
through S/S Flashing .
See Flashing Detail in Spec )
Warmington Gas Firebox
Fire and flue system installation, and instructions to comply with NZS 5601.1:2013,
3645.1(Int):2010, 3645.2(Int):2010, 5266:2014, 2918:2001.
The fireplace is constructed and tested to comply with NZS 4558(int):2013 'Decorative gas log and other fuel effect appliances'.
Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace.
The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.
A licenced certified gas fitter and licenced electrician are required to run power and gas supplies as required to the unit and any commissioning as part of the
installation process.The heater must be installed according to these instructions and in compliance with all relevant building, gas fitting, electrical and other
Read all the instructions carefully before commencing the Installation. Failure to follow these instructions may result in a fire hazard and void the warranty
1
Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.
SG/EG - SN 1250-1500
Hearth
See www.homeheat.co.nz/members for a certified NZHHA SFAIT Installer in your area.
All Dimension are in mm.............Copyright ©
Related documents
Installation
statutory regulations.
IMPORTANT
29 March 2021
Warm Air Outlet
Vent
Warmington Flue System
Timber Framing
Cool Air 'Caitec
Vents' Inlet Vent
Advertisement
Related Manuals for Warmington SG SN 1250
Summary of Contents for Warmington SG SN 1250
- Page 1 The fireplace is constructed and tested to comply with NZS 4558(int):2013 ‘Decorative gas log and other fuel effect appliances’. Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace. Installation The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.
- Page 2 This will ensure that the draft in the flue system is always to the outside. ‘CAITEC AIR’ the limits and requirements. See details in these Spec’s, on www.warmington.co.nz or contact your local Agent. Wind Noise: You may encounter wind noise in some installations.
- Page 3 Secure Firebox through anchor positions provided - through base of Fire. Stainless Steel Insulation Kit Weathershield lip Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
-
Page 4: Important Notes
Based Plaster to minimise the chance of the Solid Plaster cracking. (See your Solid Plasterer for correct mate- Visit the Warmington website for ‘Hebel’ instruction (PDF download) www.warmington.co.nz Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©... - Page 5 Cool Air external Note: Intake Vent Centre line of flue is `NOT’ in centre of alcove. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 6 Hearth Projection Centre of Flue Note: Centre line of flue is `NOT’ in centre of alcove. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 7 Ensure that the Fire and Flue System is Installed before the alcove access is blocked off. Block modules may vary to the drawing. Please talk to you Blocklayer Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 8 Please see below for instructions on how this is done. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 9 25mm gap around the Liner with a ‘Venting Flashing Cone-Spider’ can be used. Ref: to figures in page 9 & 10 in this specification. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 10 Test Report Number Date of Report 04/1039 July 2004 04/1040 July 2004 04/1041 July 2004 Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 11 No Insulation Insulation under under flashing VENTING THROUGH FLASHING flashing Note: 2x 100mm vents in chase Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 12 FRAME OUT AND TRIM OUT DETAILS FOR CHIMNEY CHASE Option X – Single Lined Flue System Option Y – Double Lined Flue System Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 13 Note: For Combustible Floors Minimum Hearth of 300mm (A) must be maintained at any given height. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 14 FLUED GAS APPLIANCES: All Gas Fires requiring Warmington Flue Systems shall be Installed to the requirements of the current standards and shall be appropriately designed and constructed to permit safe and effective use. This Appliance must be flued to the outside atmosphere. All Warmington Fires must be Installed with a minimum of 3.6m of Approved Warmington Gas Flue and Liners .
- Page 15 Number of Coals per Row Number of Rows Total Coals Model Bottom Bottom Total SG/EG SN 1250 SG/EG SN 1500 Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 16 Pilot light may be left on and the pilot flame will still burn. • To fully extinguish, turn to the ‘OFF’ position before closing the cover. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 17 Replace the Base screw and check for leaks. 3 Flame Pilot in Assembled State Correct Operation of 3 Flame Pilot Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 18 POINTS OF SAFTEY - To the Customer /Home-Owner Your Warmington Gas Decorative Fire operates on the principle of dual radiant and convected heat. Therefore it is important to observe the following precautions associated with any heating appliance or open fire.
- Page 19 During the initial burn period, some smoke and smell may be experienced. Because of this, run the appliance on the high position in a well ventilated room until these dissipate. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 20 29 March 2021 ON/OFF SWITCH (SIT 840) - WIRING DIAGRAM Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 21 During the initial burn period, some smoke and smell may be experienced. Because of this, run the appliance on the high position in a well ventilated room until fumes dissipate. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 22 29 March 2021 HIGH/LOW SWITCH (SIT 845) - WIRING DIAGRAM Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
-
Page 23: Remote Control Features
At any time, the temperature may be adjusted up or down. However, whenever the remote changes to a new time period, the temperature will be set automatically according to that period’s setting. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©... - Page 24 OFF state display. During this time a special code will be transmitted by the RF Remote to the Control Unit, causing the Control Unit to learn its ID. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
-
Page 25: App Operation
Google Play Store: https://play.google.com/store/apps/details?id=com.millec.intelligythermostatmkii For instructions on how to push the appliance to your Wi-Fi, please go to the Warmington website and find details located under the ‘Downloads’ tab for your fireplace model. The app has both manual control and automatic controls. - Page 26 This controller can not adjust flame height, hence is supplied for emergency use, if remote and phone App is not able to be used. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 27 WARNING: To ensure the correct operation of the modulator it is necessary that the plastic cap is returned to its original location. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 28 During the initial burning period, some smoke and smell may be experienced. The appliance should be run on the high position in a well ventilated room until these dissipate. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 29 29 March 2021 FULLY MODULATING (SIT 845) - WIRING DIAGRAM Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
-
Page 30: General Notes
NOTE: Keep a copy of these instructions for operating and maintenance guidelines. Industries 1994 LTD PO Box 58652, Botany 2163, Auckland www.warmington.co.nz Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
