Summary of Contents for Shanghai Wafer Microelectronics GL09

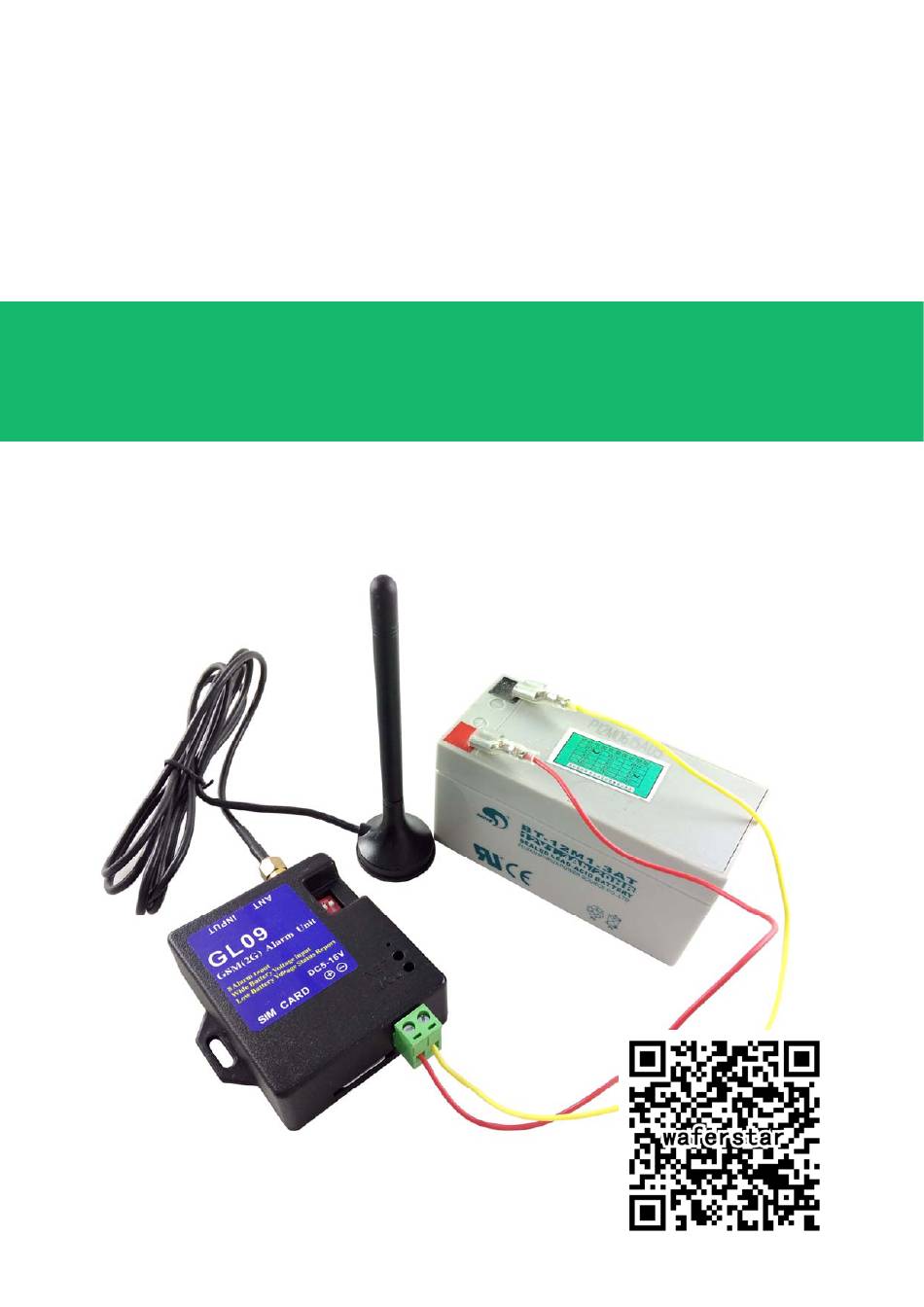

- Page 1 GL09 - GSM Alarm Device Best designed for battery powered GSM Unit USER’S GUIDE - 1 -...
- Page 2 Product description GL09 is a simple & easy to use GSM Detector which sends SMS and calls you in case of alarm events. Alarm event occurs in case of NO or NC ports changes. Compatible with GA09 Device; Wide power input voltage from DC5V to DC16V;...
- Page 3 %#M3 SMS and phone calling alarm report STEP7: Setup the Low voltage alert limit ( Only GL09 has this function ) %#LV11.1 Setup the Low voltage alert limit at 11.1V (user can change it to suitable voltage) STEP8: Disconnect the RST from GND to start the normally working...
- Page 4 STEP4: How to read the device status and parameters? @#STATUS? Install our App from Apple App store or google play store GL09 use the Same App as the GA09. So: Search the keyword “GA09” , you will find the right APP Icon,and then press to install it...

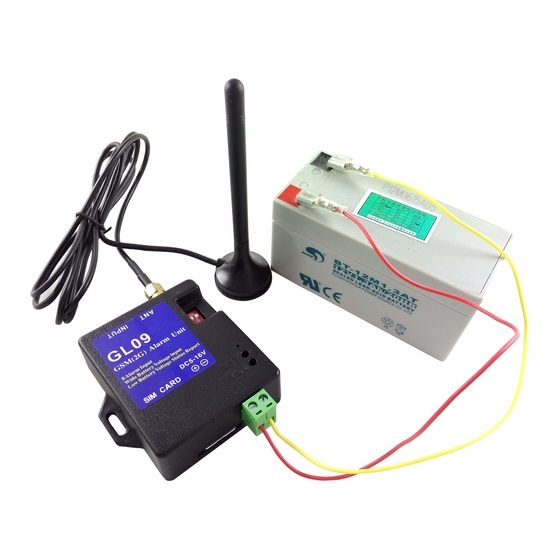

- Page 5 How to power the unit with battery 1. Select a Battery with DC5V to DC16V and power on the unit 2. Setup the suitable Low voltage alarm limit with “%#LVxxx” command, for example if use the DC12V Lead acid battery,then you can setup with “%#LV11.0”. Then when the voltage drop below the 11.0v,then will send the alert SMS to the first SMS alarm number.then user can go to change the battery as soon as possible.
- Page 6 How to get the fast service from supplier? Sample SMS setting map - 6 -...
Need help?
Do you have a question about the GL09 and is the answer not in the manual?
Questions and answers
Wie kann ich den GSM GL09 Melder zurücksetzten, Resett. Ich habe 3 Stück von denen einer davon reagiert auf keinen Input.
