Miller Coolmate 4 Owner's Manual
  1. Manuals
  2. Brands
  3. Miller Manuals
  4. Water Dispenser
  5. Coolmate 4
  6. Owner's manual

Miller Coolmate 4 Owner's Manual

Water coolmant system
Hide thumbs Also See for Coolmate 4:
Table of Contents

Advertisement

Quick Links

Download this manual
OM-624
126174Z
2017−02
Processes
TIG (GTAW) Welding
MIG (GMAW) Welding
Description

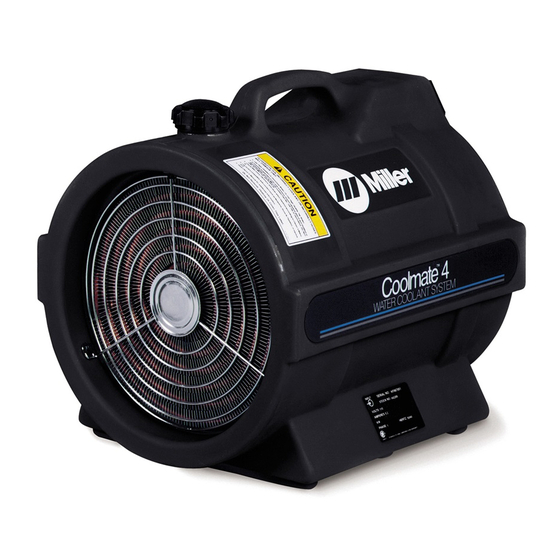

Coolmatet4
CE And Non-CE
File: TIG (GTAW)
For product information,
Owner's Manual translations,
and more, visit
www.MillerWelds.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Coolmate 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Miller Coolmate 4

Summary of Contents for Miller Coolmate 4

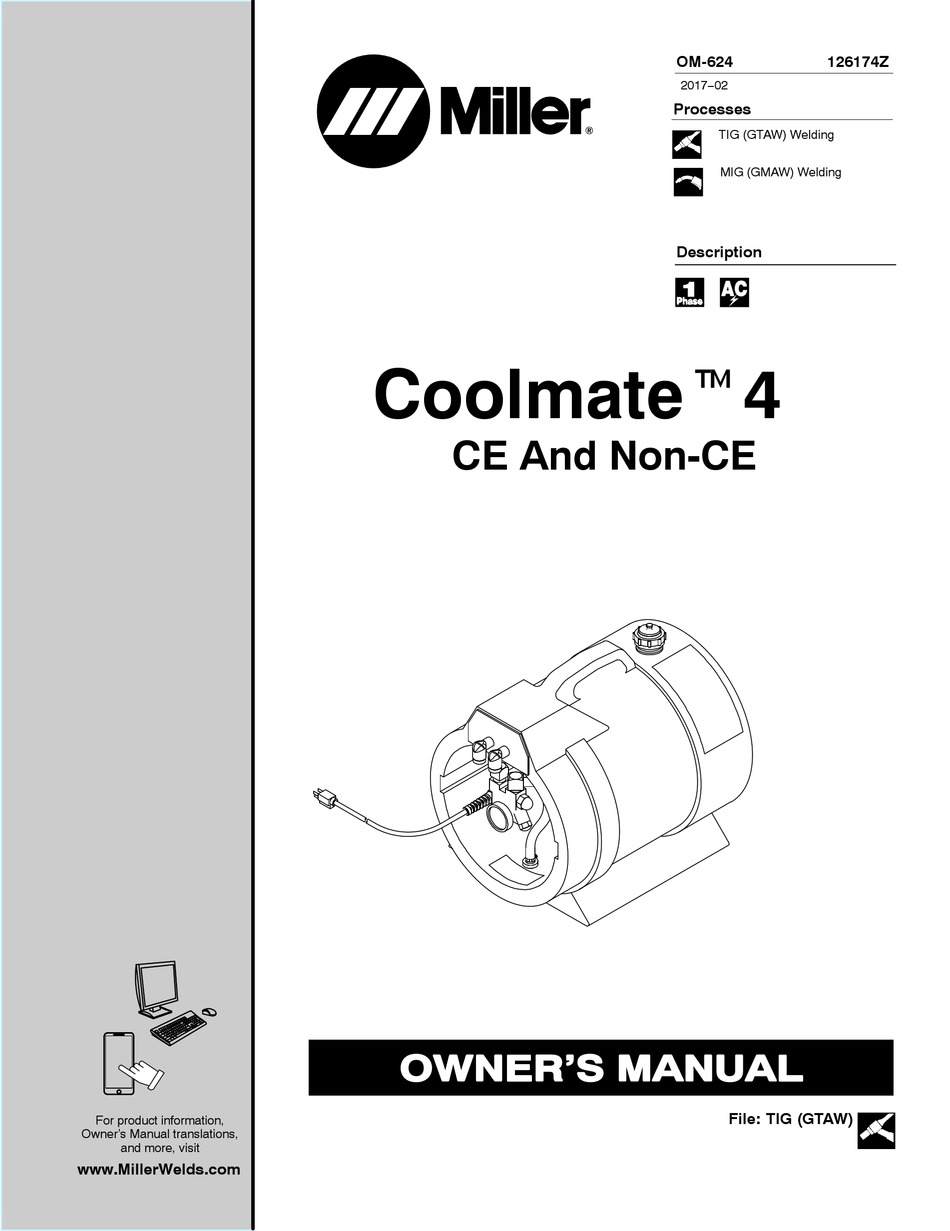

  • Page 1 OM-624 126174Z 2017−02 Processes TIG (GTAW) Welding MIG (GMAW) Welding Description Coolmatet4 CE And Non-CE File: TIG (GTAW) For product information, Owner’s Manual translations, and more, visit www.MillerWelds.com...
  • Page 2 We know you don’t have time to do it any other way. That’s why when Niels Miller first started building arc welders in 1929, he made sure his products offered long-lasting value and superior quality.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING ....... . . 1-1.
  • Page 4 DECLARATION OF CONFORMITY for European Community (CE marked) products. MILLER Electric Mfg. Co., 1635 Spencer Street, Appleton, WI 54914 U.S.A. declares that the product(s) identified in this declaration conform to the essential requirements and provisions of the stated Council Directive(s) and Standard(s).

  • Page 5: Section 1 − Safety Precautions - Read Before Using

    SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING coolers 2016-08 Protect yourself and others from injury — read, follow, and save these important safety precautions and operating instructions. 1-1. Symbol Usage DANGER! − Indicates a hazardous situation which, if Indicates special instructions.

  • Page 6: California Proposition 65 Warnings

    MOVING PARTS can injure. STEAM AND HOT COOLANT can burn. D Keep away from moving parts such as fans. Hose may rupture if coolant overheats. D Keep all doors, panels, covers, and guards D Visually inspect condition of hoses before each closed and securely in place.

  • Page 7: Section 2 − Consignes De Sécurité − Lire Avant Utilisation

    SECTION 2 − CONSIGNES DE SÉCURITÉ − LIRE AVANT UTILISATION Cooler 2016−08_fre Pour écarter les risques de blessure pour vous−même et pour autrui — lire, appliquer et ranger en lieu sûr ces consignes relatives aux précautions de sécurité et au mode opératoire. 2-1.

  • Page 8: Proposition Californienne 65 Avertissements

    LA VAPEUR ET LE LIQUIDE DE LIRE LES INSTRUCTIONS. REFROIDISSEMENT CHAUD peuvent provoquer des brûlures. D Lire et appliquer les instructions sur les étiquettes et Mode d’emploi avant Un tuyau peut se rompre lorsque le liquide de l’installation, l’utilisation ou l’entretien de refroidissement surchauffe.

  • Page 9: Section 3 − Definitions

    A complete Parts List is available at www.MillerWelds.com SECTION 3 − DEFINITIONS 3-1. Additional Safety Symbols And Definitions Some symbols are found only on CE products. Warning! Watch Out! There are possible hazards as shown by the symbols. Safe1 2012−05 Disconnect input plug or power before working on machine.

  • Page 10: Miscellaneous Symbols And Definitions

    A complete Parts List is available at www.MillerWelds.com 3-2. Miscellaneous Symbols And Definitions Some symbols are found only on CE products. Degree Of Amperes Line Connection Protection Volts Cooling Primary Voltage Hertz Water (Coolant) Rated Maximum Output Supply Current 1max Alternating Cur- rent Rated Cooling...

  • Page 11: Section 4 − Specifications

    A complete Parts List is available at www.MillerWelds.com SECTION 4 − SPECIFICATIONS 4-1. Serial Number And Rating Label Location The serial number and rating information for this product is located on the lower right side. Use rating label to determine input power requirements and/or rated output.

  • Page 12: Section 5 − Installation

    A complete Parts List is available at www.MillerWelds.com SECTION 5 − INSTALLATION 5-1. Connections Do not move or operate unit where it could tip. To prevent overheating, make sure GTAW Connections cooling unit is positioned so airflow is not restricted. NOTICE −...

  • Page 13: Section 6 − Maintenance & Troubleshooting

    Unreadable Cracked Using Water) Labels Hoses 12 Months Change Coolant (If Using Miller Coolant) 6-2. Coolant Maintenance Disconnect cooler plug from welding power source receptacle before maintaining. Dispose of used coolant accord- ing to national, state, and local codes. Do not pour down drain.

  • Page 14: Adjusting Relief Valve

    A complete Parts List is available at www.MillerWelds.com 6-3. Adjusting Relief Valve Relief valve is factory set at 60 psi (414 kPa), and normally needs no adjustment: Only ad- just if replacing motor. Pressure gauge Relief Valve Adjustment Screw Connect gauge to Coolant Out fit- ting as shown.

  • Page 15: Section 7 − Electrical Diagram

    A complete Parts List is available at www.MillerWelds.com SECTION 7 − ELECTRICAL DIAGRAM 187 313 SECTION 8 − PARTS LIST 8-1. Recommended Spare Parts Dia. Part Mkgs. Description Quantity Recommended Spare Parts ....146249 .
  • Page 16 Notes...
  • Page 17 Notes...
  • Page 18 Notes...
  • Page 19 Effective January 1, 2017 (Equipment with a serial number preface of MH or newer) This limited warranty supersedes all previous Miller warranties and is exclusive with no other guarantees or warranties expressed or implied. Warranty Questions? LIMITED WARRANTY − Subject to the terms and conditions below, 6 Months —...
  • Page 20 Contact the Delivering Carrier to: File a claim for loss or damage during shipment. For assistance in filing or settling claims, contact your distributor and/or equipment manufacturer’s Transportation Department. © ORIGINAL INSTRUCTIONS − PRINTED IN USA 2017 Miller Electric Mfg. Co. 2017−01...

Table of Contents
