Summary of Contents for DNA DNA-800
- Page 1 David Nordschow Amplification User Manual For The DNA- 800 Bass Amplifier DNA-800 ©2016, David Nordschow Amplification LLC...
- Page 2 David Nordschow throughout his distinguished career. We design and engineer DNA products to work in concert with each other to achieve a true synergy in their performance. Our DNA series amplification systems feature, leading...
-
Page 3: Connection Notes
Connect your DNA Series bass guitar amplifier and appropriate speaker of a similar power rating, using the NL-4 connectors on the rear of the amplifier chassis. The NL-4 connectors on both your amplifier and your DNA speaker cabinet are wired together in parallel (see below) Connect your amplifier using one connector and use the other one to connect another speaker cabinet if desired. -

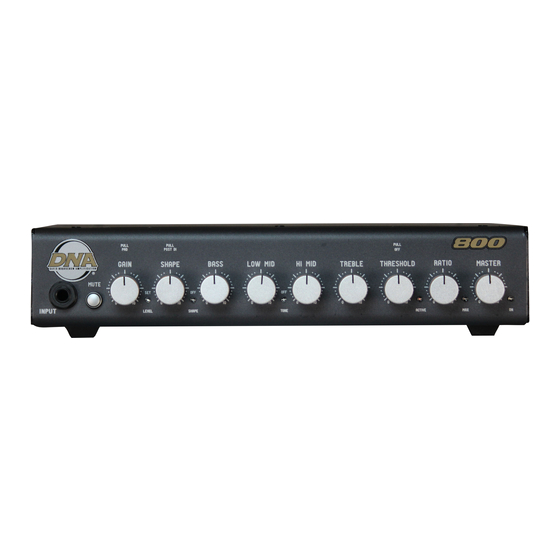

Page 4: Front Panel Controls And Features
normal operation. The ¼” jack cable has a much lower current rating and will not perform as reliably as the NL4 type connector. The 800 can put out a full 800 watts RMS into 4 Ω load @10% Output power ratings: distortion. - Page 5 Shape Bypass The shape bypass is available only by foot switch control. It allows you to set up the Shape Control for a specific tone character and then to bypass it. You can turn it on and off with the footswitch when you need that special tone without having to adjust the amplifiers controls each time.
- Page 6 If the green power on indicator will not illuminate, the unit has an operational problem and needs to be checked out by your dealer or authorized DNA service center. Peak Level LED The amber colored Peak Level LED flashes briefly when your unit’s output amplifier exceeds 0.01%...
- Page 7 It is not user serviceable. In the event of a clear fuse failure or a total lack of amplifier power up of the please contact your dealer or service center for assistance. The DNA 800 has passive cooling and no fan is required Amplifier Output Jacks The Amplifier Output Jacks available on 1350 are configured as two NL4 type jacks (main), and one 1/4 inch phone jack for (emergency use).
- Page 8 EQ. Bypass FT/SW (A) Switch (1). Shape Bypass FT/SW (A). Switch (2). Slave Input Connection This input jack allows you to connect your unit’s amplifier as a powered slave to another preamplifier. This connection bypasses the main input jack, preamp and all controls on your unit. Effects Loop The main effects are a standard serial effects loop.
- Page 9 DNA LLC or any Authorized DNA Service Center within the U.S.A. DNA LLC reserves the right to use materials readily available at the time of the repair. All Warranty service requires a Proof of Purchase (sales receipt) to be presented at time of service request. Any repair or service performed by any person or entity other than the DNA factory, or an Authorized DNA Service Center is not covered by this limited warranty.
- Page 10 Field Service Terms An Authorized DNA Warranty Service Center must perform any and all field warranty service work. Customer will not pay for parts and/or labor provided the problem found is within warranty guidelines.
