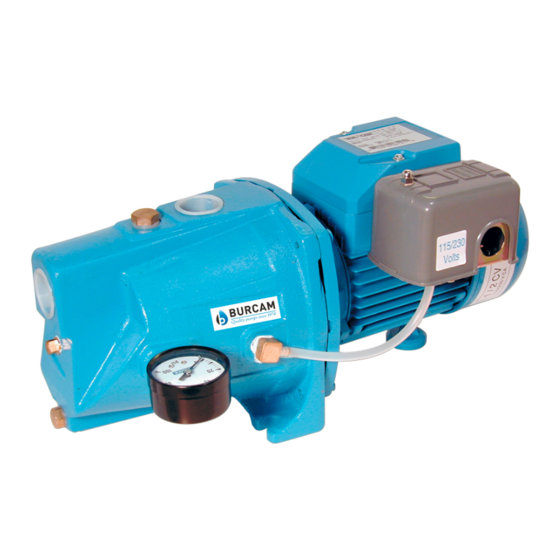

Jet pump

Advertisement

2190 Dagenais Blvd. West
Laval (Quebec)
Canada
H7L 5X9
see us at
Your pump has been carefully packaged at the
factory to prevent damage during shipping.
However, occasional damage may occur due
to rough handling. Carefully inspect your
pump for damages that could cause failures.
Report any damage to your carrier or your point
of purchase.

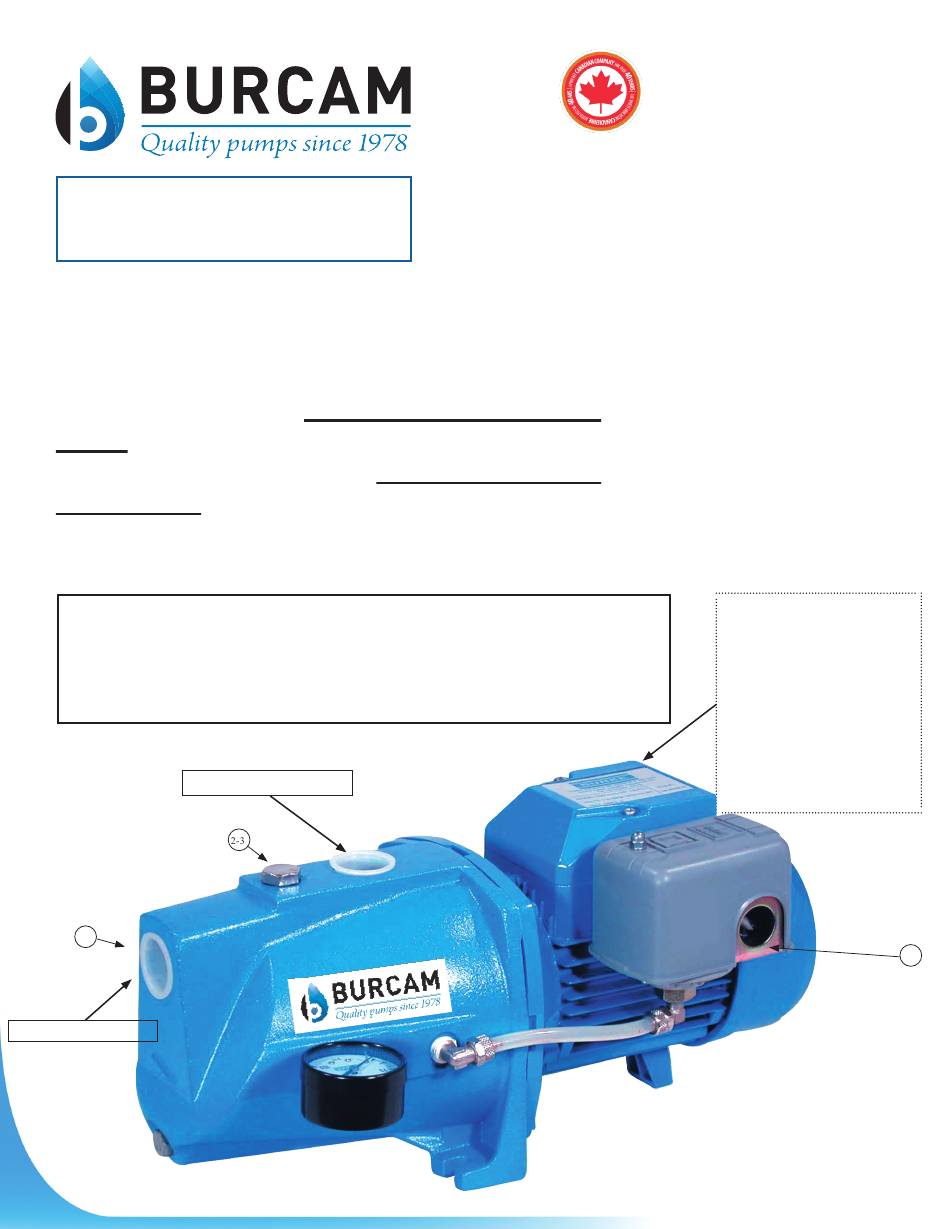

PRIMING PROCESS
Follow all these inside step by step instructions to install your pump. Use teflon tape on
all threads. (1) Fill the suction line with water and connect it to the suction inlet.
(2) Remove the priming plug and fill the pump body with water. (3) Screw the plug to the
priming inlet. (4) Turn the power on. The pump should deliver water to the plumbing line
within 30 seconds. If not, unplug the pump and repeat the process at step 2.
Discharge connection
1
Suction connection
Tel. : 514.337.4415
Fax : 514.337.4029
info@burcam.com
www.burcam.com
INSTALLATION
INSTRUCTIONS
JET PUMPS
MODELS
506121S
(VERSION W 2015)
AND OTHER PRODUCTS
506127S, 506128S
Please read these
carefully. Failure
instructions and
FACTORY SET VOLTAGE 115 V
TO CHANGE THE VOLTAGE :
A) Ensure the power to
the pump is disconnected.
B) Open motor junction box cover.
C) Please select the up knob
position for 115V or down
knob position for 230V.
D) Connect to appropriate voltage.
E) Close motor junction box.
© 2018 BURCAM Printed in Canada 506662
506131S, etc.
instructions
to comply to
designed
operation of
this system,
may void
the warranty.
Before changing the
voltage connection:
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 506121SW and is the answer not in the manual?

Questions and answers

Summary of Contents for Burcam 506121SW

  • Page 1 B) Open motor junction box cover. C) Please select the up knob position for 115V or down knob position for 230V. D) Connect to appropriate voltage. Discharge connection E) Close motor junction box. Suction connection © 2018 BURCAM Printed in Canada 506662...
  • Page 2: Safety Instructions

    Safety Instructions: This fine pump that you have just purchased is designed from the latest in material and workmanship. Before installation and operation, we recommend the following procedures: CHECK WITH YOUR LOCAL ELECTRICAL AND PLUMBING CODES TO ENSURE YOU COMPLY WITH THE REGULATIONS.
  • Page 3: Installation Steps

    APPLICATION FEATURES • This pump is designed for shallow well • Easy to prime pump body. installation for water level up to 25 feet. • Totally enclosed, fan cooled motor, • CAPACITY: bearing to bearing. Built for continuous use. USGPH •...
  • Page 4 SHALLOW WELL APPLICATION SEE DIAGRAM ON PAGE 7 Cut the desired length of poly pipe to run from the top of the well to the pumping level. STEP 2 Smooth the pipe cuttings with your round file. (Check that no cut-out parts are left inside of the pipe.
  • Page 5: Tank Installation

    TANK INSTALLATION SEE DIAGRAM ON PAGE 8 Packaged systems have the pump mounted directly to the tank. The pump to tank plumbing STEP 8 fittings are pre-assembled at the factory. You only need to connect the discharge line of your for captive system to your home’s plumbing distribution line.
  • Page 6: Electrical Installation

    ELECTRICAL INSTALLATION STEP 9 VOLTAGE SELECTION SWITCH 1. POWER off. 2. Please SELECT the up knob position for 115 V or down knob position for 230 V. Electrical line from home distribution 3. CONNECT to appropriate power source. panel. BLACK GREEN GROUND To motor lead...
  • Page 7 SHALLOW WELL APPLICATION STEP 5 Install your pump and thread an adaptor into inlet. STEP 6 Cut poly pipe and connect both ends. STEP 3 Well point optional installation Insert well seal elbow through the seal and attact to pipe. STEP 7 You may install one or more sand points to increase the supply of water.
  • Page 8 TANK INSTALLATION Snifter valve to adjust air pressure Pressure switch 1/4" connection (if not included with the pump). Relief valve for Pressure gauge pumps with more 1/4" connection than 75 PSI of capacity, 1/2" connection 1" MNPT or 3/4" Drain valve, FNPT connection 1/2"...
  • Page 9: Repair Parts

    19 506061GP Pump bracket 40 506014 Cover box junction 20 506383 Motor flange cap screw 41 506384 Cover box screw 21 506074GP Fan cover 506121SW 2009 Repair parts may be ordered from your authorized point of sale or from BUR-CAM PUMPS...
  • Page 10 TROUBLE SHOOTING GUIDE CHECKLIST NEVER MAKE ADJUSTMENTS TO ANY ELECTRICAL APPLIANCE OR PRODUCT WITH THE POWER CONNECTED. DON’T JUST UNSCREW THE FUSE OR TRIP THE BREAKER, REMOVE THE POWER FROM THE RECEPTACLE. TROUBLE PROBABLE CAUSE ACTION Switch is off position Turn switch to on position Motor does not Blown fuse...
