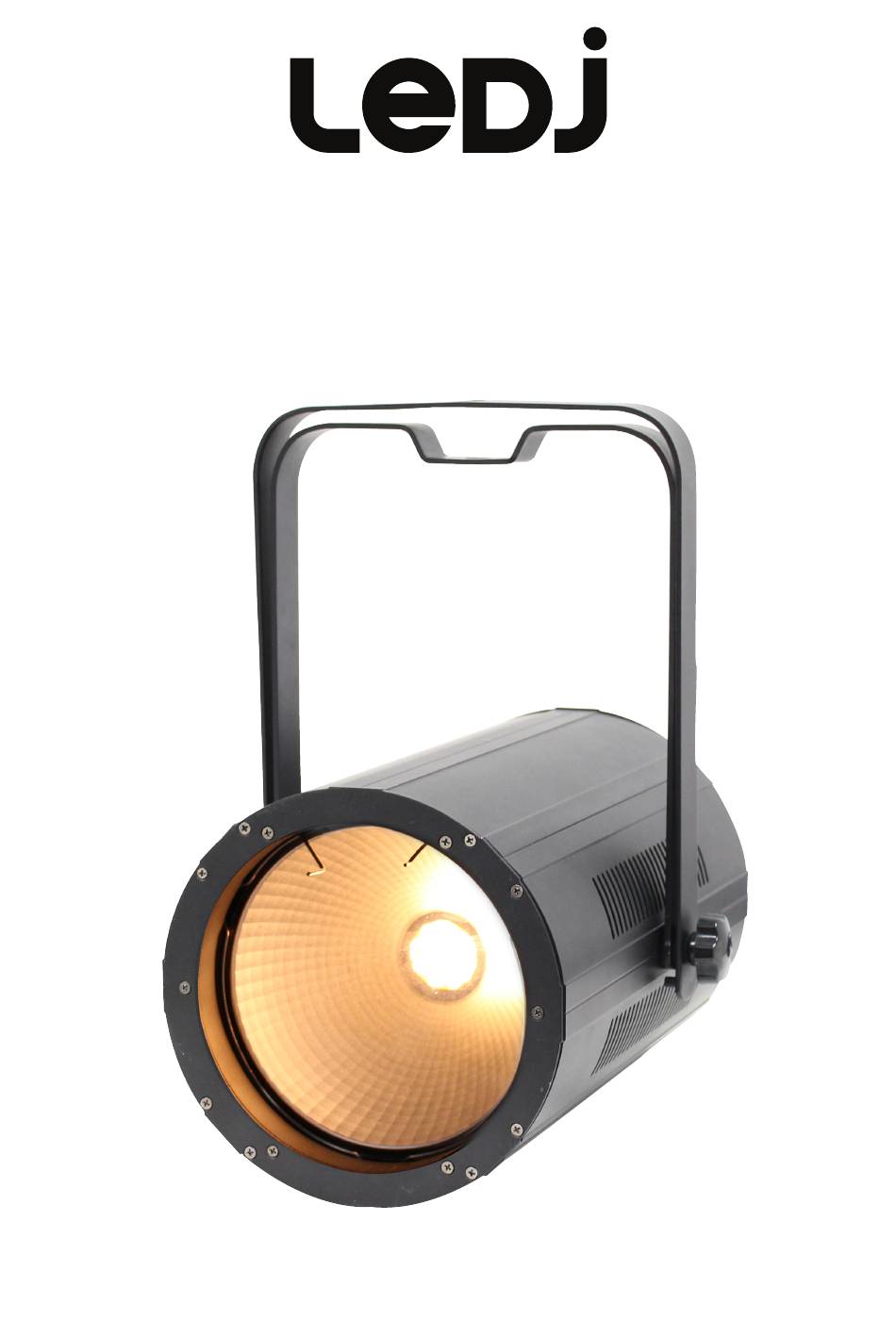

- Page 1 150W COB CW/WW Par User Manual Order code: LEDJ375...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk 150W COB CW/WW Par User Manual... - Page 3 80° - Lux Specifications 150W COB CW/WW Par FULL ON 12700 3180 1410 7560 1888 Power consumption 155W 5240 1310 Power supply 100~240V, 50/60Hz Fuse T3A 250V 25° 40° ° ° Dimensions 353 x 257 x 320mm Weight 4.4kg Order code LEDJ375 257mm 320mm www.prolight.co.uk 150W COB CW/WW Par User Manual...
-
Page 4: Technical Specifications
1 x 25° beam reduction lens, 03 - LED display 09 - PowerCON input 1 x 40° beam reduction lens, 04 - Function buttons 10 - PowerCON output 1 x 50° beam reduction lens, 05 - 3-Pin DMX input 11 - Fuse T3A 250V 1 x power cable 06 - 3-Pin DMX output 12 - Hanging bracket & 1 x user manual 07 - 5-Pin DMX input 13 - Hanging bracket adjustable knob www.prolight.co.uk 150W COB CW/WW Par User Manual... - Page 5 C L 0 8 F 5. 1 5 d o n Display backlight d o F F S t n d d o n Display inverse d E F A Reset factory settings www.prolight.co.uk 150W COB CW/WW Par User Manual...
- Page 6 Inverse Square Law (dimming curve) 041-060 Inverse Square Law (dimming curve) 061-080 S-Curve (dimming curve) 061-080 S-Curve (dimming curve) 081-255 Default dimming curve (set via menu) 081-255 Default dimming curve (set via menu) 4 channel mode: Channel Value Function 000-255 Cool White dimmer (0-100%) 000-255 Warm White dimmer (0-100%) 000-255 Master dimmer (0-100%) 000-020 Linear (dimming curve) 021-040 Square Law (dimming curve) 041-060 Inverse Square Law (dimming curve) 061-080 S-Curve (dimming curve) 081-255 Default dimming curve (set via menu) www.prolight.co.uk 150W COB CW/WW Par User Manual...
-
Page 7: Master/Slave Mode
Value: 00 - 15 (00 = no flash, 15 = fast flash speed) To exit out of any of the above options, press the “MENU” button. Display backlight: To access the display backlight setting, press the “MENU” button until the display shows on the doff LED display. Use the “UP” and “DOWN” buttons to select either (display backlight on) ~ (display backlight off). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Display inverse: To access the display inverse setting, press the “MENU” button until the display shows on the Stnd LED display. Press the “ENTER” button to display and use the “UP” and “DOWN” buttons to Stnd select either (display standard) ~ (display inverse). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk 150W COB CW/WW Par User Manual... - Page 8 Operating instructions Reset factory settings: To reset the factory settings, press the “MENU” button until the display shows on the LED display. dEFa Press the “ENTER” button twice to display . Press the “UP” and “DOWN” buttons together and the fixture will be reset to its factory settings. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk 150W COB CW/WW Par User Manual...
-
Page 9: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk 150W COB CW/WW Par User Manual... -
Page 10: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk 150W COB CW/WW Par User Manual... -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk 150W COB CW/WW Par User Manual... - Page 12 150W COB CW/WW Par User Manual...
