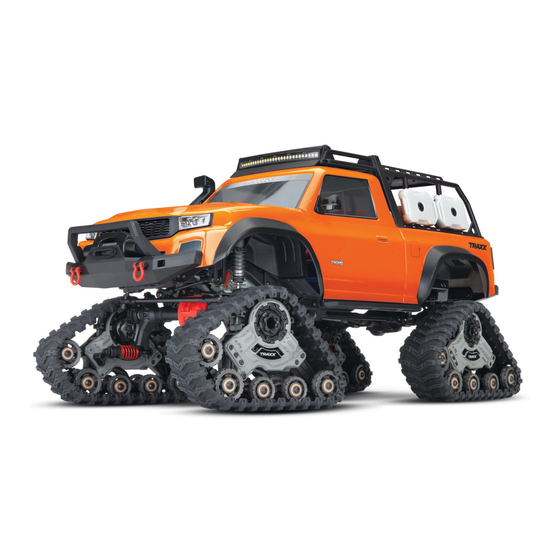

Traxxas TRX 4 Owner's Manual

Equipped with all-terrain traxx
Hide thumbs

Advertisement

Quick Links

Download this manual
MODEL 82034-4
EQUIPPED WITH
owner
s manual
'

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRX 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Traxxas TRX 4

Summary of Contents for Traxxas TRX 4

  • Page 1 MODEL 82034-4 EQUIPPED WITH owner s manual ’...
  • Page 2 MODEL read and follow the procedures in this manual. MAINTAINING Thank you again for going with Traxxas. We work hard every day YOUR MODEL to assure you the highest level of customer satisfaction possible. We truly want you to enjoy your new model! FCC Compliance This device contains a module that complies with the limits for a Class B digital device as described in part 15 of the FCC rules.
  • Page 3 Traxxas service needs. Maintenance and replacement Throughout this manual, you’ll notice warnings and helpful hints Ready-To-Drive, TQ, Titan, parts may be purchased directly from Traxxas by phone or online TRX-4, Traxx, and XL-5 HV identified by the icons below. Be sure to read them! are trademarks or registered at Traxxas.com.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS All of us at Traxxas want you to safely enjoy your new model. • Insulate the Wires: Always insulate exposed wiring with heat Operate your model sensibly and with care, and it will be exciting, shrink tubing to prevent short circuits.
  • Page 5 LiPos. on the risks associated with LiPo battery use. Traxxas does not • Store and transport your battery pack(s) in a cool dry place.
  • Page 6 SAFETY PRECAUTIONS (continued from previous page) • REMOVE flammable items and combustible materials from the • Allow the battery pack to cool off between runs (before charging). charging area. • ALWAYS unplug the charger and disconnect the battery when not •...
  • Page 7 6 or 7-cell NiMH battery pack, or 2s/3s LiPo battery Battery charger 4 AA alkaline batteries pack, with Traxxas High-Current connector* Traxxas iD battery chargers are compatible with Traxxas High-Current Connectors *Battery and charger style are subject to change and may vary from images. TRX-4 • 7...
  • Page 8 ANATOMY OF THE TRX-4 Chassis Top View Battery Hold-Down Traxxas High-Current Connector Electronic Speed Control Slipper Clutch Front Body Mount Battery Compartment LED Lighting Module Transmission Motor Front Bumper Rear Body Mount Rear Bumper LED Light Pipe Steering Servo Antenna Mount...
  • Page 9 ANATOMY OF THE TRX-4 Chassis Bottom View Rear Axle Rear Portal Housing Rear Upper Link Front Upper Link Front Portal Housing Front Axle Chassis Rail Shock Rear Driveshaft Skidplate Differential Cover Rear Lower Link Floor Pan Front Driveshaft Front Lower Link Caster Block...
  • Page 10 quick start: getting up to speed The following guide is an overview of the procedures for getting your model running. Look for the Quick Start logo on the bottom The Quick Start Guide is corners of Quick Start pages. not intended to replace the full operating instructions 1.

  • Page 11: Radio System

    TQ 2.4GHz radio system. For additional information and how- to videos, visit Traxxas.com. NiCad - Abbreviation for nickel-cadmium. The original RADIO AND POWER SYSTEM TERMINOLOGY rechargeable hobby pack, NiCad batteries have very high current handling, high capacity, and can last up to 1000 charging cycles.
  • Page 12 TRAXXAS TQ 2.4GHz RADIO SYSTEM Thermal Shutdown Protection - Temperature sensing electronics IMPORTANT RADIO SYSTEM PRECAUTIONS are used in the ESC to detect overloading and overheating of the • Do not kink the receiver antenna wire. Kinks in the antenna wire To prevent loss of radio range, transistor circuitry.
  • Page 13 TRAXXAS TQ 2.4GHz RADIO SYSTEM Your model is equipped with the Traxxas TQ 2.4GHz transmitter. MODEL WIRING DIAGRAM XL-5 HV Wiring Diagram The transmitter has two channels: Channel one operates the Motor steering, and channel two operates the throttle. The receiver (Titan ®...
  • Page 14 LiPo and NiMH batteries. One NiMH rechargeable batteries for or 2s/3s LiPo battery equipped with a Traxxas High-Current Connector a full charge. If you see any is required. Traxxas Power Cell iD batteries are strongly recommended other flashing signal from the for maximum performance and safer charging.
  • Page 15 Secure, long-lasting, and easy to grip, the recognize connected battery Traxxas connector is engineered to extract all the power your battery packs and optimize the has to give. charge settings for the SETTING UP THE ANTENNA battery.
  • Page 16 TRAXXAS TQ 2.4GHz RADIO SYSTEM RADIO SYSTEM CONTROLS • In order for the transmitter and receiver to bind to one another, the receiver in the model must be turned on within 20 seconds Remember, always turn the of turning on the transmitter. The transmitter LED will flash fast transmitter on first and off red, indicating a failure to link.
  • Page 17 TRAXXAS TQ 2.4GHz RADIO SYSTEM 1. Press and hold the SET button on the transmitter for two 7. Gently operate the throttle trigger to ensure that you have forward and reverse operation, and that the motor stops when seconds. The status LED will flash green.
  • Page 18 TRAXXAS TQ 2.4GHz RADIO SYSTEM No matter how fast or far you drive your model, always leave adequate TRANSMITTER LED CODES space between you, the model, and others. Never drive directly toward Fail-Safe LED Color / Pattern Name Notes yourself or others.

  • Page 19: Adjusting The Electronic Speed Control

    ADJUSTING THE ELECTRONIC SPEED CONTROL XL-5 HV Battery Settings (Low-Voltage Detection Setting) XL-5 HV Setup Programming (Calibrating your ESC and transmitter) XL-5 HV Specifications The XL-5 HV electronic speed control is equipped with built-in Low- Read through all of the programming steps before you begin. If you Voltage Detection.
  • Page 20 ADJUSTING THE ELECTRONIC SPEED CONTROL release too quickly, you may hear the steering servo jump but the Selecting Sport Mode LED may not stay on. Simply press the button again until the LED (Profile #1: 100% Forward, 100% Brakes, 100% Reverse) Patented Training Mode shines GREEN, and then release.
  • Page 21 ADJUSTING THE ELECTRONIC SPEED CONTROL Selecting Trail Mode WARNING: FIRE HAZARD! (Profile #4: 100% Forward, 100% Brakes, 100% Reverse; Do not use LiPo batteries in this vehicle with Throttle Neutral Protection Drag Brake at Neutral) Low-Voltage Detection disabled. The XL-5 HV speed control 1.

  • Page 22: Driving Your Model

    DRIVING YOUR MODEL Now it’s time to have some fun! This section contains instructions on driving and making adjustments to your model. Before you go on, here Drive wheel are some important precautions to keep in mind. CAUTION: The stock gearing (11-T pinion Keep the drive teeth free of debris and 45-T spur gear) is suitable for general...
  • Page 23 RUNNING IN WET CONDITIONS motor gets excessively wet or submerged, use very light throttle (run Your new Traxxas TRX-4 is designed with water-resistant features the motor slowly) until the excess water can run out. Applying full to protect the electronics in the model (receiver, servos, electronic throttle to a motor full of water can cause rapid motor failure.
  • Page 24 • Transmission: Remove, disassemble, clean, and re-grease the transmission components. Use a light coating of high-performance grease (such as Traxxas part #5041) on the metal gear teeth. No grease is 4. Apply a bead of silicone grease required for the nylon gears.

  • Page 25: Adjusting Your Model

    ADJUSTING YOUR MODEL Adjustment procedures for alignment, spring rate, damping, steering, Replacing Shock Oil and ride height are covered here. The shocks have to be removed from 6.7mm Important: The shocks are the vehicle and disassembled to assembled at the factory SUSPENSION TUNING change the oil.
  • Page 26 ADJUSTING YOUR MODEL Shock assembly To restore factory settings, use 1. Insert the shock shaft assembly through the the included 4-way wrench Never slide the threads on shock body until the piston bottoms out. to turn the adjustment nut the shock rod past the X-ring until all four spring washers 2.
  • Page 27 The offsets and dimensions should be used. Over-gearing designed into TRX-4 wheels are intentional; therefore, Traxxas (bigger pinions, smaller spurs) can cannot recommend the use of other non-Traxxas wheels with overheat and damage the motor different specifications. and/or speed control.
  • Page 28 ADJUSTING YOUR MODEL Use the following formula to calculate the overall ratio for SERVO STEERING SYSTEM combinations not listed on the gear chart: TRX-4 uses a single metal gear servo for powerful, responsive steering. # Spur Gear Teeth Adjusting the Steering System x 15.8 = Final Gear Ratio 1.
  • Page 29 ADJUSTING YOUR MODEL If you are using aftermarket servos, it is important to use servo horns designed for TRX-4. The servo horns must measure 22mm from the steering linkage mounting hole to the servo mounting hole. FITTING AFTERMARKET BODIES Rear Shock Tower The rear shock tower can be installed in two different locations and in two orientations each.

  • Page 30: Maintaining Your Model

    If the bottom of the shock is leaking, then it 3. Check the operation of the shock absorbers. is time for a rebuild. The Traxxas rebuild kit for two shocks is 4. Check the wiring for any frayed wires or loose connections.
  • Page 31 TRX-4 • 31...
  • Page 32 EQUIPPED WITH owner s manual ’ MODEL 82034-4 6250 Traxxas Way McKinney, Texas 75070 1-888-TRAXXAS 190614 82034-4-OM-EN-R00...
