Focus Firestore FS-1 User Manual

FireStore Case User Guide
Congratulations on your purchase of the FOCUS Enhancement's FireStore
Custom Case. This case is for use with the FireStore FS-1 product and allows
for easy, portable operation. This User Guide will describe some of the features
as well as installation procedures for mounting your FireStore unit, battery, hard
disk drive and cables inside the carry case. These is no right way to use the bag,
but rather it was designed to support individual professional's needs flexibly.

Mounting FireStore, Battery and Hard Disk Drive

Unpack the Carry Case from its packaging and remove the inner aluminum
chassis from the nylon case. To do this, simply unzip the top flap and pull the
chassis free. Once removed, study the front of the chassis. Items should simply
slide into the chassis, but do not install anything yet. Each piece of equipment
inserts as follows:

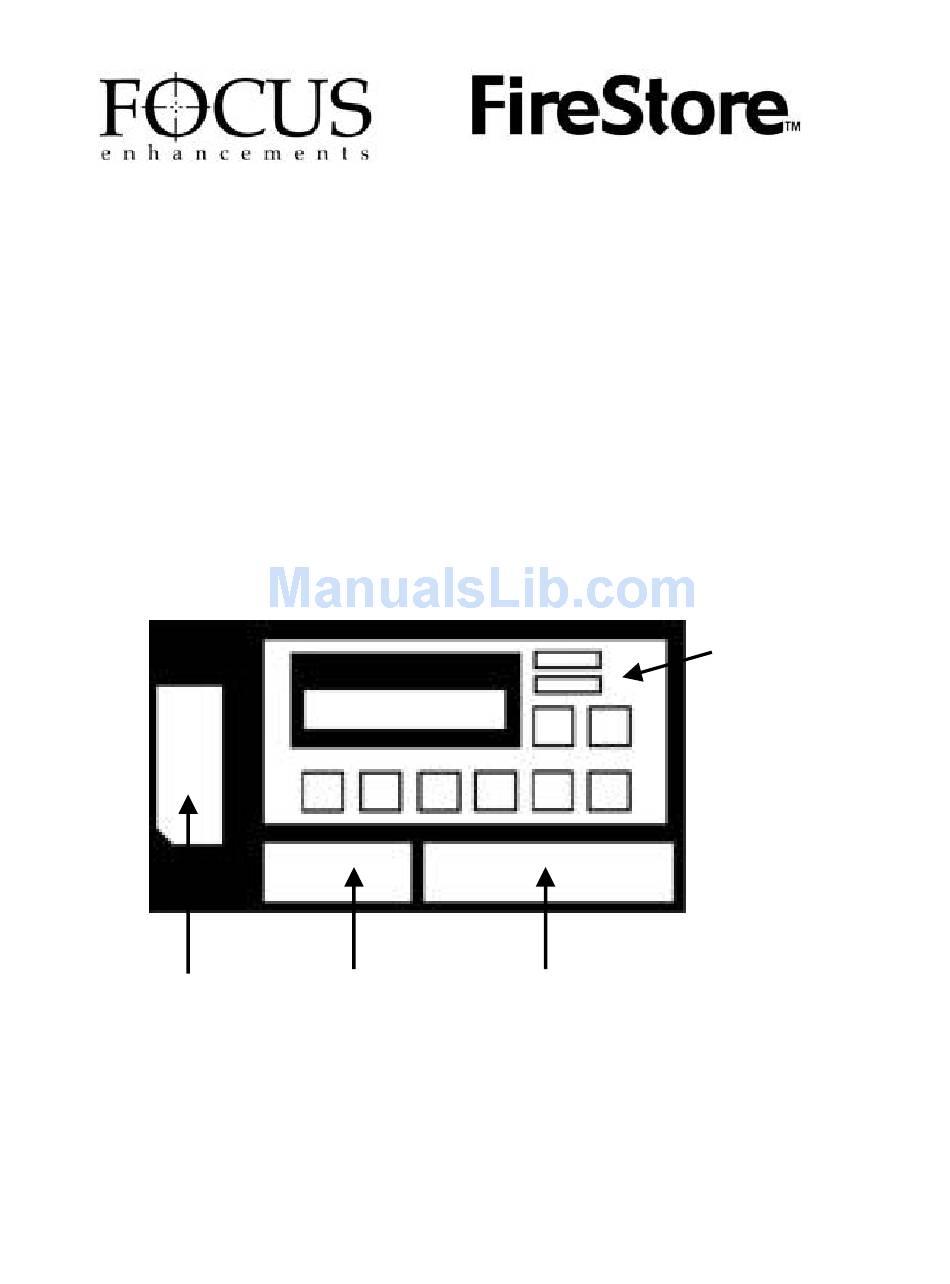

This slot is for an
NP series battery
such as the
Focus BATT-
0004-01.
MANL-0890-01
This slot is for
storage of the 4-pin
to 4-pin FireWire
cable that connects
to your DV source.
One end of the cable
will go through the
slot to the rear of
FireStore. See next
section for details.
This slot is for a slim
line FireWire disk
Drive. Use the
included 6-pin to 6-
pin cable that came
with your FireStore
to connect the drive
to the rear of
FireStore.
The main slot is
for your
FireStore.
