- Page 1 T E C H N I CA L P R O I N C L Z 1 0 K PROFESSIONAL POWER AMPLIFIER WWW.TPRO.COM...
-
Page 2: Table Of Contents
L - SERIES 2U Professional Amplifier Table of Contents 1 Welcome ..................3 2 Setup ................... 4 2.1 Unpack Your Amplifier ..............2.2 Install Your Amplifier ..............2.3 Ensure Proper Cooling ............... 2.4 Choose Input Wire and Connectors ........2.5 Choose Output Wire and Connectors ........2.6 Wiring Your System .............. -
Page 3: Welcome

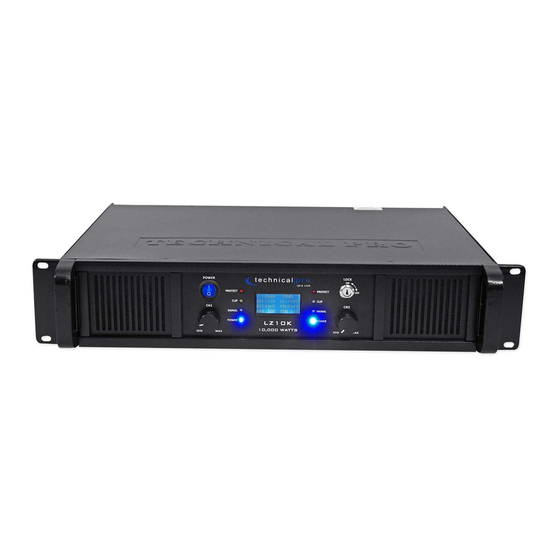

L - SERIES 2U Professional Amplifier 1 Welcome Technical Pro’s L- Series power amplifiers provide ITEM Peak Power Dimensions professional audio amplification for a wide range of application These amplifiers feature front panel LZ10K 10,000 Watts 19”w x 3.5”h x 14.5”d controls for easy setup and use. -
Page 4: Setup
L - SERIES 2U Professional Amplifier 2 Setup 2.2 Install Your Amplifier 2.3 Ensure Proper Cooling 2.1 Unpack Your Amplifier CAUTION: Before you begin, make sure When using an equipment rack, mount units Please unpack and inspect your amplifier for directly on top of each other. -
Page 5: Choose Input Wire And Connectors
L - SERIES 2U Professional Amplifier 2 Setup 2.4 Choose Input Wire and Connectors You have two choices of input connectors: 1/4-inch (6.35-mm) phone, 3-pin XLR. You can also use either balanced or unbalanced wiring. Figure 2.4.1 shows balanced connector pin assignments for XLR and phone. -
Page 6: Choose Output Wire And Connectors
2 Setup 2.5 Choose Output Wire and Connectors Technical Pro recommends using pre-built or professionally wired, high-quality, two- or four- conductor, heavy gauge speaker wires. Figure 2.5.1 shows how a user would connect the L- Series amplifier to a speaker using the Speakon™ connector. -
Page 7: Wiring Your System
Make sure the amplifier is turned off and the level controls are turned down before you wire the system. Make sure the stereo/bridge switch is set to stereo. MODEL: LZ10K www.tpro.com Typical input and output wiring is shown in Figure 2.6.1. -
Page 8: Bridge-Mono Mode
Make sure the amplifier is turned off and the level controls are turned down before you wire the system. Make sure the stereo/bridge switch is set to bridge. MODEL: LZ10K www.tpro.com Typical input and output wiring is shown in Figure 2.6.3. -
Page 9: Operation
Output Lock Power Signal Protect Clip Ch1 Level Control Indicator Indicator Indicator Indicator Ch2 Level Control Stero/Bridge Switch Limiter SPEAKON Output Power Select MODEL: LZ10K www.tpro.com Cooling Fan XLR Input 1/4” Input Lift/Ground Banana Post Output AC Power Switch Page9... -
Page 10: Warranty
Pro will not accept COD packages and no call tags will be issued for returned merchandise. A sales receipt, invoice or proof of purchase must be sent with the unit along with the seller’s name and address in order to verify is the unit is still covered under Technical Pro’s limited warranty. A brief explanation of the unit’s defect must also accompany the unit in addition to the owner’s return shipping address.
