- Page 1 IDS-409G Hardware Installation Guide Managed Industrial Ethernet Switches Updated: October 2019 Version: A.2.1.10.2019 www.perle.com Document Part#:5500379-10...
- Page 2 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product. Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
-
Page 3: Table Of Contents
Table of Contents Preface ......................2 Overview . -
Page 4: Preface
Preface Audience This guide is for the network or computer technician responsible for installing Perle IDS series switches. Familiarity with the concepts and terminology of Ethernet and local area networks is required. Purpose This document describes the hardware and physical characteristics of the Perle IDS switch. -
Page 5: Overview
10/100/1000Base-T Fiber Standard Models Temp Ports Ports IDS-409G-XXXXXXX Standard IDS-409G2-XXXXXXX Standard IDS-409G3-XXXXXXX Standard IDS-409G-XXXXXXX-XT Industrial IDS-409G2-XXXXXXX-XT Industrial IDS-409G3-XXXXXXX-XT Industrial XXXXXXX - represents fiber ports of different wavelengths, distances and connectors IDS-409G Hardware Installation Guide... -

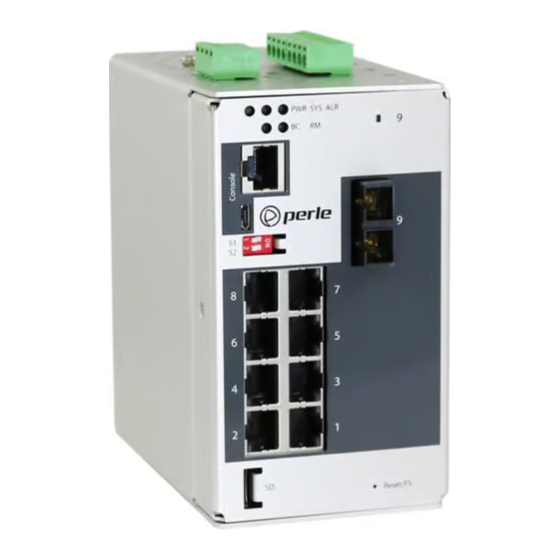

Page 6: Switch Models Views
4 – Console Port – USB 11 - Reset / FS (Fast Setup) 5 – DIP switches 12 - Wall Mount Bracket Screw Holes 6 – 10/100/10100 Base-T Ports 13 - DIN Rail Clip 7 – SD Card Slot IDS-409G Hardware Installation Guide... - Page 7 11 - 1000Base-X Fiber Ports 5 – DIP switches 12 - Reset / FS (Fast Setup) 6 – Fiber Port Status LEDs 13 - Wall Mount Bracket Screw Holes 7 – 10/100/1000 Base-T Ports 14 - DIN Rail Clip IDS-409G Hardware Installation Guide...
- Page 8 11 - 1000Base-X Fiber Port 5 – DIP switches 12 - Reset / FS (Fast Setup) 6 – Fiber Port Status LEDs 13 - Wall Mount Bracket Screw Holes 7 – 10/100/1000 Base-T Ports 14 - DIN Rail Clip IDS-409G Hardware Installation Guide...
-
Page 9: Led Indicators
Alarms configured, but no alarms detected Alarm condition detected Red - solid Alarm condition detected and Alarm Relay activated Red - blinking BC (Backup Coupling) State Description Backup Coupling not enabled Green - solid Backup Coupling Link enabled IDS-409G Hardware Installation Guide... - Page 10 Green - flashing Ring Master unable to establish a ring due to missing link on one of the Ring ports Ring Master Active, redundant port unblocked - indi- Yellow - solid cates a break in the Ring IDS-409G Hardware Installation Guide...
-
Page 11: Ports
Digital Input Connector Two Digital Inputs are provided that can be used for the generation of alarms (SNMP trap, energizing of on board Alarm Relay etc.). IDS-409G Hardware Installation Guide... -
Page 12: Port Status Indicators
10 Mbps On solid Port Link Random blinking Port Link and Activity Slow blinking Error disabled Rapid blinking Port in Fast Setup Mode Fiber Port Status Indicators Port Link State Description Link Green Green Flashing Link/Activity IDS-409G Hardware Installation Guide... -
Page 13: Terminal Block Connectors
P2 - Power Input 2 IN 1 - Digital Input 1 - Dry Contact IN 2 - Digital Input 2 - Wet Contact R - Relay with 2 connection points - Normally Open (NO) / Normally Closed (NC) IDS-409G Hardware Installation Guide... -
Page 14: Dip Switches
Coupling: Backup on Port 4 (Note 1) Client Primary Ring Feature: enabled Ring Role: Client Coupling: none Note 1: If the backup coupling feature is not used, then port 4 can be used as a normal connection port. IDS-409G Hardware Installation Guide... - Page 15 Port Assignment Ring Ports 1, 2 Coupling Port Note: DIP switches are read during system boot up. If a DIP switch is changed the IDS switch must be rebooted in order for the change to take effect. IDS-409G Hardware Installation Guide...
-
Page 16: Installation
Ensure that voltage and current supplied by the alarm circuits are within the stated Alarm Relay specifications. Warning: In hazardous location installations, failure to remove from the source prior to completing the wiring connections to the alarm relay could cause an electrical arc resulting in a possible explosion. IDS-409G Hardware Installation Guide... -
Page 17: Terminal Block-Power Connectors
Warning: In case of malfunction or damage, no attempts at repair should be made. Do not dismantle the product. All repairs need to be made by a qualified Perle representative. Warning: Explosion hazard. Do not remove or replace lamps, fuses or plug-in modules (as applicable) unless power has been disconnected or the area is free of ignitable concentrations. -
Page 18: Wiring The Relay Alarm
Alarm Relay specifications. Warning: In hazardous location installations, failure to remove the power from the source prior to completing the wiring connections to the alarm relay could cause an electrical arc resulting in a possible explosion. IDS-409G Hardware Installation Guide... -
Page 19: Wiring Digital Inputs
Digital Input specifications. Warning: In hazardous location installations, failure to remove the power from the source prior to completing the wiring connections to the alarm relay could cause an electrical arc resulting in a possible explosion. IDS-409G Hardware Installation Guide... -
Page 20: Connecting The Console Port
This could cause an explosion when installed in a hazardous location. Ensure the power is removed from all devices prior to making the cable connection. IDS-409G Hardware Installation Guide... - Page 21 This could cause an explosion when installed in a hazardous location. Ensure the power is removed from all devices prior to making the cable connection. IDS-409G Hardware Installation Guide...
-
Page 22: Connecting Data Ports
Note: It may take a few seconds for the device to become active. By default the IDS switch will have Rapid Spanning Tree (RSTP) protocol enabled. This protocol will first check the network for any cabling loops prior to bringing the port up, in order to prevent network disruptions. IDS-409G Hardware Installation Guide... -
Page 23: Resetting The Switch
Reset to Factory Default Configuration The switch can be reset to the Factory default configuration. When this is done, all config- uration, user IDs, passwords and security certificates are deleted. The start-up and backup software are unaffected. Follow this procedure: IDS-409G Hardware Installation Guide... - Page 24 Rapid blinking on the first available RJ- / Speed 45 port to which the PC can be connected. Password Recovery When the switch is not in factory default, the "Fast Setup Mode" sequence will activate Password recovery. IDS-409G Hardware Installation Guide...
-
Page 25: Configuring The Ids Switch
Web Device Manager The Perle Web Device Manager is an embedded Web based application that provides an easy to use browser interface for managing the switch. This interface provides the ability to configure and manage the switch. This is accessible through any standard desktop web browser. -
Page 26: Appendix A - Technical Specifications
Fuse Reverse polarity protection Interfaces 10/100/1000Base-T (RJ45) • Up to 100 meters (328 ft.) • Auto-negotiation • Auto-MDI/MDIX • Ethernet isolation 1500 V 1000Base-X Fiber Ports • 1000Base-X in a variety of wavelengths, distances and connectors IDS-409G Hardware Installation Guide... - Page 27 IEC/EN 61000-4-3 (RS) IEC/EN 61000-4-4 (EFT) IEC/EN 61000-4-5 (Surge) IEC/EN 61000-4-6 (CS) IEC/EN 61000-4-8 (Magnetic Field) IEC/EN 61000-6-2 (General Immunity in Industrial Environments) Hazardous Locations (Hazloc) ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D ATEX Zone 2 IDS-409G Hardware Installation Guide...
- Page 28 Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. www.perle.com/support_services/support_request.shtml Warranty / Registration This product is covered by the Perle Ethernet Switches Warranty. Details can be found at: https://www.perle.com/support_services/warranty.shtml IDS-409G Hardware Installation Guide...
-
Page 29: Appendix B - Sample Labels
Appendix B - Sample Labels Appendix B - Sample Labels IDS-409G Hardware Installation Guide... -
Page 30: Appendix C - Mechanical Drawings
Appendix C - Mechanical Drawings Appendix C - Mechanical Drawings IDS-409G Hardware Installation Guide... - Page 31 Appendix C - Mechanical Drawings IDS-409G Hardware Installation Guide...
- Page 32 Appendix C - Mechanical Drawings IDS-409G Hardware Installation Guide...
-
Page 33: Appendix D - Din Rail And Wall Mounting
2. Insert a flat blade screwdriver into the slot and twist the base to release the clip. Alter- natively a downward force on the clip will release the clip. 3. When the clip is released, pull the bottom of the switch out slightly and remove the switch from the DIN rail. IDS-409G Hardware Installation Guide... - Page 34 6. Pull the IDS switch down to lock the IDS switch to the wall mount. 7. Tighten the four screws securely to the wall. Note: for best results use screws with the following attributes Head diameter .5 - .6 mm Shaft diameter 3 -3.5 mm IDS-409G Hardware Installation Guide...
-
Page 35: Appendix E - Ids Maintenance
Do not use solvents or cleaning agents on this unit • Keep vent holes clear of debris • If case gets dirty wipe with a dry cloth • Ensure all cables are in good working condition • Replace any frayed cables or cables without clips IDS-409G Hardware Installation Guide... -
Page 36: Appendix F - Cables And Connectors
Ethernet cable used (straight-through or cross-over), and the type of device (NIC-type or HUB/Switch-type) connected to the port. Requirements: • Cat 5 UTP or STP, Cat 5e cables • 24-22 AWG (0.20mm - 0.33mm • Straight through or Ethernet Crossover cable IDS-409G Hardware Installation Guide... - Page 37 Appendix F - Cables and Connectors Note: An optional cable adapter is available to provide RJ45 to DB9 conversion: Perle’s optional RJ45 to DB9-F crossover adapter model DB0020C enables a straight through Ethernet cable to connect the RJ45 console port to a PC serial port.
