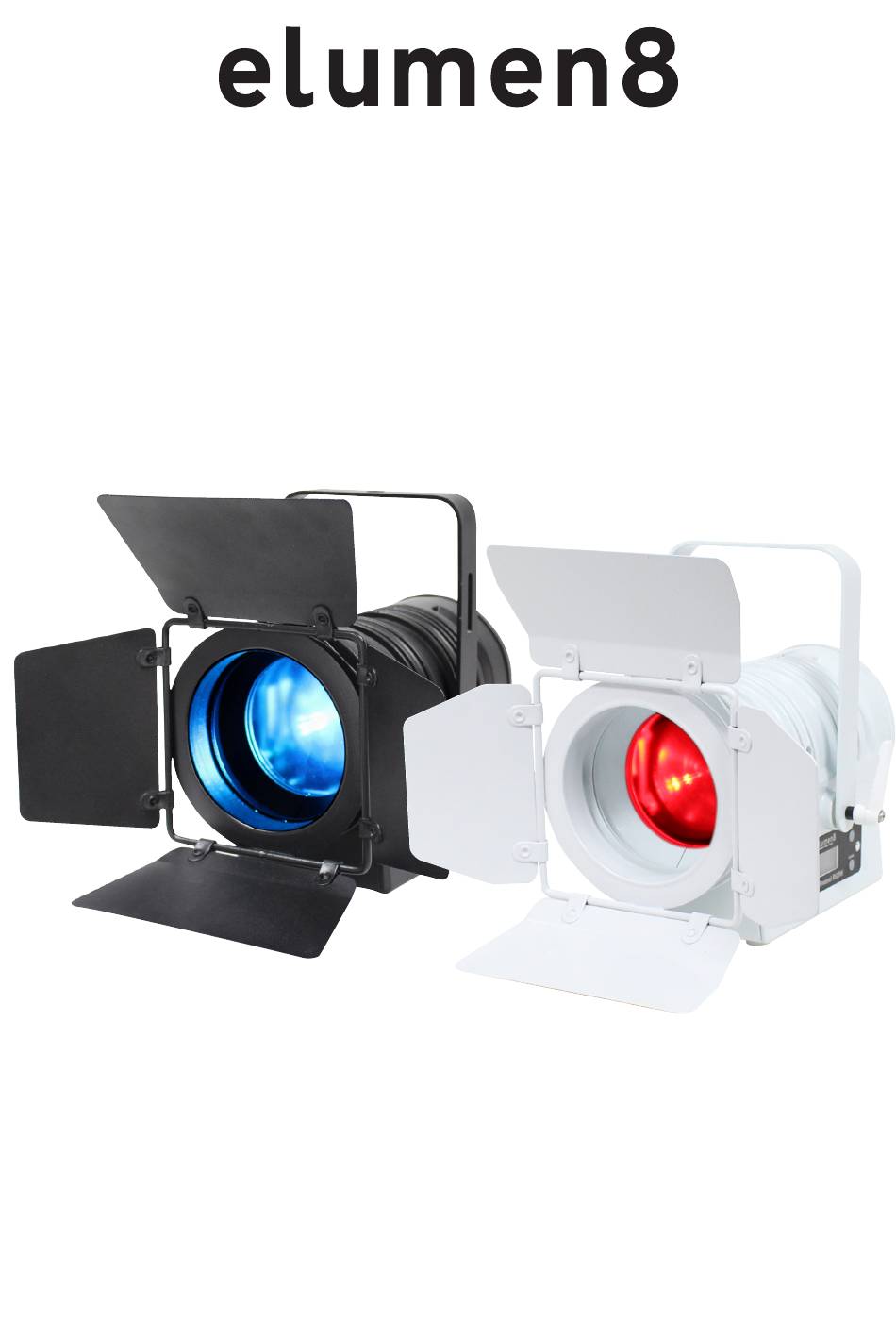

- Page 1 MP75 LED Fresnel RGBW User Manual Order codes: ELUM105 - Black Housing ELUM105A - White Housing...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk MP75 LED Fresnel RGBW User Manual... - Page 3 Power supply 100~240V, 50/60Hz 50° - Lux Dimensions 250 x 210 x 265mm Weight 3.8kg 1110 Order code ELUM105 - Black Housing FULL ON 2520 ELUM105A - White Housing 10° 50° 265mm 210mm 350mm www.prolight.co.uk MP75 LED Fresnel RGBW User Manual...
-
Page 4: Technical Specifications
10 - Filter frame In the box: 1 x fixture 05 - 3-Pin DMX output 11 - Hanging bracket & 1 x user manual 06 - Captive power connection 12 - Hanging bracket adjustable knob www.prolight.co.uk MP75 LED Fresnel RGBW User Manual... - Page 5 Manual R00 G00 B00 W00 Manual Manual dimming mode DIMMER Manual Manual R99 G99 B99 W99 DimCurve Linear DimCurve Square Dimmer curves DimCurve DimCurve INV.Squa DimCurve S-Curve LampCurv LED/Halogen selection LampCurv LampCurv Halogen www.prolight.co.uk MP75 LED Fresnel RGBW User Manual...
- Page 6 Operating instructions Display Display timeout off Display Display Display timeout on (30 seconds) Fixture Fixture Time MENU Time CONT. Software version Version Temperature Temp Reset factory settings Default Yes? www.prolight.co.uk MP75 LED Fresnel RGBW User Manual...
- Page 7 Square LED dimming curve 091-120 Square Halogen dimming curve 121-150 Inverse Square LED dimming curve 151-180 Inverse Square Halogen dimming curve 181-210 S-curve LED dimming curve 211-255 S-curve Halogen dimming curve 000-255 Master dimmer (0-100%) www.prolight.co.uk MP75 LED Fresnel RGBW User Manual...
- Page 8 “UP” and “DOWN” buttons to set the brightness of “R” from “0” - “99”. Repeat for “G”, “B” and “W”. Press the “ENTER” button to confirm the setting. (0 = LED off, 99 = LED at full brightness). To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk MP75 LED Fresnel RGBW User Manual...
- Page 9 “LampCurv” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the dimming curve mode required. “LED” - LED dimming curves “Halogen” - Halogen dimming curves To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk MP75 LED Fresnel RGBW User Manual...
-
Page 10: Dmx Setup
Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk MP75 LED Fresnel RGBW User Manual... - Page 11 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk MP75 LED Fresnel RGBW User Manual...
-
Page 12: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk MP75 LED Fresnel RGBW User Manual...
