Tree MCT Plus 3 Operation Manual

Tree MCT Plus 3 Operation Manual

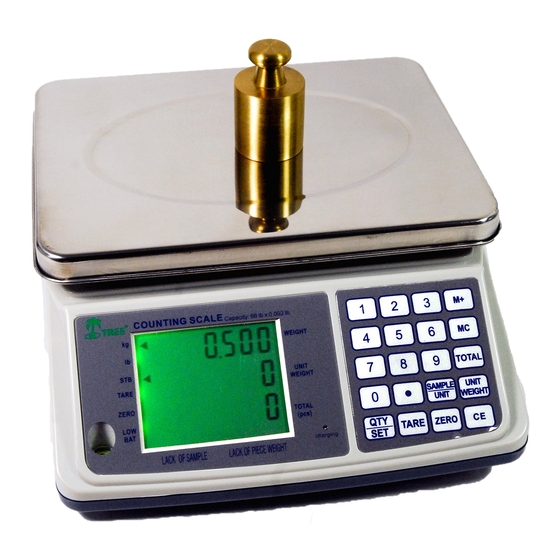

Mct plus series mid counting scale with check-weighing function

Advertisement

Professional Weighing Equipment
MCT Plus SERIES intelligent weighing scale
MID COUNTING SCALE
WITH CHECK-WEIGHING FUNCTION
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCT Plus 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tree MCT Plus 3

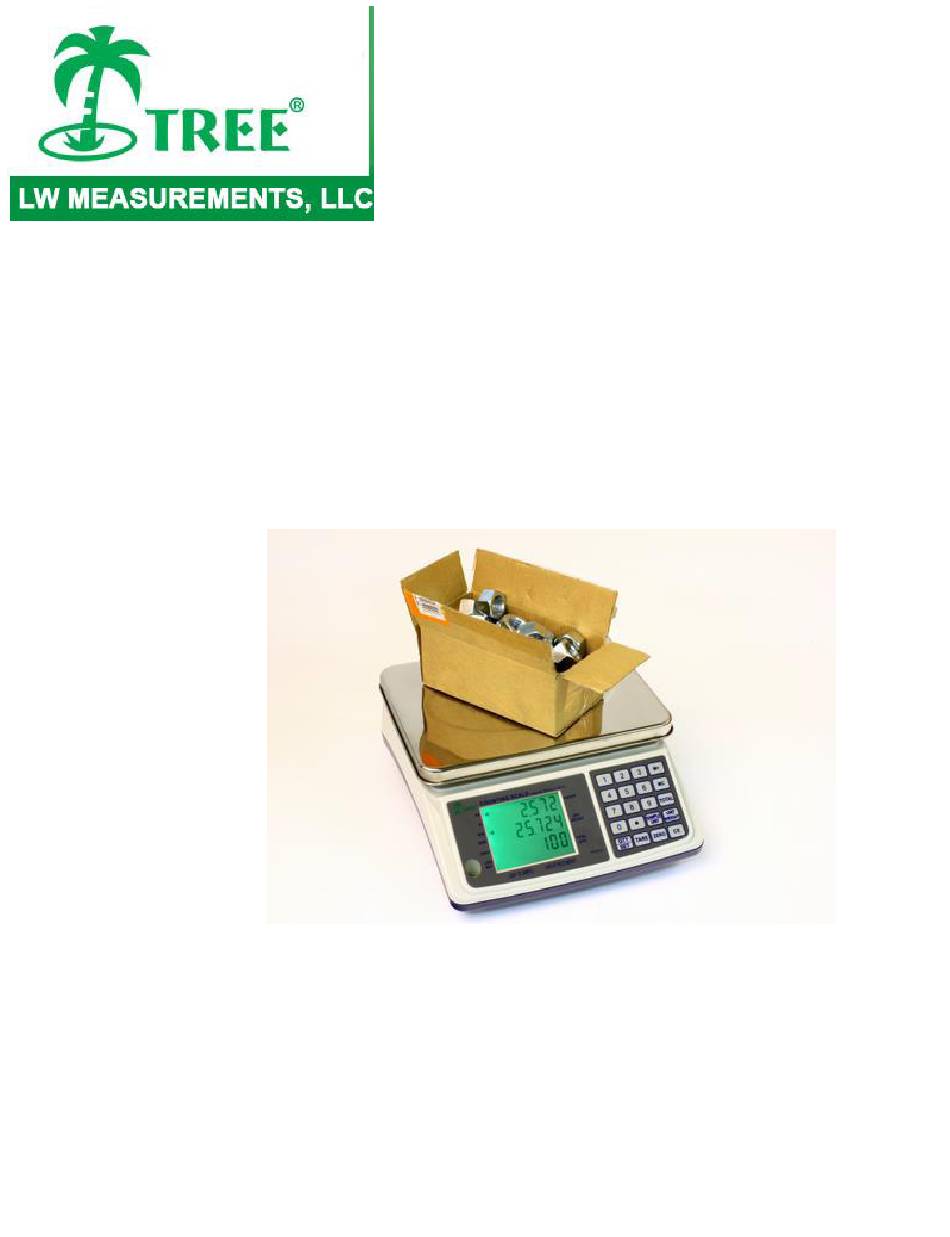

  • Page 1 Professional Weighing Equipment MCT Plus SERIES intelligent weighing scale MID COUNTING SCALE WITH CHECK-WEIGHING FUNCTION Operation Manual...
  • Page 2: Table Of Contents

    Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Weight Scale Functions Features 9-10 Application & Conformity Getting Started Delivery Assembly & Installation 13-14 Application Menu Key Functions Function Settings Calibration Maintenance & Service Transport & Storage Warranty Rev 3, 08.08.2016...
  • Page 3: Declaration Of Conformity

    We hereby declare that the product to which this declaration refers conforms to the following standards. Electronic scale: MCT Mid Counting Scales Imperial version Metric version MCT Plus 3 MCT Plus 7 MCT Plus 16 MCT Plus 33 MCT Plus 66...
  • Page 4: Customer Service

    Customer Service LW Measurements LLC, 620 Carlson Court Rohnert Park, CA 94928 Tel: (707) 542-2185 FAX: (707) 542-3285 http://lwmeasurements.com EUROPE LW Measurements Europe Ltd Chalkwell Park House 700 London Road Westcliff-on-Sea Essex SS0 9HQ United Kingdom Tel: 01702-476700 Fax: 01702-477380 http://lwmeasurements.com Rev 3, 08.08.2016...
  • Page 5: Introduction

    Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing scale in your daily work.
  • Page 6: Safety

    Safety Representations & Symbols Important instructions, which involve safety, are highlighted with the appropriate mark: Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage.
  • Page 7: Weight Scale

    Weight Scale The weighing scale consist of certain parts  Weighing scale body (1)  The scale-pan (2)  The adapter (3)  Operation manual Your weighing scale Rev 3, 08.08.2016...
  • Page 8: Functions

    Functions The MCT Plus Series are high-quality electronic precision weighing scales designed to function as counting scales and check-weights with the following specifications. Imperial weight unit version Model number Capacity Division Weighing pan Size MCT-P-3 3 lb 0.0001 lb 7.6 x 10 in MCT-P-7 7 lb 0.0002 lb...
  • Page 9: Features

    FEATURES  Auto zero tracking  Intelligent applications: weight unit conversion, parts counting  Low battery indication  Large bright backlit LCD  Large heavy gauge stainless steel square pan  Stability indication  Auto calibration  Selectable auto back light ...
  • Page 10 Underside of unit Leveling feet Battery compartment Hard switch (Rechargeable battery included) Battery compartment cover Rev 3, 08.08.2016...
  • Page 11: Application & Conformity

    Application & Conformity The Following are instructions of how to correctly use the weight scale: The weighing scale may only be used for the weighing of solid-materials and of liquids filled into secure containers. The maximum capacity load of the weighing scale must never be exceeded, otherwise the weighing scale may be damaged.
  • Page 12: Getting Started

    Getting Started The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time.
  • Page 13: Assembly & Installation

    Assembly & Installation The weighing scale is delivered in a partly dismantled condition. Assemble the individual components in the following sequence:  Place your machine on a level, clean, and dry surface to obtain accurate readings.  Place the plastic platter on top of the scale, flat side facing up so the platter sits firmly on the machine with the four “legs”...
  • Page 14: Application Menu

    The screw feet must be adjusted so that the air bubble is precisely in the center of the sight glass of the bubble level. Place the scale horizontally and keep the bubble inside the bubble level aligned with the circle (Fig.1). In order to get exact measurements, the balance must be carefully leveled after each re-location.
  • Page 15: Key Functions

    Key Functions  Weight Display indicates the Gross or Net weight on the platter (when the tare function is activated).  Unit Weight Display indicates the average or set unit piece weight.  Total Display is the accumulated total pieces on the scale. ...
  • Page 16: Function Settings

    Function Settings  Turn off the weighing machine using the hard switch located on the bottom of the weighing machine.  Press and hold UNIT WEIGHT key and then turn on the weighing machine. The display will show “------“ and then “b = XX” (beeper), on the first line, A-XX (auto off) on the second line and “L = XX (backlight on the third line.
  • Page 17 Unit weight setting (when unit weight is known): Place samples on the scale. Using the numeric keypad, key in the average piece weight. Press UNIT WEIGHT on the keypad to save the specified piece weight. The total number of pieces will be shown on the TOTAL. Add in more units to be counted.
  • Page 18 To set the lower and upper count limit, press the TARE key to select the hi/lo limits. For example; “L=990,” press 990 on the numeric keypad, then TARE to switch over to: H = 1010, press 1010 on the numeric keypad. Press the QTY/SET key to confirm and return to counting mode.
  • Page 19: Calibration

    Calibration Note: calibration is done in the factory. Don’t re-calibrate the machine unless it is not accurate. The weighing machine should be allowed to warm up for 10 minutes before calibration. Calibration:  Press and hold the ZERO key, and then press the ON/OFF key to turn the weighing machine on.
  • Page 20: Maintenance & Service

    Maintenance & Service For maintenance-work, the balance must be disconnected from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be connected to the power supply during the work by a third party. Make sure that no liquid spills into the scale while performing maintenance work. If liquid is spilled on the scale, it must be inspected by a service technician.
  • Page 21: Warranty

    Warranty The products are under warranty against factory defects for a period of two (2) years from the date of shipment. For Customers within the lower 48 states of the continental United States. LW Measurements will pay for fright both ways for the first 30 days after purchase. After 30 days expire the customer is responsible for shipping the product back to us.

This manual is also suitable for:

Mct plus 7Mct plus 16Mct plus 33Mct plus 66
