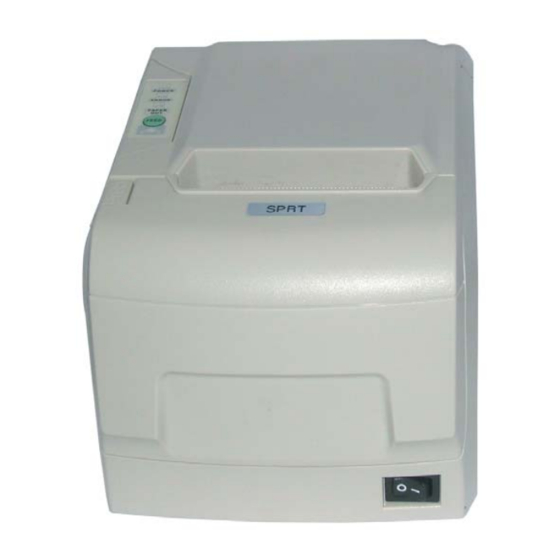

- Page 1 ® SPRT SP-POS88ⅤThermal Receipt Printer User’s Manual （Ver 1.00） Beijing Spirit Technology Development Co., Ltd Address: No.26,Ave 4,Chuangye Middle Road, Shangdi Information Industry Park , Beijing, China Post Code:100085 Tel:+861051661178 Fax:+861051661178-190 E-mail: info@sprt-printer.com...
-
Page 2: Table Of Contents
Content Introduction ............................3 Chapter 1 Feature and Performance ................... 3 1.1 Print Performance ....................... 3 1.2 Print Paper ........................... 4 1.3 Print Font ..........................4 1.4 Interface ..........................5 1.5 Print Control Commands..................... 5 1.6 Power Supply ........................6 1.7 Operation Environment ....................... -
Page 3: Introduction
Introduction POS88Vprinter is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. POS88Vprinter: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print. -
Page 4: Print Paper
Using condition: ＊Print 12 × 24 ASCII characters, print 50 lines each time, intermittent print repeatedly ＊Each dot-line printing at the same time should not exceed 25%, each character line and one dot vertical printing repeatedly should not exceed 11 times ＊Use specified thermal paper （2）Cutter life: 500,000 cuts Using condition: less than 30 cuts/minute... -
Page 5: Interface
1.4 Interface ● RS－232C Serial Interface： DB-25 socket (female), supports XON/XOFF and TR/DSR protocols. Baudrate: 2400, 4800, 9600, 19200, 38400, 57600, 115200bps adjustable. Data structure: 1start bit + (7 or 8) data bits + 1 stop bit. Parity checking: no parity or odd, even parity optional. ●... -
Page 6: Power Supply
● Operation temperature: 5～50℃; Relative humidity: 10～80％ ● Storage temperature: -40～55℃; Relative humidity: 10～90℃ 1.8 Outline Dimension ● 200（L）mm×150（W）mm×139（H）mm 1.9 Model classification Model Interface SP-POS88VS RS232C Serial Interface SP-POS88VP Parallel Interface SP-POS88VM RS232+USB+Ethernet Interface SP-POS88VU USB Interface SP-POS88VBT USB+Bluetooth interface... -
Page 7: Chapter 2 Operation Specification

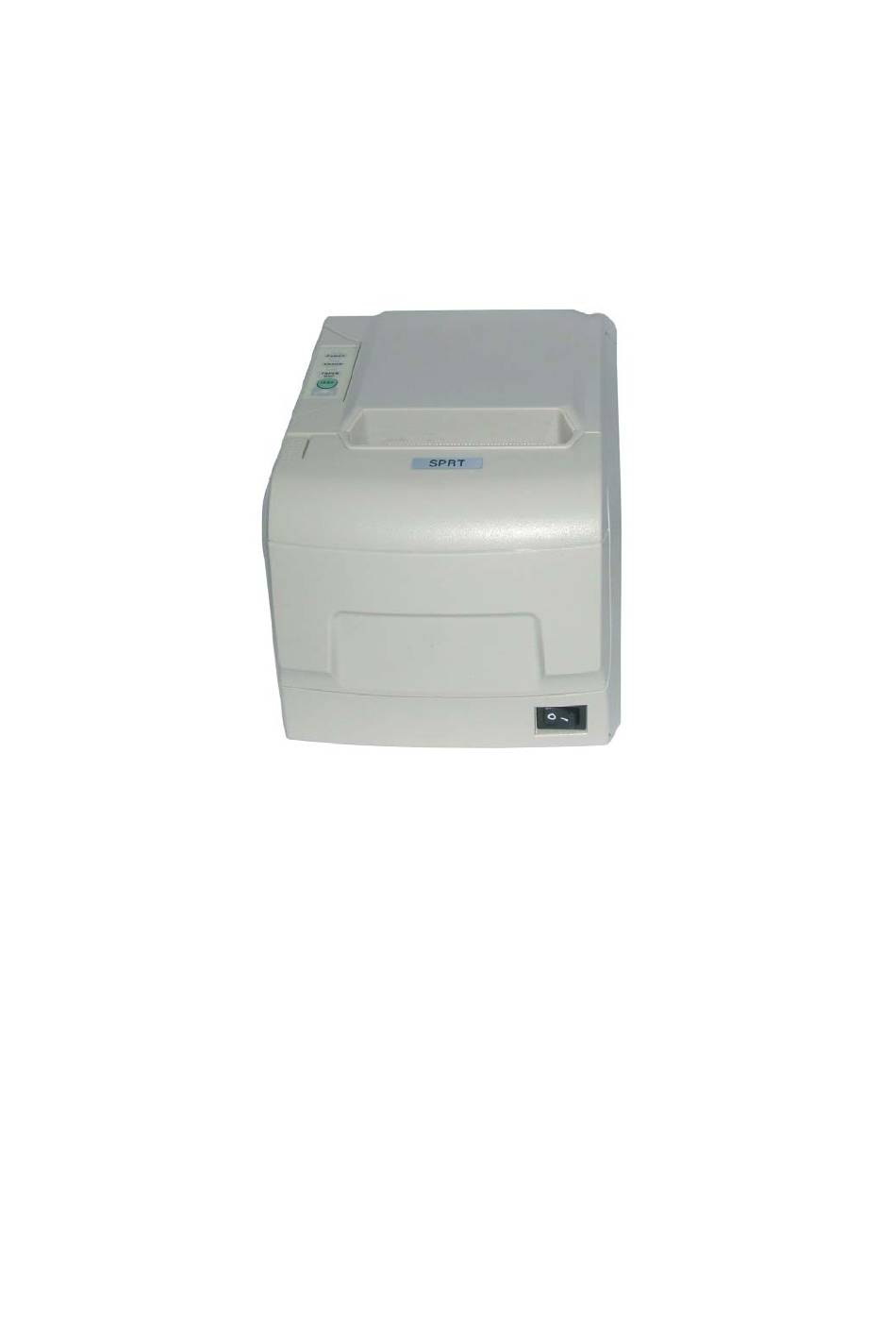

Chapter 2 Operation Specification 2.1 Printer Appearance... -
Page 8: Paper Installation
2.2 Paper Installation 2.2.1 Paper Loading POS88V adopts 79.5mm width thermal paper roll. Steps of Loading Thermal Paper Are as below: Hold down the upper cover button on the left side, open the movable upper cover, draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly. -
Page 9: Interface
cover, and take out the paper. If the cutter can not be back to the original position, open the cover of it, and turn the white plastic gear by the direction suggestive on the cutter by hand to make the cutter be back to the original position. - Page 10 Output Printer Printer transmits control code X-ON/X-OFF and data to host Input Host Printer receives data from host Output Printer The same with 20pins DTR signal Input Host Signal “MARK” means the host is busy and can not receive data. Signal “SPACE”...
-
Page 11: Parallel Interface
(2)Logical signal level is EIA. The baud rate and data structure in serial interface mode is 9600bps, 8-bit data bits, no parity bit and 1 stop bit. The serial interface of SP-POS88Ⅴ can be connected to standard RS-232C interface. When it is connected to IBM PC or its compatible machine, connection can accord to Fig.2-4. - Page 12 Pin No. Signal Direction Description STROB Strobe pulse to latch data, Reading occurs at falling edge. These signals represent the 1st bit to parallel data representatively, each signal is at HIGH level when data is logic 1, and LOW when data is logic 0. Answer pulse, LOW level signal indicates that data have already been...
- Page 13 received and the printer gets ready to receive the next data. BUSY HIGH level signal indicates that the printer is BUSY and can not receive data. HIGH level signal indicates that paper is end. Pulling up to HIGH level signal by a resistor Signal Cover Logic-H...
-
Page 14: Bluetooh Interface Connection
Note: (1)“In” denotes input to the printer，“Out” denotes output from the printer. (2)Signal level is TTL standard. The timing chart for interface signal of parallel interface is as Fig.2-6shows: Fig.2-6 Signal Timing Chart of Parallel Interface 2.3.3 BLUETOOH interface connection The handheld terminal, notebook computer or other terminals with Bluetooth interface can print by POS80 driver. -
Page 15: Bluetooh Binding Address
Before printing, the printer needs to pair with the Bluetooth host device. The pair needs to be sponsored by the host device. Usually, the pair steps are as below, Turn on the printer 1. The host device searches the external Bluetooth device 2. -
Page 16: Cash Drawer Interface
remembers the address, the connection will be only between it and the remembered host device and can’t be searched or paired by other device. So if the printer wants to connect with other device, it needs to clear away the remembered address or set the mode to no binding address. -
Page 17: Power Connection
Pin No. Signal Direction Chassis Ground —— Cash drawer driver signal 1 Cash drawer on/off status signal +24VDC —— Cash drawer driver signal 2 Signal ground —— 2.3.6 Power Connection POS88 Ⅴ uses the external power supply adopter as 24V±10％、2A, power socket is A-1009-3P model, as Fig. -
Page 18: Buttons And Indicators
2.4 Buttons and Indicators There is one button and three indicators on POS88Ⅴ printer. 【FEED】is paper feeding button, the function of its enabling or disabling the button on/off can be set by print command, when the button is enabled, press 【 FEED 】 button, then the paper presenting driver starts up and paper fed into the printer;... -
Page 19: Hexadecimal Printing
power, self-test begins automatically at this moment. 2.6 Hexadecimal Printing Turn on the printer according to the step below, it will enter the mode of Hexadecimal Printing 1.Open the cover； 2.Hold down【FEED】button，and connect with power； 3.Close the cover, the printer will print out 3 lines as below: Hexadecimal Dump To terminate hexadecimal dump, Press FEED button three times. - Page 20 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
