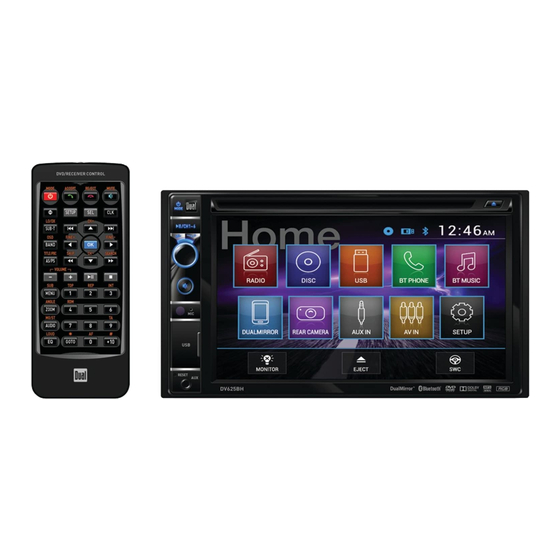

DV625BH
INSTALLATION/OWNER'S MANUAL
DVD Multimedia Receiver with Bluetooth
®
featuring a
6.2"
Touch Screen Display
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature
to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the
parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.
Advertisement
Table of Contents
Related Manuals for Dual DV625BH
Summary of Contents for Dual DV625BH
- Page 1 DV625BH INSTALLATION/OWNER’S MANUAL DVD Multimedia Receiver with Bluetooth ® featuring a 6.2" Touch Screen Display Safety Notes: The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the...
-
Page 2: Table Of Contents
DV625BH PREPARATION Table of Contents Page Warning Statement .......... - Page 3 DV625BH PREPARATION WARNING Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or...
-
Page 4: Safety Information/Precautions
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL DV625BH is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. -
Page 5: Preparation/Mounting
DV625BH INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 6: Wiring Diagram
DV625BH INSTALLATION Wiring Diagram - Inputs/Outputs V-IN V-OUT 2 V-OUT 1 L-IN R-IN HDMI Dual Mirror Input USB Input (Charging Only) SUBWOOFER GREY SUBWOOFER GREY REAR CAMERA INPUT YELLOW SWC - GND (BLACK) SWC 1 (BROWN) SWC 2 (BROWN/BLACK) ORANGE... -
Page 7: Control Locations
DV625BH OPERATION Control Locations Power/Mode IR Sensor Play/Pause/Channels 1-6 USB Port Select/Volume Up/Down Reset Mute Auxiliary Input Microphone Eject Power & Mode Go to / * Key Mute Talk End / Reject Adjust Angle Setup Clock Subtitle & Local/Distance Select... -
Page 8: Remote Preparation
DV625BH OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly. -
Page 9: General Operation
DV625BH OPERATION General Operation Align the faceplate with the front of the unit, then snap in place Installing the Faceplate beginning with the left side. Momentarily press to turn the unit on or off. Power On/Off Rotate the volume knob to increase or decrease the volume level. - Page 10 DV625BH OPERATION General Operation Setup Menu From the Main Menu screen, press SETUP in the bottom right corner to access the Setup menu and select from six categories across the bottom: General, Time, Video, Language, Illumination and Calibration. General: • Animation - Select Off, 10 second, 30 second, 1 minute, 90 second, 2 minute, 3 minute or 4 minute to set animation length.
- Page 11 DV625BH OPERATION General Operation Setup Menu Time: • Hour - Press < or > to adjust the hour down or up. • Minute - Press < or > to adjust the minutes down or up. • Format - Select between a 12HR or 24HR clock display.
-
Page 12: Am/Fm Tuner Operation
DV625BH OPERATION AM/FM/RDS Tuner Operation Select the Radio icon from the Main Menu screen. Radio Operation Main Menu Press to return to Main Menu screen. Current Mode Indicator Displays current mode of operation. Tune Frequency Down Press << to tune radio to a lower frequency. Press < to tune the unit down one step at a time. - Page 13 DV625BH OPERATION AM/FM/RDS Tuner Operation Press to adjust the following Audio options: Audio • EQ - Select from the preset EQ options: JAZZ, CLASSIC, POP, ROCK, BEAT OR FLAT, or select USER to manually adjust Bass, Middle and Treble options between -7 and 7.
- Page 14 DV625BH OPERATION AM/FM/RDS Tuner Operation Local / Distance Press to toggle between LOCAL and DX (distance) tuning. Program Type (PTY) Press to select Program Type / Genre. Traffic Announcements Press to turn on/off Traffic Announcements. Alternative Frequencies Press to select Alternative Frequencies.
-
Page 15: Cd/Usb Operation
DV625BH OPERATION CD/USB Operation To play audio files from a disc or MP3/WMA files from a disc or USB CD/MP3/WMA or JPG Operation device, insert disc or device and playback will begin automatically. To return to disc or USB playback from another mode of operation, select the corresponding icon from the Main Menu. - Page 16 DV625BH OPERATION CD/USB Operation Press to access the Camera when the camera function is enabled. Camera Previous Options Press to see the previous screen of options. Mute Press to mute the unit's sound. Press again to unmute, or sound can be restored by adjusting the volume knob of the front panel.
- Page 17 DV625BH OPERATION Media Compatibility - USB File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File .wma/.WMA Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz MPEG 2 12/16/22.05/24kHz...
- Page 18 DV625BH OPERATION Media Compatibility - CD/DVD File Type Level 1, Level 2 ISO9660 Level 3 Playback ISO9660 JOLIET File System Extension Filename 32 bytes 32 bytes Playback ROMEO Other Filename Extensions Apple ISO .mp3/.MP3/.Mp3/.mP3 File .wma/.WMA...
- Page 19 DV625BH OPERATION Media Compatibility Media Compatibility The following types of discs/files are compatible: • CD-DA, CD-ROM (ISO), CD-R, CD-RW • DVD Video, DVD+R/RW, DVD-R/RW • AVI - Max video resolution: 720x480, Max video bit rate: 5000 kbps • Mpeg2: Max video resolution: 720x480, Max video bit rate: 5000 kbps •...
- Page 20 DV625BH OPERATION WARNING Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or...
-
Page 21: Dvd Operation
DV625BH OPERATION DVD Operation Inserting a Disc Insert disc into the slot, and playback will begin automatically. Sub- menus may have to be pressed to access the DVD content. Read the directions of your specific DVD disc for other features. - Page 22 DV625BH OPERATION DVD Operation Next Chapter Press to advance to the next chapter. Fast Reverse Press to fast reverse playback at various speeds: FRx2, FRx4, FRx8 or FRx20. Fast Forward Press to fast forward playback at various speeds: FRx2, FRx4, FRx8 or FRx20.
-
Page 23: Dualmirror Operation
DV625BH OPERATION DualMirror™ Operation The DualMirror™ technology allows you to mirror the screen of select Android smartphones as well as iPhone, iPod and iPad devices onto the receiver's screen and to charge your mobile device through the rear USB port. Simply plug in your device to the rear HDMI and USB inputs, and you are ready to view your favorite navigation or music apps directly on the receiver’s screen. - Page 24 DV625BH OPERATION DualMirror™ Operation Connecting an iPhone, iPod or iPad device (Lightning cable not included)
-
Page 25: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "Dual BT". The Bluetooth passcode "1234". The unit can be in any mode of operation when pairing is performed. - Page 26 DV625BH OPERATION Bluetooth Operation Make a Call Press to display the keypad and make a call. Dialed Call Log Press to display a log of dialed calls. Use the icons on the right to search for a specific contact or scroll through the list.
-
Page 27: Auxiliary Inputs/Rear Camera Operation
DV625BH OPERATION Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device). -
Page 28: Warranty
4. For more information and for the location of the original retail purchaser for products purchased from nearest authorized service center please contact an authorized Dual dealer and used in the U.S.A. us by one of the following methods: Exclusion of Certain Damages: This warranty is... -
Page 29: Specifications
DV625BH OPERATION Specifications Disc Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >80dB D/A converter: 24 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range:... -
Page 30: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Dealer Name...
