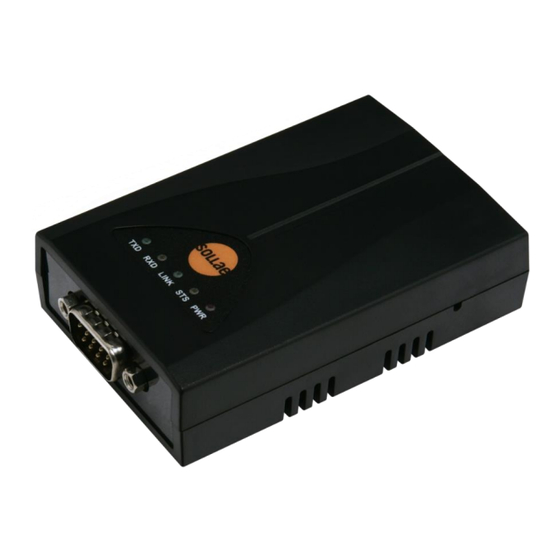

RS232 - Ethernet Converter
CSE-H53N User Manual
Version 2.2
Sollae Systems Co., Ltd.
http://www.ezTCP.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSE-H53N and is the answer not in the manual?

Questions and answers

Summary of Contents for Sollae Systems CSE-H53N

  • Page 1 RS232 - Ethernet Converter CSE-H53N User Manual Version 2.2 Sollae Systems Co., Ltd. http://www.ezTCP.com...
  • Page 2 CSE-H53N User Manual Ver. 2.2 This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment.

  • Page 3: Table Of Contents

    CSE-H53N User Manual Ver. 2.2 Contents Overview ..........................- 5 - 1.1 Overview ................................- 5 - 1.2 Main Features ..............................- 5 - 1.3 Application Examples ............................- 6 - 1.4 Components ................................. - 7 - 1.5 Specification ................................. - 8 - 1.5.1 Hardware ..............................
  • Page 4 CSE-H53N User Manual Ver. 2.2 4.6.2 Revoking Serurity Options......................... - 26 - Communication Modes ...................... - 27 - 5.1 TCP Server ................................- 27 - 5.1.1 Key parameters ............................- 27 - 5.1.2 Examples ..............................- 28 - 5.2 TCP Client ................................- 31 - 5.2.1 Key parameters ............................
  • Page 5 CSE-H53N User Manual Ver. 2.2 8.2 Sending MAC Address..........................- 57 - 8.3 Serial Port Tab Functions ..........................- 58 - 8.3.1 Disable TCP Transmission Delay - ① ................... - 58 - 8.3.2 Separator - ②............................- 58 - 8.3.3 TELNET COM port Control Option (RFC 2217) - ③ .............. - 59 - 8.3.4 TCP Server / Client mode - ④...

  • Page 6: Overview

    The serial communication is quite simple to implement but has weaknesses like short distance and hard maintenance. CSE-H53N lets the serial devices connect to the Internet. To communicate on the Internet, devices should use TCP/IP protocol, so CSE-H53N processes the converting serial data to TCP/IP.

  • Page 7: Application Examples

    CSE-H53N User Manual Ver. 2.2 1.3 Application Examples  1:1 Connection with a PC Figure 1-1 1:1 connection with a PC  Applied to LANs Figure 1-2 applied to LANs  Applied to the Internet on Cable Networks Figure 1-3 applied to the Internet on cable networks - 6 - http://www.ezTCP.com...

  • Page 8: Components

    CSE-H53N User Manual Ver. 2.2  Applied to the Internet with an IP Share Router Figure 1-4 applied to the Internet with an IP share router  Applied to a serial tunneling system Figure 1-5 applied to a serial tunneling system ...

  • Page 9: Specification

    CSE-H53N User Manual Ver. 2.2 1.5 Specification 1.5.1 Hardware Input Voltage DC 5V (±10%) Power Current 200mA typical Dimension 89mm x 57mm x 24mm Weight About 65g Serial RS232 (Baud Rate: 300bps ~ 230,400bps) Serial Port 10 Base-T or 100 Base-TX Ethernet Auto-Sensing...

  • Page 10: Interfaces

    CSE-H53N User Manual Ver. 2.2 1.6 Interfaces 1.6.1 Serial Interface CSE-H53N has a serial port for user serial device (300bps ~ 230,400bps). This port is interfaced with 9-pins D-sub Male connector. Figure 1-6 6 pins Terminal block  Pin Assignment for RS232...
  • Page 11 CSE-H53N User Manual Ver. 2.2  Serial Port Parameters Parameter Value Number Type RS232 Baud rate 300 ~ 230,400 [bps] Parity NONE / EVEN / ODD / MARK / SPACE Data bit 8 / 7 Stop bit 1 / 1.5 / 2...

  • Page 12: Ethernet Interface

    CSE-H53N User Manual Ver. 2.2 1.6.2 Ethernet Interface Since part of CSE-H53N network is composed of Ethernet, UTP cable may be connected. It will automatically sense 10Mbits or 100Mbits Ethernet and connect itself. It also provides auto MDI/MDIX function that can automatically sense 1:1 cable or cross over cable.

  • Page 13: Power

    CSE-H53N User Manual Ver. 2.2 1.6.3 Power DC 5V is used for the power. The specifications of the power jack are as the following: Figure 1-8 power jack - 12 - http://www.ezTCP.com...

  • Page 14: System Led

    CSE-H53N User Manual Ver. 2.2 1.7 System LED CSE-H53N has several lamps to show the current system status. Each lamp shows the following status: Mode Name Color Status Description Supplying the power LINK Green Connecting with Ethernet Common Yellow Blinks...

  • Page 15: Function Button

    There is a switch, which is named function switch (or button) located on the side of the product. You can change the operation mode of CSE-H53N to ISP or Serial Configuration mode with this switch. And it is used for factory reset.

  • Page 16: Installation And Test

    Installation and Test 2.1 Installation Before testing CSE-H53N, users should connect both serial and Ethernet port to a PC. It will be no problem that the Ethernet connection includes network hubs. In case if your PC doesn’t have a RS232 port, use a USB to RS232 cable.

  • Page 17: Setting Network Aera

    CSE-H53N User Manual Ver. 2.2 2.1.1 Setting Network Aera This step is for setting both CSE-H53N and users’ PC to be located the same network. If only they are, the TCP connection between them can be established.  Setting of the PC Add or change the IP address of the network adapter on your PC like following.
  • Page 18 Windows, and this is comfortable to use because it doesn’t need installation. First, search your CSE-H53N via network. All the values of parameters are set the default values in the factory. To apply it to your system, proper values should be set via ezManager.

  • Page 19: Simple Test

     Opening RS232 Port Figure 2-4 opening COM Port ④ Select COM port which the CSE-H53N is connected to ⑤ Make sure that all the parameters are the same with CSE-H53N ⑥ Press the [Open] button - 18 - http://www.ezTCP.com...
  • Page 20 CSE-H53N User Manual Ver. 2.2  Confirm the TCP Connection and COM port status Figure 2-5 TCP Connected message ⑦ Check the message if the TCP connection is established Figure 2-6 COM Port open message ⑧ Check the message if the COM port has been opened - 19 - http://www.ezTCP.com...
  • Page 21 CSE-H53N User Manual Ver. 2.2  Data transmission test Figure 2-7 successful data transmission ⑨ Click the [Send data] on the LAN part ⑩ Check the data have been shown from the step ⑨ Figure 2-1 LAN → RS232 ⑪ Press the [Send data] on the RS232 part ⑫...

  • Page 22: Configuration

    Figure 3-1 initial appearance of ezManager 3.1.1 Configuration via LAN  Checklists Make sure the connection between your PC and CSE-H53N. If they are the same network, [MAC Address search] button can be used. If they aren’t, only [IP Address search] is allowed to use.

  • Page 23: Configuration Via Serial

    CSE-H53N User Manual Ver. 2.2 3.1.2 Configuration via Serial  Checklists Make sure the connection between your PC and CSE-H53N using RS232 cross cable. To use this, CSE-H53N has to be operating in the [Serial Configuration] mode.  Procedures Figure 3-3 procedures for configuration via Serial ...

  • Page 24: At Command

     Checklists Make sure the connection between your PC and CSE-H53N using RS232 cross cable. To use this, CSE-H53N has to be set to [AT command] mode as its communication mode. This can be configured by ezManager. Figure 3-5 setting the communication mode to the AT command ...

  • Page 25: Operation Modes

    CSE-H53N User Manual Ver. 2.2 Operation Modes 4.1 What is the Operation Mode? Each of three operation mode of CSE-H53N is defined for specific purpose, and those are followed.  Normal mode This mode is for normal data communication and has 4 different connection modes.

  • Page 26: Comparison Of Each Mode

    CSE-H53N User Manual Ver. 2.2 4.3 Comparison of each mode Name Serial port Serial type Normal configured value RS232 Serial Configuration 115,200/N/8/1 RS232 Table 4-1 comparison of each mode 4.4 Normal Mode In normal mode, there are four connection types to communication with a remote host.

  • Page 27: Serial Configuration Mode

     4.6.2 Revoking Serurity Options CSE-H53N offers restriction methods for security like filtering password or MAC and IP address. In the ISP mode, you can revoke all of these. When you forgot the password, enter the ISP mode to solve the problem.

  • Page 28: Communication Modes

    Communication Modes 5.1 TCP Server In this mode, CSE-H53N listens to a TCP connection request from remote hosts. Once a host tries connecting to CSE-H53N, it accepts a connection. After the connection is established, CSE-H53N converts the raw data from the serial port to TCP/IP data and sends it to the network and vice versa.
  • Page 29 5.1.2 Examples  A situation that [Event Byte] is set to 0. Figure 5-1 time chart Points States CSE-H53N is listens to connection requests ① Remote host sends a connection request (SYN) segment Processes of the connection ② The connection is established...
  • Page 30 CSE-H53N User Manual Ver. 2.2  A situation that [Event Byte] is set to 1. Figure 5-2 time chart Points States CSE-H53N listens connection requests ① Remote host sends a connection request (SYN) segment Processes of the connection ② The connection is established...
  • Page 31 Data communication on both sides ① The last segment arrives at the CSE-H53N No data communication for 5 seconds ② CSE-H53N send disconnection request (Fin) to a remote host Processes of the disconnection ③ The connection is terminated CSE-H53N listens connection requests...

  • Page 32: Tcp Server

    In this mode, CSE-H53N sends request segments to a TCP server with information of [Peer Address] and [Peer Port]. Once a host is listening, the connection will be established. After then, CSE-H53N converts the raw data from the serial port to TCP/IP data and sends them to the network and vice versa.
  • Page 33 Figure 5-4 time chart Points States Power is not supplied yet. ① CSE-H53N sends a connection request segment right after it boots up Processes of TCP connection ② The connection is established. Data communication on both sides Table 5-7 state of each point Look at the blue arrow.
  • Page 34 The data “1234567” is transmitted to the remote host Table 5-8 states of each point As you can see, CSE-H53N has sent a request segment right after the size of the serial data has been 5 bytes. Even though they arrived before the connection, the data “123”, “45”...
  • Page 35 Figure 5-6 time chart for activating [TCP Server] option Points States CSE-H53N is listening to connection requests ① The connection has been established CSE-H53N is on line and processes of the disconnection ② The connection has been terminated Both sides are offline ③ Sends TCP connection request segment Table 5-9 state description The TCP Server / Client mode can be useful option by using [Event Byte] and [Timeout].

  • Page 36: Key Parameters

    CSE-H53N User Manual Ver. 2.2 5.3 AT Command AT command is a mode which users control CSE-H53N with AT command like controlling modem. In this mode, active and passive TCP connections are available. And users are allowed to configure some environmental parameters with extended commands.
  • Page 37 AT commands ① ATA command has arrived. CSE-H53N listens to TCP connection requests. ② A remote host sends SYN segment to CSE-H53N Processes of TCP connection ③ TCP connection is established CSE-H53N sends “CONNECT” message to the serial port Table 5-11 state of each other Refer to the [At Command(ATC) Mode] document on our website for details.
  • Page 38  TCP Client – setting parameters and active connection Figure 5-8 time chart Points States configuring parameters with AT commands CSE-H53N sends a TCP connection request with the ATD ① command Processes of TCP connection ② TCP connection is established CSE-H53N sends “CONNECT”...
  • Page 39 CSE-H53N sends “NO CARRIER” with disconnection Table 5-13 states of each other CSE-H53N changes the mode to AT command, when receiving “+++”. In this state, the communication with remote host is unavailable because CSE-H53N processes only AT commands. Whenever you want to go back to on-line state, just give “ATO” command.

  • Page 40: Key Parameters

    CSE-H53N User Manual Ver. 2.2 5.4 UDP UDP has no connection processes. In this mode, data is sent in block units. Therefore, data that comes through CSE-H53N’s serial port is collected in block units to send it elsewhere. 5.4.1 Key parameters ...

  • Page 41: Examples

     Block Size: 5 bytes Figure 5-10 time chart Points States CSE-H53N receives data from the serial port CSE-H53N sends 5 bytes as one block based on the [Event ① byte]. Serial device sends data “678”. ② The data “678” arrives.
  • Page 42 ③ UDP data arrives from Remote Host 2. Send UDP data to Remote Host 2. Table 5-16 state description The data “ABC”, “DE”, “FGH” are from the serial port of CSE-H53N in the Figure 5-11.  - 41 - http://www.ezTCP.com...

  • Page 43: System Management

    6.1 Upgrading Firmware 6.1.1 Firmware Firmware is a type of software for operation of CSE-H53N. If there are needs for adding function or fixing bugs, the firmware is modified and released. We recommend that users keep use the latest released firmware.
  • Page 44 CSE-H53N User Manual Ver. 2.2  Checking firmware file and Sending Figure 6-2 sending firmware file ① Check if the name and path of the firmware file are correct ② Click the [Send] button ③ Confirm the completed message - 43 -...

  • Page 45: Status Monitoring

    6.2 Status Monitoring 6.2.1 Using TELNET Once the [TELNET] option is activated, users can remotely log in to CSE-H53N. If a password is set, users should input the password. Starting with firmware version 2.0A, you can login by entering "sollae" without ...
  • Page 46 ------ --------- ---------- -------- ---------- --------------- -------------- com1 lsh> Figure 6-6 “st sio” command  st uptime “st uptime” command shows amount of time since CSE-H53N boots up. lsh>st uptime 00:05:19.16 up 0 days lsh> Figure 6-7 “st uptime” command ...
  • Page 47 CSE-H53N User Manual Ver. 2.2  sd “sd” command is for capturing serial data. [OP1] means name of the session, [OP2] means period, which has a 10ms unit, for the capture lsh>sd 1 100 com1 dump start com1 dump buffering time : 1000ms lsh>tx1 =>...

  • Page 48: Using Ezmanager

    CSE-H53N User Manual Ver. 2.2 6.2.2 Using ezManager Status of CSE-H53N can be monitored by [Status] button on ezManager. By using the [Refresh Every 1 Second] option in the status window, the status is automatically updated in every second Figure 6-12 status window of ezManager ...
  • Page 49 CSE-H53N User Manual Ver. 2.2  IP6 NETWORK INFORMATION All information about related items with Ipv6 Address is shown here. It works even if the IP address is assigned from DHCP or PPPoE.  TCP STATE TCP status of each port is shown this section.
  • Page 50  Password This text box is activated when CSE-H53N has a password. If users want to close TCP connection with right click of mouse on the session, this password has to be correctly filled.
  • Page 51 CSE-H53N User Manual Ver. 2.2  IP address Conflict Detection By clicking this button, you can find devices which have the same IP address to yours on the network. Figure 6-13 Without IP address conflict detection Figure 6-14 IP address conflict detection - 50 - http://www.ezTCP.com...

  • Page 52: Factory Reset

    CSE-H53N User Manual Ver. 2.2 6.3 Factory Reset It is a function physically initializes all the setting. You can save a setting to user-defined ENV region and use it as default values by the factory reset. However, if you do not use the region, Factory Reset uses a factory default by manufacturer as its default values.

  • Page 53: Setting Custom Default Values

    CSE-H53N User Manual Ver. 2.2 6.3.2 Setting custom default values ① Change the mode to Serial Configuration ② Save custom default values by ezManager or serial configuration commands ③ Input the command below <SPACE> 3c5a <CR> After step ③, current values in the SRAM is saved in user-defined ENV region and the values will be always used for Factory Reset.

  • Page 54: Security Function

    CSE-H53N User Manual Ver. 2.2 Security Function 7.1 SSL 7.1.1 What is the SSL(Secure Socket Layer)? SSL is cryptographic protocol that provides secure communication on the Internet. The SSL works over TCP. 7.1.2 How to set the SSL To works for SSL, you have to set the SSL-related parameters as the following steps. Set the [SSL] check box in the ezManager.

  • Page 55: Restriction

    Figure 7-5 Check of success message 7.1.3 Restriction  If user set the SSL with the CSE-H53N, the other device have to set the SSL.  Maximum baud rate of serial port is the 115,200bps.  Cannot use SSL feature in Ipv6.

  • Page 56: Access Restriction (Eztcp Firewall)

    The maximum length is 8 bytes of Alphabet or number. When you want to revoke all of these restrictions, operate CSE-H53N as ISP mode. In  the mode, all restrictions are removable and communication with ezManager is revoked.

  • Page 57: Additional Functions

    CSE-H53N can be TCP server even though it assigned IP address automatically. Using [Notify IP Change] function, CSE-H53N sends its IP address with the host name to the designed server. There are 3 types- DDNS, TCP and UDP- for this service.

  • Page 58: Sending Mac Address

    CSE-H53N User Manual Ver. 2.2 8.2 Sending MAC Address [Sending MAC Address] is a function that CSE-H53N sends its MAC address to the remote host right after the connection is established. By using this function, a server can identify multiple devices with the information.

  • Page 59: Serial Port Tab Functions

    8.3 Serial Port Tab Functions Figure 8-3 setting of Serial port tab functions 8.3.1 Disable TCP Transmission Delay - ① If you use this option, CSE-H53N sends the data from the serial port to LAN as quickly as possible. Separator - ②...

  • Page 60: Telnet Com Port Control Option (Rfc 2217) - ③

    CSE-H53N’s Data Frame interval is configured 2byte data interval. Before sending  data from the serial port to LAN, CSE-H53N gathers data in the buffer. If there is no data during the time configured in the 2byte data interval, it will send data to the network.

  • Page 61: Checklist In Trouble

    CSE-H53N User Manual Ver. 2.2 Checklist in Trouble When users are in trouble with CSE-H53N, make sure all the followed steps first. 9.1 Searching problem with ezManager  Confirming types of configuration utility CSE-H53N can be configured by ezManager.  Stopping Firewall operation Firewalls of personal computer or network block broadcast packets.

  • Page 62: Connection Problem Over Tcp/Ip

    Mask, Gateway IP Address, DNS IP Address, Table 9-1 major parameters related with TCP/IP  PING Test Confirm the connection over the network by PING test. If the CSE-H53N doesn’t send any reply from the request, check the network environment.  Firewall In case the networks which need strong security, the access may be denied by their firewall.

  • Page 63: Data Communication Problem Over The Serial Port

    CSE-H53N User Manual Ver. 2.2 9.3 Data Communication Problem over the Serial Port  Connection of Pins Check if the connection of each pin is right. Using cables, users choose the right type of cable which is suitable for the device.

  • Page 64: Related Material

    CSE-H53N User Manual Ver. 2.2 10 Related Material 10.1 Technical Documents You can find the technical documents at our website.  Datasheet  IP Change Notification(DDNS)  Sending MAC Address function  TCP Server/Client mode  Telnet COM Port Control Option ...

  • Page 65: Technical Support And Warranty

    11 Technical Support and Warranty 11.1 Technical Support If you have any question regarding operation of the product, visit Customer Support FAQ corner and the message board on Sollae Systems’ web site or send us an email at the following address:  E-mail: support@eztcp.com...

  • Page 66: Precaution And Exemption From Liability

     Do not use the product for a purpose that requires exceptional quality and reliability relating to user’s injuries or accidents – aerospace, aviation, health care, nuclear power, transportation, and safety purposes.  Sollae Systems is not responsible for any accident or damage occurring while using the product. - 65 -...

  • Page 67: Exemption From Liability

    (including, without limitation, damages for loss of profit, operating cost for commercial interruption, loss of information, or any other financial loss) from the use or inability to use the CSE-H53N even if Sollae Systems Co., Ltd. Or its distributors have been informed of such damages.

  • Page 68: French Version

    à caractère commercial ou de toute autre perte financière) provenant de l'utilisation ou de l'incapacité à pouvoir utiliser le boîtier CSE- H53N, même si Sollae Systems Co., Ltd. ou un de ses distributeurs a été informé de la possibilité de tels dommages.
  • Page 69 CSE-H53N sans que la responsabilité de Sollae Systems Co., Ltd. et de ses distributeurs ne puissent être mise en cause, ni que le boîtier CSE-H53N puisse être échangé au titre de la garantie.

  • Page 70: Revision History

    CSE-H53N User Manual Ver. 2.2 13 Revision History Date Version Comments Author 2012.11.22 ○ First version has been released. Lisa Shin 2013.05.08 ○ Delete descriptions of data frame option Lisa Shin ○ Add related material contents 2013.05.15 ○ Add Exemption from Liability contents Lisa Shin 2013.11.05...
