Performax 241-0510 Owner's Manual

12 v li-ion cordless drill (battery & charger not included)

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Battery:

Maximum torque:

Variable speed ranges

Torque clutch positions:

Keyless chuck:

Maximum drilling depth:

Charger:

Charger input:

Charger output:

Weight:

Need Assistance?

Call us on our toll free customer support line:

1-866-349-8665



Technical questions



Replacement parts



Parts missing from package

12 V LI-ION CORDLESS DRILL

(Battery & Charger Not Included)

PRODUCT SPECIFICATIONS

12 V, 1.5 Ah Li-ion

100 in-lb

0–450 RPM (no load)

16 + drill mode

3/8" (10 mm) single sleeve

1/8" (3 mm) in steel

17/32" (20 mm) in wood

30–40 minute diagnostic, Class 2

120 V AC, 60 Hz

12 V DC, 2.2 A (maximum)

2 lb 6 oz (1.1 kg) with battery

241-0510

Owner's Manual

Battery not

included

Table of Contents

Summary of Contents for Performax 241-0510

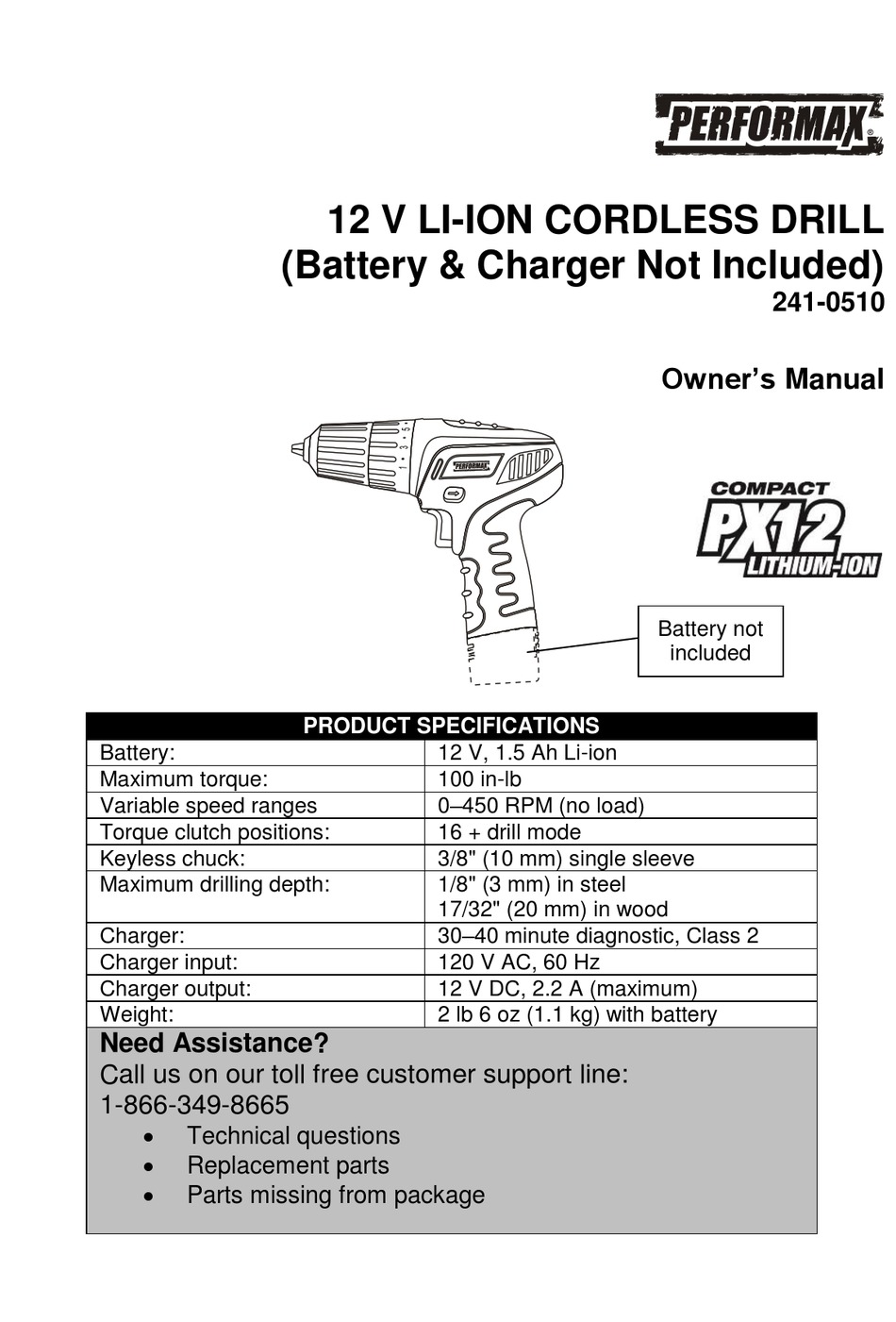

Page 1: Product Specifications
12 V LI-ION CORDLESS DRILL (Battery & Charger Not Included) 241-0510 Owner’s Manual Battery not included PRODUCT SPECIFICATIONS Battery: 12 V, 1.5 Ah Li-ion Maximum torque: 100 in-lb Variable speed ranges 0–450 RPM (no load) Torque clutch positions: 16 + drill mode Keyless chuck: 3/8"...
Page 2: Table Of Contents
TABLE OF CONTENTS Product specifications ………….……………………………………………………. Table of contents ……………………………………………………………………... General safety warnings …………………………………………………………….. 3–4 Eye, ear & lung protection …………………………………………………………… 3–4 Electrical safety ………………………………………………………………………. Power tool safety ……………………………………………………………………... 5–6 General safety rules ………………………………………………………………….. Work area ………………………………………………………………….………….. Electrical safety ………………………………………………………………………. Personal safety ………………………………………………………………………..
Page 3: General Safety Warnings
GENERAL SAFETY WARNINGS CAUTION: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. This instruction manual includes the following:  General Safety Rules  Specific Safety Rules and Symbols ...
Page 4: Electrical Safety
GENERAL SAFETY WARNINGS WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT. WARNING: Dust that is created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals that are known to cause cancer, birth defects, or other genetic abnormalities.
Page 5: Power Tool Safety
POWER TOOL SAFETY GENERAL SAFETY RULES Avoid contact between the operator's body and grounded surfaces such as pipes, WARNING: radiators, ranges, and refrigerators. There Read and understand is an increased risk of electric shock if the all instructions. Failure to follow all operator's body is grounded.
Page 6: Use And Care Of Power Tools
POWER TOOL SAFETY PERSONAL SAFETY – cont’d Disconnect the plug from the outlet before making any adjustments, changing Avoid accidental start-ups. Verify that the accessories, or storing the tool. Such switch is in the OFF position before preventive safety measures reduce the risk plugging in the tool.
Page 7: Specific Safety Rules
SPECIFIC SAFETY RULES WARNING: Secure the workpiece. Use clamps or a Know your cordless vice to hold the workpiece. It is safer than drill. Do not plug in the charger or using your hand and it frees both hands to install the battery in the tool until you operate the tool.
Page 8: Battery & Charger Safety
BATTERY & CHARGER SAFETY WARNING: Do not use an extension cord. Plug the Only use the charger cord directly into an electrical diagnostic charger supplied with this kit outlet. to charge the 12 V Li-ion battery. Charging any other batteries may Use the charger only in a standard damage the charger and possibly cause 120 V, 60 Hz electrical outlet.
Page 9: Battery Pack Recycling
BATTERY & CHARGER SAFETY BATTERY PACK RECYCLING To preserve our natural resources, please recycle or dispose of batteries properly. The batteries charged by this charger may contain chemicals and metals that are harmful to the environment. Never dispose of re-chargeable batteries in your normal household garbage or in landfill sites as they will add to the pollution of the environment.
Page 10: Symbols
SYMBOLS WARNING: Some of the following symbols may appear on the cordless drill. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Volts Direct current Amperes No load speed Hertz Alternating or direct...
Page 11: Know Your Cordless Drill
KNOW YOUR CORDLESS DRILL Torque clutch Chuck Air vents LED light Forward/reverse button Variable speed trigger switch Battery cavity ACCESSORIES AVAILABLE ACCESSORIES Before using any accessory, carefully read the instructions or the owner’s manual for WARNING: Use only accessories the accessory. ...
Page 12: Contents
CONTENTS CONTENTS CORDLESS DRILL COMPONENTS DESCRIPTION Carefully unpack the cordless drill. Cordless drill Compare the contents against the Owner’s Manual “CORDLESS DRILL COMPONENTS” chart at right. NOTE: See illustration of cordless drill below. WARNING: To avoid fire or toxic reaction, never use gasoline, naphtha, acetone, lacquer thinner or similar highly volatile solvents to clean the tool.
Page 13: Assembly And Operating
ASSEMBLY AND OPERATING BATTERY CHARGING, DISPOSAL & MAINTENANCE The battery and charger that are packed with the 12 V Oscillating Tool are designed to be used with this cordless drill. Please refer to the 12 V Oscillating Tool owner’s manual for instructions relating to: ...
Page 14: Checking The Battery Charge Status
ASSEMBLY AND OPERATING CHECKING THE BATTERY CHARGE STATUS – cont’d Release the battery status button to turn the LED’s OFF. INSTALLING A BATTERY IN THE DRILL Remove the discharged battery (1) from the tool by pressing on the battery release button (2) on the top of the battery (Fig.
Page 15: Forward/Reverse Switch
ASSEMBLY AND OPERATING ADJUSTING THE TORQUE – cont’d Adjust the torque setting as follows: Identify the torque settings located on the torque adjustment ring (1) (Fig. 3). Rotate adjustment ring to align the correct torque setting number with the torque indicator arrow (2). See the chart on the following page for correct torque settings.
Page 16: Variable-Speed Trigger Switch
ASSEMBLY AND OPERATING VARIABLE-SPEED TRIGGER SWITCH This drill is equipped with a variable-speed ON/OFF trigger switch. To start drill, gently squeeze the trigger switch (1) (Fig. 6). NOTE: The drill will turn at its slowest speed when the trigger switch is depressed slightly.
Page 17 ASSEMBLY AND OPERATING INSTALLING DRILL BITS – cont’d To open the keyless drill chuck, grasp and hold the chuck body (1) and rotate it in a counter-clockwise direction until the chuck jaws (2) open wide enough to accept the bit (3) (Fig.
Page 18: Removing Bits
ASSEMBLY AND OPERATING INSTALLING DRILL BITS – cont’d WARNING: Do not insert drill bit into chuck and tighten as shown in Fig. 9. The drill bit MUST be properly inserted with all three of the chuck jaws holding the bit centred in the chuck. Failure to properly insert drill bit could cause the drill bit to be thrown from the chuck, resulting in possible serious injury or...
Page 19: Drilling
ASSEMBLY AND OPERATING WARNING For safety reasons, the operator must read the sections of this Owner’s Manual entitled “GENERAL SAFETY WARNINGS”, “POWER TOOL SAFETY”, “SPECIFIC SAFETY RULES”, “BATTERY & CHARGER SAFETY” and “SYMBOLS” before using this cordless drill. Verify the following every time the drill is used: Safety glasses, safety goggles, or face shield is being worn.
Page 20 ASSEMBLY AND OPERATING DRILLING – cont’d Check the drill bit to make sure it is firmly locked into the drill chuck, and verify that the forward/reverse switch is in the forward position. Set torque clutch to the drilling position. Hold the drill firmly with both hands whenever possible.
Page 21: Driving Screws
ASSEMBLY AND OPERATING DRILLING – cont’d When drilling metals, use a light oil on the drill bit to keep it from overheating. The oil will prolong the life of the drill bit and improve the cutting action. If the bit jams in the workpiece, or if the drill stalls, release the trigger switch immediately.
Page 22: Removing The Chuck
ASSEMBLY AND OPERATING REMOVING THE CHUCK To remove the chuck: Remove the battery pack from the drill. Insert a 5/16” (8 mm) or larger hex key (1) into the chuck (2) and tighten the chuck jaws securely (Fig. 11). Make sure each of the chuck jaws (3) is seated on the flat surfaces of the hex key.
Page 23: Retightening A Loose Chuck
ASSEMBLY AND OPERATING RETIGHTENING A LOOSE CHUCK After installing a chuck that has previously been removed, the chuck may become loose on the spindle and develop a wobble. Also, the chuck screw may become loose, causing the chuck jaws to bind and preventing them from closing.
Page 24: Maintenance
MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.
Page 25: Exploded View
EXPLODED VIEW 15 14...
Page 26: Parts List
PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the cordless drill. Any attempt to repair or replace electrical parts on this cordless drill may create a safety hazard unless repairs are performed by a qualified technician.
Page 27 PARTS LIST Key # Part # Part Name Quantity 4030010028 Self tapping screw 2010180004 Motor gear 1030030042 Motor 3010010014 Left enclosure 3110010028 Decorative plate 1130050007 3160060024 LED lens 3120030024 Direction setting button 1060030011 Switch assembly 1180060006 Pole plate 2030090006 Clip...
Page 28: Warranty
® back to your nearest MENARDS® retail store. At its discretion, PERFORMAX agrees to have the tool or any defective part(s) repaired or replaced with the ®...
