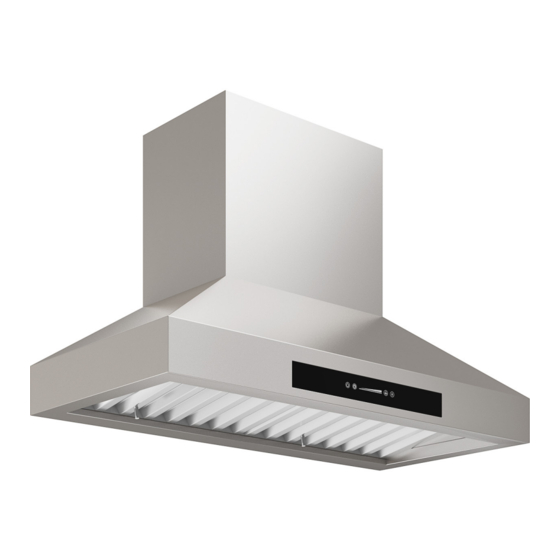

- Page 1 Range Hood Pro Pyramid User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference.
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 6 to 16. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Installation ............................8 Step 1 - Read the Safety Instructions .................... 8 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Main Housing Damper Damper Gasket 12 x Main Housing Screws 4 x Damper Screws 2 x Upper Chimney Screws Baffle Filters 30” x 2 Motor Body Baffle Filters 36” x 3 Grease Trays 30” x 2 Grease Trays 36” x 3 Upper Chimney Bracket Lower Chimney Upper Chimney... -
Page 7: Range Hood Dimensions
Range Hood Dimensions 15-5/8” 13-9/16” (397 mm) (345 mm) 3-1/2” (90 mm) 20-1/4” 29-7/8” / 35-3/8” (515 mm) (760 mm / 900 mm) Specifications Body Design Stainless Steel Power Rating 120 V / 60 Hz (cETLus Certified) Total Input Power 406 W Motor Input Power 400 W Amperage 3.40 A 775 CFM... -
Page 8: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 9: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. • If you require a ductless installation, please visit anconahome.com to purchase a recirculation kit. IMPORTANT: For the most efficient & quiet operation: • Vent system must terminate to the outside (roof or side wall). • It is recommended that the range hood be vented • DO NOT terminate the vent system in an attic or other vertically through the roof through 10”... -
Page 10: Step 6 - Prepare Motor Housing
Installation Before installation, please watch the how-to video by scanning the QR code or visit anconahome.com STEP 6 Prepare Motor Body • Place the motor body on a flat surface (ideally the floor) as shown below. • To keep the motor body stable, place the cube shaped foam from the packaging underneath the motor body. Foam Floor STEP 7a... -
Page 11: Step 7B - Insert Motor Body Into Main Housing
Installation STEP 7b Insert Motor Body Into Main Housing The main housing and motor body are similar in size. We recommend the following steps to ensure a correct fit: • Gently lower the main housing • Insert the motor body (A) into the corner of the main housing (B) (See Figure 1) Figure 1 • Rotate the main housing (B) counter-clockwise at a 45° angle. -
Page 12: Step 8 - Attach Motor Body To Main Housing
Installation STEP 9 Attach Motor Body to Main Housing • Align the screw holes on the Motor Body with the screw holes on the Main Housing. • Screw the motor body and main housing together using the screws provided. STEP 9 Join the Connectors • Join together the quick connectors at the back of the main housing and motor body. -
Page 13: Step 11 - Mount Range Hood Onto Wall
STEP 11 Mount Range Hood Onto Wall • Position the range hood’s mounting key holes securely onto the range hood mounting screws. • Finish screwing in the screws until they cannot tighten any further. STEP 12 Install Damper • Place the damper gasket followed by the damper over the ventilation hole on top of the motor body. • Secure using the four screws (included). -
Page 14: Step 15 - Install Lower Chimney
Installation IMPORTANT: • Observe all governing codes and ordinances. • It is the customer’s responsibility to contact a qualified electrical installer. • If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. • DO NOT ground to a gas pipe. • Check with a qualified electrician if you are not sure that the range hood is properly grounded. • DO NOT have a fuse in the neutral or ground circuit. IMPORTANT: Save this Installation Guide for electrical inspector’s use. GROUNDING INSTRUCTIONS: • This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. -
Page 15: Step 16 - Install Upper Chimney Bracket
Installation STEP 16 STEP 17 Install Upper Chimney Bracket Install Upper Chimney • Position the upper chimney bracket onto the wall • Remove the protective film from the upper chimney. directly below the ceiling. Align the upper chimney Carefully slide the upper chimney inside the lower bracket with the range hood below. -
Page 16: Step 18 - Install Grease Trays
Installation STEP 18 Install Grease Trays • Place the grease trays into the the track at the back of the range hood. • Slide them left and right until all trays are placed side-by-side in the track. • The baffle filters and grease trays should be cleaned once a month, or as needed. -
Page 17: Operation
Operation Using the Fan Turning the Light On or Off Press the button to Press the button turn the unit on. to turn the range hood Press the button Press the button to to turn the light on. turn on the fan. Touch the sensor bar to select any of the 4 speeds desired. -
Page 18: Maintenance
Maintenance Replacing the Light Bulbs Cleaning the Range Hood Unplug the unit from the AC outlet. Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the hood. Range Hood Body Remove five screws from the light panel, then remove the light bulbs by popping them out. -
Page 19: Replacement Parts
Replacement Parts 10A & 10B Description Part Code Description Part Code 1 - Capacitor PACAP-15 10B - Grease Tray 36” PAGTR-02 2 - Circuit Board PABRD-14 12 - Light Panel 30”* PALPL-20 3 - Control Panel PACPL-17 13 - Light Panel 36”* PALPL-21 4 - Transformer PATRA-13... - Page 20 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN-1137-04 © 2015 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 20 —...
