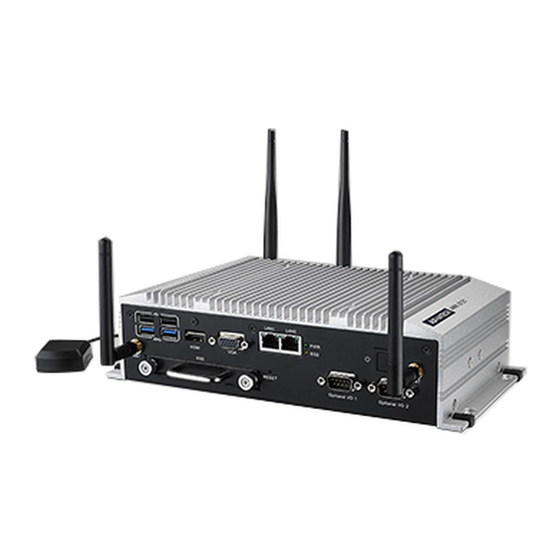

Advantech ARK-2121S User Manual

Outdoor hd nvr w/4 poe ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
ARK-2121S
Outdoor HD NVR w/4 PoE Ports

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARK-2121S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advantech ARK-2121S

  • Page 1 User Manual ARK-2121S Outdoor HD NVR w/4 PoE Ports...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 Visit the support web site at www.emacinc.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
  • Page 4 Before setting up the system, check that the items listed below are included and in good condition. If any item does not accord with the table, please contact your dealer immediately.  1 x ARK-2121S unit  1 x Hard copy user manual (Simplified Chinese) ...
  • Page 5 Remplacez uniquement par un type identique ou équivalent recom- mandé par le fabricant. Jetez les piles usagées selon les instructions du fabri- cant. ARK-2121S User Manual...
  • Page 6 (ex. screws) provided with the accessory box. ATTENTION: Tout composant non vérifiée pourrait causer des dommages inat- tendu. Pour garantir une installation correcte, s'il vous plaît utilisez toujours les composants( vis ex.) fournies avec la boîte d'accessories. ARK-2121S User Manual...

  • Page 7: Table Of Contents

    Introduction ....................2 General Specification ................3 Specifications .................... 3 Table 1.1: Power Input / Output support information....4 Dimensions ....................5 Figure 1.1 ARK-2121S dimensions ..........5 Chapter Hardware installation ......7 Overview of Hardware Installation & Upgrading ........8 Installing Memory ..................
  • Page 8 Figure 5.3 Advanced BIOS features setup screen ....28 5.2.3 Chipset Configuration ..............40 5.2.4 Security..................46 5.2.5 Boot .................... 47 5.2.6 Save & Exit ................. 48 Appendix A WDT Sample Code ......49 Watchdog Timer Sample Code............... 50 ARK-2121S User Manual viii...

  • Page 9: Chapter 1 General Introduction

    Chapter General Introduction This chapter gives background information on ARK-2121S series.

  • Page 10: Introduction

    Introduction ARK-2121S is an industrial grade qual core mobile device for outdoor NVR solution. ARK-2121S support HD NVR solution for and is fully integrated certified hardware and intelligent management software design. Well-developed vehicle software SDK and APIs for surveillance applications. Also, extension capacity and wireless...

  • Page 11: General Specification

    CPU: ARK-2121S-S9A1E Intel Core E3845 QC 1.91GHz  Chipset: ARK-2121S-S9A1E: Intel Gen7 graphics  BIOS: AMI EFI 64 Mbit  System memory: ARK-2121S-S9A1E: 1 x 204pin SODIMM, DDR3L 1333  MHz, up to 8GB Storage:  – 2.5" drive bay: 1 x 2.5" removable drive bay (Max 9.5mm height) –...
  • Page 12  dom 5~500 Mz , 1 hr/axis Shock during operation: With mSATA/SSD: 30 G, IEC 60068-2-27, half sine,  11 ms duration Certifications:  – EMC: CE/FCC Class A, CCC, BSMI – Safety: UL, CB, CCC, BSMI ARK-2121S User Manual...

  • Page 13: Dimensions

    Dimensions Figure 1.1 ARK-2121S dimensions ARK-2121S User Manual...
  • Page 14 ARK-2121S User Manual...

  • Page 15: Chapter 2 Hardware Installation

    Chapter Hardware installation This chapter introduces the instal- lation of ARK-2121S Hardware.

  • Page 16: Overview Of Hardware Installation & Upgrading

    Overview of Hardware Installation & Upgrading Warning! Do not remove the ruggedized aluminum covers until verifying that no power is flowing within the computer. Power must be switched off and the power cord must be unplugged. Take care in order to avoid injury or damage to the equipment.

  • Page 17: Installing Storage

    Installing storage 2.3.1 Installing 2.5" SSD or HDD 2.3.2 Installing mSATA Storage Remove 6pcs screws on bottom cover. Remove 2.5" drive bay and Insert full size mSATA storage in marked place. ARK-2121V User Manual...

  • Page 18: Installing Optional Modules

    Installing Optional Modules 2.4.1 Installing WLAN module Remove 6pcs screws on bottom cover. Remove 2.5" drive bay and Insert half size WLAN module in marked place. ARK-2121V User Manual...

  • Page 19: Installing Wwan Module

    2.4.2 Installing WWAN module Remove 6pcs screws on bottom cover. Remove 2.5" drive bay and Insert full size WWAN module in marked place. ARK-2121V User Manual...
  • Page 20 ARK-2121V User Manual...

  • Page 21: Chapter 3 Jumper And Switch Settings

    Chapter Jumper and Switch Settings This chapter explains how to set up ARK-2121S Series hardware, including instructions on setting jumpers and connecting peripher- als, and how to set switches and read indicators. Be sure to read all the safety pre- cautions before beginning the installation procedure.

  • Page 22: Setting Jumpers And Switches

    An arrow is used on the motherboard to indicate the first pin of each jumper. Locations of Jumpers 3.2.1 Main board Figure 3.1 Top side of main board ARK-2121S User Manual...

  • Page 23: Jumper Lists

    Table 3.2: Auto Power On Setting (J2) Setting Function (Open) Power Button for Power On (Close)* Auto Power On * Default 3.4.1.2 LCD Power (J5) Table 3.3: LCD Power (J5) Setting Function (1-3)* +3.3V (3-5) (3-4) +12V ARK-2121S User Manual...
  • Page 24 3.4.1.3 Clear CMOS (SW2) Table 3.4: Clear CMOS (SW2) Setting Function (1)* Normal Clear CMOS ARK-2121S User Manual...

  • Page 25: Chapter 4 Pin Assignments

    Chapter Pin Assignments This chapter explains Pin Assign- ments of ARK-2121S Series.

  • Page 26: Ark-2121S-S9A1E I/O Connectors

    ARK-2121S-S9A1E I/O Pin Definition 4.2.1 VGA Connector The ARK-2121S provides a high resolution VGA interface connected by a D-sub 15- pin connector to support a VGA CRT monitor. It supports display resolution of up to 2560 x 1600 with 60 Hz.

  • Page 27: Usb Connector

    4.2.2 USB Connector The ARK-2121S provides up to four USB interface connectors - 3 x USB 2.0 & 1 x USB 3.0, which give complete Plug & Play. The USB interface is compliant with USB UHCI, Rev. 2.0 & 3.0. The USB interface supports Plug and Play, which enables you to connect or disconnect a device whenever you want, without turning off the com- puter.

  • Page 28: Hdmi Connector

    DP_PWR 4.2.5 DIO Connector ARK-2121S offers an 8-bit phenix type DIO connector and two ground pin. 6 x DI & 2 x DO w/ 3 KV isolation. Connector Type: 10-pin screw terminal block (6 DI points, 2 DO points, GND) ...

  • Page 29: Power Input Connector

    4.2.6 Power Input Connector ARK-2121S comes with 3-pin phenix type power input connector for 9 ~ 36 VDC input. Figure 4.6 Power Input Connector 4.2.7 Power Over Ethernet ARK-2121S-S9A1E provides 4 x 10/100 PoE ports. 4ports full-load, IEEE802.3af Class 2 (7 Watt) ...

  • Page 30: System Audio Connector

    4.2.8 System Audio Connector ARK-2121S offers stereo audio ports by a phone jack connector of Line-out, Mic-in & Line-in. The audio chip controller is by Realtek ALC888, High Definition Audio. Figure 4.8 System Audio Connector Table 4.6: Audio Connector Pin Assignments...

  • Page 31: Power On/Off Button

    Figure 4.10 Reset 4.2.12 LED Indicator There are two LEDs on ARK-2121S front metal face plate for indicating system sta- tus: PWR LED is for power status; and SSD LED is for SSD flash disk status. Figure 4.11 LED Indicator...
  • Page 32 ARK-2121S User Manual...

  • Page 33: Chapter 5 Bios Settings

    Chapter BIOS settings This chapter introduces how to set BIOS configuration data.

  • Page 34: Introduction

    AMIBIOS has been integrated into many motherboards for over a decade. With the AMIBIOS Setup program, you can modify BIOS settings and control the various sys- tem features. This chapter describes the basic navigation of the ARK-2121S BIOS setup screens.

  • Page 35: Entering Setup

    System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. ARK-2121S User Manual...

  • Page 36: Advanced Bios Features Setup

    5.2.2 Advanced BIOS Features Setup Select the Advanced tab from the ARK-2121S setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 37 OS. ACPI Sleep State  Select the highest ACPI sleep state the system will enter when the SUS- PEND button is pressed Lock Legacy Resources  Enables or disables lock of legacy resources ARK-2121S User Manual...
  • Page 38 5.2.2.2 Super I/O Configuration Serial Port 1 Configuration  This item allows users to configure serial port 1. Serial Port 2 Configuration  This item allows users to configure serial port 2. ARK-2121S User Manual...
  • Page 39 This item allows users to set backlight mode. EC Power Saving Mode  This item allows users to set board’s power saving mode when off. EC Watch Dog Function  This item allows users to select EC watchdog timer. ARK-2121S User Manual...
  • Page 40 5.2.2.4 S5 RTC Wake Settings Wake system from S5  Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr::min::sec specified. ARK-2121S User Manual...
  • Page 41 Serial Port Console Redirection Console Redirection  This item allows users to enable or disable console redirection for Microsoft- Windows Emergency Management Services (EMS). Console Redirection  This item allows users to configuration console redirection detail settings. ARK-2121S User Manual...
  • Page 42  Enable the mid level cache(L2) prefetching of adjacent cache lines. Intel Virtualization Technology  When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. Power Technology  Enable the power management features. ARK-2121S User Manual...
  • Page 43 5.2.2.7 PPM Configuration CPU C state Report  Enable/Disable CPU C state report to OS. Max CPU C-state  This option controls Max C state that the processor will support. S0ix  Enable/Disable CPU S0ix state. ARK-2121S User Manual...
  • Page 44 SATA Mode  Select IDE / AHCI. Serial-ATA Port 0 / Port1  Enable / Disable Serial ATA Port0 / Port1. SATA Port 0 / Port1 HotPlug  Enable / Disable SATA Port0 / Port1 hotplug function. ARK-2121S User Manual...
  • Page 45  Controls the execution of UEFI and Legacy Storage OpROM. Video  Controls the execution of UEFI and Legacy Video OpROM. Other PCI devices  Determines OpROM execution policy for devices other than Network, Storage, or Video. ARK-2121S User Manual...
  • Page 46 Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. ARK-2121S User Manual...
  • Page 47 5.2.2.11 Security Configuration  TXE HMRFPO Disable  TXE Firmware Update  TXE EOP Message  Send EOP Message Befor Enter OS TXE Unconfiguration Perform  Revert TXE settings to factory defaults ARK-2121S User Manual...

  • Page 48: Chipset Configuration

    5.2.3 Chipset Configuration North Bridge  Detail for North Bridge items. South Bridge  Detail for South Bridge items. ARK-2121S User Manual...
  • Page 49 Select DVMT 5.0 Total Graphic Memory size used by the Internal Graphics Device. Aperture Size  Select the Aperture Size. DOP CG  Enable/Disable DOP clock gating. GTT Size  Select the GTT Size IGD Thermal  Enable/Disable IGD Thermal. Spread Spectrum clock  Enable/Disable Spread Spectrum clock. ARK-2121S User Manual...
  • Page 50 Select AC power state when power is re-applied after a power failure. Serial IRQ Mode  Configure Serial IRQ Mode. Global SMI Lock  Enable or Disable SMI lock. BIOS Read/Write Protection  Enable or Disable BIOS SPI region read/write protect. ARK-2121S User Manual...
  • Page 51 Enabled = Azalia will be unconditionally Enabled. Auto = Azalia will be enabled if present disabled otherwise. Azalia HDMI Codec  Enable/Disable internal HDMI codec for Azalia HDMI Port B  Enable/Disable HDMI Port B HDMI Port C  Enable/Disable HDMI Port C ARK-2121S User Manual...
  • Page 52 Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. ARK-2121S User Manual...
  • Page 53 5.2.3.5 PCI Express Configuration PCI Express Port0 / Port2  Enable or Disable the PCI Express Port0 / Port 2 in the Chipset. Speed  Configure PCIe Port Speed. ARK-2121S User Manual...

  • Page 54: Security

    To access the sub menu for the following items, select the item and press <Enter>: Change Administrator / User Password  Select this option and press <ENTER> to access the sub menu, and then type in the password. ARK-2121S User Manual...

  • Page 55: Boot

    This means the default boot selec- tion is not automatically started by the firmware. Bootup NumLock State  Select the keyboard NumLock state. Quiet Boot  Enables or disables Quiet Boot option. Boot Option #1  Sets the system boot order. ARK-2121S User Manual...

  • Page 56: Save & Exit

    This item allows you to save the changes done so far as user defaults. Restore User Defaults  This item allows you to restore the user defaults to all the options. Boot Override  Boot device select can override your boot priority. ARK-2121S User Manual...

  • Page 57: Appendix Awdt Sample Code

    Appendix WDT Sample Code...

  • Page 58: Watchdog Timer Sample Code

    EC_ EC_Data_Port mov al, 57h ; Watch dog event flag. out dx,al mov dx, EC_Data_Port mov al, 04h ; Reset event. out dx,al mov dx, EC_Command_Port mov al,28h ; start WDT function. out dx,al .exit ARK-2121S User Manual...
  • Page 59 ARK-2121S User Manual...
