Summary of Contents for DNP DP-DS620 Series

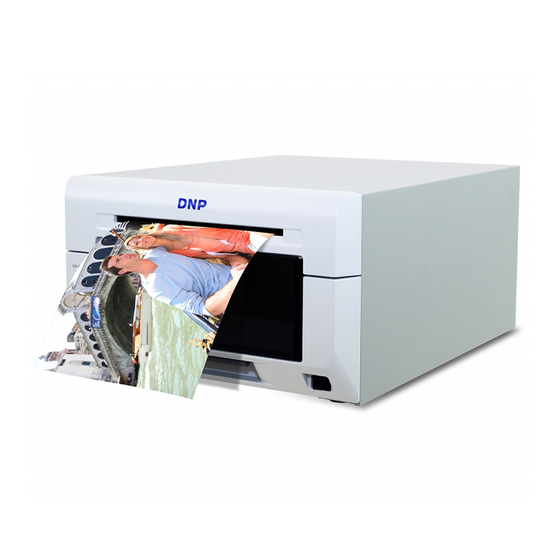

- Page 1 DIGITAL PHOTO PRINTER DIGITAL PHOTO PRINTER DP-DS620 Series DP-DS820 Series User’s Manual Version 2.00 ©2016 Dai Nippon Printing Co., Ltd.
- Page 2 WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. This apparatus must be earthed. For pluggable equipment, the socket-outlet be installed near the equipment and shall be easily accessible.
- Page 3 italiano Il fabbricante, [Dai Nippon Printing Co., Ltd.], dichiara che il tipo di apparecchiatura radio [DP- DS620 / DP-DS820] è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: http://www.dnpphoto.eu/en/home български С...
- Page 4 For the Customer in USA FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
-
Page 5: Table Of Contents
Co�, Ltd�, or the respective other holders of rights� Except in cases permitted by applicable laws, these may not be duplicated or used without consent from Dai Nippon Printing Co�, Ltd� About DP-DS620 Series “DP-DS620 Series” includes the names of “DP-DS620” and “DP-DS620 (A)”� The name depends on the shipping destinations� About DP-DS820 Series “DP-DS820 Series”... -
Page 6: Introduction
Introduction Thank you for purchasing this product� This document explains how to handle and operate this product� Please read this document carefully before use� Be sure to read “For Safe Operation” (P�6-8), and operate the product correctly� For Safe Operation Be sure to read this document before using the product�... - Page 7 • Do not use this product for applications involving human life (such as medical, space, aeronautic, or other applications that require extreme reliability)� • The DP-DS620 Series weighs 12 kg (26�46 lbs�) and the DP-DS820 Series weighs 14 kg (30�86 lbs�)� When moving it, lift it in a way that avoids excessive physical stress�...
- Page 8 For Safe Operation Caution • Do not install the product in dusty or humid places. This may cause fire or an electric shock, or damage the product� • Do not install the product on an unstable surface� It may fall and cause injury to the user or other people�...
-
Page 9: Caution For Installation
Caution for installation • Before using the product, read “For Safe Operation” carefully and observe the instructions therein� • Use care when moving the product� Never try to carry the product alone� Dropping it may cause injury or property damage� •... -
Page 10: Printer Installation
Printer Driver User'sManual For Safe Operation Start up guide L size spacers installation (DP-DS620 Series only) Install the L size spacers to the paper holders when using L or 2L paper rolls� Caution • Pay particular attention when removing the product from its package, carrying it, or moving it�... -
Page 11: Name Of Components
Printer Installation Name of components Front of the unit Paper output Standby LEDs Scrap box ON/Standby switch Opening lever Back of the unit Vent USB port Power inlet Side of the unit Vent Caution • Be careful not to hurt yourself or damage anything on the edges of the printer� - 11 -... -
Page 12: Connecting The Power Cord And A Computer
Printer Installation Connecting the power cord and a computer Make sure that the ON/Standby switch of the printer unit is set to Standby� Standby ON/Standby Make sure that the power switch of the switch computer is set to OFF� Plug the connector of the power cord (supplied) into the printer power inlet�... -
Page 13: Paper (Paper Holder), Ribbon (Ribbon Cassette)
Printer Installation Paper (Paper Holder), Ribbon (Ribbon Cassette) Prepare the media (paper, ribbon) with the following widths� DP-DS620 Series DP-DS820 Series Type (5 x 7") PC, 2PC, (6 x 9") (8 x 10"), (8 x 12") (A4) Paper Width : 127 mm... -
Page 14: Setting The Media (Paper, Ribbon)
Printer Installation Setting the media (paper, ribbon) Use the opening lever to open the lock, and then pull out the mechanism unit� Mechanism unit Opening lever Lift the paper lever and raise the front cover� Paper Lever Front cover Hold the center of the scrap box and lift it up straight�... - Page 15 Printer Installation Remove the paper holder from the printer� • When removing the paper holders to change the paper roll etc�, make sure to place them on the clean surface� Never place them directly on the table or work spaces� If dust or dirt adheres to the media when setting the paper holder inside the printer unit , it may adversely affect the print quality�...
- Page 16 Printer Installation You can change the paper width of the paper holder (DP-DS820 Series only)� Move the flange by rotating the paper holder while pulling the nob as shown in the figures to switch between A4 and 8 inch widths� Reverse the procedure to change from 8 inch width to A4 width�...
- Page 17 Printer Installation Remove the ribbon cassette from the printer unit� • When setting the media, make sure to use the plastic bag or sheet covering the media. Never put it directly on the table, floor or work spaces. Remove the old ribbon from the ribbon cassette and set the new ribbon�...
-
Page 18: Paper Tray Installation
Therefore, do not mix the use of different width media on one printer� Paper tray installation (DP-DS620 Series only) You can use the paper tray when printing L or PC size�... -
Page 19: Disposing Of Paper Scrap
Printer Installation Disposing of paper scrap Paper scraps generated when the paper is cut are collected in the scrap box� Be sure to empty the scrap box when replacing the paper� Release the opening lever, and pull out the mechanism unit� Lift the paper lever and raise the front cover�... -
Page 20: Troubleshooting
Troubleshooting Error display The LEDs condition (lit, flashing, off) indicates the product status. lit, flashing, off� LED display Status Condition Refer to POWER RIBBON Paper end Set a new roll of paper� P�14 PAPER ERROR POWER RIBBON Ribbon end Set a new ribbon� P�14 PAPER ERROR... -
Page 21: Solving Errors
Troubleshooting POWER Head cool The print heads are being cooled� RIBBON down This error is cleared automatically� PAPER ERROR Solving errors Release the opening lever, and pull out the mechanism unit� Remove the ribbon cassette front the printer unit� Perform the action corresponding to the error� “The printer is jammed with paper”... -
Page 22: The Ribbon Is Caught In The Printer
Troubleshooting The ribbon is caught in the printer Pull out the ribbon� Cut the ribbon� Remove the ribbon that remains in the printer unit carefully� Any pieces of ribbon left inside the printer may affect the print quality� In such cases, clean the platen roller�... -
Page 23: The Printer Stopped With The Paper Partially Cut
Troubleshooting The printer stopped with the paper partially cut Set the ON/Standby switch to Standby and then ON again� The paper jam is released and the cutter blade returns to its standby position� • If you cannot release the paper, contact a service representative� Remove the partially printed part of paper from the printer�... -
Page 24: Cleaning
Cleaning Platen roller If indents appear at the same places on the printout at a regular interval (approximately every 50 mm), or if the back of the printout (white side) is dirty, clean the platen roller� There may be dust, dirt, adhesive, etc� from the ribbon or paper on the platen roller� Prepare a piece of gauze or other soft cloth Platen roller moistened with ethyl alcohol�... -
Page 25: Repacking
Repacking Transporting the printer requires the reuse of the original packing materials� The printer must be packed in the same way it was at the time of purchase� If the original packaging materials are not used and the printer is not packed correctly, the printer may be broken during transport� Remove all Accessories and Attachments from the printer (print media ink ribbon, paper roll, USB cable, power cable and paper tray) and store or transport them separately�... -
Page 26: Specifications
Specifications Model DP-DS620 DP-DS820 Print method Thermal dye sublimation transfer Width direction 11�8 dot/mm (300 dpi) Resolution High-speed 11�8 dot/mm (300 dpi) Paper feed direction High-quality 23�6 dot/mm (600 dpi) 89 mm x 127 mm (3�5x5") 203 mm × 102 mm (8x4") 101 mm x 152 mm (4x6") 203 mm ×... - Page 27 - 27 -...
