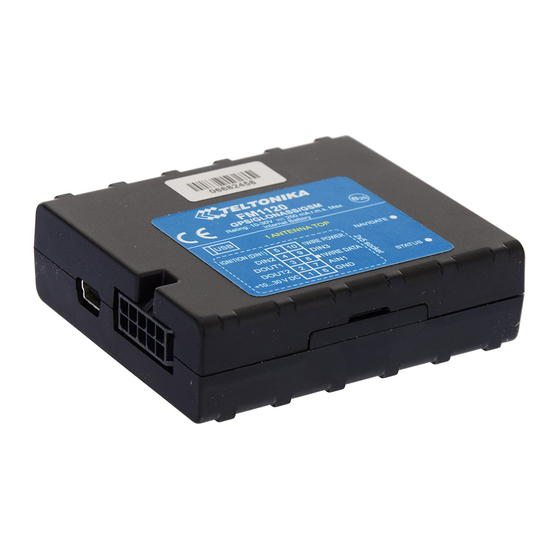

FM1120 User Manual
V4.4
*This version is suitable for device with universal FM11YX firmware
base v.01.17.xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM1120 and is the answer not in the manual?

Questions and answers

mohmed elhossin
February 17, 2025

انا لم اجد اي برامج او تعريفات لهذا الجهاز

0
1 comments:
Mr. Anderson
February 17, 2025

You can download the Virtual COM Port drivers for the Teltonika FM1120 device from the Teltonika website at:
[http://avl1.teltonika.lt/downloads/FM11/vcpdriver_v1.3.1_setup.zip](http://avl1.teltonika.lt/downloads/FM11/vcpdriver_v1.3.1_setup.zip).

This answer is automatically generated

0

Related Manuals for Teltonika FM1120

Summary of Contents for Teltonika FM1120

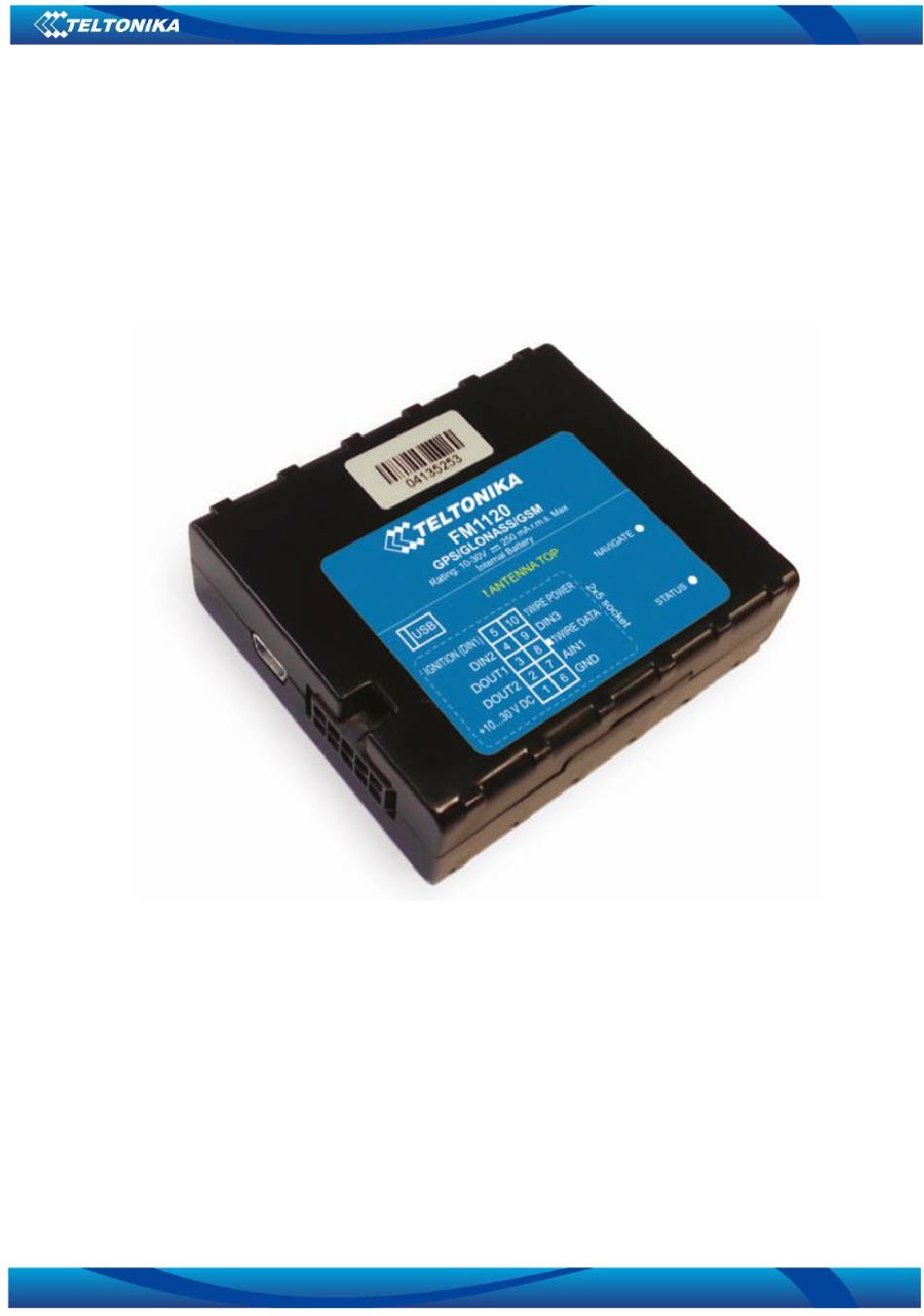

  • Page 1 FM1120 User Manual V4.4 *This version is suitable for device with universal FM11YX firmware base v.01.17.xx...
