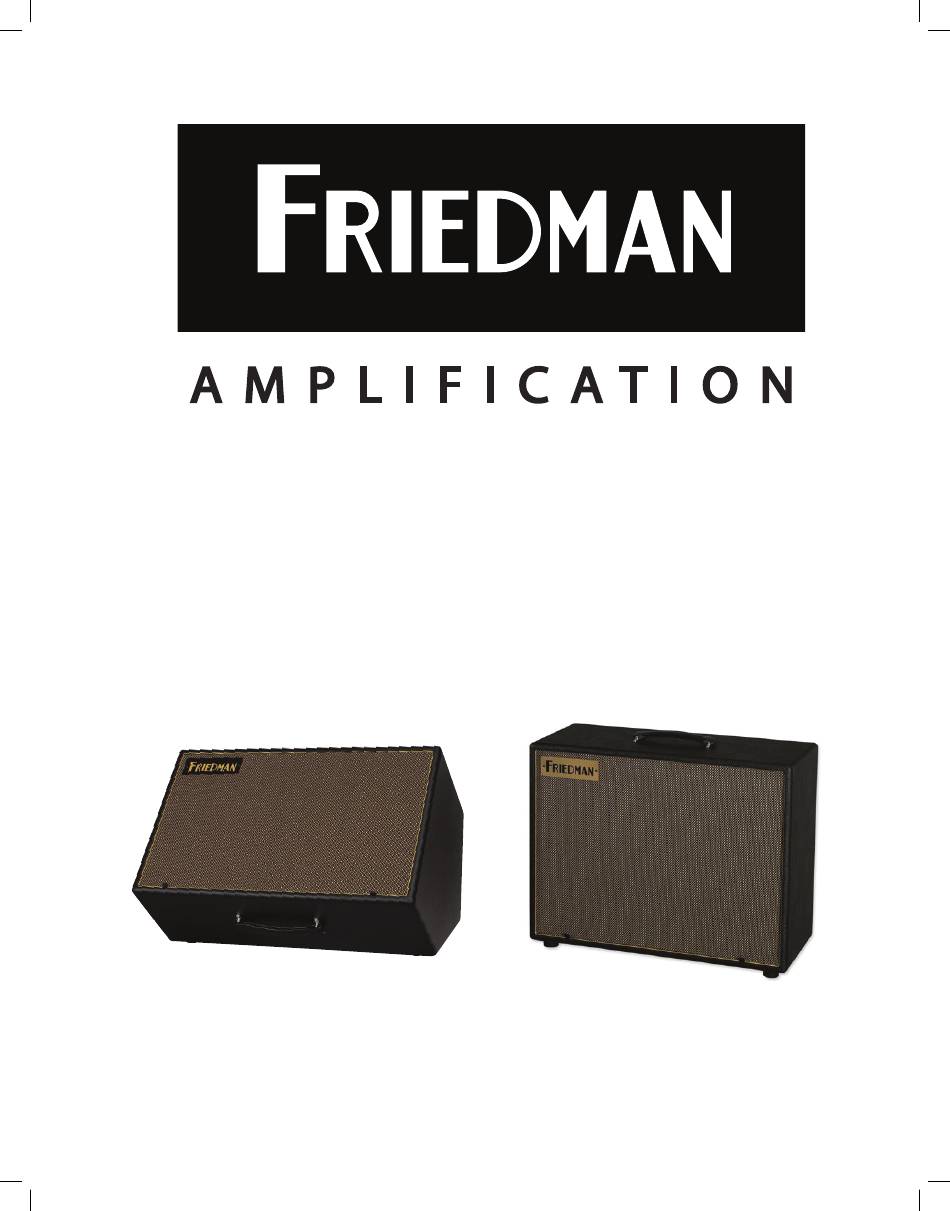

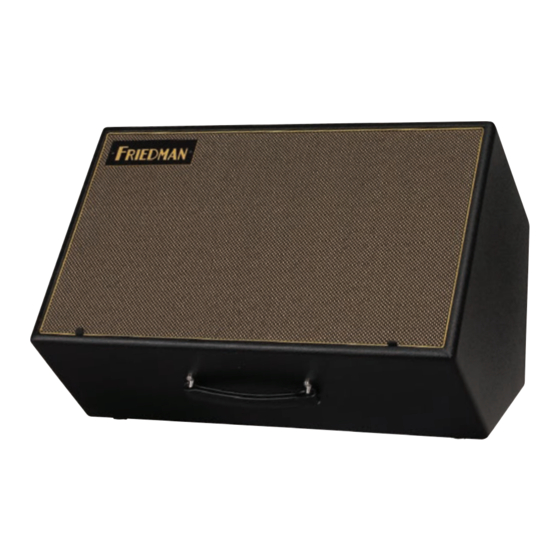

- Page 1 ASM-12 & ASC-12 2-WAY 500-WATT POWERED MONITOR BI-AMP DESIGN-INTEGRATED SIGNAL PROCEESSING CELESTION LOUDSPEAKER & COMPRESSION DRIVE INSTRUCTION MANUAL...
- Page 2 9-10 Warranty Welcome CONGRATULATIONS ON YOUR PURCHASE OF THE FRIEDMAN The Friedman ASM-12/ASC-12 was designed using advanced ASM-12/ASC-12 LOUDSPEAKER. acoustic and audio techniques with premium components, comprehensive protection circuitry, and robust construction to Please review all the information provided in this manual to provide years of consistent, reliable performance.
- Page 3 HEAT – The amplifier on the back of the ASM-12/ASC-12 loudspeaker 19. ATTACHMENTS – do not use attachments not recommended by the should be situated away from heat sources such as radiators, heat product manufacturer, as they may cause hazards.
- Page 4 COMPLETELY DISCONNECT POWER CORD FROM AMPLIFIER BEFORE ATTEMPTING TO REPLACE FUSE! 25 . The Friedman ASM-12/ASC-12 powered loudspeaker is not designed for temporary or permanent suspension. Any attempt to suspend an ASM-12/ASC-12 loudspeaker cabinet could result in injury or death.
- Page 5 ASM-12/ASC-12 Rear Controls WARNING: To reduce the risk of re or shock do WARNING: To reduce the risk of re or shock do not expose this equipment to rain or moisture. not expose this equipment to rain or moisture. AVERTISEEMENT : Pour réduire les risques AVERTISEEMENT : Pour réduire les risques...
- Page 6 AC mains power has been disconnected from the loudspeaker. audio source for signal. If no output persists, try a di erent signal cable from your Digital Ampli er to the ASM-12/ASC-12 loudspeaker. If the POWER indicator does not illuminate when the...
- Page 7 Balanced connections should be used as much as possible to reduce AC hum and interference, especially with long runs of cable. The input impedance is 20k Ohm for balanced connections. ASM-12/ASC-12: Insert the male XLR connector into the jack marked INPUT. Ensure the connector is fully seated.
- Page 8 Set-up Diagram Stereo ASM-12 Speakers (Note: set up is the same for ASC-12 Speakers) Source - modeling preamp or mixer MAIN OUTPUT Checklist • Make certain loudspeakers are Powered OFF and Levels • Power ON Source, then Power ON speakers.
- Page 9 Speci cations SPECS FRIEDMAN ASM-12/ASC-12 12” 2-Way multipurpose Configuration powered loudspeaker Transducers Celestion - 12” speaker Low Frequency with 2.5” edge-wound voice coil PETP film High Frequency compression driver with 1.75” voice coil LF Magnet Weight 42 oz LF Magnet Structure Weight 7 lbs.
- Page 10 Pole mounting cup-ASM-12 only Black and gold grille clothe Grille ASM-12 26.5” H x 16.5” W x 16” D Dimensions ASC-12 21” H x 26.25” W x 11.25” D ASM-12 (673mm x 419mm x 406mm) ASC-12 (533.4mm x 666.75 x 285.75) Weight ASM-12 56 lbs.
- Page 11 California Prop 65 Warning: This product may contain a chemical(s) known to the state of not been authorized or approved by Friedman. This two (2) years warranty does not cover California to cause cancer or birth defects or other reproductive harm.
