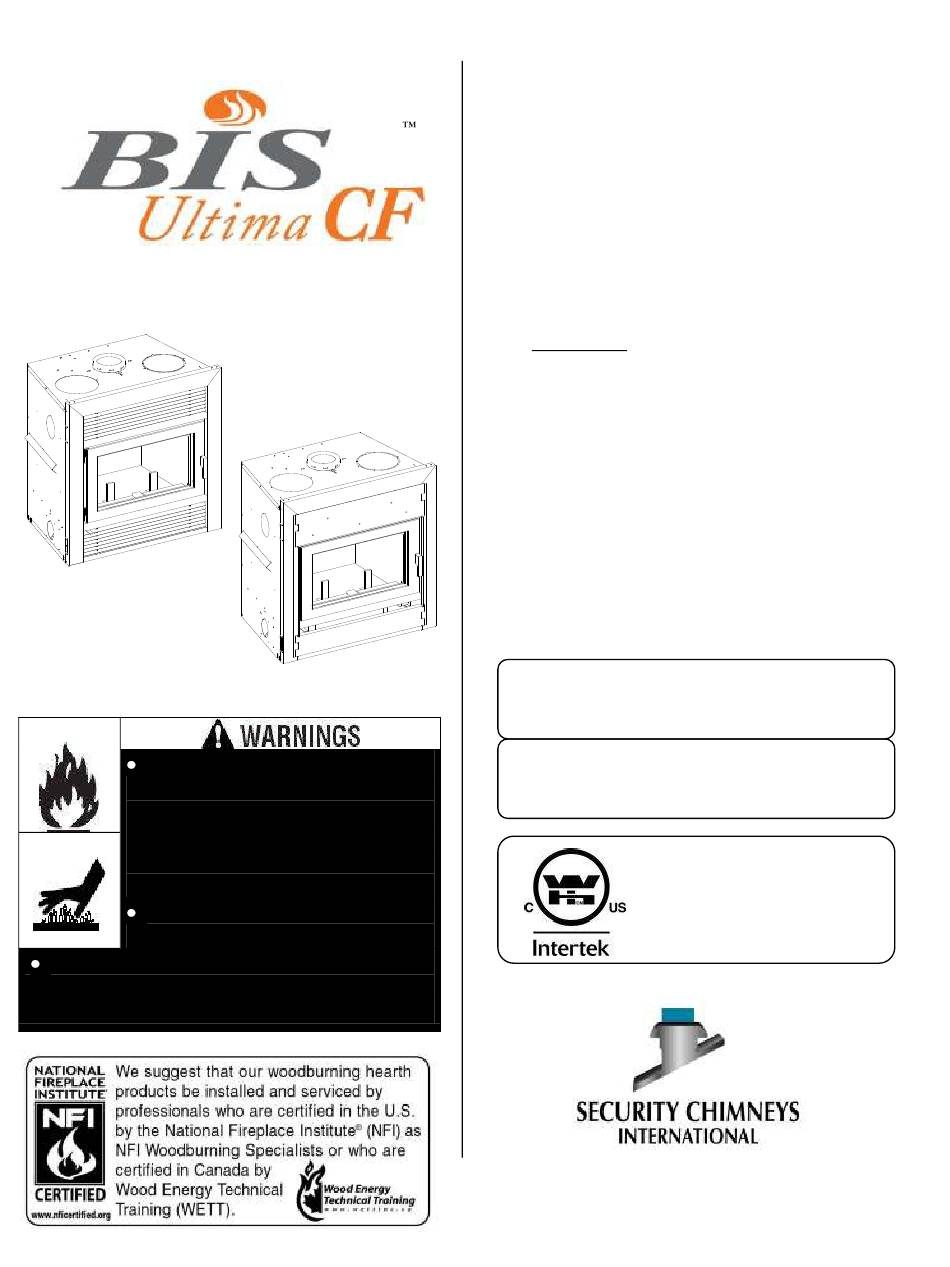

BIS Ultima CF Installation And Operating Instructions Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Hot! Do not touch! The glass

and surfaces of this appliance

will be hot during operation and

will retain heat for a while after

shutting

Severe burn may result.

Carefully supervise children in

the same room as appliance.

If small children are present in the home, it

is recommended that this appliance be used

with a fire screen kit.

Printed in Canada

off

the

appliance.

Rev. 0 August 2010

Installation and Operating

This installation manual will help you

obtain a safe, efficient, dependable

installation

for

chimney system.

understand these installation instructions

before beginning your installation.

CAUTION: Do not attempt to modify or

alter the construction of the fireplace or

its components.

alteration of construction may void the

warranty, listings and approvals of this

system. In that case, Security Chimneys

International Ltd will not be responsible

for damages. Install the fireplace only as

described in these instructions.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

THIS

UNIT

INSTALLATION OF A FINISHING KIT.

SEE SECTION 3.1.1 FOR DETAILS

This fireplace is also certified for use in

mobile or manufactured homes

2125 Monterey St., Laval, Quebec, Canada, H7L 3T6

Instructions

your

fireplace

and

Please read and

Any modification or

REQUIRES

THE

Listed to standards:

ULC-S610 UL-127

Report # 3011202

PIBISULTIMACF

Table of Contents

Need help?

Do you have a question about the Ultima CF and is the answer not in the manual?

Questions and answers

Summary of Contents for BIS Ultima CF

Page 1 Installation and Operating Instructions This installation manual will help you obtain a safe, efficient, dependable installation your fireplace chimney system. Please read and understand these installation instructions before beginning your installation. CAUTION: Do not attempt to modify or alter the construction of the fireplace or its components.
Page 2: Table Of Contents
3.2.6 Medium Combustion 3.2.7 Slow Combustion 3.2.8 Refuelling For Best Performance 3.2.9 Smoking Causes and Troubleshooting MAINTAINING YOUR BIS ULTIMA CF ................8 3.3.1 Creosote 3.3.2 Chimney Maintenance 3.3.3 Top Baffle Removal Prior to Cleaning The Chimney 3.3.4 Dealing with a Chimney Fire 3.3.5...
Page 3 SAFETY RULES FOR OPERATING YOUR FIREPLACE MODEL BIS ULTIMA Use only a Security Fireplace glass door, specifically designed for the model BIS Ultima CF fireplace. When cleaning the fireplace, the ashes should be placed in a metal container with a tight fitting lid.
Page 4: Certification Label
CERTIFICATION LABEL...
Page 5: The Fireplace
Security Chimneys International components. The BIS Ultima CF is not intended for use with a gas log. Failure to follow these instructions will void the certification and the warranty of the fireplace and may result in an unsafe installation.
Page 6: Fuel
OPERATING THE BIS ULTIMA 3.2.1 Fuel The BIS Ultima CF fireplace is designed to work best when fuelled with seasoned cordwood. Hardwoods are preferred to softwoods since the energy content of wood is relative to its density. Hardwoods will result in a longer burning fire and less frequent refuelling.
Page 7: Primary Air And Air Boost Controls
Figure 1 3.2.5 Accelerated Combustion The maximum heat output for the BIS Ultima CF fireplace is achieved by burning with the door closed and the combustion air opened and pulled back. By this method, the BIS Ultima CF fireplace can produce up to 55,000 BTU of heat per hour. However, it will be necessary to reload with wood every one or two hours.
Page 8: Medium Combustion
Creosote may accumulate on the glass door. This method of burning should be used only after operating the BIS Ultima CF fireplace with the air control opened to produce a hot fire for about an hour or at medium pace for at least 3 hours. Slow combustion can be used at night in order to reduce the heat output and to prolong the burn.
Page 9: Smoking Causes And Troubleshooting
As the fire burns, air goes up the chimney. This air must be replaced through leakage into the house or through the outside air duct. When operating the BIS Ultima fireplace, open a nearby window temporarily to check if there is adequate air supply replacement.
Page 10: Maintaining Your Bis Ultima Cf
G. Do not allow the wood to smoulder or burn without flame, since this will produce excessive creosote in the unit. MAINTAINING YOUR BIS ULTIMA 3.3.1 Creosote When wood is burned slowly without a flame, it produces tar and other organic vapours which combine with expelled moisture to form a black deposit called creosote which accumulates on the flue lining.
Page 11: Top Baffle Removal Prior To Cleaning The Chimney
3.3.3 Top Baffle Removal Prior to Cleaning the Chimney Before starting to clean your chimney, we recommend that you remove the top baffle to avoid creosote dust collection at the top of the baffle. Follow these steps to set the top baffle out of the way: 1.
Page 12: Door Installation
3.3.7 Refractory Replacement The intense heat of the fire will normally cause hairline cracks in the refractory. These cracks can be minimized by proper curing as described in "First fires". They will not normally diminish the effectiveness of the refractory. If large cracks develop, then the refractory should be replaced.
Page 13: Glass Care Replacement
F). If the glass breaks, it must be replaced with an identical ceramic glass. Tempered glass or ordinary glass will not withstand the high temperatures of the BIS Ultima CF fireplace. Replacement glass should be purchased from a Security Chimneys International dealer (see ate the unit with cracked or broken glass.
Page 14: Fireplace Installation
FIREPLACE INSTALLATION 3.4.1 Locating the BIS ULTIMA A. The best location to install your fireplace is determined by considering the location of windows, doors, and the traffic flow in the room where the fireplace is located, allowing space in front of the unit for the hearth extension and the mantel, and taking into consideration the location of the hot air ducts (optional), outside air kit and chimney.
Page 15 3.4.2 Installing the Finishing Kits The BIS Ultima CF requires the installation of a finishing kit. Two options are available: 1. Louver kit (part number: LOUVRECF) 2. Clean face kit (part number: CAPPINGCF) 3.4.2.1 Installing the louver kit The louver kit includes two identical louvers assembly. The louvers must be oriented so the angular parts of the grills are towards the front and the bottom and the cotter pins are at the bottom.
Page 16 4. Install the top obstruction plate in the top opening, oriented so the insulation faces the inside and the 1/2in. bend is towards the outside and the bottom. The part is pressure installed to keep from using screws that could interfere with your finishing material. Place the bottom bend on the lower trim and push on it to insert the top bend.
Page 17: Hearth Extension Requirements
3.4.3 Hearth Extension Requirements The BIS Ultima CF fireplace may be installed directly on a combustible floor; however, the combustible floor in front of the fireplace must be covered with a non-combustible material (tile, marble, stone, etc.). The supplied safety metal strip must be positioned as follows: One half under the front of the fireplace and the other half must extend on the floor over which the hearth extension will be built (figure 5b).
Page 18 B. WARNING: Combustible materials cannot be used in the space directly above the fireplace, except for the studs above the facade that support the facing and mantel. This area must remain empty for a height of 6'8" (2032 mm) measured from the base of the appliance.
Page 19 INSULATED CHASE CONSTRUCTION Figure 11 Nailing Flanges Four nailing flanges are provided to secure the fireplace on the floor (see figure beside). Bend the nailing flanges down so each flange is flush with the floor, then using nails or screws, secure the fireplace to the floor (2 places each side).
Page 20 Facing The facing installation method depends on your finishing kit choice. 1. Facing with the louver kit The 2x3 framing must offset to the back by a distance equivalent to the thickness of your facing material so the surface of the facing be aligned with the fireplace face. Combustible materials must be aligned with the fireplace face and can not overlay on the fireplace front (black steel face of the fireplace) (see figure 12 and 12a).
Page 21 Mantel The mantel must be installed at least 45" (1143 mm) above the base of the fireplace (figure 12). Fireplace Frame section Drywall Drywall (Top View) Mantel Noncombustible 2" x 3" Min. Facing 2" x 3" (51mm x 76mm) Spacer Spacer Do not 1.
Page 22: Hot Air Ducting Installation
The safety rules for hot air ducting gravity kit installations are the following: Minimum height 68" (1727 mm) Maximum length See figure 16 The height of the louver must be measured from the base of the BIS to the middle point of the louver.
Page 23 When installing the double outlet system, the hot air outlets can be installed in the same room as the fireplace, or one or both of the outlets can be installed in adjacent or upper rooms. Installing the ducts at different elevations will tend to exhaust more heat out of the higher outlet (figure 16).
Page 24 6. Do not connect the hot air ducts to a central heating system. Malfunction of the heating uct is only single wall and not double wall as is required for the BIS Ultima CF fireplace hot air exhaust. 7. Use only Security Chimneys International grills and components as described in this manual.
Page 25: Central Forced Air Kit
3.5.2 Central Forced Air Kit (Not tested under EPA certification) The knock-outs provided on the back and on the sides of the BIS Ultima CF fireplace allow the connection of insulated flexible pipe which enables you to heat adjacent rooms up to 50 feet from the fireplace.
Page 26: Outside Air Kit
OUTSIDE AIR KIT (Optional) During operation, the fireplace requires fresh air for combustion and draws air out of the house. It may starve other fuel burning appliances such as gas or oil furnaces. As well, exhaust fans may compete for air, causing negative pressure in the house, resulting in smoke entering the house from the fireplace.
Page 27: The Chimney
For optimum performance of your fireplace, Security Chimneys International recommends the use of an ASHT+/HT6103+ or S2100+/HT6000+ chimneys. 2. The Security fireplace model BIS Ultima CF fireplace is listed only with Security Chimneys International Ltd 6" diameter chimney systems.
Page 28: Chimney Installation Instructions
CHIMNEY INSTALLATION INSTRUCTIONS 1. Cut and frame the holes in the ceiling, floor and roof where the chimney will pass (see figure 25). Use a plumb bob to line up the center of the holes. The sizes are indicated in table 1 for the floor and ceiling holes and table 2 (page 24) for the roof holes.
Page 29 Figure 27 Figure 27a AC CHIMNEY INSTALLATION (AIR COOLED GALVALUME CHIMNEY) Rain Cap Collar Flashing Attic Radiation Shield Firestop AC Starter Section Mandatory chimney outside air intake Outside air kit NOTE: outside air kits are mandatory for AC chimney and recommended for the fireplace.
Page 30 AC CHIMNEY Figure 29 Figure 30 Table 2 ROOF DOWN SLOPE HOLE SIZE SLOPE ASHT+ / HT6103+ S-2100+ / HT6000+ Roof Pitch 6" 6" 6" 12 3/8" (314 mm) 14 1/8" (359 mm) 15" (380 mm) 2/12 12 9/16" (319 mm) 14 3/8"...
Page 31: Offset Chimney Installation
OFFSET CHIMNEY INSTALLATION The minimum chimney height when using elbows is: Fireplace model BIS ULTIMA Chimney model ASHT+ / HT6103+ / S-2100+ / HT6000+ / AC Vertical installation 12 ft. (3.66 m) Two (2) elbows 15 ft. (4.57 m) Four (4) elbows 17 ft.
Page 32 TOTAL HEIGHT DEVIATION ONE LENGTH BETWEEN ELBOWS TWO LENGTHS BETWEEN ELBOWS CHIMNEY DEVIATION ELBOW & HEIGHT 4 5/16" 5 7/8" 7 7/16" 10 1/2" 13 5/8" 15 3/8" 16 7/16" 18" 19 1/2" 22 5/8" 25 3/4" 3 5/16" DEVIATION (110mm) (149mm) (189mm)
Page 33 Support Straps Straps AC Chimney AC Starter Section Figure 31 Figure 32...
Page 34: Angled Wall Radiation Shield
ANGLED WALL RADIATION SHIELD (RSM+, RSMI30, RSMI45) When traversing a combustible wall with the chimney at a 30º or 45º angle, an angled firestop or wall radiation shield must be installed. Only one is required. Note: 45º angle for Canada only In cold climate locations, we recommend that you use the insulated wall radiation shield since it w RSM+ and RSMI30, RSMI45...
Page 35: Chimney Supports Installation
CHIMNEY SUPPORT INSTALLATION Universal Roof Support This support has three possible uses: 1. For ASHT+ / HT6103+ and S-2100+ / HT6000+, it must be used on a roof to support the chimney. 2. It may be used on a floor, ceiling or roof above an offset to support the chimney above the offset.
Page 36: Chimney Adaptor (S-2100+ / Ht6000+)
Figure 34 CHIMNEY ADAPTOR (S-2100+ / HT6000+) The fireplace is normally supplied with a chimney adaptor suitable for the ASHT+ / HT6103+ chimney. If you want to install an S-2100+ / HT6000+ chimney, an adaptor is available (6UCA) (figure 35). A separate starter section will also be required if AC chimney is installed.
Page 37: Installation Instructions For Masonry Application
, BIS Ultima and BIS Ultima CF fireplaces or BISPMA for the BIS Panorama fireplace) must be used to connect the liner to the insulated chimney. For connection at 30º, use the BISUMA30 or BISPMA30 connectors. See typical installation illustrated below.
Page 38: Parts And Components List
PARTS AND COMPONENTS LIST (AC Chimney) Description Part No. Finishing kits Louver kit LOUVRECF Clean face kit CAPPINGCF Lengths 6" dia. 12" length AC6L12 18" length AC6L18 36" length AC6L36 48" length AC6L48 15º elbow AC6E15 30º elbow AC6E30 Rain cap AC6CPR Spark arrester screen Supports...
Page 39: Options
OPTIONS Part No.: Gravity kit: Complete double ducting system including: 2 elbows 90º, 2 7B30ZK-1 telescopic lengths, 2 grill supports and 2 black grills Black grill with support 7B30ZO Brass grill for 7B30ZK 7B30ZGB Elbow 90º, 8" dia. 7B26ZE90 Elbow 45º, 8" dia. 7B26ZE45 Telescopic length, 8"...
Page 40 REPLACEMENT PARTS Baffle refractory (2 pieces) PR-ISO2205 Back refractory PR-SR2996 Right side refractory PR-SR2997D Left side refractory PR-SR2997G Bottom refractory PR-SR3018 Front refractory, right side PR-SR2202D Front refractory, left side PR-SR2202G Secondary air tube PR-SR2271 Secondary air tube lock PR-SR2214 Cast-iron log supports (2) PR-SR3026 Facing:...
