I N S T R U C T I O N M A N U A L
KEPCO
48 VOLT ENGINE START BATTERY CHARGER
I — INTRODUCTION
SCOPE OF MANUAL.
This instruction manual covers the installation and operation of the Kepco Series KES 48 Volt Engine Start Battery Chargers (see
Table 1).
• Do not operate the unit without proper grounding. Improper grounding risks an electric shock that could result in
injury or death.
• Do not touch the unit's input or output terminals to avoid the risk of electric shock that could result in injury or death.
Energy stored in the unit's output capacitor is present on the DC OUTPUT terminals for a few seconds even after the
a-c input voltage is removed.
• The Float Voltage and Current Limit must be preset prior to starting the initial charge to avoid damage to the battery
being charged.
• To avoid damage to the unit or the battery being charged, never obstruct the ventilation holes at the sides of the unit.
The unit must be installed in a properly ventilated area, free of smoke and corrosive or explosive vapors.
DESCRIPTION.
The Kepco Series KES 48 Volt Engine Start Battery Chargers are wall-mounted units designed to charge 48-Volt lead-acid or nickel
cadmium batteries used in engine start applications. Model KES 48-5 is rated at 5 Amps, Model KES 48-10 is rated at 10 Amps, and
Model 48-25 is rated at 25 Amps.The output voltage and output current limit are factory set, and are adjustable from the front panel
recessed trimpots (see Table 1 for values). An optional temperature compensation probe (not supplied) provides automatic adjustment
of the float voltage to accommodate temperatures from 0° to 35°C. Units may be operated with a nominal 100V a-c to 240V a-c (input
voltage range 85 to 265 Va-c), 50-60 Hz nominal, range 47-66Hz (see Table 1, Note 1). Both AC lines are protected by fuses. A front
panel ammeter shows charging current.
The heart of the KES 48 Volt Series is a solid-state switching power supply, Kepco's RKW, which has an integral cooling fan. A front
panel CHARGER ON indicator lights while the unit is on. The front panel TEMP PROBE NOT CONNECTED indicator lights to show that
the temperature compensation probe is not attached to the unit. An internal diode network across the output provides protection in the
event that the battery connections are reversed, causing the front panel circuit breaker to open.
KEPCO, INC. 131-38 SANFORD AVENUE
©2010, KEPCO, INC
Data subject to change without notice
An ISO 9001 Company.
WARNINGS and CAUTIONS
L (L1) N (L2) GND
AC INPUT
ALARM

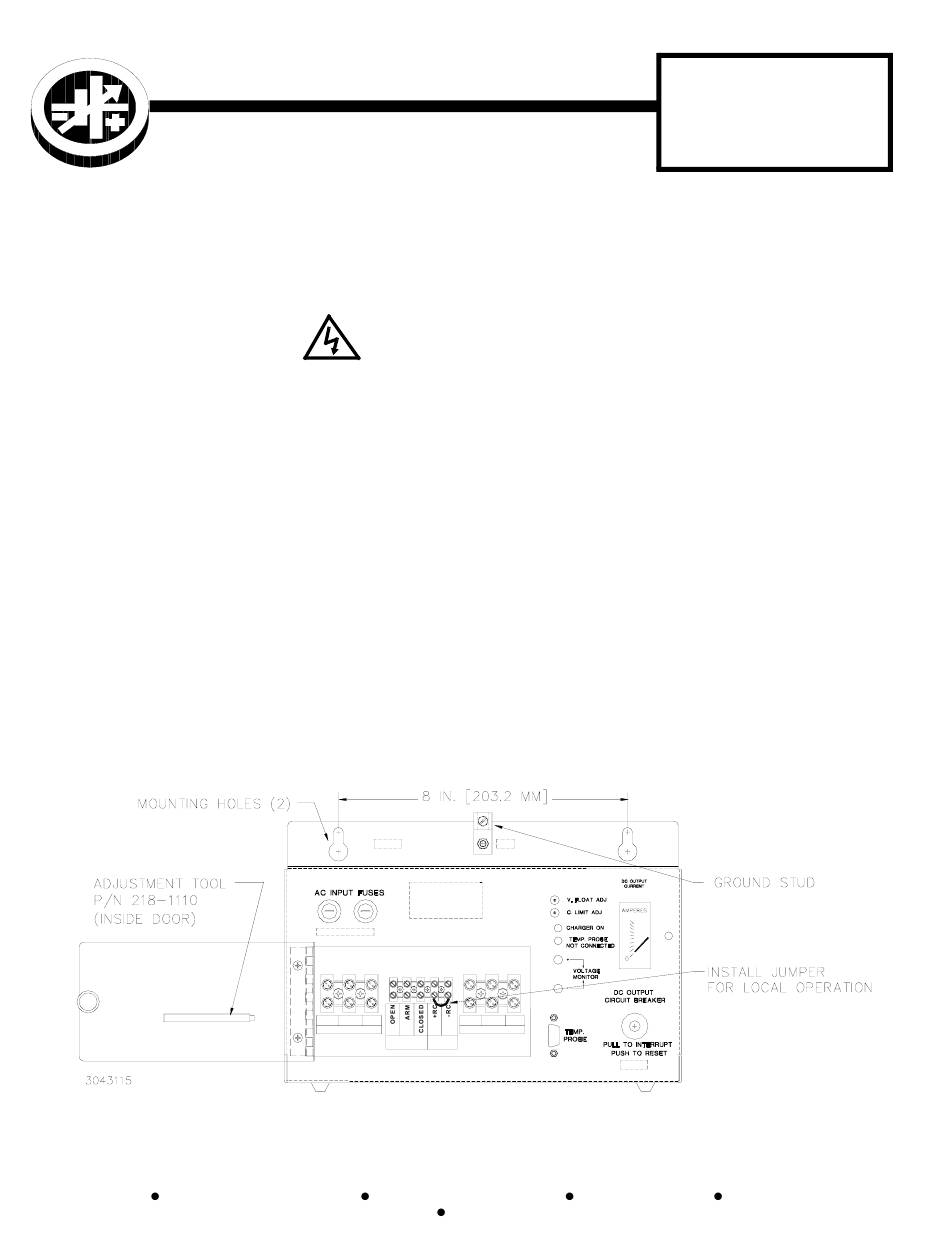

FIGURE 1. KES 48 VOLT ENGINE START BATTERY CHARGER, FRONT VIEW
FLUSHING, NY. 11355 U.S.A.
www.kepcochargers.com
-
+
NC
DC OUTPUT
REMOTE
CONTROL
TEL (718) 461-7000
email: hq@kepcopower.com
228-1600 REV 3
KES
48 VOLTS
FAX (718) 767-1102
1
