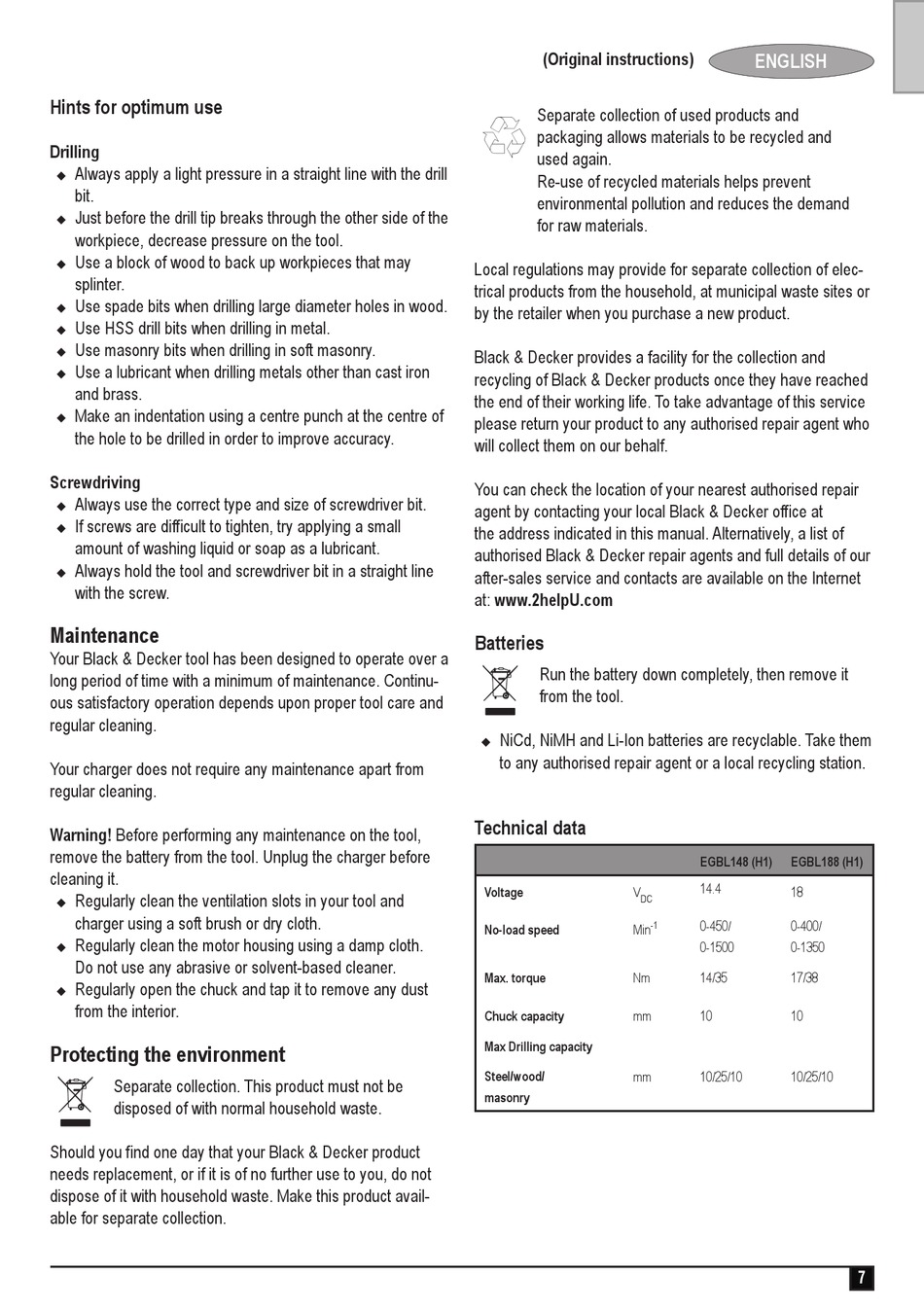

Hints for optimum use
Drilling
Always apply a light pressure in a straight line with the drill
u
bit.
Just before the drill tip breaks through the other side of the
u
workpiece, decrease pressure on the tool.
Use a block of wood to back up workpieces that may
u
splinter.
Use spade bits when drilling large diameter holes in wood.
u
Use HSS drill bits when drilling in metal.
u
Use masonry bits when drilling in soft masonry.
u
Use a lubricant when drilling metals other than cast iron
u
and brass.
Make an indentation using a centre punch at the centre of
u
the hole to be drilled in order to improve accuracy.
Screwdriving
Always use the correct type and size of screwdriver bit.
u
If screws are difficult to tighten, try applying a small
u
amount of washing liquid or soap as a lubricant.
Always hold the tool and screwdriver bit in a straight line
u
with the screw.
Maintenance
Your Black & Decker tool has been designed to operate over a
long period of time with a minimum of maintenance. Continu-
ous satisfactory operation depends upon proper tool care and
regular cleaning.
Your charger does not require any maintenance apart from
regular cleaning.
Warning! Before performing any maintenance on the tool,
remove the battery from the tool. Unplug the charger before
cleaning it.
Regularly clean the ventilation slots in your tool and
u
charger using a soft brush or dry cloth.
Regularly clean the motor housing using a damp cloth.
u
Do not use any abrasive or solvent-based cleaner.
Regularly open the chuck and tap it to remove any dust
u
from the interior.
Protecting the environment
Z
Separate collection. This product must not be
disposed of with normal household waste.
Should you find one day that your Black & Decker product
needs replacement, or if it is of no further use to you, do not
dispose of it with household waste. Make this product avail-
able for separate collection.
(Original instructions)
z
Separate collection of used products and
packaging allows materials to be recycled and
used again.
Re-use of recycled materials helps prevent
environmental pollution and reduces the demand
for raw materials.
Local regulations may provide for separate collection of elec-
trical products from the household, at municipal waste sites or
by the retailer when you purchase a new product.
Black & Decker provides a facility for the collection and
recycling of Black & Decker products once they have reached
the end of their working life. To take advantage of this service
please return your product to any authorised repair agent who
will collect them on our behalf.
You can check the location of your nearest authorised repair
agent by contacting your local Black & Decker office at
the address indicated in this manual. Alternatively, a list of
authorised Black & Decker repair agents and full details of our
after-sales service and contacts are available on the Internet
at: www.2helpU.com
Batteries
Z
Run the battery down completely, then remove it
from the tool.
NiCd, NiMH and Li-Ion batteries are recyclable. Take them
u
to any authorised repair agent or a local recycling station.
Technical data
Voltage
V
DC
No-load speed
Min
Max. torque
Nm
Chuck capacity
mm
Max Drilling capacity
Steel/wood/
mm
masonry
ENGLISH
EGBL148 (H1)
EGBL188 (H1)
14.4
18
-1
0-450/
0-400/
0-1500
0-1350
14/35
17/38
10
10
10/25/10
10/25/10
7
