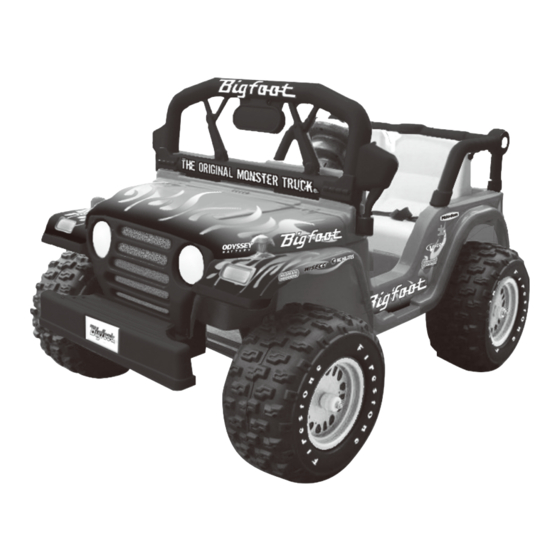

Bigfoot® Motorised
Ba ery Operated Ride On
Utility Vehicle
Instruc on / Assembling Manual
Item No.
KL-40033BF
Adult Assembly Required.
Please read this manual carefully before giving this toy to your child.
This manual contains important information which will help you to assemble
the unit includes safety instructions.
Please keep this manual for future purpose
Manufactured by : Kalee Children's Products Co, Ltd.
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL-40033BF and is the answer not in the manual?

Questions and answers

Summary of Contents for Bigfoot KL-40033BF

  • Page 1 Bigfoot® Motorised Ba ery Operated Ride On Utility Vehicle Instruc on / Assembling Manual Item No. KL-40033BF Adult Assembly Required. Please read this manual carefully before giving this toy to your child. This manual contains important information which will help you to assemble the unit includes safety instructions.
  • Page 2 Vehicle / Battery Specifications: Age: Ages 3 and up Maximum Capacity: 40 kgs / 88 lbs Speed: 5.0-5.5km/h / 3.1-3.4mph Battery Type: Sealed lead-acid rechargeable, 12Volt 7Ah Charging time: Always charge the battery for 8-10 hours before first use and when recharging is needed. Never charge for more than 16 hours.

  • Page 3: Battery Safety Warning

    CHARGING CAUTIONS: - The charger is not a toy. Do not allow children to play with the charger or to recharge the battery. - Turn the power switch to “OFF” when charging. - Before the first use, you should charge the battery for 8-10 hours. Do not charge the battery for more than 16 hours to avoid overheating the charger.
  • Page 4 Parts Parts list: list: Parts Parts list: list: Description Windshield Steering wheel Turning shaft Seat Radiator Front bumper Fastener for front hood 2pcs Left roll bar Right roll bar Center roll bar Center for roll bar Plastic nut 8pcs Plastic wrench Screw (TA4.5x14x8) 10pcs Screw for steering wheel...
  • Page 5 Assembly Assembly Assembly Assembly Step 1: Assemble the left roll bar (#8) and right roll bar (#9) to the center roll bar (#10), Attach Center support (#11), secure with the plastic nuts (#12) using the plastic wrench (#13). Step 2: Insert the roll bar with left side and right side into the rear body, secure with plastic nuts (#12).
  • Page 6 Step 5: Insert the turning shaft (#3) into body, then insert the end of the turning shaft into the steering link, then tighten the nut and bolt. Step 6: Insert the turning shaft into the hole of the instrument panel, and attach the instrument panel to the body, then secure it with the screw TA4.5x14x8 (#14).
  • Page 7 Step 9: Place the steering wheel (#2) onto the turning shaft, then secure it by inserting the screw (#15) through the steering wheel and the steering column, tighten the nut (#16) with the spanner. Step 10: Attach seat (#4) into the body, then secure it with the screw TA4.5x14x8 (#14) at the back of the seat, tighten screw with screwdriver.
  • Page 8 Operation of the Vehicle: 1.Make sure the battery is fully charged and the motor plug is connected to the battery plug. 2.Before using the vehicle, please connect the plugs which located in the middle of the seat. 3.Press the direction switch to “F” and press the accelerator pedal, vehicle will move forward.

  • Page 9: Maintaining Your Vehicle

    Maintaining your vehicle: ● It is a parents responsibility to check main parts of the vehicle before use. Regularly examine the vehicle for potential hazards, such as the battery, charge cable, cord and plug. Ensure screws are tightened. If there are any damages, the vehicle must not be used until these damages have been properly repaired or replaced.

  • Page 10: Safety Precautions

    Safety Precautions: 1. While riding, adult supervision is required at all times. 2. Always wear a helmet when riding. 3. Do not ride near roads or on the footpath. 4. It is not recommended to drive the vehicle on wet surfaces or on slopes greater than 15 degrees.

  • Page 11: Troubleshooting

    Support Website: http://support.bigtoysusa.com Support Phone: 715-955-4237 Manufactured by: Kalee Children’t Products Co. Ltd. ALL RIGHTS RESERVED. , visit BIGFOOT® www.Bigfoot4x4.com Licensee: Kalee Trading Company/Kalee Children’s Products Co., Ltd. Unit 816, Tower B, New Mandarin Plaza, 14 Science Museum Road, Kowloon, Hong Kong...
