Processor: 1.5 GHz Quad Core
Operation system: Android 4.2
Operation memory: 1 GB
Internal memory: 16 GB
Display: 5.3" multi capacitive
Flash memory extension:
microSDHC card
Resolution: qHD IPS 960 * 540 pixels
Photo camera 8.0 Mpx with
autofocus
FM radio
Wireless connection: WiFi LAN
802.11 b/g
Data:
GSM/EDGE: 850/900/1800/1900
MHz;
WCDMA/UMTS/HSPA:
850/2100 MHz
Battery: 2 300 mAh
User guide
Advertisement

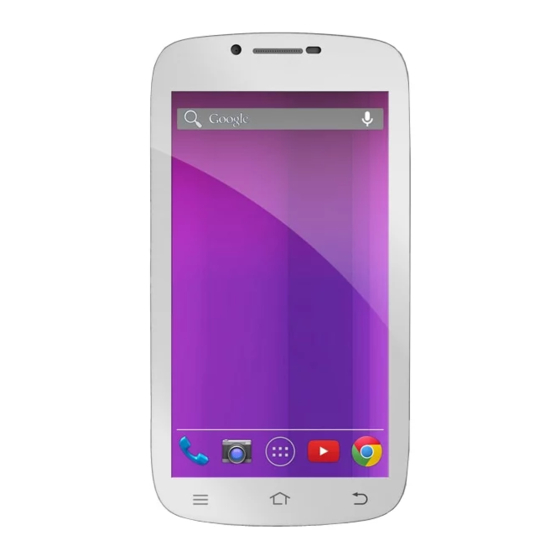

Summary of Contents for Evolveo XTRAPHONE 5.3
- Page 1 Processor: 1.5 GHz Quad Core Operation system: Android 4.2 Operation memory: 1 GB Internal memory: 16 GB Display: 5.3” multi capacitive Flash memory extension: microSDHC card Resolution: qHD IPS 960 * 540 pixels Photo camera 8.0 Mpx with autofocus FM radio Wireless connection: WiFi LAN 802.11 b/g Data:...
- Page 2 Dear customer, thank you that you have chosen EVOLVEO mobile phone. Recommendation for care of your phone and its safe using • This phone is a complicated electronic device therefore protect it against impacts and from the effects of magnetic field, keep it in clean and dust-free environment •...
- Page 3 TIPS for lengthening the phone battery life • turned on Wi-Fi, the display backlight or playing the games discharge the battery more than is usual • for playing the games it is mostly not necessary to turn on the Wi-Fi •...
- Page 4 1. Input for earphones 13. microSDHC card 2. Sensor of light 14. Flash and proximity sensor 3. Earphone 15. Camera 4. Power/lock key 16. Slot for SIM 1 5. Volume key 17. Slot for SIM 2 6. Front camera 18. Speaker 7.
- Page 5 Connecting to a computer and files transfer The dialog window will be displayed after connecting to the computer with asking for permission for removable disk mode. Click the confirmation key for permitting it. Copy the files into the phone the same way as into the computer. (“Copy” and “Paste”) Connecting to the charger The charging status will be displayed during charging.
- Page 6 virtual keypad or for pressing the display keys just click on the appropriate keys by the finger. Moving the item on Keep the finger on the item and without the display lifting it, move the finger on the display until you get the aimed position. Move the items on the Home screen to change their position.
-
Page 7: Troubleshooting
The list of the service points is to be found on package www.evolveo.eu. Your package with the phone that you send to the service should include: well packed device (bubble wrap), the invoice containing IMEI of the device –... - Page 8 At first recharge the battery approximately half an hour, then disconnect the charger a re- connect it and recharge the battery fully. Use the suitable charger. Check or change the SIM card. The phone call can´t be Dial the number again. made Contact the operator.
- Page 9 The warranty DOESN´T APPLY to: • installation of another firmware then the one that was in EVOLVEO telephone installed as the original from the factory or that is to be downloaded on ftp://ftp.evolveo.eu • mechanic damage of the phone caused by inappropriate using (e.
-
Page 10: Declaration Of Conformity
0197 DECLARATION OF CONFORMITY: Hereby, the company ABACUS Electric spol. s r.o. declares that GSM phone EVOLVEO XtraPhone 5.3 Q4 (EAN: 8594161335481) is in compliance with the requirements of the norms and regulations, relevant for the given type of device.
