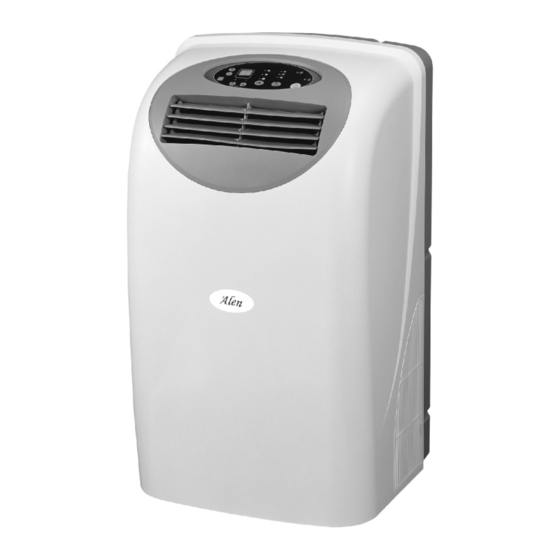

- Page 1 PORTABLE AIR CONDITIONER OWNER'S MANUAL Models MPF-12CR MPF-10ER Table of Contents............1 Thank you for purchasing this product. Please read this Owner's Manual carefully before operating.
-
Page 2: Table Of Contents
CONTENTS 1.SAFETY RULES................2.NAMES OF PARTS................3.ACCESSORIES................4.OPERATION PANEL OF THE AIR CONDITIONER......5.OPERATING INSTRUCTION FOR THE AIR CONDITIONER ..6.INSTALLATION................7.MAINTENANCE................8.TROUBLE SHOOTING..............9.REMOTE CONTROLLER............9-13 10.GUARANTEE................ -
Page 3: Safety Rules
Safety Rules 1. To avoid electric shock and fire hazards, plug the air conditioner directly into an appropriate electrical outlet(120V AC). Do not alter the electrical plug that is in disrepair or with electrical connections such as an extension cord. 2. -
Page 4: Names Of Parts
NAMES OF PARTS OPRATION PANEL AIR INLET INDOOR REAR COVER FRONT COVER AIR OUTLET AIR OUTLET OUTDOOR WATER PUMP DRAIN HOSE AIR INLET OUTDOOR AIR INLET REMOTE CONTROLLER OUTDOOR POWER CORD CONTINUOUS DRAIN HOSE CASTER FRONT VIEW SIDE VIEW REAR VIEW Fig.1 ACCESSORIES PARTS :... -
Page 5: Operation Panel Of The Air Conditioner
OPERATION PANEL OF THE AIR CONDITIONER(COOLING AND HEATING) COOL/DRY/FAN/HEAT INDICATIOR DIGITAL DISPLAY FAN SPEED INDICATOR Green lamp will light when the mode is selected WATER FULL INDICATOR Red lamp will blink when the tank is full TEMP SETTING BUTTON Press your desired room temperature setting by pressing the button (up) or button... -
Page 6: Operating Instruction For The Air Conditioner
OPERATING INSTRUCTING FOR THE AIR CONDITIONER Before Starting This Unit 1) Select a suitable location, make sure you have easy access to an electrical outlet. 2) Install the Flexible Exhaust Hose and the Adjustable Window Slider Kit as depicted in Fig.5 & Fig.5a Fig.5a Fig.5... - Page 7 2 COOLING OPERATION (Operating temperature range: 17 C-32 C/63 F-90 F ) Press the "MODE" button several times until the "COOL" indicator light comes on. Press the "TEMP SETTING" buttons " " or " " to select your desired room temperature. (17 C-30 C/63 F-86 F) Press the "FAN SPEED"...
-
Page 8: Installation
INSTALLATION 1 Important: Install the portable air conditioner in a flat and spacious location where the air outlets will not be covered up. A minimum clearance of 11.8in from a wall or other obstacles should be kept. The air conditioner shall not be used in the laundry. The plug shall accessible while the air conditioner is being operated. -
Page 9: Maintenance
Window Kit Installation Your window kit has been designed to fit most standard Horizontal window vertical and horizontal opening window It may be necessary for you to modify some aspects of the installation procedures for certain window types. Please refer to Fig.11 & 11a for the minimum and maximum window openings. -
Page 10: Trouble Shooting
Trouble Shooting PROBLEM POSSIBLE CAUSES SUGGESTES SOLUTION 1. UNIT DOES NOT - Water full indicator blinks, water tank Dump the water in the water tank. START WHEN is full. PRESSING 1/0 BUTTON - Room temperature is higher than Reset the temperature. the set temperature.(Heating mode) - Room temperature is lower than Reset the temperature. -
Page 11: Remote Controller
OWNER S M ANUAL REMOTE CONTROLLER FOR PORTABLE AIR CONDITIONER SET TEMPERATURE( /F ) AUTO COOL HIGH HEAT TEMP TIMER ON/OFF MODE TIMER SPEED RESET LOCK... -
Page 12: Warning
CONTENTS 1.Warning------------------------------------------------------------------------------------------------ 10 2.Remote Controller Specifications------------------------------------------------------------ 11 3.Performance Features--------------------------------------------------------------------------- 11 4.Introduction of Function Buttons on the Remote Controller----------------------- 11 5.Names and Functions of indicators on Remote Controller-------------------------- 12 6.Operating of the Remote Controller--------------------------------------------------------- 12 Note: 1. This operating manual is applicable to the following models of remote controller: R51H, R51H/C 2. -
Page 13: Remote Controller Specifications
Remote Controller Specifications R51H, R51H/C Model Rated Voltage 3.0V Lowest Voltage of CPU 2.0V Emitting Signal Reaching Distance Signal Range Environment -5 C 60 C(-41 F~140 F) Performance Feature 1. Operating Mode: COOL HEAT DRY FAN and AUTO. 2. Timer Setting Function in 24 hours. 3. -
Page 14: Names And Functions Of Indicators On Remote Controller
Names and Functions of indicators on Remote Controller TRANSMISSION Indicator: This indicator lights when remote controller Display Panel transmits signals to indoor unit. MODE Display: Shows the current operation modes-- AUTO, COOL, DRY , HEAT and FAN. HEAT only available for heat pump model. AUTO HEAT PUMP ONLY - LOCK display is displayed by pushing the COOL... - Page 15 COOL , HEAT , and FAN ONLY Operation 1. If the AUTO mode is not comfortable , you may manually override the settings by using COOL, DRY, HEAT(HEAT PUMP units only), or FAN ONLY modes. 2. Push the TEMP button to set the desired room temperature. When in COOLING mode, the most comfortable settings are 21 C/70 F or above.
-
Page 16: Guarantee
One Year Limited Warranty General The Alen Technology portable air conditioners are warranted for a period of one year from the date of purchase. Any replacements will be warranted for the unexpired portion of the original warranty. This warranty will be valid only for units in possession of the original purchaser. Proof of purchase must be presented to the warranty service representative.
