Quick Star t Guide
802.11a/ac/b/g/n Wireless Access Points
ECW3320, ECW3320-C, ECW3320-L, ECW5320, ECW5320-C, ECW5320-L
1. Unpack the AP
www.edge-core.com

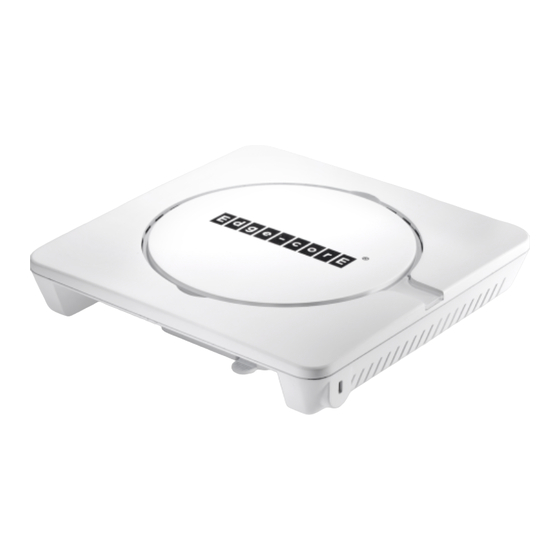

The ECW3320/ECW3320-C/ECW3320-L/ECW5320/ECW5320-C/ECW5320-L AP
includes its own built-in features for mounting the unit to a wall or suspended
ceiling T-rail.
The 802.11a/ac/b/g/n Wireless Access Points include these models:
◆
◆
◆
◆
◆
◆
Note: For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the AP.
Caution: The planning and installation of the AP requires professional personnel
that are trained in the installation of radio transmitting equipment. The user is
responsible for compliance with local regulations concerning items such as
antenna power, use of lightning arrestors, grounding, and radio mast or tower
construction. Therefore, it is recommended to consult a professional contractor
knowledgeable in local radio regulations prior to equipment installation.
Follow these steps to install the AP:
Unpack the AP and check the package contents.
◆
802.11a/ac/b/g/n Wireless Access Point
◆
AC power adapter
◆
Ceiling-mount accessory
◆
Four adhesive foot pads
◆
Documentation — Quick Start Guide (this guide) and Regulatory and Safety
Information
ECW3320 — 802.11b/g/n 2.4 GHz stand-alone AP
ECW3320-C — 802.11b/g/n 2.4 GHz cloud-based AP
ECW3320-L — 802.11b/g/n 2.4 GHz controller-based AP
ECW5320 — 802.11a/ac/b/g/n dual-band stand-alone AP
ECW5320-C — 802.11a/ac/b/g/n dual-band cloud-based AP
ECW5320-L — 802.11a/ac/b/g/n dual-band controller-based AP
– 1 –
