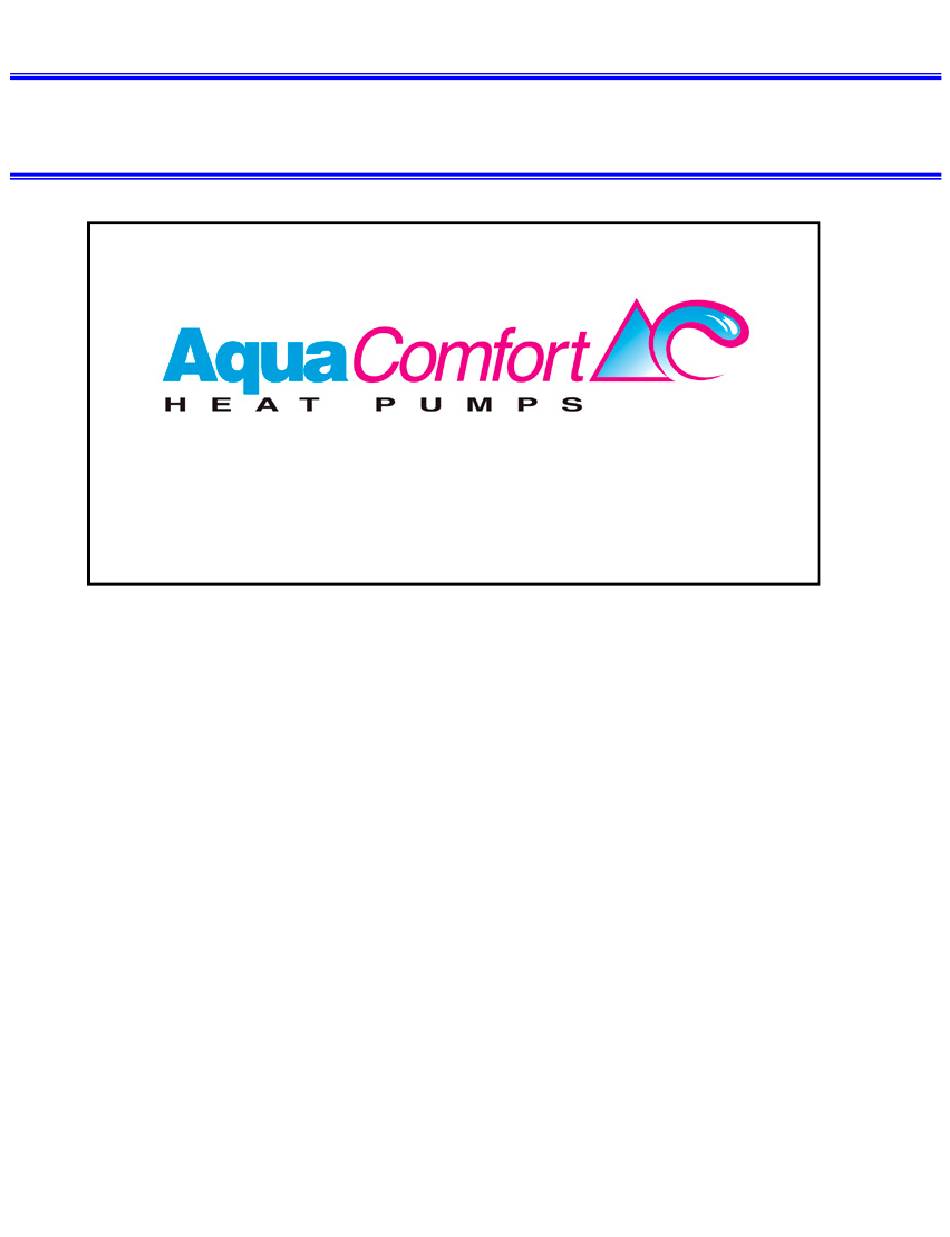

OWNER'S MANUAL
Manufacturing High Quality, High Efficiency
TABLE OF CONTENTS
Service Department
P.O. BOX 669
Sorrento, FL 32776-0669
888-475-7443
Heat Pump Pool Heaters
2
2
2
2-3
4
5
6
6
7
8
9
9
10
11
12
13
1
Rev.23
vRrrrrr
AQUACOMFORT
HEAT PUMP
INSTALLATION,
OPERATION,
MAINTENANCE
& SERVICE
Advertisement
Table of Contents

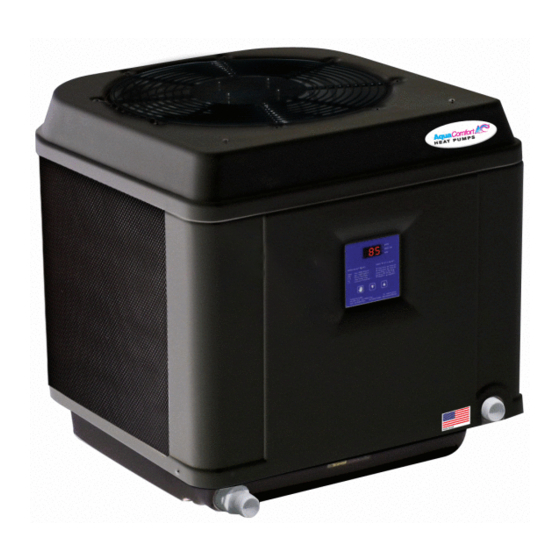

Summary of Contents for Aqua Comfort ACT-750T4S
-
Page 1: Table Of Contents
OWNER’S MANUAL Service Department P.O. BOX 669 Sorrento, FL 32776-0669 888-475-7443 Rev.23 vRrrrrr Manufacturing High Quality, High Efficiency Heat Pump Pool Heaters TABLE OF CONTENTS SAFETY CONSIDERATIONS AQUACOMFORT INSPECTION GENERAL INFORMATION HEAT PUMP WATER FLOW & CONNECTIONS ELECTRICAL CONNECTIONS WIRING DIAGRAMS INSTALLATION, ELECTRONIC CONTROL PANEL OPERATING YOUR HEAT PUMP... -
Page 2: Safety Considerations
SAFETY CONSIDERATIONS • Qualified personnel should perform installation, maintenance and service. • Make sure all field wiring conforms to the heater specifications and all national and local codes. • Disconnect all power sources before performing any maintenance or service to the heater. INSPECTION Immediately upon receipt, inspect cartons and their contents for damage due to transit. - Page 3 WATER FLOW CONNECTIONS...
-
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS • Field connections must comply with national and local codes, i.e. CSA C22.1 or NFPA70. The work must be done by a qualified electrician. • Heater must be permanently grounded and bonded. Bonding will drastically reduce the chances of electrolysis, “Electrical Corrosion.” •... -
Page 5: Wiring Diagrams
WIRING DIAGRAM 1. Use copper conductors only 2. Connect field wiring in grounded rain tight conduit, per rating plate. 3. Connect bond wire to pool steel using # 8 solid copper wire or larger. 4. All wiring must conform to National (N.E.C.) and local electrical codes. INDICATES FACTORY WIRING - - - - - - - - - - - - INDICATES FIELD WIRING REMOTE THERMOSTATS AND CONTROLLERS:... -
Page 6: Electronic Control Panel
ELECTRONIC CONTROL PANEL will display actual Pool or Spa water temperature for six seconds and then display mode of operation (HEA, COL, AUt or OFF) for two seconds. DIGITAL DISPLAY Displays actual Pool/Spa POOL LED indicates pool mode. temperature. In select mode ON LED indicates compressor is on. -
Page 7: Start-Up
START-UP Before proceeding with this section make certain all plumbing connections are airtight and leak free. Flow rates should not exceed 70 GPM maximum. Use of an external bypass is necessary at 70 GPM and above. Minimum flow rate is 20 GPM. •... -
Page 8: Maintenance
Defrost Cycle The heat pump pool heater has automatic defrost. When the outdoor temperature drops below 40 °F, frost may start to form on the evaporator coil. Frost buildup will be heaviest on humid days when the temperature is between 35 and 40° F. During the defrost cycle, the display will show “DEF”... -
Page 9: Winterizing
Winterizing When the heater is exposed to freezing temperatures, it is essential that all water within the unit be properly drained. When water freezes, it expands, damaging piping. • Turn thermostat settings to OFF. Turn filter pump to OFF. • Turn power to unit OFF (i.e. pull disconnect or turn circuit breaker OFF). •... -
Page 10: Calling For Service
“LPS” (Compressor Low Pressure) • Evaporator coil dirty. • Fan motor not running. • Low refrigerant pressure. • Defective low-pressure switch. • Low ambient air temperature. “ESO” • Evaporator temperature sensor connection opened. Check for cut or loose sensor wiring or defective sensor. -
Page 11: System Operating Specs
SYSTEM OPERATING SPECIFICATIONS 50°F air 63% RH 80°F Water Discharge Pressure Model (psi) Suction Pressure (psi) Superheat (°F) ACT-750T4S 335 -345 90 - 95 6 - 10 ACT-1100T5S 325 - 335 90 - 95 6 - 10 ACT-1250T6S 310 - 320... -
Page 12: Warranty
LIMITED WARRANTY HEAT PUMP POOL HEATERS AQUACOMFORT TECHNOLOGIES, LLC. (ACT) warrants only to the original owner, the HEAT PUMP POOL HEATER to be free of defects in materials and workmanship for a limited ten (10) year term as follows: One (1) year full parts and labor, years two (2) through ten (10) the compressor and heat exchanger (part only). -
Page 13: Warranty Registration
WARRANTY REGISTRATION The Warranty Registration Form must be filled out in full and mailed to AQUACOMFORT TECHNOLOGIES, LLC. within sixty days from the date of installation. Do not mail Warranty Certificate. MAIL TO: AQUACOMFORT TECHNOLOGIES, LLC Service Department P.O. BOX 669 Sorrento, FL 32776-0669 WARRANTY REGISTRATION HEAT PUMP POOL HEATER...
