1.
1. The ClearStream 2 antenna comes with:
• 1 reflector
• 1 set of tapered loop elements
• 75 ohm transformer (internal)
• 1 threaded bolt
• 1 adjustable mast clamp
3.
3. Align the two halves of the separating column and attach
the reflector (grid) to the antenna elements (Tapered loops)
by threading the bolt through the center of the column.
Tighten.
C2 -

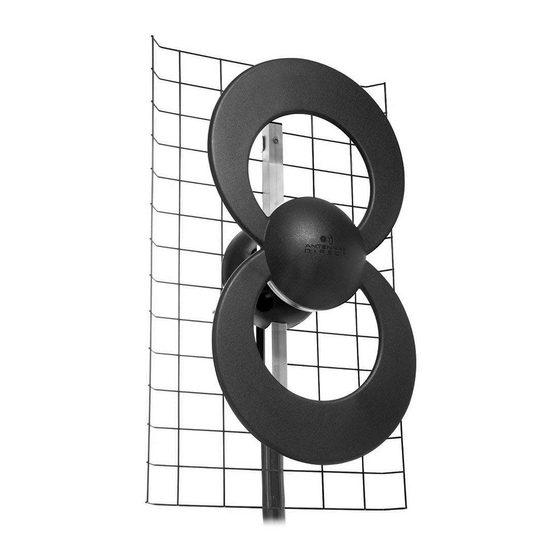

ClearStream 2
Antenna Assembly
2. Feed the supplied bolt through hole in U
clamp assembly.
2.
4.
4. Assembly complete. Attach the C2
antenna to any kind of mast or mount
(up to 2" in diameter) with the adjustable U
bolt clamp. The 75 ohm coax connector is
in the center front.
Advertisement
Table of Contents
Summary of Contents for Antennas Direct ClearStream 2
- Page 1 C2 - ClearStream 2 Antenna Assembly 1. The ClearStream 2 antenna comes with: 2. Feed the supplied bolt through hole in U • 1 reflector clamp assembly. • 1 set of tapered loop elements • 75 ohm transformer (internal) • 1 threaded bolt • 1 adjustable mast clamp 3. Align the two halves of the separating column and attach 4. Assembly complete. Attach the C2 the reflector (grid) to the antenna elements (Tapered loops) antenna to any kind of mast or mount by threading the bolt through the center of the column. (up to 2” in diameter) with the adjustable U Tighten. bolt clamp. The 75 ohm coax connector is in the center front.
- Page 2 Ch 52 6. ClearStream 2 Horizontal Plane Reception Patterns The ClearStream 2 has very forgiving aiming characteristics with more than 70 degrees of beamwidth across the main lobe as well as a powerful secondary rear lobe. This allows the C2 to receive signals from multiple directions with a single fixed installation.
