Summary of Contents for Kramer VM-3HN

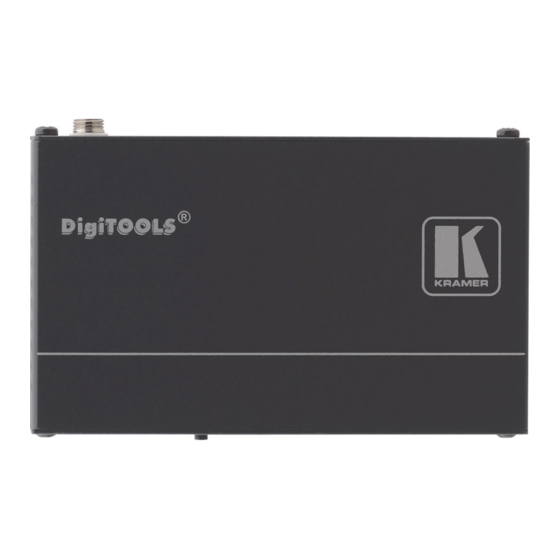

- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VM-3HN 3 HDMI DA P/N: 2900-300382 Rev 5...
-
Page 3: Table Of Contents
Recycling Kramer Products Overview Defining the VM-3HN 1:3 HDMI DA Connecting the VM-3HN Acquiring an EDID Force RGB Mode Default EDID Technical Specifications Figures Figure 1: VM-3HN 1:3 HDMI DA Figure 2: Connecting the VM-3HN 1:3 HDMI DA VM-3HN – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer VM-3HN 1:3 HDMI DA, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VM-3HN away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerAV.com/support/recycling/. -
Page 7: Overview
Plug and Play operation for HDMI systems A default EDID for fast and efficient connection of the unit The default EDID feature lets you connect the VM-3HN without having to connect a display to the output 3D pass-through ... -
Page 8: Defining The Vm-3Hn 1:3 Hdmi Da
Defining the VM-3HN 1:3 HDMI DA Figure 1 defines the VM-3HN. Figure 1: VM-3HN 1:3 HDMI DA Feature Function HDMI IN Connector Connects to the HDMI source EDID SETUP Button Press to capture the input EDID or select the default... -
Page 9: Connecting The Vm-3Hn
Connecting the VM-3HN Always switch off the power to each device before connecting it to your VM-3HN. After connecting your VM-3HN, connect its power and then switch on the power to each device. Connect the VM-3HN as illustrated in the example in Figure 1. -
Page 10: Acquiring An Edid
The VM-3HN reads the EDID for a few seconds. When finished, all LEDS return to display the present output connection status. If an unconnected output is chosen or the EDID cannot be read, the VM-3HN loads the default EDID. VM-3HN - Connecting the VM-3HN... -
Page 11: Force Rgb Mode
Force RGB Mode The VM-3HN toggles between “Normal” and “Force RGB” modes. To toggle: Press the EDID button for three seconds All input and outputs LEDs flash depending on the selected mode: In “Normal mode” (not forcing RGB), the LEDs flash once ... -
Page 12: Default Edid
Detailed timing #3..1280x720p at 60Hz (16:10) Modeline...."1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync Detailed timing #4..720x480p at 60Hz (16:10) Modeline...."720x480" 27.000 720 736 798 858 480 489 495 525 -hsync -vsync VM-3HN - Default EDID... - Page 13 Front center..... No Rear left/right..No Rear center....No Front left/right center.. No Rear left/right center... No Rear LFE....No Report information Date generated... 11/11/2014 Software revision..2.60.0.972 Data source....Real-time 0x0032 Operating system..6.1.7601.2.Service Pack 1 VM-3HN - Default EDID...
-
Page 14: Technical Specifications
10% to 90%, RHL non-condensing POWER CONSUMPTION: 5V DC, 800mA DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 0.9") W, D, H WEIGHT: 0.3kg (0.67lb) INCLUDED ACCESSORIES: Power supply Specifications are subject to change without notice at http://www.kramerAV.com VM-3HN - Technical Specifications... - Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerAV.com E-mail: info@kramerel.com SAFETY WARNING...
