Summary of Contents for Olympia Viva II

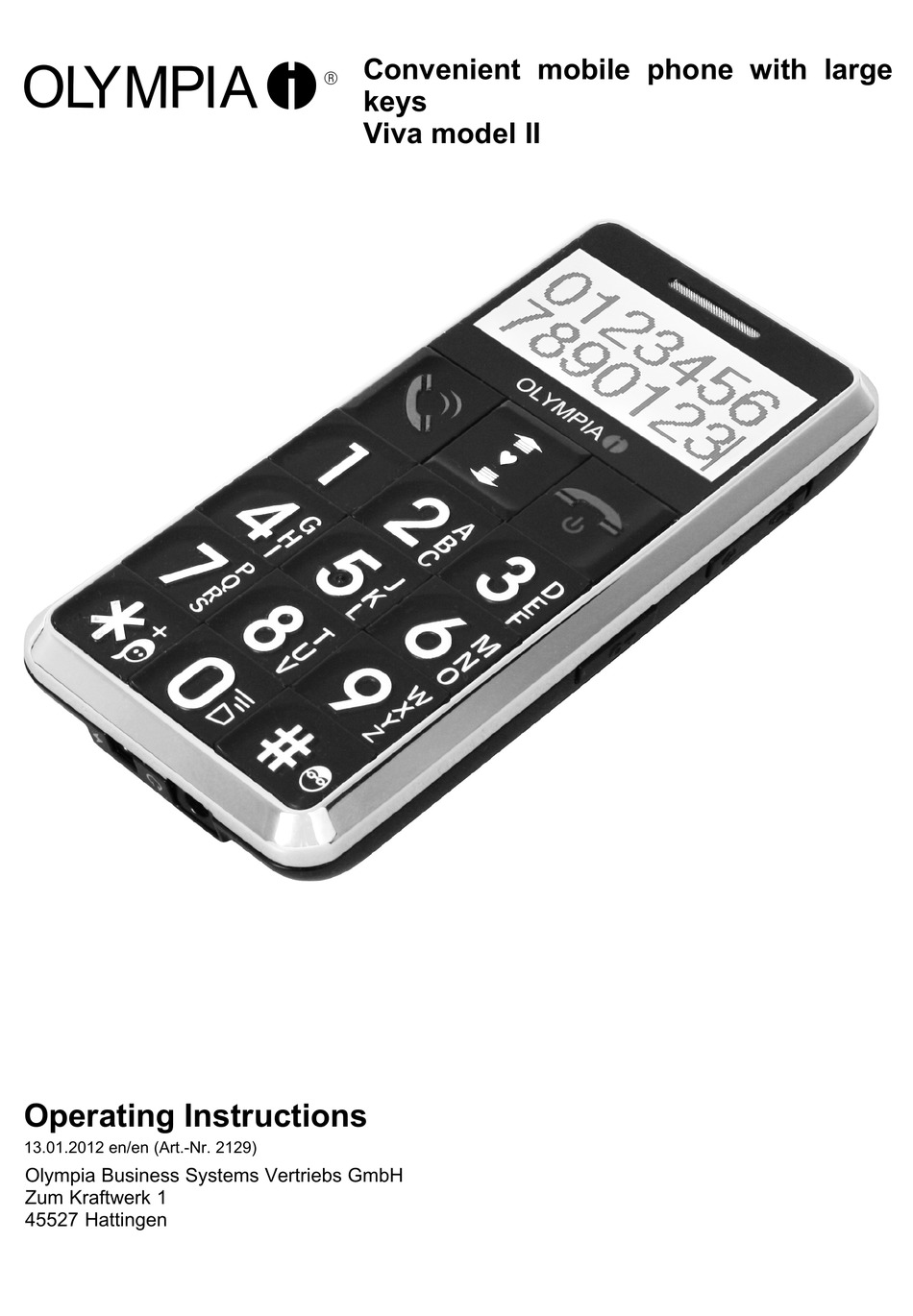

- Page 1 Convenient mobile phone with large keys Viva model II Operating Instructions 13.01.2012 en/en (Art.-Nr. 2129) Olympia Business Systems Vertriebs GmbH Zum Kraftwerk 1 45527 Hattingen...
-
Page 2: Table Of Contents
Contents Starting Up ................Operating Elements . -
Page 3: Starting Up
Starting Up Starting Up Caution: Important: Before you start, please read the safety information on Page 22! Scope of delivery The box contains: 1 telephone 1 charging unit 1 li-ion battery 1 operating manual 1 headset Installing the SIM card Caution: Risk of swallowing small objects! The SIM card can be removed. - Page 4 Starting Up Charging the battery WARNING: Before starting to charge the battery, check that it has been installed properly. Do not remove the battery while it is being charged. This could damage the phone. Note: When charging the battery for the first time, it should be charged for at least 4 hours. Some batteries only reach their full capacity after several complete charge/discharge cycles.
-
Page 5: Operating Elements
Operating Elements Operating Elements Torch on/off Key lock on/off 3 Headset socket To connect a headset. The earpiece, loudspeaker and microphone are deactivated. You can only hear and speak via the headset. 4 Charge connection socket To connect the charging unit. a b 0 Take call, end call/switch phone on and off, enter phone numbers and names or enter text. -
Page 6: Getting Started
Getting Started Button Mode Press the button Press and hold Menu Select submenu Stand Switch on integrated radio Stand Switch torch on/off Stand Key Lock on/off Stand Open calls list. Menu Confirm selection Stand Switch phone on/off Menu Move back / Cancel During End a call (on-hook) call... - Page 7 Getting Started Standby mode All descriptions in this operating manual assume that the phone is in Standby mode. The system switches to Standby mode by pressing the key, several times if necessary. It may be necessary to deactivate the key lock function. Energy-save mode When the phone has been in Standby mode for some time, it automatically switches to Energy-save mode.
- Page 8 Getting Started How to enter text and numbers The keys on the keypad are also labelled with letters for the entry of text. The phone provides various methods by which text can be entered. These are used when creating or editing contacts in the phone book, when searching for names in the phone book and when writing SMS text messages.
-
Page 9: Setting Up The Phone Book
Setting Up the Phone Book Multitap In order to enter text in Multitap mode, press the key labelled with the corresponding letter/character the corresponding number of times. If the first character of the group is required, press the key once. If the second character is required, press it twice, and so on. - Page 10 Setting Up the Phone Book Copying or deleting all entries Phonebook Copy all Delete Select between the SIM or phone memory. Note: The SIM card can only store 100 phone book entries. If you attempt to copy more than 100 phone book entries, data could be lost.
-
Page 11: Making And Receiving Calls
Making and Receiving Calls Making and Receiving Calls Taking a call í Take the call Rejecting a call í Reject the call Ending a call End the current call Making a call ë Enter the phone number Delete the last digit if incorrect Dial the phone number Call list Your mobile phone stores the last numbers dialled (redialling) as well as calls received and missed in a... - Page 12 Making and Receiving Calls One-touch dialling keys There must be phone numbers stored as one-touch numbers. 3 sec. Press and hold the one-touch dialling key in Standby mode Setting the receiver volume The volume can be adjusted during a call. Select the required volume Exposure to the receiver at full volume for a long period could cause ear damage.
-
Page 13: Call List
Call List Call List Your mobile stores the last phone numbers dialled, taken and received but missed. Note: If one of the phone numbers received matches an entry in the phone book, the associated name appears. Dialling from the call list Open the call list H a a Select an entry and open the options... - Page 14 SMS - Text Messages SMS memory status Messages SMS settings Memory status Note: The percentage shares of the memory space occupied are displayed for the phone memory and SIM card. SMS memory storage Messages SMS settings Preferred storage Writing an SMS text Note: A text message can contain up to 457 characters, including spaces.
-
Page 15: Mailbox
Mailbox Mailbox Note: It is possible that not all functions described are supported by every mobile service provider. Therefore, please contact your local mobile service provider for details. They may concern services which are subject to charges. In order to use the "voice mail" mailbox function, the relevant phone number must be programmed in your mobile phone. - Page 16 Other Useful Features Date and time This menu option can be used to set and change the date and time. Open the main menu: Settings Phone setup Time and date Set home city? Select the option and confirm it Set time/date Select the submenu and confirm it a ë...
- Page 17 Other Useful Features Example To execute the calculation “5 x 2.5”, you have to type the following keys: = 5, = x, = 2.5, = 12.5 = Delete Calendar This menu option opens the calendar. You can select other days. Navigate using the key.
- Page 18 Other Useful Features Changing the PIN & PUK The PIN (Personal Identity Number) and PIN2 codes are 4 to 8-digit numbers. The PIN and PIN2 codes are given to you, together with the SIM card, by your network provider. The PUK (Personal Unblocking Key) and PUK2 codes are 4 to 8-digit numbers. These are only necessary if you enter the PIN code for the SIM card incorrectly three times in succession and the SIM card is blocked.
- Page 19 Other Useful Features Call settings Note: It is possible that not all functions described are supported by every mobile service provider. Therefore, please contact your local mobile service provider for details. They may concern services which are subject to charges. Call barring The following function is used to restrict calls which can be received and made.
-
Page 20: Troubleshooting
Troubleshooting Troubleshooting Problems and solutions Problems Solutions The mobile phone - No battery inserted. cannot be switched - Battery is not charged. No signal quality is - No network connection. The mobile phone is in a location where there is no displayed. -
Page 21: Technical Properties
Technical Properties Technical Properties Feature Value Standard 850, 900, 1800, 1900 MHz Quadband Dimensions 50 x 104 x 15 mm (W x H x D) Weight 115 g incl. battery Power supply Input: 100-240 V, 50-60 Hz, 0.2 A Output: 5 V, 150 mA Battery 3.7 V, 800 mAh Charge duration: Approx. -
Page 22: Safety Information
Safety Information Safety Information Please read this section carefully. Caution: Risk of suffocation! Keep packaging materials and protective foils out of reach of children. Intended use This mobile phone is designed for use when connected to a mobile phone network. Any other use is considered unintended use. -
Page 23: Maintenance / Guarantee
Maintenance / Guarantee Disposal In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. -
Page 24: Konformitätserklärung
Declaration of Conformity Declaration of Conformity... - Page 26 Please note that the copyright for this operating instruction manual lies with Olympia and, there fore, may not be copied or sold. The data and information in the operating instruction manual is only intended for personal use All rights reserved.
