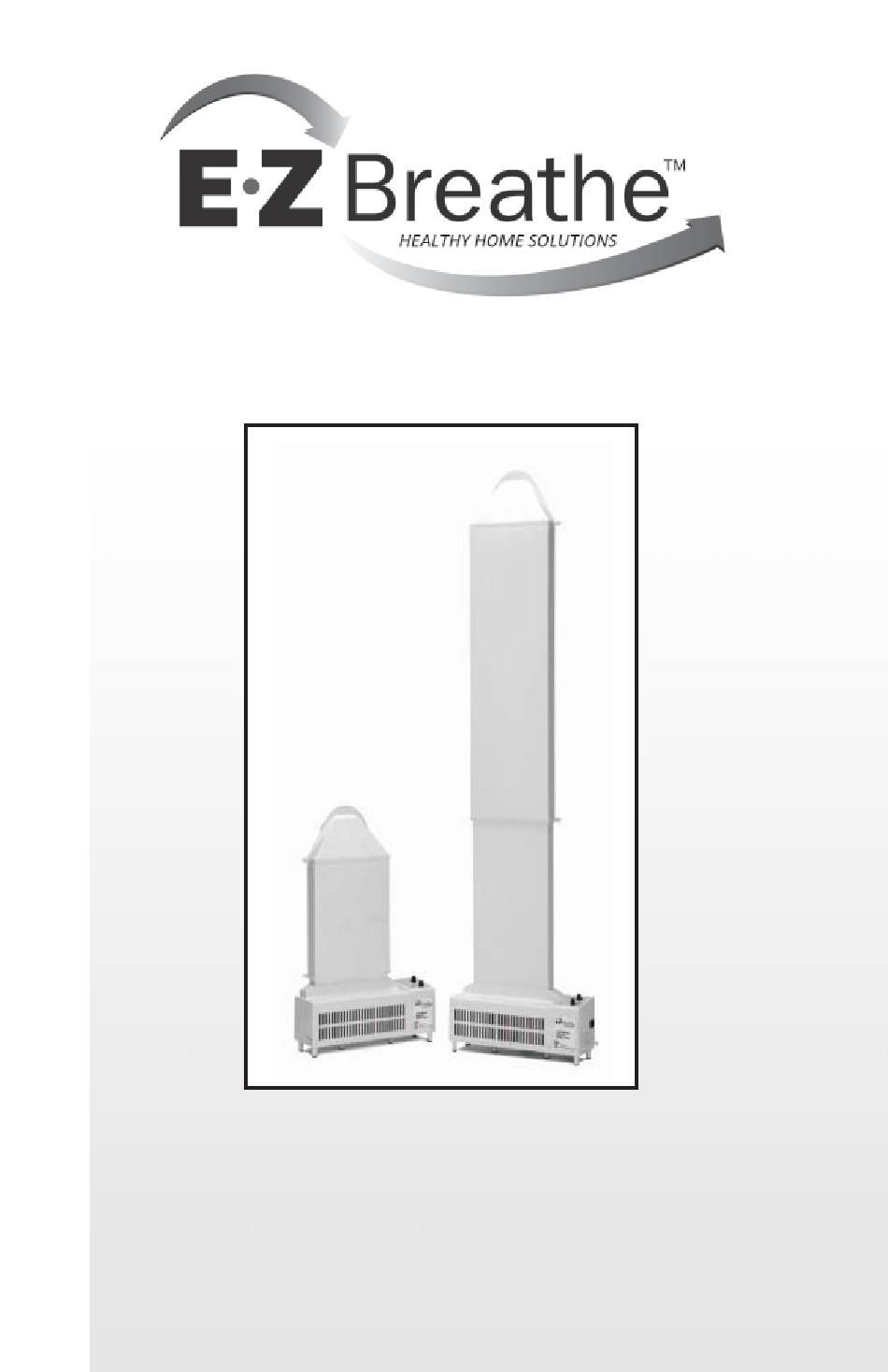

- Page 1 Installation Guide Model A-400 ® Copyright 2015, EZ Breathe , LLC...
- Page 2 When the humidity level of this air drops to the ® desired level (at a set point below 50%), the EZ Breathe unit will shut off, and then come back on again when humidity levels increase.
- Page 3 WHAT’S INSIDE Before installing your EZ Breathe ® ventilation unit, make sure that you have the right model and accessories. Make sure that the total length of the unit is taller than your foundation wall. The following items should be included in the box. If parts are...
- Page 4 TECHNICAL DATA Model #A-400 Base Dimensions: Service area/unit: 7000 sq. ft. Height: 10 inches (25.40 cm) Air flow: 138 CFM’s Width: 21 inches (53.34 cm) Noise level: 42 db Depth: 6 inches (15.24 cm) Amperage: 0.27 amps Weight: 9.25 lbs. (4.2 kg)
- Page 5 Ensure the air from the upper level of the home/building can reach the ® unit in the basement/lower level. The EZ Breathe ventilation unit will not serve its purpose if the air cannot flow freely between the two levels through a stairwell or by other means.

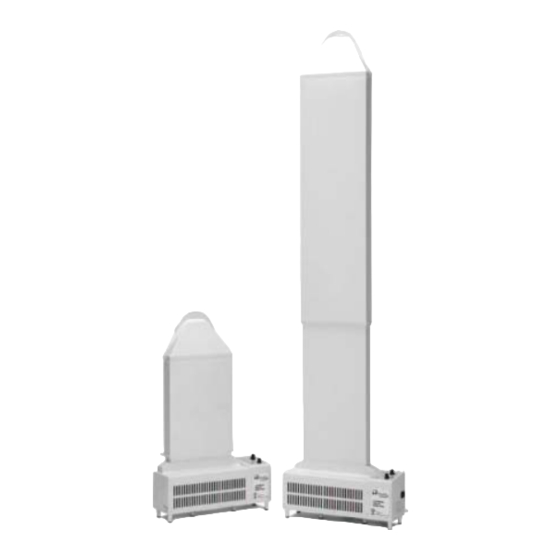

- Page 6 3. PUTTING IT TOGETHER EZ Breathe ® Model A-400 is telescopic. Slide the telescoping chute over the base unit bottom chute (b) narrow section attaches directly to base. This units base should be resting on the floor. Install 4 screws (white), two in each side to secure the chutes to the base unit motor.
- Page 7 Insert the screws through the unit’s holes into the anchors and secure it to the wall. If attaching to paneling or drywall, screw directly to the surface. ® Insert plugs into any unused holes to give the EZ Breathe unit a more finished look.
- Page 8 7. SET HUMIDISTAT This component continuously monitors the humidity level of the air ® being expelled through the EZ Breathe unit. You can set this control to maintain the desirable level of humidity in your home/building. For best results… Set the humidistat between 35% to 40%.
- Page 9 DROP CEILINGS - “L” PIECE 1. With removable panels: a. Move a panel to see where pilot hole in face plate will be drilled. Drill pilot hole. b. Drill exhaust hole same directions as above. c. Take screws out of top piece (top chute) and insert “L” piece. Attach it with 4 white screws.
- Page 10 FINISHED WALL - Z PIECE For Finished Basements ® The “Z” Piece is used to move the base of the EZ Breathe unit away from the wall. Because the chute is 14" wide and 2" deep it can be placed between studs and finished over, making the finished space more usable and improve the appearance of the installation.
- Page 11 EZB-IG Rev. 7-1-15...
