USER MANUAL
SAILOR SP3515 VHF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAILOR SP3515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Thrane&Thrane SAILOR SP3515

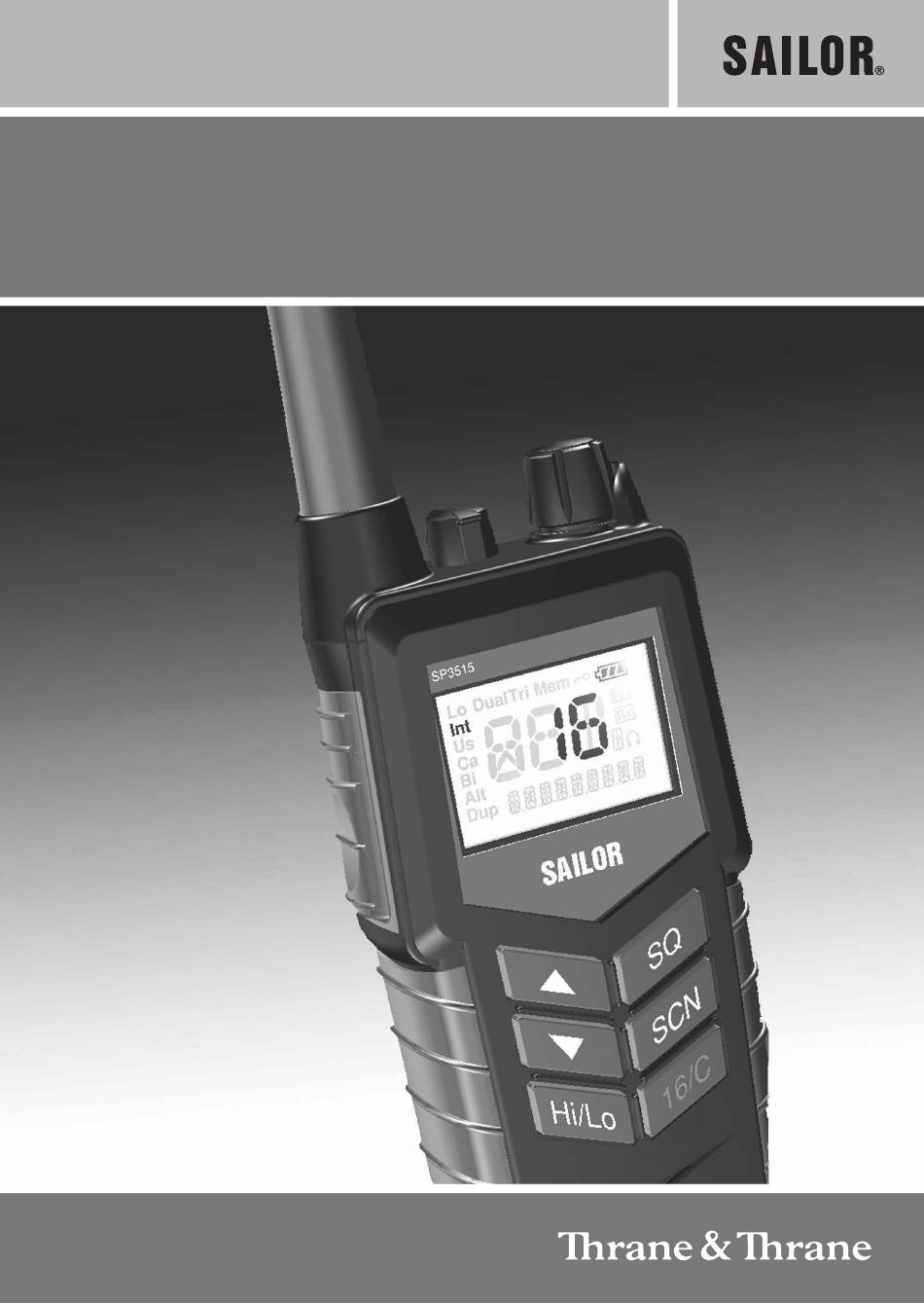

  • Page 1 USER MANUAL SAILOR SP3515 VHF...
  • Page 2 Emergency procedure • Turn the knob at the top of the radio clockwise. The display lights up showing the last used channel and the battery level. • Select channel 16 (Distress or Safety), press the 16/C key. • Press the PTT and say: —...
  • Page 3 SP3515 VHF Document number: TT 98-124293-E Release date: October, 2007 Copyright: © 2007 Thrane & Thrane A/S. All rights reserved. Trademark Acknowledgements • SAILOR is a registered trademark of Thrane & Thrane A/S. • Other product and company names mentioned in this manual may be trademarks or trade names of their respective owners.
  • Page 4 Precautions Avoid water and salt in the I/O connector and keep it clean frequently. Only use original Thrane & Thrane battery packs. Make sure they are clean and dry before attaching the transceiver. Be careful not to damage any gaskets. Only use the original Thrane &...
  • Page 5 Training information SAILOR SP3515 VHF is designed for "occupational use only". It must be operated by licensed personnel only. The SP3515 complies with the FCC RF exposure limits for "Occupational Use Only". • FCC OET Bulletin 65 Supplement C, evaluating compliance with FCC guidelines for human exposure to radio frequency electromagnetic fields.
  • Page 6 0641...

  • Page 7: Table Of Contents

    Contents Chapter 1 Introduction Your VHF ................1 Performance ...............2 Channels ................2 Chapter 2 Operation Controls ................5 Keys and buttons ..............5 The display .................7 Using the VHF ..............8 Basic functions ..............8 Other functions ..............11 Chapter 3 Batteries Battery level indication ............15 Removing and inserting the battery pack ......15 The battery charger ............16 Installing the charger ............16...
  • Page 8 Chapter 5 Equipment and accessories External equipment ............27 List of equipment .............. 27 Connecting external equipment ........27 Impact on radio operation ..........28 Accessorie connector ............28 Accessories ..............29 List of accessories ............. 29 Attaching and removing the belt clip .........31 Attaching the lanyard ............31 Chapter 6 Troubleshooting Displaying errors ..............

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Your VHF The SP3515 VHF is designed for flexibility in daily use. It connects easily to external equipment like headsets and fist mikes, making the SP3515 suitable for any noisy environment. Main features: Unique man machine interface, an excellent grip even with gloves, and large tactile buttons.

  • Page 10: Performance

    Introduction Performance For best performance of the transceiver keep the following in mind: • Keep clear of metal environment. • Hold the transceiver vertically and 10 cm from lips and push the PTT when transmitting. • In receive mode carry the transceiver vertically with belt clips. •...
  • Page 11 Introduction Channel modes The notes in the following sections list the channel restrictions that apply for each channel mode. Entering and using For information on how to select a channel mode, see configuration mode CHAN on page 19 and on page 20. National frequency regulations shall always be respected and might operation for this type of equipment restrict...
  • Page 12 Introduction Canadian channels Notes: • Tx power is limited to 1 W on channels 15, 17, 20, 65, 66 and 77. • The channels 19, 22, 63, 75, 76 and 81 cannot be selected. • The Weather channels (CA W-ch. in the channel table) can only be used in Rx direction.

  • Page 13: Controls

    Operation Operation Controls Keys and buttons 1. On/off/volume 2. Light/Lock 3. Push To Talk (PTT) 4. Up key 5. Down key 6. Hi/Lo output power 7. Squelch 8. Scan 9. Priority channel (16)/ Call channel 10. Loudspeaker/microphone 0740...
  • Page 14 Operation Key presses Pressing and holding certain keys gives access to additional functions, shown in the table below. Extra long Short press Long press press (1 beep) (2 beeps) (3 beeps) Show next available Run through available Run through item in the list (up or items, or available down).

  • Page 15: The Display

    Operation The display The display holds various fields of information, explained below. 1. Current working channel. 2. Current channel mode. 3. “Lo”: Reduced transmitter power. Full transmitter power is not shown in display. 4. Dual/Triple watch activated. 5. Current working channel is marked for scanning. 6.

  • Page 16: Using The Vhf

    Operation Using the VHF Basic functions Before using the radio, mount the antenna at the top of the Note radio. The antenna is delivered with the radio. Switching the radio on and off • To switch the radio on, turn the knob at the top of the radio clockwise.
  • Page 17 Operation Activating a call To activate a call to the selected channel, press and hold the PTT button on the side of the radio. The radio transmits as long as the PTT button is pressed. A small Tx sign next to the channel num- ber indicates when the radio is in transmit mode.
  • Page 18 Operation Using Dual/Triple watch • To activate Dual/Triple watch, press the SCN key. The display shows “Dual” or “Tri” at the top and “16” at the bottom right. The radio toggles between the selected channel and channel 16 in Dual watch. In Triple watch, the radio shifts between channel 16, the call channel and the selected channel.

  • Page 19: Other Functions

    Operation Other functions Programming the Call channel To program the Call channel, do as follows: 1. Press and hold 16/C until the current Call channel number is flashing. 2. Select the channel with 3. Press 16/C to confirm within 3 seconds. Programming the scanning memory To add a channel to the scanning memory, select the channel and then press and hold the SCN key until the display shows MEM at the top.
  • Page 20 Operation have a clear identification in the service field, e.g. "CTCSS 22", while selected. Not all channels are allowed for CTCSS use. In maritime channel modes CTCSS is automatically disabled when • Product is turned off • A new channel is selected For private channels and ALT channel mode, the feature will remain until manually removed.
  • Page 21 Operation Narrow band operation The radio is prepared for narrow band operation. If narrow band BAND operation is selected (see on page 25), the number of channels are doubled in the maritime channels, according to international Channels recommendations. Refer to the channel table in on page 2.
  • Page 22 Operation 0703...

  • Page 23: Chapter 3 Batteries

    Chapter 3 Batteries Battery level indication When the battery level is low, you should recharge the battery. The radio display shows the battery status. When the battery symbol is empty and flashing, the battery should be recharged as soon as possible. Removing and inserting the battery pack To remove the battery pack, do as follows: 1.

  • Page 24: The Battery Charger

    Batteries The battery charger The chargers has two compartments. CH3507 • A rear compartment only for storing a spare battery. It does not have a charger function. • A front compartment for recharging the battery alone or while attached to the radio. CH3508 •...

  • Page 25: Recharging The Battery

    Batteries Connecting to power The charger can be supplied from DC or from AC using an AC/DC converter. DC: Connect the 12-24VDC Connection Cable between the DC supply and the connector on the underside of the charger. AC: Connect the AC/DC converter to the connector on the underside of the charger.
  • Page 26 Batteries 0643...

  • Page 27: Chapter 4 Configuring The Radio

    Chapter 4 Configuring the radio Configuration mode Entering and using configuration mode Note The radio is not operational in configuration mode. • To enter configuration mode, press and hold the Light/Lock button while turning on the radio. The bottom line of the display shows the current menu item/setting. •...

  • Page 28: List Of Configuration Settings

    Configuring the radio List of configuration settings The following settings are available in configuration mode. Name Values Description LIGHT Only Light/Lock button activates the backlight. All keys and buttons, except PTT and volume control, activate the backlight. CHAN International channels. US channels.
  • Page 29 Configuring the radio Name Values Description SLEEP Enable sleep mode (to minimize power consumption). Sleeps for periods of 1 second after 15 seconds of idle mode. Idle mode is: no signal detected and no operation of the radio. Disable sleep mode. CONTRST 1, 2, 3, 4, 5 Contrast.
  • Page 30 Configuring the radio Name Values Description TIME A long press on SQ opens squelch. The squelch level resumes to setting 3 seconds after SQ is released. A long press on SQ opens squelch. The squelch level resumes to setting as soon SQ is released. WORK If the distress or call channel is selected using the 16/C key, any push on...
  • Page 31 Configuring the radio Name Values Description 1 _ _ _ _ _ _ _ _ In ATIS programming mode: • Select the digit position with the Light/Lock 1 2 _ _ _ _ _ _ _ button. 1 2 3 _ _ _ _ _ _ •...
  • Page 32 Configuring the radio Name Values Description SUBC SUBC disabled. Squelch opens on all received signals. 1, 2, ..., 38 Sub-tone carrier ID. Squelch opens if the received signal contains the desired subtone. During transmission the sub-tone with the corresponding ID is generated.
  • Page 33 Configuring the radio Name Values Description SCODE No scrambler code is assigned to the channel (selecting “ON” in the SCRM setting will have no effect). 1, 2, 3, 4, A selection between 5 fixed sets of scrambler 5, CC characteristics, and a custom code (CC), can be assigned to the channel.
  • Page 34 Configuring the radio...

  • Page 35: Chapter 5 Equipment And Accessories

    Chapter 5 Equipment and accessories External equipment List of equipment The following equipment can be connected to the radio: • SAVOX 400E Push-To Talk unit • SAVOX C500 Fist Mike • SAVOX NC/400 Noise-com • SAVOX HC-E Helmet-com • SAVOX K53004 Helmet unit •...

  • Page 36: Impact On Radio Operation

    Equipment and accessories When external equipment is connected to the radio, the right side of the display will show a headset. Impact on radio operation The external equipment can have a built-in PTT, speaker and microphone. Thus connecting it to the radio will have the following impact on the radio operation: •...

  • Page 37: Accessories

    Equipment and accessories Accessories List of accessories The following accessories are delivered with your radio: Accessory Part number Secondary battery (black, rechargeable), B3502 403502A Charger, CH3507 403507A AC/DC converter, length 150cm (100-240V~ /12VDC out) 88-125538 12-24VDC Connection cable, length 150cm 37-124381 Belt clip 62-124320...
  • Page 38 Equipment and accessories Accessories you may buy Accessory Part number Dual Position Charger CH3508 403508A Leather Case 403500-205 Leather Case Warning! The display must always be kept away from the body to reduce the RF explosure when body worn. 0740...

  • Page 39: Attaching And Removing The Belt Clip

    Equipment and accessories Attaching and removing the belt clip To attach the belt clip, slide the belt clip upwards into the rails at the back of the radio until it locks. To remove the belt clip, press the projection at the top of the belt clip to release the lock and slide the belt clip downwards out of the rails.
  • Page 40 Equipment and accessories 0740...

  • Page 41: Chapter 6 Troubleshooting

    Chapter 5 Troubleshooting Displaying errors Some errors result in an error message in the display. These error messages are listed below. Display text Problem Type Actions The battery voltage is Severe. Change/recharge below a critical level, Radio is non- the battery. EMPTY BAT where further operation functional.
  • Page 42 Troubleshooting 0740...

  • Page 43: Technical Specifications

    Appendix A Technical specifications Technical data SP3515 General Item Specification Rx frequency range, landmobile 148.000 - 174.000 MHz Tx frequency range, landmobile 148.000 - 174.000 MHz Rx frequency range, maritime 155.000 - 163.425 MHz Tx frequency range, maritime 155.000 - 161.450 MHz Modulation 25 kHz 16K0G3E...

  • Page 44: Transmitter

    Technical specifications Item Specification Water ingress protection IP67 Frequency stability Better than ±0.7 kHz Weight with emergency battery 340g Transmitter Item Specification RF output power 5 W /1 W RF output power, Canada 4.5 W ±1 dB / 0.75 W ±1 dB Max deviation 25 kHz ±5 kHz...
  • Page 45 Technical specifications Item Specification Intermodulation 25 kHz > 68 dB 12.5 kHz > 65 dB Spurious response > 70 dB Adjacent channel selectivity 25 kHz > 70 dB 12.5 kHz > 60 dB Audio output, internal 0.25 W at 10% dist. Audio output, external 0.25 W/8 ohm 0740...

  • Page 46: Battery Life Guidelines

    Technical specifications Battery life guidelines Note New batteries should be placed in the charger for minimum 12 hours first time. During daily use, always keep the battery fully charged and away from hot areas. Keep the battery terminals dry and clean. Never discharge beyond the specifications of the battery.

  • Page 47: Dimensional Drawing, Transceiver

    Technical specifications Dimensional drawing, transceiver 0740...

  • Page 48: Dimensional Drawing, Chargers

    Technical specifications Dimensional drawing, chargers Declaration of Conformity Mounting Possibillities Desktop mounting, top view Wall mounting, rear view 0740...

  • Page 49: Declaration Of Conformity

    PN = 403508A AC/DC Adapter PN = 88-125538 Equipment Applicability SAILOR SP3515 is a simplex/semi-duplex handheld VHF radiotelephones designed for maritime communication within the frequency range 148 MHz to 174 MHz. Declaration SAILOR SP3515 conforms to the RTTE directive with respect to...
  • Page 50 Technical specifications 0740...

  • Page 51: Attention

    Appendix B Attention Goretex Membran To keep the VHF watertight, is it very important that the goretex membran behind the label under no circumstances must be damaged or removed. 0740...
  • Page 52 Attention 0740...
  • Page 56 TT-98-124293-E Issue: E/0740 Thrane & Thrane A/S • info@thrane.com • www.thrane.com...
