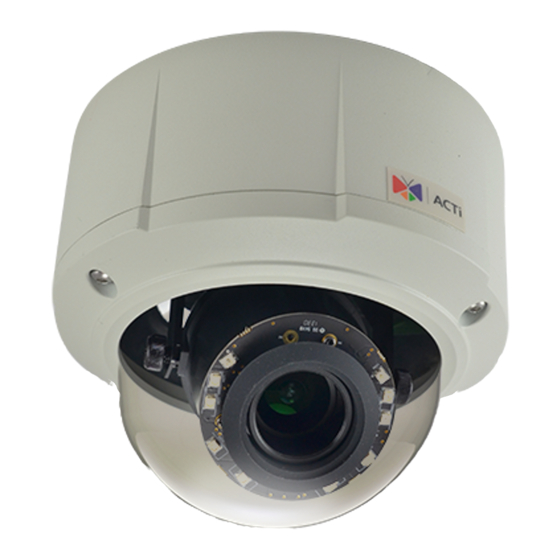

- Page 1 Outdoor Dome Series Hardware Manual E89, E815, E8816, E817, E822 2015/04/17...
-
Page 2: Table Of Contents
Step 6: Access the Camera Live View ............ 26 Step 7: Adjust the Viewing Angle ............27 Step 8: Close the Dome Cover ..............27 Other Connections..........28 How to Connect the DI/DO Devices (Optional) ........28 How to Connect Audio In / Out (Optional) ..........32 www.acti.com... - Page 3 How to Insert the Memory Card ............33 How to Remove the Memory Card ............33 How to Adjust the Viewing Angle and Focus ........34 E89 ....................... 34 E815, E816, E817, E822............... 36 How to Replace the Dome Cover ............37 Accessing the Camera .........
-
Page 4: Precautions
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. www.acti.com... - Page 5 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
-
Page 6: Safety Instructions
Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com... -
Page 7: Introduction
10MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, 4.3x E816 Zoom lens 3MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, 4.3x E817 Zoom lens 1.3MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, 4.3x E822 Zoom lens www.acti.com... -
Page 8: Package Contents
Hardware Manual Package Contents Camera Mounting Screw Kit Hexagon Screwdriver Drill Template Conduit Gland Cable Gland Drill Template Terminal Block Terminal Block Quick Installation Guide (for DI/DO) (for Audio In/Out) Warranty Card www.acti.com... -
Page 9: Physical Description
Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. See How to Connect the DI/DO Devices (Optional) on page 28 for information on how to connect DI/DO devices to your camera. www.acti.com... - Page 10 2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to modify these settings. 3. In case of connectivity issues or abnormal video quality. How to do the reset properly? Press and hold the reset button for 5 seconds. www.acti.com...
-
Page 11: Mounting Options
Gang Box Converter. All cables are hidden inside the gang box. PMAX-0804 Pendant Suitable when mounting the camera on hard and high ceilings. Mount PMAX-0101 PMAX-0103 (Straight Tube with Bracket) PMAX-0101 PMAX-0102 (Straight Tube) www.acti.com... - Page 12 Vertical Pole Suitable when mounting the camera on vertical poles. Mount PMAX-0314 PMAX-0503 Horizontal Suitable when mounting the camera on horizontal poles. Pole Mount PMAX-0101 PMAX-0102 PMAX-0503 Corner Suitable when mounting the camera on a corner wall. Mount PMAX-0314 PMAX-0402 www.acti.com...
-
Page 13: Other Mounting Accessories
PMAX-0702 (Junction Box) NOTE: For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector). The above mounting accessories are not included in the package. Contact your sales agents to purchase. www.acti.com... -
Page 14: Installing The Camera On A Surface
Cable hole If the cables will be routed along the surface, just drill the three (3) screw holes on the surface. 3. Detach the drill template from the surface and insert the plastic plugs into the screw holes. www.acti.com... -
Page 15: Step 2: Open The Dome Cover
2. With the bundled hex screwdriver, loosen the three (3) screws securing the dome cover. 3. Carefully lift to open the dome cover and place it on the side of the camera. NOTE: Do not abruptly lift the dome cover; it is attached to the camera with a spring wire. www.acti.com... - Page 16 Hardware Manual 4. If necessary, insert a memory card, with the metallic contacts facing down, into the card slot of the camera. www.acti.com...
-
Page 17: Step 3: Prepare For Waterproof Installation
Determine the type of waterproof solution that is applicable to your installation requirements and prepare the necessary accessories or purchase extra materials. Cable Gland Conduit Gland For use with 1/2” flexible conduit (not For use with an Exterior-grade Ethernet included in the package) cable (not included in the package). www.acti.com... -
Page 18: Waterproof Solution With Naked Cable
This section describes the procedures in using the bundled cable gland and an exterior-grade Ethernet cable. 1. Disassemble the cable gland as shown below: Sealing Insert Body Clamping with Claw (with Washer) 2. Insert the clamping nut into the Ethernet cable. 3. Insert the sealing insert with claw. www.acti.com... - Page 19 NOTE: Make sure the clamping nut is tightly attached to the cable gland body and the sealing insert is squeezed tightly. 6. Proceed with Step 4: Install the Camera to the Surface on page 24. www.acti.com...
-
Page 20: Waterproof Solution With Conduit
1. Prepare the following materials for waterproof installation: Flexible Conduit Conduit Gland 1/2" Trade size (included in the camera package) (not included in the package) For use with 1/2” flexible conduit Network Cable CAT 5 or CAT 6 (not included in the package) www.acti.com... - Page 21 3. Pull the network cable through the flex conduit. If connecting other input/output devices, pull the cables through the flex conduit without connectors. The terminal blocks will be attached once the cables pass through the camera hole later. 4. Insert the clamping nut through the flex conduit. www.acti.com...
- Page 22 Attach to Bottom Conduit Hole 7. If the cables will be routed along the surface, skip this step. If the cable will pass through the surface, do the following: a. Pull the network cable through the bottom conduit hole. www.acti.com...
- Page 23 8. If connecting other cables, attach the terminal blocks to the cables. See Other Connections on page 28. 9. Proceed with Step 4: Install the Camera to the Surface on page 24. www.acti.com...
-
Page 24: Step 4: Install The Camera To The Surface
Since electric screwdrivers vary in sizes, speed, and force, they may bruise and damage the internal camera components. DISCLAIMER: ACTi will not be responsible for camera damage caused by improper installations or the misuse of equipment for installation. www.acti.com... -
Page 25: Step 5: Connect The Cable
Using Flex Conduit Using Naked Cable 2. Connect the network cable to the Ethernet port and other cables (if any) to the corresponding connectors on the camera. Digital Input / Output (DI/DO) Connector Audio Input / Output Connector Ethernet Port www.acti.com... -
Page 26: Step 6: Access The Camera Live View
Power Cable PoE Switch Ethernet Cable AC Power (Data + Power) Source Camera Step 6: Access the Camera Live View Accessing the Camera on page 41 for more information on how to access the Live View of the camera. www.acti.com... -
Page 27: Step 7: Adjust The Viewing Angle
34 for more information. Step 8: Close the Dome Cover 1. Tighten the three (3) screws to attach the dome cover to the camera body. 2. Remove the plastic covering the dome cover. Final installation will look like the illustration below. www.acti.com... -
Page 28: Other Connections
You can connect up to two DI and two DO devices to your camera. Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire. www.acti.com... - Page 29 Based on these specifications, if the DI device has a voltage of 0V ~ 30V or the DO device has a voltage of < 24V (< 50mA), then the camera can supply internal power to these devices and there is no need to connect the DI/DO device to an external power source. www.acti.com...
- Page 30 Note that when choosing an appropriate relay, please refer to its specifications and make sure they match the above design. The triggering circuit voltage has to be around 12V DC and the switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V AC). www.acti.com...
- Page 31 The illustration below is a graphic example of connecting a relay to a high voltage DO device. 110V-220V AC External Power Source Relay (DO1 Device) Camera Illuminator NOTE: For more information on DI/DO connections, please refer to the Knowledge Base article All About Digital Input and Digital Output downloadable from the link below (http://Download.acti.com?id=516). www.acti.com...
-
Page 32: How To Connect Audio In / Out (Optional)
Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire. NOTE: For more information about AUDIO in connections, please refer to the Knowledge Base article How to Use Audio-in of ACTi Cameras, downloadable from the link below (http://Download.acti.com?id=534). www.acti.com... -
Page 33: Other Adjustments And Accessories
In case there is a need to remove the card, make sure to access the camera Web Configurator to safely “unmount” the card first (see the camera Firmware manual for more information). Once unmounted from the firmware, push the card to eject it from the slot. www.acti.com... -
Page 34: How To Adjust The Viewing Angle And Focus
2. Loosen the rotation adjustment screw, rotate the viewing orientation, and then tighten back the screw to fix the orientation. 3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position. www.acti.com... - Page 35 1. Loosen the zoom lever screw, then move the lever left or right to adjust the viewing angle. 2. Loosen the focus lever screw, then move the lever left or right to adjust the focus. 3. When the desired viewing angle and focus are already achieved, tighten the lever screws again to fix their position. www.acti.com...
-
Page 36: E815, E816, E817, E822
2. Loosen the rotation adjustment screw, rotate the viewing orientation, and then tighten back the screw to fix the orientation. 3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position. www.acti.com... -
Page 37: How To Replace The Dome Cover
Hold the spring wire as the screw is being removed to avoid the sudden release of the screw and cause it to fly in the air. 3. Remove the three (3) screws to detach the cover bracket. 4. Remove dome cover from the cover housing. www.acti.com... - Page 38 Hardware Manual 5. Remove the rubber from the dome cover. 6. Insert the rubber into the replacement dome cover. 7. Insert the replacement dome cover into the cover housing. www.acti.com...
- Page 39 8. There are 3 indents on the cover housing; note the indent (a) which is on the center of the extended curve of the cover. Place the bracket on the cover housing with the arrow on the bracket aligned to the indent (a). 9. Attach the three (3) screws to secure the bracket to the cover housing. www.acti.com...
- Page 40 10. Fit the screw into the spring wire that is attached to the camera. Note the screw placement as shown below. 11. There are two (2) screw holes on the bracket, attach the screw to the right screw hole using a screwdriver. Final installation should look like the illustration below. www.acti.com...
-
Page 41: Accessing The Camera
Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the camera model that had just connected to the network. www.acti.com... - Page 42 Search and downloand IP Utility for free from http://www.acti.com/DownloadCenter. With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly notice the camera model in the list.
- Page 43 PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
- Page 44 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
-
Page 45: Access The Camera
– the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. The examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera. www.acti.com... - Page 46 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 For further operations, please refer to the Firmware User Manual. www.acti.com...
- Page 47 Copyright © 2015, ACTi Corporation All Rights Reserved 7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C. TEL : +886-2-2656-2588 FAX : +886-2-2656-2599 Email: sales@acti.com...
