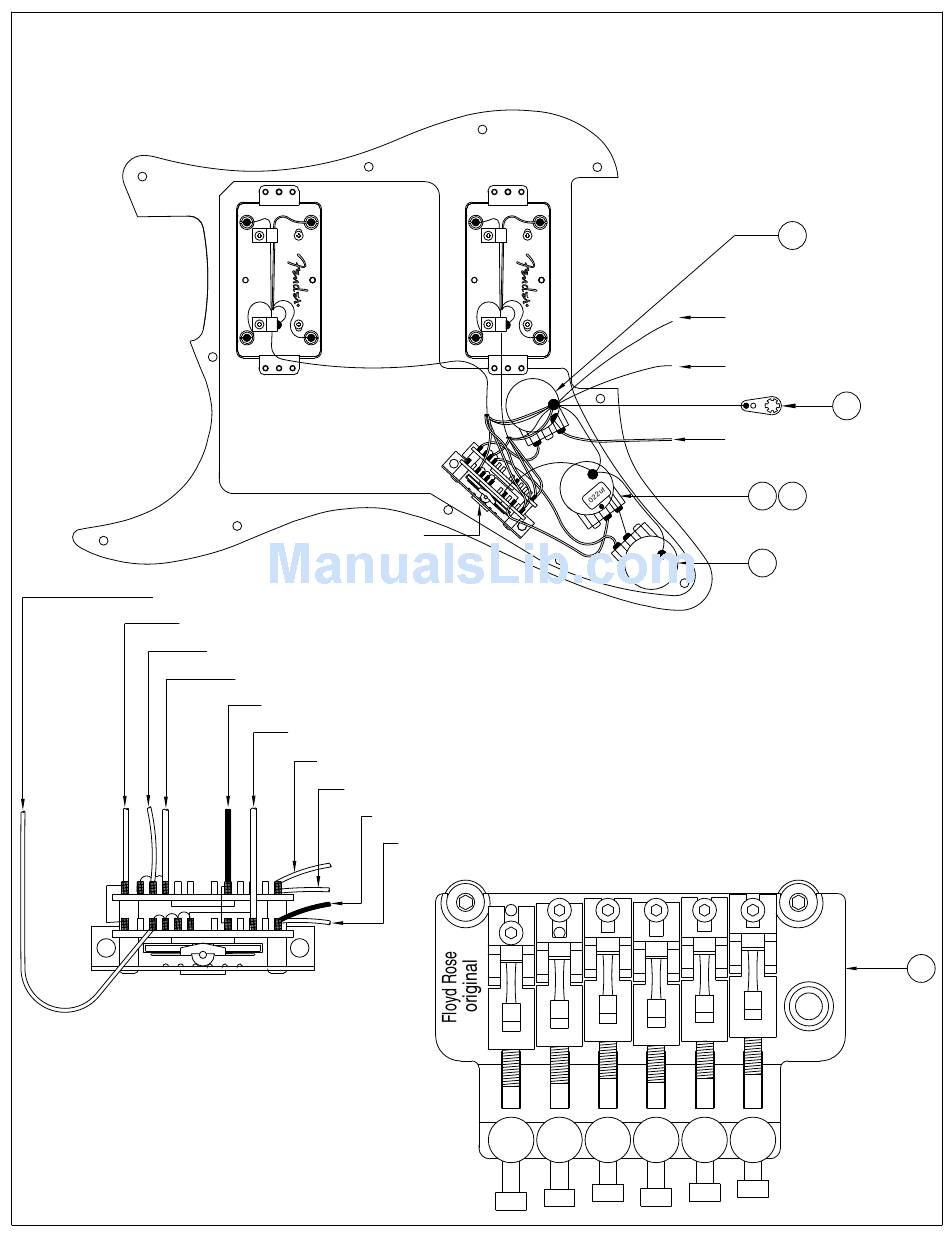

Fender Floyd Rose Classic Wiring Diagram

FLOYD ROSE CLASSIC STRATOCASTER HH 1106700/6702
SEE DETAIL ' A '
SWITCH WIRING
GREEN WIRE FROM NECK PICKUP
WHITE WIRE TO VOLUME POT TREMINAL
WHITE WIRE FROM BRIDGE PICKUP
WHITE WIRE TO BRIDGE TONE POT TERMINAL
BLACK WIRE TO BACK NECK TONE POT
WHITE WIRE TO NECK TONE POT TERMINAL
GREEN WIRE FROM BRIDGE PICKUP
DETAIL ' A '
N.T.S.
PICKGUARD ASSEMBLY
RED WIRE FROM BRIDGE PICKUP
BLACK WIRE FROM NECK PICKUP
WHITE WIRE FROM NECK PICKUP
13
BLACK WIRE FROM
SPRING CLAW
BLACK WIRE FROM
OUTPUT JACK
19
WHITE WIRE FROM
OUTPUT JACK
13 17
14
BRIDGE
ASSEMBLY
Pg. 2 of 4
05-19-2000
22
