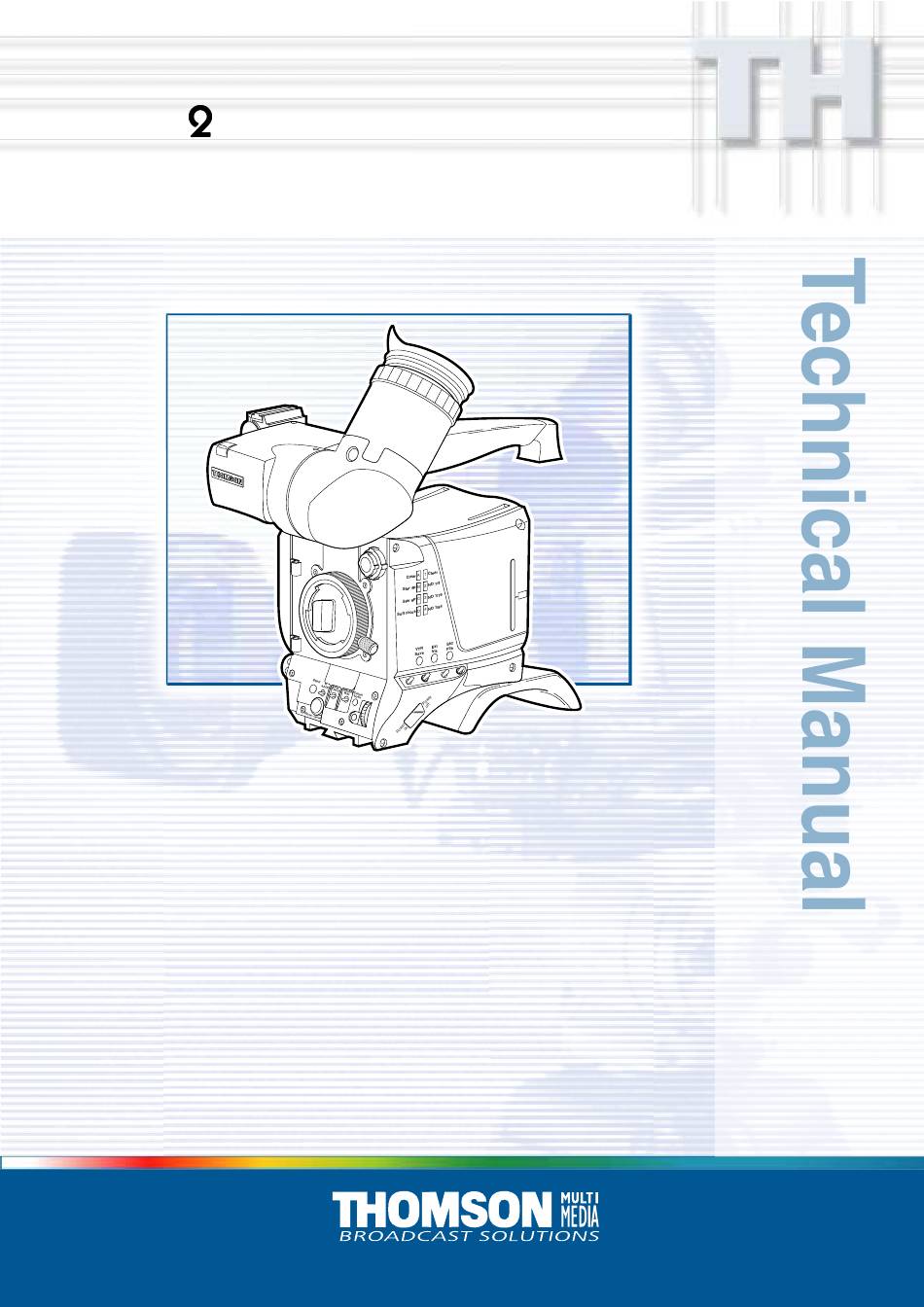

- Page 1 UOT2 UOT2 UOT2 UOT2 UOT2 Multi-role Digital Camera Head S m a C a rd 3922 496 47951 St.03...
- Page 2 Declaration of Conformity We, Thomson Broadcast Solutions Nederland B.V., Kapittelweg 10, 4827 HG Breda, The Netherlands declare under our sole responsibility that this product is in compliance with the following standards: EN60065 : Safety EN55103-1 : EMC (Emission) EN55103-2 : EMC (Immunity) following the provisions of: a.
-
Page 3: Table Of Contents
Front module 200 PAL ........7-8 Test Equipment ..........4-3 Optical module 200 PAL switchable ....7-9 Set-up Instructions ..........4-3 Dockable camera head LDK 200 ...... 7-10 Video ADC Automatic Calibration ....... 4-4 Pre-processor Calibration ........4-4 Parts Lists ............8-1 02.36.1... -
Page 4: About This Manual
About This Manual Service policy Structure of this manual The LDK 200 is a sophisticated camera head containing The manual is divided into four different sections: state-of-the-art electronic components which are designed to provide long-life operation without the Section 1: Safety Instructions need for maintenance. - Page 5 10, a 1 before the slash means the status is between 10 and 19, a 2 before the slash means between 20 and 29 etc. Example: - VR4567891012 means status 4 - VR3/78901234 means status 37. 02.36.1 Technical Manual LDK 200 - Camera Head...
- Page 6 Technical Manual LDK 200 - Camera Head 02.36.1...
-
Page 7: Safety Instructions
Safety Instructions This section outlines the precautions that must be taken into account when using the Camera Head. Contents Safety Summary ............1-2 Earthing ..............1-3 Cautions and Warnings ..........1-2 Safety Instructions Technical Manual LDK 200 - Camera Head... -
Page 8: Safety Summary
0.2A in other cable shields. It is strickly prohibited to short circuit the inner and outer shields of a triax cable used to connect a camera to a base station. Technical Manual LDK 200 - Camera Head Safety Instructions... -
Page 9: Earthing
• The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLACK. Ensure that your equipment is connected correctly - if you are in any doubt consult a qualified electrician. Safety Instructions Technical Manual LDK 200 - Camera Head... - Page 10 Technical Manual LDK 200 - Camera Head Safety Instructions...
-
Page 11: Installation
Packing/Unpacking ..........2-2 Lens matching ........... 2-4 Attaching an Adapter ......... 2-3 Connectors and Cables ........2-5 Detaching an Adapter ......... 2-3 Specifications LDK 200 ........2-8 Hardware Customization ........2-4 Dimensions ............2-9 Installation Technical Manual LDK 200 - Camera Head... -
Page 12: Packing/Unpacking
Packing/Unpacking Inspect the shipping container for evidence of damage If a unit is being returned to Thomson Multimedia immediately after receipt. If the shipping container or Broadcast Solutions for servicing, try to use the cushioning material is damaged, it should be kept until containers and materials of the original packaging. -
Page 13: Attaching An Adapter
Attaching an Adapter Detaching an Adapter The LDK 200 Camera head is a multi-role camera head To detach an adapter from the camera head follow the that can be used with various adapters. To attach an steps for attaching it in the reverse order. -
Page 14: Hardware Customization
To adjust the back focus of the lens refer to the Data board documentation of the lens. Front driver board Clear Clear Star 4P ND1/4 Star 6P ND 1/16 Soft focus ND 1/64 Technical Manual LDK 200 - Camera Head Installation... -
Page 15: Connectors And Cables
19. Pr vf 20. shield 20-pin female; panel view RS232 connector 1. SPARE 2. RS-RXD 3. RS-TXD 4. RS-DTR 5. RS-DGND 6. RS-DSR 7. RS-RTS 8. RS-CTS 9. +12V 9-pin female; panel view Installation Technical Manual LDK 200 - Camera Head... - Page 16 20-pin Hirose female 5322 214 12544 5322 320 12159 male Lens 12-pin Hirose female 5322 265 10389 5322 265 41208 male Audio Mic 3-pin XLR female 5322 267 40523 Rs 232 9-pin male Technical Manual LDK 200 - Camera Head Installation...
- Page 17 G ret YC9 ret B ret YC8 ret YC7 ret YC6 ret housing YC5 ret housing YC4 ret housing YC3 ret YC2 ret YC1 ret -80V YC0 ret -80V 160-pin male; panel view Installation Technical Manual LDK 200 - Camera Head...
-
Page 18: Specifications Ldk 200
Down to 1/1000 Clean scanning NTSC: between 61.1 and 151.0 Hz PAL: between 51.0 and 103.0 Hz These typical specifications are valid for PAL and NTSC systems and are subject to change without notice Technical Manual LDK 200 - Camera Head Installation... -
Page 19: Dimensions
Dimensions Installation Technical Manual LDK 200 - Camera Head... - Page 20 2-10 Technical Manual LDK 200 - Camera Head Installation...
-
Page 21: Replacements
This section gives information on the procedures to follow when replacing printed circuit boards and mechanical components at first line level. Contents Introduction ............3-2 Handgrip ............3-3 Printed circuit boards ......... 3-2 Front unit ............3-4 Replacements Technical Manual LDK 200 - Camera Head... -
Page 22: Introduction
Pull horizontally on these ejectors to slide the board clear of the camera. Clear Clear Star 4P ND1/4 Star 6P ND 1/16 Soft focus ND 1/64 Technical Manual LDK 200 - Camera Head Replacements... -
Page 23: Handgrip
Loosen the screw securing the handgrip to the top of the adapter. c. Loosen the two socket head screws securing the handgrip to the front of the camera. Replacements Technical Manual LDK 200 - Camera Head... -
Page 24: Front Unit
Caution When reattaching the adapter be extremely careful with the connectors between the camera head and the adapter. Do not allow the guide pins to damage the pins of the connector. Technical Manual LDK 200 - Camera Head Replacements... - Page 25 Move the front unit slightly upwards and forward and disconnect the flat cable that comes from the front from the connector on the connector board of the camera. d. Remove the front unit. Replacements Technical Manual LDK 200 - Camera Head...
- Page 26 Technical Manual LDK 200 - Camera Head Replacements...
-
Page 27: Adjustments
Software Download ..........4-5 Video ADC Automatic Calibration ....... 4-4 3200K Adjustment ..........4-5 Pre-processor Calibration ........4-4 Video Gain Adjustment ........4-7 White Shading Adjustment ......... 4-4 Video Monitoring Adjustment ......4-9 Adjustments Technical Manual LDK 200 - Camera Head... -
Page 28: Introduction
1. Pre-processor calibration (internal) Pre-processor board 1. 3200K adjustment Lens plate assemble 2. White shading adjustment 3. Flare adjustment 1. Software download Data Board 1. Video monitoring adjustment Sync. / monitoring board Technical Manual LDK 200 - Camera Head Adjustments... -
Page 29: Test Equipment
These adjustment points are for factory use only. CAUTION: Switch off the power supply to the camera before removing or replacing printed circuit boards. Adjustments Technical Manual LDK 200 - Camera Head... -
Page 30: Video Adc Automatic Calibration
Defocus. e. In the menu system select the Video menu. f. Select Shading. g. View the waveform monitor and adjust the level, parabolic, and sawtooth adjustments for each colour in turn. Technical Manual LDK 200 - Camera Head Adjustments... -
Page 31: Flare Adjustment
The following procedure should be carried out to update the software. a. Connect the PC to the RS232 connector of the camera. b. Follow the instruction on the PC to download the software. Adjustments Technical Manual LDK 200 - Camera Head... -
Page 32: Video Gain Adjustment
26 27 28 24 25 24 25 21 22 23 21 22 23 19 20 19 20 16 17 18 16 17 18 14 15 14 15 11 12 13 11 12 13 Technical Manual LDK 200 - Camera Head Adjustments... - Page 33 MP B42 ZR458 (G) 1400mV MP B46 ZR658 (B) 1400mV 6. Switch off power. Return digital video board and video mux. board (Triax adapter) to their positions in the camera and adapter. Adjustments Technical Manual LDK 200 - Camera Head...
-
Page 34: Video Monitoring Adjustment
Video Monitoring Adjustment ZR42 Sync. / Monitoring Board Technical Manual LDK 200 - Camera Head Adjustments... - Page 35 Measure at: Adjust with: Required result: Correct: VF output ZR42 PAL 700mV 10µS 0.2V NTSC 714mV (100IRE) VB+700mV 5. Switch off power. Return sync. monitoring board to its position in the camera. Adjustments Technical Manual LDK 200 - Camera Head...
- Page 36 4-10 Technical Manual LDK 200 - Camera Head Adjustments...
-
Page 37: Diagnostics
This section contains an explanation of the internal diagnostic system of the camera. The diagnostic messages and the block diagrams are a useful help when fault finding. Contents Diagnostic Messages ......... 5-2 Diagnostics Technical Manual LDK 200 - Camera Head... -
Page 38: Diagnostic Messages
IIC Error 24. LSP - IIC Warning Left Switch Fails IIC Error 25. CBRC - IIC Warning Right Cover Fails IIC Error 26. SeDa - Calibrations Warning xx Calibrations xx not performed Technical Manual LDK 200 - Camera Head Diagnostics... -
Page 39: Wiring & Block Diagrams
Section 6 Wiring & Block Diagrams Contents Wiring Diagram Dockable Camera Head ..... 6-2 Block Diagram Dockable Camera Head ....6-6 Wiring & Block Diagrams Technical Manual LDK 200 - Camera Head... - Page 40 Technical Manual LDK 200 - Camera Head Wiring & Block Diagrams...
- Page 41 Wiring & Block Diagrams Technical Manual LDK 200 - Camera Head...
- Page 42 Technical Manual LDK 200 - Camera Head Wiring & Block Diagrams...
- Page 43 Wiring & Block Diagrams Technical Manual LDK 200 - Camera Head...
- Page 44 Technical Manual LDK 200 - Camera Head Wiring & Block Diagrams...
-
Page 45: Mechanical Exploded Views
Cover right assy ..........7-4 Optical module 200 PAL switchable ....7-9 Hand grip assy ........... 7-5 Dockable camera head LDK 200 ...... 7-10 Hand grip rubber assy ........7-6 Mechanical Exploded Views Technical Manual LDK 200 - Camera Head... - Page 46 Technical Manual LDK 200 - Camera Head Mechanical Exploded Views...
- Page 47 Mechanical Exploded Views Technical Manual LDK 200 - Camera Head...
- Page 48 Technical Manual LDK 200 - Camera Head Mechanical Exploded Views...
- Page 49 Mechanical Exploded Views Technical Manual LDK 200 - Camera Head...
- Page 50 Technical Manual LDK 200 - Camera Head Mechanical Exploded Views...
- Page 51 Mechanical Exploded Views Technical Manual LDK 200 - Camera Head...
- Page 52 Technical Manual LDK 200 - Camera Head Mechanical Exploded Views...
- Page 53 Mechanical Exploded Views Technical Manual LDK 200 - Camera Head...
- Page 54 7-10 Technical Manual LDK 200 - Camera Head Mechanical Exploded Views...
- Page 55 Section 8 Parts Lists Parts Lists Technical Manual LDK 200 - Camera Head...
- Page 56 Item Description Code Number FRONT MODULE PAL 200 DPM 3922 407 31281 CAMERAHEAD BASIC 3922 407 31251 TYPEPLATE THOMSON CE 702T PAN SCR STL ST M2X6 5322 502 14494 706T CSK SCR STL ST M2X4 5322 502 14493 SPR WASH STL ST 2,1X4.4...
- Page 57 Item Description Code Number FRONT MODULE NTSC 200 DPM 3922 407 31311 CAMERAHEAD BASIC 3922 407 31251 TYPEPLATE THOMSON CE 702T PAN SCR STL ST M2X6 5322 502 14494 706T CSK SCR STL ST M2X4 5322 502 14493 SPR WASH STL ST 2,1X4.4...
- Page 58 SERVICE PARTS LIST Item Description Code Number SMART CARD/LDK100 OWNER SETUP/PINCODE CARD OPERATOR’S MANUAL LDK200 3922 496 47941 TECHNICAL MANUAL LDK200 3922 496 47951 RAIN / OFF USE COVER 3922 401 49581 BAG PE 250X410X0,03 5322 600 10768 USER’S GUIDE LDK5021 3922 496 47341 SERVICE MANUAL LDK200 3922 496 47961...
-
Page 59: Camera Head 200 Basic
SERVICE PARTS LIST Item Description Code Number SHOULDERPAD ASSY 5322 256 10408 HANDGRIP ASSY 5322 498 10681 COVER LEFT ASSY 200 SERIES 3922 407 31351 COVER RIGHT ASSY 200 SERIES 3922 407 31361 BOTTOM 5322 442 01127 5322 442 01128 DOCKPLATE 5322 426 10542 PRINTRAIL BOTTOM... - Page 60 SERVICE PARTS LIST Item Description Code Number COVER LEFT 3922 407 31382 COVER SMART CARD 5322 442 01131 HINGE 5322 417 11362 PADDING 5322 466 11704 SWITCH PAD 5322 410 11449 TORSION SPRING 5322 492 11503 INSULATION FOIL 5322 466 11855 BRACKET SWITCH PANEL 5322 402 10873 COVER SWITCH PANEL...
-
Page 61: Cover Right Assy
SERVICE PARTS LIST Item Description Code Number COVER RIGHT 3922 407 31392 PLATE 5322 466 11856 SEALING VF CONNECTOR 5322 532 12903 PAN TAP SCR F ST T8 2,9X8 5322 502 14044 CABLECLAMP 5322 463 11156 RAINCOVER RS232 5322 442 01134 QUENCHER FOR FLEX CABLE 5322 401 11719 COVER HINGE LONG... -
Page 62: Handgrip Assy
SERVICE PARTS LIST Item Description Code Number HANDGRIP RUBBER ASSY 5322 498 10705 CLAMPBOLT 5322 500 10543 VF PIPE LDK100 5322 530 10461 BUSH 5322 532 12887 CAPTIVE SCREW M4X30 5322 502 14489 ZOOMCOVER STANDARD ASSY 5322 442 01297 307A ZOOM KNOB ASSY FOR CANON LENS 8926 611 32601 307B... -
Page 63: Handgrip Rubber Assy
SERVICE PARTS LIST Item Description Code Number HANDGRIP HANDGRIP RUBBER TALLY LIGHT GUIDE 3922 400 08641 CLAMP 3922 404 23292 EXTRUSION BUSH LOCTITE 403 CYAN0 ACR GLUE 045 HEAT RESITANT RETAINER 648 products market with "s" are available as spare part, other parts are printed for information only. - Page 64 SERVICE PARTS LIST Item Description Code Number OPTICAL MODULE PAL 200 DPM 3922 407 31291 EMC BOX ASSY 5322 441 12073 CABLECLAMP 5322 401 11721 WIRE ASSY 3922 407 33931 SLIDE BRACKET PPG 200 SERIE 3922 404 27851 BRACKET PPG 3922 404 27841 SLIDE BRACKET PPG TOP 5322 402 10875...
- Page 65 SERVICE PARTS LIST Item Description Code Number OPTICAL MODULE NTSC 200 DPM 3922 407 31321 EMC BOX ASSY 5322 441 12073 CABLECLAMP 5322 401 11721 WIRE ASSY 3922 407 33931 SLIDE BRACKET PPG 200 SERIE 3922 404 27851 BRACKET PPG 3922 404 27841 SLIDE BRACKET PPG TOP 5322 402 10875...
- Page 66 SERVICE PARTS LIST Item Description Code Number LENSPLATE ASSY 200 PAL DPM SPINDLE MOTOR 5322 361 11038 FILTERWHEEL ASSEMBLY LDK200 DUST COVER ASSY FRONT 5322 459 04781 HOLLOW SEALINGSTRIP 1.35-0,4 5322 530 10464 O-RING 10X1.3 COMPOUND VITON SHUTTER 5322 466 11708 DOWEL ST A2 246X12 BAJONETRING HANDLE 5322 410 10276...
- Page 67 SERVICE PARTS LIST Item Description Code Number LENSPLATE ASSY 200 NTSC DPM SPINDLE MOTOR 5322 361 11038 FILTERWHEEL ASSEMBLY LDK200 DUST COVER ASSY FRONT 5322 459 04781 HOLLOW SEALINGSTRIP 1.35-0,4 5322 530 10464 O-RING 10X1.3 COMPOUND VITON SHUTTER 5322 466 11708 DOWEL ST A2 246X12 BAJONETRING HANDLE 5322 410 10276...
