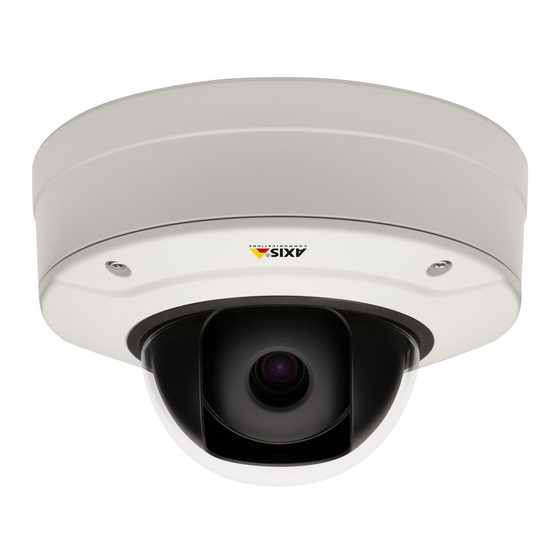

AXIS P3215-VE Network Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P3215-VE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis P3215-VE

Summary of Contents for Axis P3215-VE

  • Page 1 AXIS P3215-VE Network Camera User Manual...
  • Page 2 Axis Communications AB. See Contact Information on page 3 . systems may also be beneficial, for developing shell scripts and applications. Later versions of this document will be posted to the Axis Electromagnetic Compatibility (EMC) website, as required. See also the product’s online help, available via This equipment has been designed and tested to fulfill applicable the web-based interface.
  • Page 3 (STP) or other appropriate method. Battery The Axis product uses a 3.0 V BR/CR2032 lithium battery as the power supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of five years.

  • Page 4: Table Of Contents

    AXIS Media Control (AMC) ........

  • Page 5: Hardware Overview

    To prevent corruption of recordings, the SD card should be unmounted before removal. To unmount, go to Setup > System Options > Storage > SD Card and click Unmount. Note For SD card recommendations see www.axis.com Control Button The control button is used for:...

  • Page 6: Led Indicators

    Resetting the product to factory default settings. See page 47. • Connecting to an AXIS Video Hosting System service. See page 40. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...

  • Page 7: Access The Product

    Macintosh computer (Mac OS X), click on the Bonjour tab and select the product from the drop-down list. If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the Installation and Management Software CD or the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup...

  • Page 8: The Live View Page

    3. Click OK. The password has now been configured. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 47) or by resetting the product to factory default.
  • Page 9 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 11 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Page 10 AXIS P3215-VE Network Camera Access the Product Click the Emulate joystick mode button and click in the image to move the camera view in the direction of the mouse pointer. Click the Center mode button and click in the image to center the camera view on that position. The center mode button could also be used to zoom in on a specific area.

  • Page 11: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 12: Alternative Methods Of Accessing The Video Stream

    AXIS P3215-VE Network Camera Media Streams The AMC Control Panel can be used to configure various video settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...
  • Page 13 • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 14: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Page 15: Video

    Width and Height fields and click Apply. • The Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle.

  • Page 16: Stream Profiles

    Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.

  • Page 17: Camera Settings

    White Balance White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.
  • Page 18 The shutter and gain settings affect the amount of motion blur and noise in the image. To adapt to different lighting, available storage space and bandwidth, it is often necessary to prioritize either low motion blur or low noise. The Axis product allows using different prioritization in normal light and in low light.

  • Page 19: View Area

    To modify a view area, select the view area in the list and modify the settings as required. Click Save. To remove a view area, select the view area and click Remove. Note The PTZ functionality is useful during installation of the Axis product. Use a view area to crop out a specific part of the full view. Overlay Overlays are used to provide extra information, for example for forensic video analysis or during product installation and configuration.
  • Page 20 For more information about privacy masks, see Privacy Mask on page 21. To use an overlay image, the image must first be uploaded to the Axis product. The uploaded image should be a Windows 24-bit BMP image with maximum 250 colors. The image width and height, in pixels, must be exactly divisible by 4 and cannot be larger than the maximum image resolution.

  • Page 21: Privacy Mask

    Privacy masks cannot be bypassed using the VAPIX® application programming interface (API). The Privacy Mask List (Video > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled.

  • Page 22: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...
  • Page 23 Select Enable recording button to enable recording from the Live View page. This button is available when using the AMC viewer. The recordings are saved to the location specified in the AMC Control Panel. See AXIS Media Control (AMC) on page 11 .

  • Page 24: Ptz (Pan Tilt Zoom)

    AXIS P3215-VE Network Camera PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) The PTZ menu is available if digital PTZ (pan, tilt and zoom) is enabled in the selected view area. For more information on view areas, see View Area on page 19.

  • Page 25: Advanced

    60 seconds after the last PTZ control command. 2. Event — The Axis product can be configured to go to a preset position when triggered by an alarm (see Events on page 31). The event will immediately be placed first in the queue except when an administrator is in control.

  • Page 26: Detectors

    Motion Detection Parameters on page 27. Once motion detection windows are configured, the Axis product can be configured to perform actions when motion is detected. Possible actions include uploading images and start recording. For more information, see Setting Up an Action Rule on page 31.
  • Page 27 AXIS P3215-VE Network Camera Detectors Note • Using the motion detection feature may decrease the product’s overall performance. • The position of the Motion Detection Window is relative to the orientation of the Camera. Changing the orientation of the camera will also change the position of the Motion Detection Window.
  • Page 28 AXIS P3215-VE Network Camera Detectors Note • To trigger on small objects or movements, use several small motion detection windows rather than one large window and select a low object size. • To avoid triggering on small objects, select a high object size.

  • Page 29: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Page 30 AXIS P3215-VE Network Camera Applications If the Axis product is reset to factory default, installed applications and their settings are removed. For information about factory default, see Reset to Factory Default Settings.

  • Page 31: Events

    Events The Event pages allow you to configure the Axis product to perform actions when different events occur. For example, the product can start a recording or send an email notification when motion is detected. The set of conditions that defines how and when the action is triggered is called an action rule.

  • Page 32: Create Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see Certificates on page 37.
  • Page 33 AXIS P3215-VE Network Camera Events 3. Click OK. To use the recurrence in an action rule, first select Time from the Trigger drop-down list in the Action Rule Setup page and then select the recurrence from the second drop-down list.

  • Page 34: Recordings

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 44. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Page 35: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 36: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 37 Axis product: Server/Client certificates - To authenticate the Axis product. CA certificates - To authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Page 38: Date & Time

    To include date and time in the overlay text, go to Video and select Include date and Include time. Network Basic TCP/IP Settings The Axis product supports IP version 4 and IP version 6. Both versions can be enabled simultaneously, and at least one version must always be enabled.
  • Page 39 System Options IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Page 40 To make manual settings, select Use the following DNS server address and specify the following: Domain name - Enter the domain(s) to search for the host name used by the Axis product. Multiple domains can be separated by semicolons. The host name is always the first part of a fully qualified domain name, for example, myserver is the host name in the fully qualified domain name myserver.mycompany.com where mycompany.com is the domain name.
  • Page 41 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 42 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).
  • Page 43 Note All AXIS Video MIB traps are enabled when SNMP v1/v2c traps are enabled. It is not possible to turn on or off specific traps. SNMP v3 provides encryption and secure passwords. To use traps with SNMP v3, an SNMP v3 management application is required.

  • Page 44: Storage

    To prevent corruption of recordings, the SD card should always be unmounted before it is ejected. The SD card is automatically mounted when the card is inserted into the Axis product or when the product is started. A manual mount is only required if the card has been unmounted and not ejected and re-inserted.

  • Page 45: Maintenance

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 46: Support

    Click Default to reset all settings, including the IP address, to the factory default values. This button should be used with caution. The Axis product can also be reset to factory default using the control button, see Reset to Factory Default Settings on page 47.

  • Page 47: Advanced

    For more information, see www.axis.com/developer File Upload Files, for example web pages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Page 48: Troubleshooting

    To upgrade the product’s firmware: 1. Save the firmware file to your computer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup 2. Go to Setup > System Options > Maintenance in the product’s webpages.

  • Page 49: Symptoms, Possible Causes And Remedial Actions

    Troubleshooting 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems setting the IP address Try the installation again.
  • Page 50 Check with your network administrator to see if there is a firewall preventing viewing. Installation of additional Configure the Axis product to use a Java applet for updating video images in your browser. Go to ActiveX component Setup > Live View Config and select Java applet under Default viewer.
  • Page 51 AXIS P3215-VE Network Camera Troubleshooting Storage and disk management problems Storage disruption A storage disruption alarm is sent if a storage device is unavailable, removed, full, locked or if other read or write problems occur. To identify the source of the problem, check the System Log under System Options >...

  • Page 52: Technical Specifications

    AXIS P3215-VE Network Camera Technical Specifications Technical Specifications Item Specifications Function/group Camera Models AXIS P3215-VE HDTV 1080p Image sensor Progressive scan RGB CMOS 1/2.8" Lens Varifocal, remote focus and zoom, P-iris, IR corrected, megapixel resolution 3-10.5 mm, F1.4: horizontal angle of view 95°-34°...
  • Page 53 AXIS Video Hosting System (AVHS) with One-Click Camera Connection. ONVIF Profile S; specification available at www.onvif.org AXIS Media Control SDK (available at www.axis.com) event trigger data in video stream Quality of Service (QoS) layer 3, DiffServ Model Embedded Linux operating system...

  • Page 54: Connectors

    Installation Guide, Installation and Management Software CD, Windows decoder 1-user accessories license, Mounting bracket, Cable gasket, Resistorx T20 L-key, Weather shield, Drill hole template Video AXIS Camera Companion (included), AXIS Camera Station and video management management software from Axis’ Application Development Partners. software (not See www.axis.com/products/video/software...
  • Page 55 User Manual Ver. M1.7 AXIS P3215-VE Network Camera Date: August 2014 © Axis Communications AB, 2014 Part No. 56039...
