Installer: Leave this manual with the appliance. Consumer: Retain this manual for future reference.
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe
place for future reference. Do not allow anyone who has not read these instructions to assemble,
light, adjust or operate the heater.

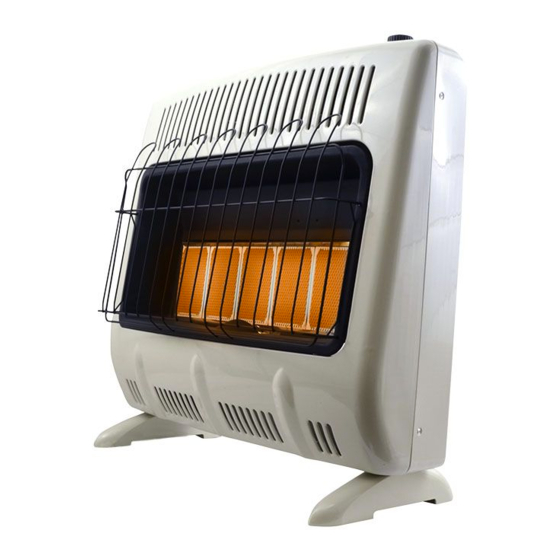

Plaque Heaters
MHVFR20TB NG
(BLOWER INCLUDED)
MHVFR20T NG
(BLOWER SOLD SEPARATELY)
MHVFR30TB NG
(BLOWER INCLUDED)
MHVFR30T NG
(BLOWER SOLD SEPARATELY)
UNVENTED NATURAL GAS FIRED ROOM HEATER
WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Shut off gas supply
• Do not try to light any appliance
• Do not touch an electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to Fresh Air for Combustion
and Ventilation section on page 4 of this manual.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Refer to this manual for correct installation and operational procedures. For assistance or additional
information consult a qualified installer, service agency, or gas supplier.
OPERATING INSTRUCTIONS
AND OWNER'S MANUAL
MR. HEATER, INC., 4560 W. 160
TH
ST., CLEVELAND, OHIO 44135 · 800-251-0001
Blue Flame Heaters
MHVFB20TB NG
(BLOWER INCLUDED)
MHVFB20T NG
(BLOWER SOLD SEPARATELY)
MHVFB30TB NG
(BLOWER INCLUDED)
MHVFB30T NG
(BLOWER SOLD SEPARATELY)
02/14 70808 2015 JM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHVFR20TB NG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mr. Heater MHVFR20TB NG

Summary of Contents for Mr. Heater MHVFR20TB NG

  • Page 1 Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or gas supplier. 02/14 70808 2015 JM MR. HEATER, INC., 4560 W. 160 ST., CLEVELAND, OHIO 44135 · 800-251-0001...

  • Page 2: Table Of Contents

    This appliance may be installed in an aftermarket* permanently manufactured (mobile) home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with any other gas. *Aftermarket completion of sale, not for the purpose of resale, from the manufacturer.

  • Page 3: Specifications

    SPECIFICATIONS IR20TB/IR20T NG IR30TB/IR30T NG BF20TB/BFz NG BF30TB/BF30T NG BTU (Available) 20,000 30,000 20,000 30,000 Type of Gas Natural Gas Only Natural Gas Only Natural Gas Only Natural Gas Only Ignition Battery ignitor (1-AA) Battery ignitor (1-AA) Battery ignitor (1-AA) Battery ignitor (1-AA) Pressure Regulator Setting 4.5 Inches of Water...

  • Page 4: Ignition System Battery Installation

    Product Features FRESH AIR FOR COMBUSTION AND VENTILATION Ignitor Button WARNING: This heater shall not be installed in a Fan Blower Switch confined space or unusually tight construction un- Control Knob (located on back of less provisions are provided for adequate combus- heater) tion and ventilation air.

  • Page 5: Determining The Type Of Heater Location Space

    *Adjoining rooms are communication only if there From Inside Building (Figure 2). are odorless passageways or ventilation grills be- B. Vent room directly to the outdoors. See Ventilation tween them. Air From Outdoors (Figure 3). DETERMINING THE TYPE OF HEATER C.

  • Page 6: Installation

    *A CSA/AGA certified equipment shutoff valve with WARNING: Rework worksheet, adding the space 1/8” NPT tap is an acceptable alternative to test gauge of the adjoining unconfined space. The combined connection. Purchase a CSA/AGA certified equipment space must have enough fresh air to supply all ap- shutoff valve from your dealer.

  • Page 7: Fastening Heater To Wall

    1. Attach to wall studs 2. Attach to wall anchor Attaching to Wall Stud: This way is the best providing the strongest mounting in 36” min. from wood frame houses. ceiling CLEARANCE Attaching to Wall Anchor: SPECIFICATIONS ON PG. 3 This way allows you to attach mounting bracket to hol- low walls (wall areas between studs) or to solid walls (concrete or masonry).

  • Page 8: Floor Mounting Away From Wall

    1. Drill holes at marked locations using 5/16” drill 4. If installing bottom mounting screw into hollow bit. For solid walls (concrete or masonry), drill or solid wall, install wall anchors. Follow steps 1 at least 1” deep. through 4 under Attaching to Wall using Anchor. If installing bottom mounting screw into wall 2.
  • Page 9 cleaning. A sediment trap traps moisture and con- WARNING: This appliance requires a 3/8” NPT taminants. This keeps them from going into heater. If (National Pipe Thread) inlet connection to the sediment trap is not installed or is installed improperly, pressure regulator.

  • Page 10: Operating Your Heater

    Pressure Testing Heater Gas Connections: 1. Make sure that the heater supply piping sys- tem is connected and has been leak tested as described above. 2. Make sure control knob of heater is in OFF position. 3. Open equipment shutoff valve (see figure 13). 4.

  • Page 11: Cleaning And Maintenance

    THERMOSTAT CONTROL OPERATION technician to inspect the appliance and to re- place any part of the control system which has FOR IR20NGT / IR30NGT: The thermostatic control been underwater. used simply turns on and off the burner. FOR BF20NGT / BF30NGT: The thermostatic control LIGHTING INSTRUCTIONS used modulates the flame size as the temperature gets 1.
  • Page 12 A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. To clean the pilot assembly find the small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see figure 25).
  • Page 13 This page intentionally left blank. Unvented Natural Gas Vent Free Room Heaters Installation Instructions and Owner’s Manual...

  • Page 14: Troubleshooting

    TROUBLESHOOTING NOTE: All troubleshooting items are listed in order of operation and likely occurrence. WARNING: Only a qualified service person should service and repair heater. CAUTION: Never use a wire needle, or similar object to clean ODS/pilot. This can damage ODS/pilot unit. Make sure grille guard is in place before running heater.
  • Page 15 Burner does not light after ODS/pilot is lit 1. Burner orifice is clogged 1. Clean burner orifice (see Cleaning and 2. Burner orifice diameter to small Maintenance on pages 11 and 12), or 3. Inlet gas pressure is too low replace burner orifice 2.

  • Page 16: Exploded-View Parts Drawing

    BF20TB NG BF20T NG BF30TB NG BF30T NG Blower not included on all 22-1 units 33-1 22-3 22-2 27-2 28-2 IR20TB NG IR20T NG IR30TB NG IR30T NG Blower not included on all units 33-1 22-1 22-3 22-2 27-1 16-1 28-1 16-2 Installation Instructions and Owner’s Manual...

  • Page 17: Parts List

    This list contains replacement parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 20 of this manual. ITEM PART NO. DESCRIPTION QTY. IR20 NG BF20 NG IR30 NG BF30 NG 70600 70600 70605 70605 Cabinet assembly...
  • Page 18 ITEM PART NO. DESCRIPTION QTY. IR20 NG BF20 NG IR30 NG BF30 NG 70677 – – Burner Plaques, 20 – 70678 – Plaques Gasket, 30 70678 – – Plaques Gasket, 20 70701 70701 70701 70701 Ignition Cap 70597 70597 70597 70597 3/8”...
  • Page 19 This page intentionally left blank. Unvented Natural Gas Vent Free Room Heaters Installation Instructions and Owner’s Manual...

  • Page 20: Warranty

    Mr. Heater, Inc. warrants its heaters and accessories to be free from defects in material and workmanship for a period of 1 year from date of purchase. Mr. Heater, Inc. will repair or replace this product free of charge if it has been proven to be defective within the 1-year period, and is returned at customer expense with proof of purchase to Mr.
