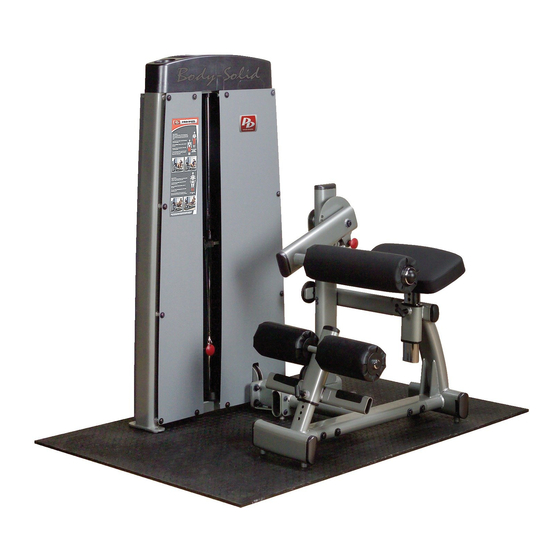

Body Solid DABB.4 Owner's Manual
  1. Manuals
  2. Brands
  3. Body Solid Manuals
  4. Sports & Outdoors
  5. DABB.4
  6. Owner's manual

Body Solid DABB.4 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com
OWNER'S MANUAL
DABB.4

Advertisement

loading
Need help?

Need help?

Do you have a question about the DABB.4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Body Solid DABB.4

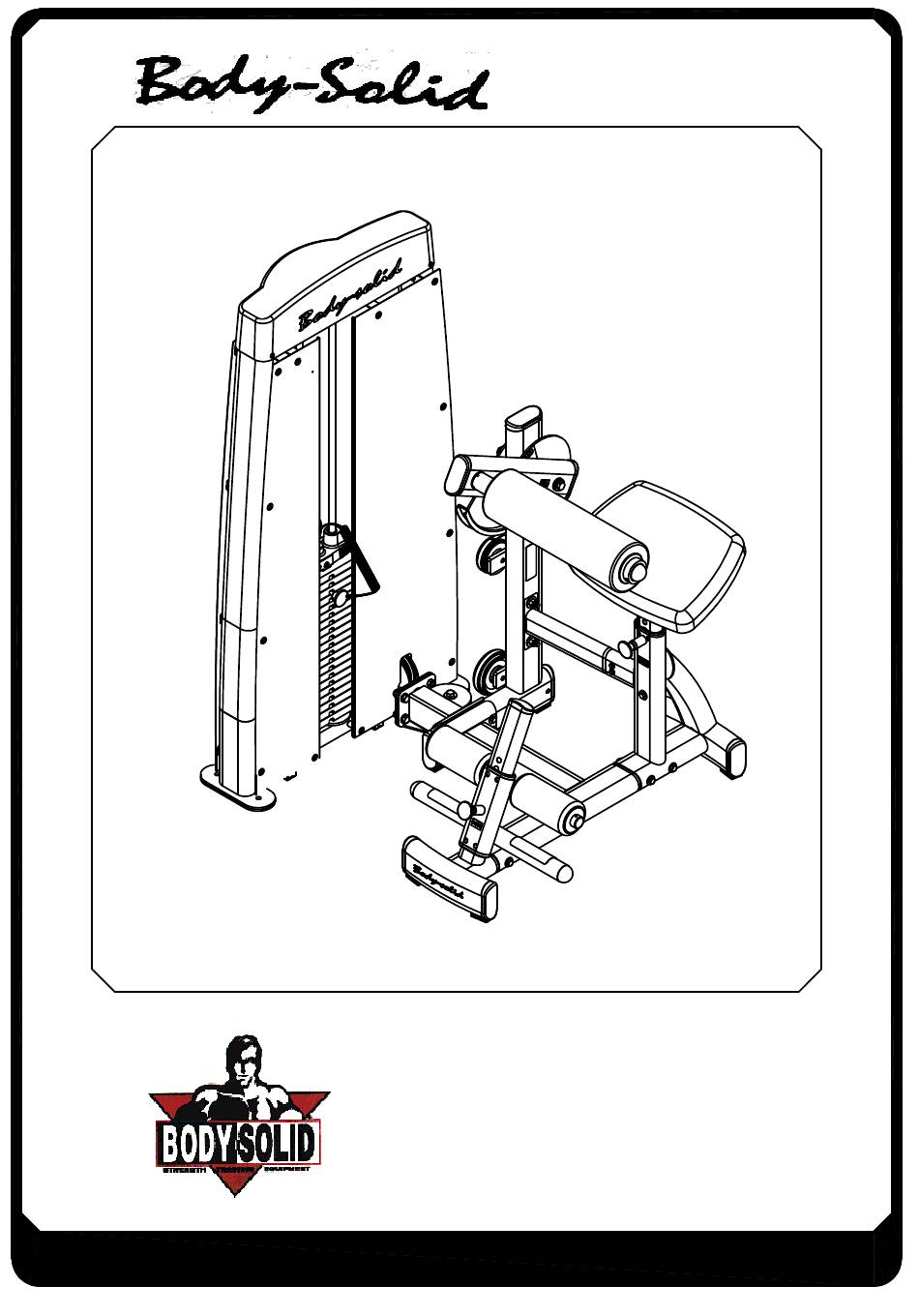

  • Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com OWNER'S MANUAL DABB.4...
  • Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e                              ...
  • Page 3 I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
  • Page 4 DABB ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/2"L PARTIAL QTY.3 (A2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1 (A3)HEX BOLT 1/2"X3-3/4"L PARTIAL QTY.2 (A4)HEX BOLT 3/8"X3-1/4"L PARTIAL QTY.3 (A5)HEX BOLT 5/16"X1-1/4"L PARTIAL QTY.4 (A6)HEX BOLT 5/16"X1-3/4"L PARTIAL QTY.1 DABB.3-122008 Page...
  • Page 5 DABB ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION   (A7) 1/2"X 8.5X23L STEEL BUSHING (8110-062) QTY.1 DABB.3-022017 Page...
  • Page 6 DABB ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.6 (C3)3/8"(I.D.)FLAT WASHER 27 QTY.6 (B2)NYLON LOCK NUT 3/8" QTY.3 (C4)5/16"(I.D.)FLAT WASHER 16 QTY.2 (B3)NYLON LOCK NUT 5/16" QTY.1 (C5)5/16"(I.D.)FLAT WASHER 24 QTY.4 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.6 (C6)SPRING WASHER 5/16" QTY.4 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.6 DABB.2-042007 Page...
  • Page 7 DABB ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.20 (AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 (AA7)10LB PIN(8250-071) QTY.1 DABB.2-062007 Page...
  • Page 8 DABB ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (CC2)M6(I.D.)FLAT WASHER 13 QTY.20 (AA8)ELASTIC BOLT QTY.1 (AA10)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (CC5)SPRING WASHER 3/8" QTY.1 (AA11)FIRM SHEATH(8890-046) QTY.1 (CC6)1/2"(I.D.)FLAT WASHER 25 QTY.2 (BB2)NYLON LOCK NUT1/2" QTY.3 (BB3)NYLON LOCK NUT M10 QTY.1 (CC1)1/2"(I.D.)FLAT WASHER 34 QTY.4 DABB.2-062007 Page...
  • Page 9 DABB ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/2"L PARTIAL QTY.3 (A2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1 (A3)HEX BOLT 1/2"X3-3/4"L PARTIAL QTY.2 (A4)HEX BOLT 3/8"X3-1/4"L PARTIAL QTY.3 (A5)HEX BOLT 5/16"X1-1/4"L PARTIAL QTY.4 (A6)HEX BOLT 5/16"X1-3/4"L PARTIAL QTY.1 DABB.4-082009 Page...
  • Page 10 DABB ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A7)STEEL BUSHING 1/2"X 8.5X21L QTY.1 DABB.4-082009 Page...
  • Page 11 (B1)NYLON LOCK NUT1/2" QTY.6 (C3)3/8"(I.D.)FLAT WASHER 27 QTY.6 (B2)NYLON LOCK NUT 3/8" QTY.3 (C4)5/16"(I.D.)FLAT WASHER 16 QTY.2 (B3)NYLON LOCK NUT 5/16" QTY.1 (C5)5/16"(I.D.)FLAT WASHER 24 QTY.4 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.6 (C6)SPRING WASHER 5/16" QTY.4 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.6 DABB.4-082009 Page...
  • Page 12 DABB ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.20 (AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 (AA7)10LB PIN(8250-071) QTY.1 DABB.4-082009 Page...
  • Page 13 (CC2)M6(I.D.)FLAT WASHER 13 QTY.20 (AA8)ELASTIC BOLT QTY.1 (AA10)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (CC5)SPRING WASHER 3/8" QTY.1 (AA11)FIRM SHEATH(8890-046) QTY.1 (CC6)1/2"(I.D.)FLAT WASHER 25 QTY.2 (BB2)NYLON LOCK NUT1/2" QTY.3 (BB3)NYLON LOCK NUT M10 QTY.1 (CC1)1/2"(I.D.)FLAT WASHER 34 QTY.4 DABB.4-082009 Page...
  • Page 14 ------------------------------------- [1PCS] --------------------------------------------[1PCS] (D16) 131X30 PULLEY CAP(9211-116) (D17)3425mm STEEL CABLE(FDABBA) -----------------------------------------[1PCS] (D18) 3/4" SHAFT COLLAR(9211-046) --------------------------------------------[2PCS] (D19) 4"RUBBER DOUNT(9310-017) ---------------------------------------------[2PCS] (D20)TOP PLATE(8400-006) -------------------------------------------------------[1PCS] (D22)95X250 RUBBER PAD(9310-060) ------------------------------------------[2PCS] -----------------------------[1PCS] (D23)DABB FOR DGYM STEEL CABLE(FDABBB) ------------------------------------[1PCS] (D24)WEIGHT SELECTOR BAR(8210-042B) 3425 DABB.4-082009 Page...

  • Page 15: Parts Illustration

    DABB ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION A [1PCS] C [1PCS] B1 [1PCS] D [1PCS] E1[1PCS] F [1PCS] H [1PCS] I1 [1PCS] J [1PCS] K [1PCS] L [1PCS] M [1PCS] 8312-091 N [1PCS] O [1PCS] P [2PCS] 9122-039 9161-047 9161-018 Q [1PCS] 9440-163 DABB.3-122008 Page...
  • Page 16 DABB ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION AA[1PCS] AB[1PCS] 6610-002 8380-046 AC[1PCS] AD[1PCS] 8380-047 8380-048 AK1PCS] AE[2PCS] 9211-111A 260158A 3/4"X1.6tX1407L AG[2PCS] AH[9PCS] 8313-144 8321-040 50.5 AI[1PCS] AJ[2PCS] 8321-040 8321-040 50.5 50.5 DABB.4-082009 Page...
  • Page 17 DABB ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed M10 Washer X5 M10X16L HEX Bolt X5 M10 Washer X6 M10X16L HEX Bolt X6 DABB.4-082009 Page...
  • Page 18 DABB ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed C5X4 3/16"x3/16" Allen Head Screw x 4 C6X4 D5X2 D13X4 A5X4 D6X2 1" Chrome Collar x 2 3/8"X3/4"L Round Inner Head 3/8" Spring Washer DABB.4-082009 Page...
  • Page 19 DABB ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed M6 Washer X4 M6x12 HEX Bolt X 4 3/8"X3" HEX Bolt 3/8" Washer DABB.4-082009 Page...
  • Page 20 DABB ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed 1/2"X3/4"L HEX Bolt 1/2" Washer 6X6X45L Key 1/2"X3/4"L HEX Bolt 1/2" Washer 1/2" Washer 1/2"X3/4"L HEX Bolt 3/16"X3/16" Allen Head Screw 2" Chrome Collar DABB.4-082009 Page...
  • Page 21 DABB ASSEMBLY INSTRUCTIONS Detail View Above shows STEP 5 assembled and completed 5/16"X5/16" Allen Head Bolt x4 1/2" WASHER X2 1/2" PLATE WASHER X2 1/2"X1-1/2"L HEX BOLTX2 DABB.2-042007 Page...
  • Page 22 DABB ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed AJX2 M6X12 Round Bolt X4 M6 Washer X4 AGx2 M10X25L Cone Bolt x8 D22x2 DABB.2-042007 Page...
  • Page 23 DABB ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed D18X2 AEX2 D19X2 DABB.2-042007 Page...
  • Page 24 ASSEMBLY INSTRUCTIONS DABB Above shows STEP 8 assembled and completed DABB.2-042007 Page...
  • Page 25 DABB ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed 1/2"x1"L HEX Bolt 1/2" Washer B1x3 C2x3 DABB.2-042007 Page...
  • Page 26 DABB ASSEMBLY INSTRUCTIONS Above shows STEP 10 assembled and completed 1/2" Washer Detail View 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt A4 C4 WEIGHT STACK CABLE AA11 D17. M4 screw AA10 Selector Rod DABB.2-042007 Page...
  • Page 27 DABB ASSEMBLY INSTRUCTIONS Above shows STEP 10 assembled and completed 1/2" Washer Detail View 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt WEIGHT STACK CABLE AA11 D17. M4 screw AA10 Selector Rod DABB.3-012018 Page...
  • Page 28 ASSEMBLY INSTRUCTIONS DABB Above shows STEP 11 assembled and completed M6X12L Round Bolt X21 M6 Washer X4 M6 Washer X21 M6X20L Round Bolt X4 AA6X4 DABB.2-062007 Page...
  • Page 29 DABB ASSEMBLY INSTRUCTIONS DGYM DABB DABB.2-042007 Page...
  • Page 30 ASSEMBLY INSTRUCTIONS Anti-cable Break Up Supplement Page BA[2PCS] 8331-015  13.5 PULLEY(9213-010B) NYLON LOCK NUT 1/2" 1/2"(I.D.)FLAT WASHER DFA/DFD HEX BOLT 1/2"x2 1/4"L 1/2"(I.D.)FLAT WASHER DF-042017 Page...
