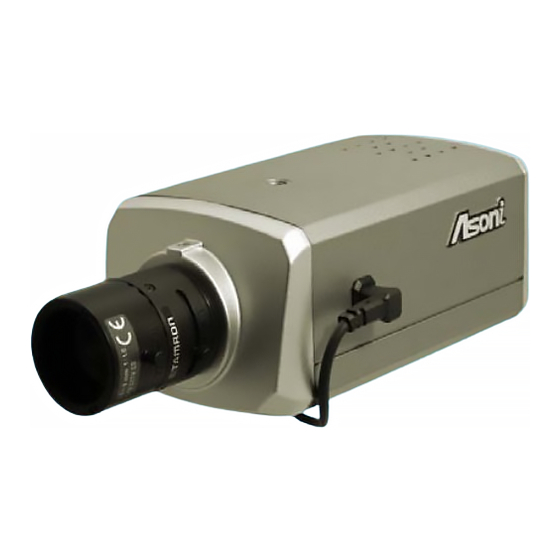

- Page 1 H.264 CCD Network Camera CAM614 / CAM614W / CAM614-PoE User’s Manual Date: 7/20/2012 Firmware Version: V1.0.32...
-
Page 2: Table Of Contents
Content Content ............................1 Preface ..........................3 Product Specifications ....................... 3 Product Installation ......................6 A. Hardware Installation ...................... 6 Cable Connections........................ 6 I/O Connections ........................7 B. Monitor Setting ........................ 9 C. IP Assignment........................ 10 Live Video .......................... 12 Configuration ........................ - Page 3 Network Configuration ..................... 56 A. Intranet Only ........................56 Connects to PC Directly ...................... 56 Connects to an Exist LAN ....................57 B. Internet Only ........................58 Connects to ADSL with Fixed Public IP Address ..............58 Connects to ADSL with Floating Public IP Address (PPPoE) ..........59 C.
-
Page 4: Preface
1. Preface This camera is a professional CCD network camera which builds in web server. User views real-time video via IE browser. It supports H.264, JPEG and MPEG4 (3GPP Only) video compression which provides smooth and high quality video. The event video can be stored in the SD card, and can be playback remotely. - Page 5 Digital I/O 1 Digital in / 1 Relay out Power Supply Normal & Wireless model: DC 12V, 1A PoE model (built-in PoE Splitter): Use PoE: PoE Injector (IEEE 802.3af) Or, use Power Adaptor: DC 12V, 1A Power Consumption Max. 6 Watt Dimensions W58 x H65 x D131.5 mm Network...
- Page 6 Windows 2000, XP, Vista, Windows 7 Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above Suggested Hardware Intel Core 2 Duo 1.66GHz, RAM: 1GB Graphic card: 128MB onboard RAM * Specifications are subject to change without notice...
-
Page 7: Product Installation
3. Product Installation A. Hardware Installation Cable Connections The RJ-45 connector allows connect the Ethernet cable. Network Connector: To connect the DC 12V power adapter. Power Jack: The RCA connector allows connect to an amplified speaker, Audio Out: you can hear the voice of the remote site from the speaker. -
Page 8: I/O Connections
these functionalities. 2. Connect the wireless antenna for the Wireless camera. 3. Connect Ethernet cable for network connection. 4. Connect power adapter to turn on the camera. 5. If the camera is PoE model, the power adapter is not necessary. The camera will get the power from the PoE injector or PoE switch. - Page 9 Alarm In Relay Out Digital Input (Alarm Input) GND (Ground): Initial status is LOW. Alarm: Max. 50mA, 12VDC. Door/Window Contacts Relay output COM: Common pin. N.O. (Normally Open): Max. 1A / 24VDC or 0.5A / 125VAC. N.C. (Normally Close): Max. 1A / 24VDC or 0.5A / 125VAC.
-
Page 10: Monitor Setting
B. Monitor Setting 1. Right-Click on the desktop. Select “Properties” Change color quality to “Highest (32bit)”. -
Page 11: Ip Assignment
PC must be in the same subnet. For more information about subnets, please consult your network administrator. “Asoni IP Search” is a utility that provides an easier, more efficient way to configure the IP address and network settings of the network camera in Local Network (LAN). - Page 12 2. IP Search searches all the network devices which connect to the intranet and lists on the window. Click [Search] button to search again. 3. From the list, click and select the device with the MAC Address that corresponds to the device that is to be configured.
-
Page 13: Live Video
4. Live Video Start the IE browser, type the IP address of the network camera in the address field: http://<IP of camera> If the “HTTP Port” has been changed from “80”, type the URL as: http://<IP of camera>:<HTTP Port> After link to the camera, it will show a dialogue box. - Page 14 When popup the following dialogue box, click [Yes].
- Page 15 The web page of the device shows as following. If you are using IE 8.0 or above, please click “Compatibility View” icon to make this web page works properly: ⑤ ① ② ③ ④ ⑥ Streaming : Select the streaming 1 or 2 from the pull-down list to display. ...
- Page 16 Function Buttons : Click these buttons will perform the following functions. Full Screen : Click this button or double-click the video, the video will change to full screen mode. Press [Esc] key or double-click the video again, it will back to normal mode. Snapshot : Click this button to take snapshot of the video.
-
Page 17: Configuration
5. Configuration Click [Configuration] button to get into the configuration page. Click [Live View] button to back to the Live-View page. A. System System Information Set up the camera name, select language, and set up the camera time. System Information... - Page 18 Server Information MAC Address: The MAC address of the Ethernet network card in the device. Server Name: You can type a name into this field to identify this device. Show on Status Bar: Determine whether show the server name on the Status Bar. Default Language: Select the default language for the user interface.
- Page 19 Time Setting Date Format: Select the format to display the date. Time Zone: Select the GMT to match your time zone. Enable Daylight Saving: If using “Daylight Saving”, enable this option and select the start and end time. Synchronize with NTP Server: Select this option and type the IP address of a NTP (Network Time Protocol) server, this device will synchronize the time with the NTP server via network.
- Page 20 The date and time remain the same: Keep the current date and time without change. After set up, click [Apply] to save the settings.
-
Page 21: User Management
User Management You can add, remove and manage the users in this page. This device supports 3 user groups: Administrator: The administrator can view, operate and configure all functions and settings of this device. Guest: The users in Guest group can only view the live video in Live-View page. ... - Page 22 Edit: To change the username and password, click [Edit] and modify the administrator or user in the pop-up window. Remove: To remove the user, click [Remove].
-
Page 23: System Upgrade
System Upgrade This page allows user to upgrade firmware, restart device and restore the factory default settings. System Upgrade Firmware Upgrade The firmware can be upgraded online. To update the firmware, click [Browse…] to select the new firmware file, and then click [Upgrade] to the procedure. -
Page 24: System Logs
System Logs System Logs System Status Logs Click the [View] button on the right side to list the logs of system status. Motion Trigger Logs Click the [View] button on the right side to list the logs of motion detection. Digital-In Trigger Logs Click the [View] button on the right side to list the logs of digital input detection. -
Page 25: Video/Audio Setting
B. Video/Audio Setting Video Format This device supports H.264/MJPEG and MPEG4 (only for 3GPP streaming) Triple Mode and Triple Streaming, set the video parameters in this page. Video Format... - Page 26 Streaming 1 and 2 Output Setting Basic / Advanced Mode: Select the mode to configure the parameters. Advanced mode provides more detail parameters for setting. Resolution: Select the resolution from the pull-down list. Frame Rate Per Second: The video refreshing rate per second. Select the frame rate from the pull-down list.
- Page 27 Since the bandwidth of 3G is not fast usually, the 3GPP streaming will be set to the following configuration: Resolution – Fixed to 176x144. Frame Rate –Fixed to 5FPS. Video Format – Fixed to MPEG4. Audio Format – Fixed to AMR. 3GPP Path: Assign a name to identify the 3GPP video stream To view the live video with a 3G mobile phone or PDA, open “Streaming Player”...
-
Page 28: Image Setting
Image Setting Image Setting Privacy Mask For the security purpose, there are 3 areas can be setup for privacy masks, the masked areas will not be shown in Live-View and recorded file. To set up or clear the... - Page 29 privacy mask, click [Draw/Clear Area] button, and then use mouse to drag the area on the video. After the configuration, click [Save Area Settings] button to save the configuration. Image Quality Brightness / Contrast / Hue / Saturation / Sharpness: Adjust these parameters to get clear video.
- Page 30 Color Mode: The video will be always displayed in color. B/W Mode: The video will be always displayed in black/white. Automatic Gain Control: Enable/ disable this function depend on the environment. Night Mode: Adjust this parameter depend on the environment. 3D DNR: This device supports “3D-DNR (Digital Noise Reduction)”, adjust this parameter to get clear video.
-
Page 31: Audio Setting
Audio Setting This device supports 2-way audio. Note, the audio will not be smooth when enable SD card recording function simultaneously. Audio from Device to Local PC For this device to local PC, select [Enable] and then click [Apply] to start this function. If set to [Disable], the [Voice] icon on Live View page is not workable. -
Page 32: Network Setting
C. Network Setting Network Setting Network Setting... - Page 33 IP Assignment DHCP: If this device behinds a router and the router provides DHCP service, using DHCP, this device will get all network parameters from the router automatically. Static: Assign IP address, subnet mask, gateway, and DNS manually. Port Assignment Set the port if necessary.
- Page 34 RTSP Server Setting RTSP Server: The video stream can be direct retrieve via RTSP connection, you can close this function by disable this option. RTSP Port: Set the port for transfer the video and audio. The default is “554”, change the port if you want to use router’s NAT (Network Address Translation) to make this device can be linked from Internet.
- Page 35 keeping the RTSP connection, this device will terminate the RTSP connection. If select “Disable”, this device will always keep the RTSP connection. If the “Time-out” error happens on NVC side, please disable this function. After set up, click [Apply] to save the settings.
-
Page 36: Wireless Setting
Wireless Setting The Wireless model supports Wireless network connection, set the parameters in this page. Note: Wireless network and Ethernet network use the same IP, user has to unplug Ethernet cable to activate the Wireless connection. If Ethernet cable is plugged, Wireless connection will be stopped. - Page 37 WEP Setting The Wireless model supports “WEP” security encryption. The settings must be same as the Router’s setting. Consult your network administrator to set the parameters.
- Page 38 Authentication: There are “Open System” and “Shared Keys”, it is based on different encryptions. This has to be the same as the Router’s setting. Encryption: There are 64 bits and 128 bits. This is based on Key Type based on the Router’s setting.
-
Page 39: Mail / Ftp / Samba Setting
Mail / FTP / Samba Setting To send out the event video to E-mail, FTP or Samba network storage, please set up the configuration first. Mail / FTP/ Samba... - Page 40 Mail Setting Login Method: This device provides 2 kinds of mail settings. “Anonymous” for the mail server which doesn’t need login with user name and password. “Account” for the mail server which needs login with user name and password. Send Mail Server: The IP address or URL of the send-mail server.
- Page 41 FTP Port: The port of the FTP service. Default is 21. Store Path: The path to save the sent video file. FTP Mode: Select “PORT” or “PASV to fit the FTP server. “PORT” is for sending file to an Active FTP server; “PASV” is for sending file to a Passive FTP server. Auto Create Folder by Date: If select “Yes”, a folder will be created under the “Store Path”...
-
Page 42: Pppoe Setting
PPPoE Setting If this device connects to an ADSL modem directly and want to use PPPoE connection, set the parameters in this page. PPPoE Setting PPPoE Connection Select [Enable] to use PPPoE. Type in user name and password for the ADSL connection. -
Page 43: Ddns Setting
DDNS Setting This device supports DDNS, set the parameters in this page. DDNS Setting DDNS Setting There are several DDNS providers can be selected. Select the provider from the pull-down list, input Hostname, User name, Password and the Schedule Update time, and then click [Apply] to connect to the DDNS provider. - Page 44 Update Failed, check your internet connection: Network connection failed. Update Failed, please check the account information with you provider: input hostname, username or password may be wrong.
-
Page 45: Event Handling
D. Event Handling Event Setting This device supports multiple event settings. Event This device supports 4 kinds of event detections:... - Page 46 Motion Detection. Digital Input Detection. Network Disconnection Detection: This event will be triggered once the wire network is disconnected. Specific IP Detection: This event will be triggered once the network connection with a specific IP address is disconnected. Motion Detection This device allows 3 areas for detect motion.
- Page 47 “Set Area” row, and then use mouse to drag the area on the video. Adjust the Sensitivity: To adjust the sensitivity of detection, select the level from the pull-down list. Activate Motion Detection: To activate the motion detection, enable the [Detect Area] check box Actions when Motion Detection is Trigger: Select what actions will be taken once...
- Page 48 Recommendation of Motion Detection Area To ensure the Motion Detection works well, and avoid unnecessary trigger, please follow the rules to draw the Motion Detection Areas: The moving object larger than the 50% of the Motion Detection Area, it will be detected, and the Motion Detection is triggered.
- Page 49 Video: When an event (Motion Detection or Digital Input Detection) is triggered, the video will be recorded as still image with AVI format. The beginning and ending time of the file is depending on the Pre and Post Record Time Setting. Snapshots: This option is available when the “Video Format”...
- Page 50 Specific IP Detection For the use of recording software, this device supports the detection of the connection of this device and PC. Whenever the connection is disconnected, it records the video to local SD card to make sure the video recording is continuous. Detect IP –...
-
Page 51: I/O Setting
I/O Setting This device provides Digital Input and Digital Output. When the Digital Input is triggered, it can send the video or snapshot to specific mail address; transmit the video or snapshot to remote FTP server or Samba network storage; trigger the digital out; record video or snapshot into local SD card. - Page 52 Save to SD Card: When the Digital Input is triggered, record the video or snapshot into to SD card. Log: If “Save to SD Card” option has been selected for action, you can determine whether send a message to the specific mail address FTP site or Samba network storage.
-
Page 53: Schedule
Schedule This function provides the schedule for the following: Send Snapshot with the Scheduled Time: automatic send a snapshot to the E-mail address, FTP server or Samba network storage, or save to SD card. The interval time can be set. ... - Page 54 unselect all time. The square in green means the time is selected; the square in light-grey means the time is unselected. Select / Unselect Specific Time: Click the square of the time table to select or unselect the specific time. The square in green means the time is selected; the square in light-grey means the time is unselected.
-
Page 55: Sd Card
SD Card In this page, if a SD Card is inserted, you can record the video once an event is triggered, play back and manage the recorded files in the SD Card. Note: The SD card must be formatted as FAT or FAT32 file system. The use of the SD Card will affect the operation of this device slightly, such as affecting the frame rate of the video. - Page 56 The “.avi” extension name of the file means this file is a video file; the “.jpg” extension name means it is a picture file. Click the file to start Microsoft Media Player to play it. If the bandwidth is lower for playback directly, please right-click on the file and select [Save As…] to download it to the PC, and then play the downloaded file with Microsoft Media Player.
-
Page 57: Network Configuration
6. Network Configuration A. Intranet Only Connects to PC Directly If you want to connect the camera to PC directly for the very first time setup, please refer to the figure below for the connection. Ethernet Cable Camera This device supports Auto-MDI/MDIX, IP Address: 192.168.1.200 IP Address: 192.168.1.2 you can use a straight or cross-over... -
Page 58: Connects To An Exist Lan
Connects to an Exist LAN If the camera will be used in a local network (LAN) and don’t allow to access via Internet, please refer to the figure below for the connection. Intranet (LAN) Camera 1 Switch Router or IP Sharing IP Address: 192.168.1.200 IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0... -
Page 59: Internet Only
B. Internet Only Connects to ADSL with Fixed Public IP Address If the camera connects to Internet with an ADSL modem and the public IP address of ADSL is fixed, please refer to the figure below for the connection. Internet (WAN) Camera 3G Mobile Phone IP Address: 60.220.20.250... -
Page 60: Connects To Adsl With Floating Public Ip Address (Pppoe)
Connects to ADSL with Floating Public IP Address (PPPoE) If the camera connects to Internet with an ADSL modem and the public IP address of ADSL is variable, the camera can use PPPoE function for the connection. Internet (WAN) Camera 3G Mobile Phone Configure the PPPoE Setting ADSL... - Page 61 After enable the DDNS, assume the registered URL is “test.dyndns.org”, now the camera can be linked with following URLs: Client Link Address Remark http://test.dyndns.org With audio: Must enable “3GPP Stream” in 3G Mobile rtsp://test.dyndns.org/3g Configuration Video/Audio Phone Without audio: ...
-
Page 62: Intranet + Internet
C. Intranet + Internet Connects to Internet with Fixed Public IP Address If the camera will be added into a local network (LAN), and will be accessed via both Intranet and Internet, please refer to the figure below for the connection. Intranet (LAN) Internet (WAN) 3G Mobile Phone... - Page 63 Set Subnet Mask of Router, PC and cameras. Set Gateway of PC and cameras with the same IP address. The Gateway is the IP address of router. Set the IP address of a valid DNS into cameras. An invalid DNS will cause the domain name can’t be resolved and reached, such as email address.
-
Page 64: Connects To Internet With Floating Public Ip Address
With audio: rtsp://60.220.20.250:555/3g Camera 2 Without audio: rtsp://60.220.20.250:555/3gx Connects to Internet with Floating Public IP Address If the public IP address of ADSL connection is variable, you can enable DDNS function to get a fixed URL to instead of the IP address. Note: only one device can enable the DDNS function in the local network (LAN), multiple devices use DDNS will update to the DDNS provider too frequently, and the DDNS provider will block your URL. -
Page 65: Factory Default
7. Factory Default To recover the default password and other settings, please follow the steps: 1. Power off this device. 2. Use a needle about 5cm long insert into the "Factory Default Hole" and push the button in the hole, keeping push it and don't release. Factory Default Hole 3. -
Page 66: Compatible List Of Sd Card
Compatible List of SD Card The Compatible List of SD Card Recommended SD Card SanDisk 128M SanDisk 16G SanDisk 256M SanDisk 32G SanDisk 512M Transcend 4G SanDisk 1G Transcend 8G SanDisk 2G Transcend 16G SanDisk 4G Transcend 32G SanDisk 8G...
