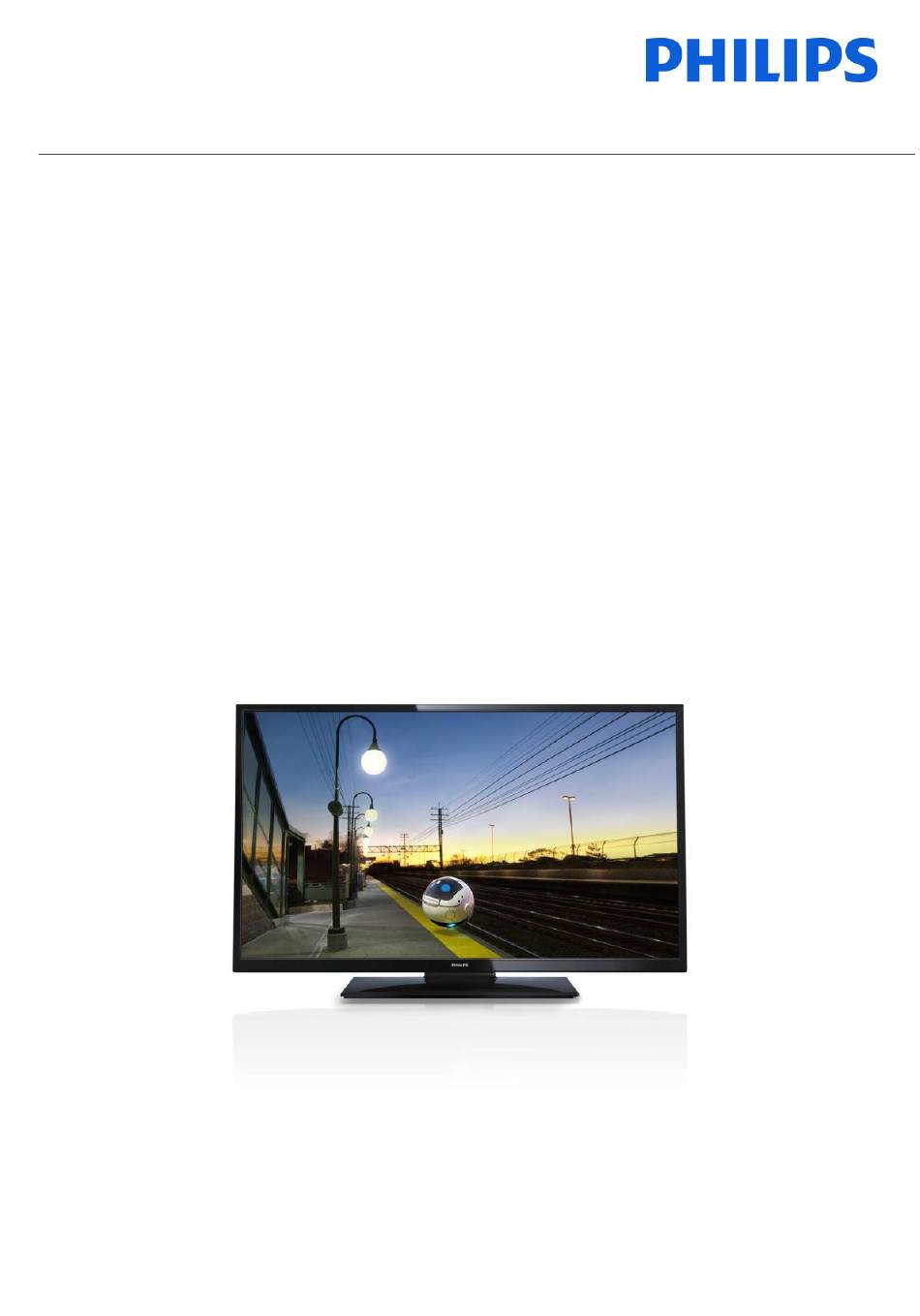

- Page 1 Philips Hospitality TV Installation Manual for 20HFL2809D/10 23HFL2809D/12 28HFL2809D/12 32HFL2809D/12 40HFL2809D/12 Status: Draft Version 0.1 Date: March 2014 Author: Marian Pufulete...
-
Page 2: Table Of Contents
Contents Requirements before starting the installation ......................2 Find out the state of the TV ............................3 Re-install TV ................................5 Installation wizard ..............................7 Picture ......................................11 Sound ......................................12 Settings ......................................13 Channel list ................................18 Media Browser .................................... 20 Professional Settings ................................ -
Page 3: Requirements Before Starting The Installation
1. Requirements before starting the installation Before starting the installation, make sure that you have everything you need at hand. Master remote control 22AV8573 Guest remote control 22AV1407A USB stick To enter the Hotel TV menu using the guest remote (22AV1407A): For all HFL2809 models you can use the guest remote and the key sequence 3,1,9,7,5,3,MUTE to access the Hotel Mode. -
Page 4: Find Out The State Of The Tv
2. Find out the state of the TV It is important to know if a TV is in ‘virgin mode’ (out of the box) or installed before. If you can see this screen below, you know that the TV is in ‘virgin mode’ and you can install the set. See chapter 4 of this manual. - Page 5 You can start the installation wizard again by reinstalling the TV as explained in chapter 3 of this manual. To be able to modify any settings on the TV you must disable the Hotel TV mode. Disable the Hotel TV mode To access the setup menu you should press the ‘RC5 SETUP’...
-
Page 6: Re-Install Tv
3. Re-install TV If you want to start an installation from scratch you can always re-install the TV. First step is to set the Hotel Mode to OFF and exit using the MENU or Return button on the guest remote. Note: It is not required to use a save button, once you exit the menu, you will save the settings from the Hotel TV Menu Press the MENU button on the guest remote to access the full menu of the TV. - Page 7 Select the last option available “First time installation” and press “OK”. The TV asks for confirmation by showing the following screen: If you are sure that you want to re-install the TV, select “Yes” and press OK. The TV will reboot itself and show the “virgin state” screens with a welcome message. Note: All settings will be reset to default values except Hotel menu values.
-
Page 8: Installation Wizard
4. Installation wizard When you turn on the TV for the first time, or you have reinstalled the TV, you should see the following screen. The installation wizardof which this screen is a part, will guide you through all the menus for a basic TV installation. Please select your language and press “OK”... - Page 9 Depending on country you might need to follow an additional step, setting up a pin code. This pin code will be used for blocking TV channels and settings. In some cases due the country regulations, you have to provide a pin code formed from four digits. This pin code will be required in case you want to modify the settings of the TV.
- Page 10 Aerial Installation If you select the AERIAL option in the Search Type screen, the TV set will search for digital terrestrial TV (DVB-T) broadcasts. NOTE: You can press the “MENU” button to cancel. After all the available stations are stored, the Channel List will be displayed on the screen. If you like to sort the channels according to the LCN (*), please select “Yes”...
- Page 11 Press “OK” to start the installation process. During this progress the bar will fill and found channels will be added to the list. Note: If option Aerial & Cable option is selected, when DVB-T channel search is complete, you need to define the start frequency, end frequency and step for DVB-C channels.
-
Page 12: Picture
Pressing the MENU button will bring the MENU with all options active. 5. Picture Accessing the picture submenu will bring the following menu on the screen: The option which can be set: Mode: Can be set to one of these options: Cinema, Game, Dynamic and Natural. Contrast: Sets the difference between the brightest and darkest of the screen. -
Page 13: Sound
6. Sound The sound options are available from the main menu: Select and press “OK” to access the submenu: The options available are: Volume: Adjusts the volume level. Equalizer: In the equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the “MENU”... -
Page 14: Settings
7. Settings The submenu can be accessed by pressing “OK” when this menu is highlighted. The options available are: The Conditional Access: Controls conditional access modules when available. Language: Configures language settings (-may change depending on the country selected) Preferred and current settings will be available. - Page 15 Parental: Configures parental settings including PIN code, Menu lock, Maturity Lock and Child Lock. Timers: Sets timers for selected programs. / Sets sleep timer to turn off the TV after a certain time. Date/Time: Sets date and time. Note:* The TV takes the time info via the broadcast. Correct time will be available on Date/Time Settings, if the time info is provided in the broadcast.
- Page 16 Install and Retune Menu Content all options related to channel installation. The install and retune menu contains options for automatic channel install, manual channel install, network scan, analog fine tune for a better reception of the analog TV channels. The first time installation option will delete the TV channels and set all settings to default values, except Hotel TV settings.
- Page 17 Manual Channel Scan: This feature can be used for direct broadcast entry. Search Type: Type of the channel to install Digital Cable, Digital Aerial or Analog Channel: The preset frequency Frequency: Input for the frequency Network scan: Enable or disable the network scan Signal quality &...
- Page 18 First Time Installation: Deletes all stored channels and settings, resets the TV to factory settings and starts the first time installation. You can follow the instructions in the Initial Installation section for more information on this process.
-
Page 19: Channel List
8. Channel list For channels options like: reorder, rename or lock you have to access the menu from the picture below. Channel management can be also done with channel editor application available for PC. Check appendix 1 for channel editor installation and usage. - Page 20 With the up and down arrow buttons you can select the channel and with the left and right arrow buttons the function which will be used for that channel. To move a TV channel in the list you need to do something similar. Select the TV channel with the up or down arrow buttons, and then select the Move function and press “OK”.
-
Page 21: Media Browser
Export Channel list to USB: This option will export the channel to USB. The exported channel plan can be managed on a PC using the Channel Editor Application. See appendix 1. Note: The USB drive must be formatted as FAT32. Import Channel list from USB: This option will import the channel plan from a USB stick. -
Page 22: Professional Settings
Professional Settings [Hotel Mode] Feature to enable or disable the Hotel TV Menu features. Note: When enabled, the TV will follow configured feature settings. If the Hotel Mode is set to OFF, none of the settings from this menu will be active. [Pin8] Feature to enable or disable the auto SCART feature Note: This feature allows a connected SCART device to turn the TV on or off. - Page 23 [Startup Position] Select startup program/source when TV is switched on via Power On key or Digit keys. • Auto TV wakes up in last used channel/source. • TV: The TV set wakes up with the channel specified in Startup Channel field •...
- Page 24 [OSD Disable] Feature to hide menu items when the Remote Control Menu key is pressed. • Disable All Menus :all menu icons are hidden • Disable Setup Menus: Picture, sound, settings and media browser menu icons are displayed. When [Hotel Mode] is set to Off, all TV menu items will be displayed (picture, sound, settings install and retune, channel list, media browser).
- Page 25 [USB option] Feature to detect if a USB device is connected. • On: to enable USB device detection. • Off: to disable USB device detection. When [Off] the Media Browser icon will be displayed but cannot be activated. [Fixed Pic. Mode] Feature to hide the picture menu icon •...
- Page 26 [High Security] If you set this option as ON, the Hotel TV menu will be accessible only with Philips master remote control. [Reset to Default Values] Highlight this option and press the OK button on the remote to return the TV to default settings.
- Page 27 Welcome Logo Once this feature is configured and set, the welcome image will be displayed within 8 seconds after switch on. This page will remain until a key on the RC is pressed. How to upload Welcome Logo 1. Create a graphics file: 960 x 540.png with the logo. Maximum size of the file is 150 kb. 2.
-
Page 28: Clone
Clone With cloning it is possible to copy to/from a USB device the configuration data and the channel list data from a TV. Place a USB Memory stick in the USB side connector of the TV. *The USB device should be formatted as FAT or FAT32. Access the Hotel Mode Menu with the RC 8573 (yellow remote) or with the guest remote by entering the key sequence 3,1,9,7,5,3,MUTE and navigate with the TV remote to following items: [Copy from USB]... -
Page 29: Feature Settings
9. Feature settings [Multi RC] Enter the MultiRC Menu Feature to configure the remote control to work with one TV. To enter the MultiRC Menu on TV press the key sequence: MENU, RETURN, 1,2,3,4. On the TV a menu will guide you to select the desired TV configuration. -
Page 30: Csm (Consumer Setup Menu)
CSM (Consumer Setup menu) Enter Service Menu It is only possible to enter the Service Menu if the Hotel Mode is disabled. Enter the Hotel Mode menu and set the Hotel Mode to “Off” To enter the Service Menu: • Press the following key sequence: Menu, 1,2,3,6,5,4 No items can be selected in the Service Menu. -
Page 31: Channel List Editor
Appendix 1 Channel List Editor The Channel List Editor PC tool enables editing exported XML channel list files in a way that is more understandable and user friendly. Note: XML means Extensible Markup Language Channel list should be exported from a TV set using the option available in the following menu (make sure that Hotel mode is set to OFF): 1. -
Page 32: Interface Description And Usage
Interface description and usage 1. Main window The Main menu consists of pretty much the same options as the toolbar below, with the exception of “Save as” and “Exit” options from the File submenu. Image 1-1 – File The “File” submenu consists of standard options as it can be seen on the Image 1-1 –... - Page 33 Image 1-2- Tools The “Tools” submenu consists of “Settings” and “Preferences” ( ). “Settings” open the Channel list settings dialog where a user can change Satellite configuration and Country (currently not used). “Preferences” opens a dialog for managing application settings (Satellite names, Countries, User band values). Image 1-2- Tools The “Help”...
- Page 34 Image 1-5 - Common Service Params And, depending on the Network Type of the currently selected channel, different additional groups can be displayed: Image 1-6 - DVB Triplet Values in DVB Triplet are only present when DVB channels are selected, for Analogue channels values in this group are empty.
-
Page 35: Editing Channel List
2. Editing channel list The Channel list editing can be performed easily with use of the toolbar buttons: Add, Favourite, Clone, Edit, More than one channel can be selected by holding SHIFT or CTRL and right mouse click. Remove. Image 2-1 - Add Add –... - Page 36 Clone - is much like Add just instead of leaving all the fields empty it will keep all the values from the previously selected channel except for values that needs to be unique (Service Name, Channel Number...) for easy adding of new channels on the same frequency.
-
Page 37: Limitations And Constraints
Move - Moving a channel or a selection of channels can be done using drag and drop options. Select the TV channel and move it to desired position. Moving a channel will cause renumbering of the channels. Note: you cannot assign numbers to TV channels, channel numbers will be assigned based on arranged list. Move is possible only in the same subcategory;...
